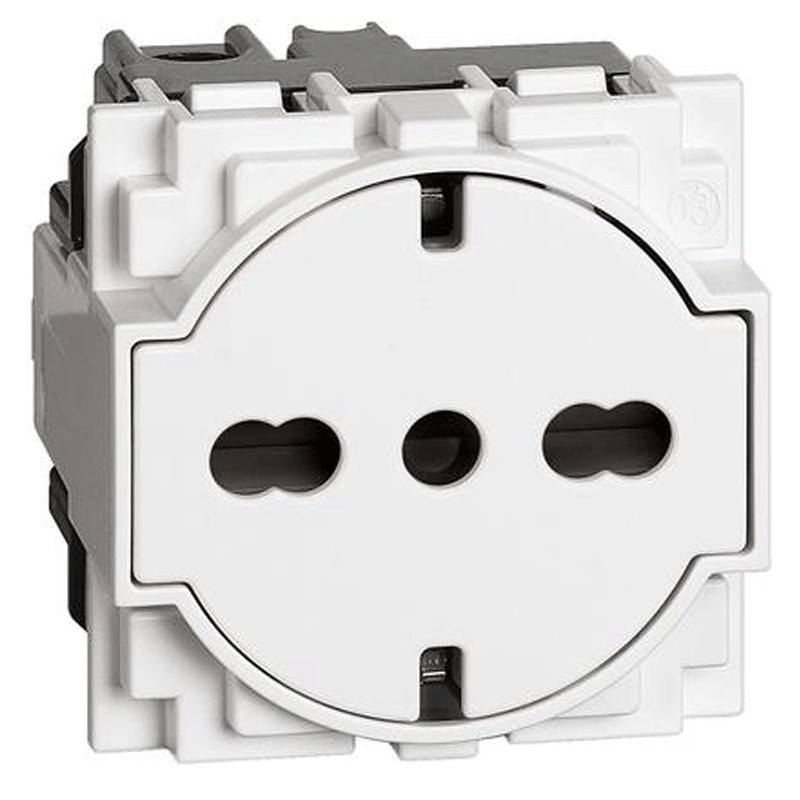

Bticino Living Now FLAT Socket 16A white KW4140A16F
BTI KW4140A16F
8005543615218
The Bticino Living Now 16A FLAT Schuko Receptacle is a high-quality receptacle designed to provide safe and functional integration with the home electrical system. Suitable for standard Italian and German plugs, this socket has a surface that slides into the well when the plug is inserted and automatically returns to its initial position when the plug is pulled out:
-
Voltage: 250V AC
-
Current: 16A
-
Compatibility: Suitable for standard Italian and German plugs
-
FLAT design: Socket slides when plug is inserted and returns to initial position
-
Protected alveoli: Additional protection for added safety
-
Side ground contacts: Ideal for standard German 2P+E 16A plugs
-
Compatible cover: complete with KW03 cover.
€15.79
Items Available: 3613
: 519
Frequently bought together
Bticino Living Now white FLAT Schuko socket KW4140A16F:
Compatibility and Usage
This socket is compatible with 10A and 16A 2P+E plugs, both Italian and German, offering unique versatility for any type of electrical installation. The 19 mm and 26 mm spacing makes the receptacle ideal for all standard configurations, while the protected alveoli and side ground contacts increase safety.
Innovative design and practicality
The FLAT design allows easy handling of the plug, thanks to the movement that allows the plug to slide into the well. This detail makes the socket more convenient in daily use and more durable than traditional sockets.
Complete your installation
For a complete and safe installation, the Bticino Living Now 16A FLAT Schuko socket must be combined with the KW03 cover, available separately. This cover will ensure a perfect and safe installation in your electrical system.
Technical features in detail
| Features | Detail |
|---|---|
| Series | Bticino |
| Voltage | 250 Vac |
| Current In | 16 A |
| Number of modules | 2 modules |
| Poles | 2P+T |
| Stripping length (rigid or flexible cables) | 9 mm |
| Penetration by solids/liquids | IP 21D |
| Impact proof | IK04 |
| Material | Polycarbonate |
| Color | White |
| Halogen free | Yes |
| UV resistant | Yes |
| Operating and storage temperatures | -5° C to +35° C |
| Self-extinguishing | Yes |
| Fire resistance (850°C/30 s) | For insulating parts that hold live parts in place |
| Fire resistance (650°C/30 s) | For other parts of insulating materials |
prodotto di qualità come da descrizione
Presa di facile installazione e ottimo design. Ottimi materiali costruttivi.
Tutto ok. Prodotto conforme e spedizione puntuale.
Comoda ai clienti piace molto buon prodotto
Funziona perfettamente ma ad esempio i caricatori dei cellulari li sputa fuori. Da valutare, pur perdendo un po' di estetica, se prendere la normale
Prodotto ottimo, sempre consegnato ben imballato e funzionale
Ottimo prodotto con un'estetica eccellente
E' ormai diverso tempo che acquisto su Elettronew, ho sempre la sicurezza di trovare la qualità dei prodotti BTicino ad un prezzo davvero concorrenziale ed un servizio efficace e rapido.
Tutto perfetto, spedizione e prodotti con prezzi fenomenali. Consigliato!!!!!
Nessun problema sul servizio del fornitore.
Materiale correttamente imballato e spedizione super veloce.
La qualità del prodotto è buona. l'effetto dopo il montaggio è "molto elegante".
Data sheet
