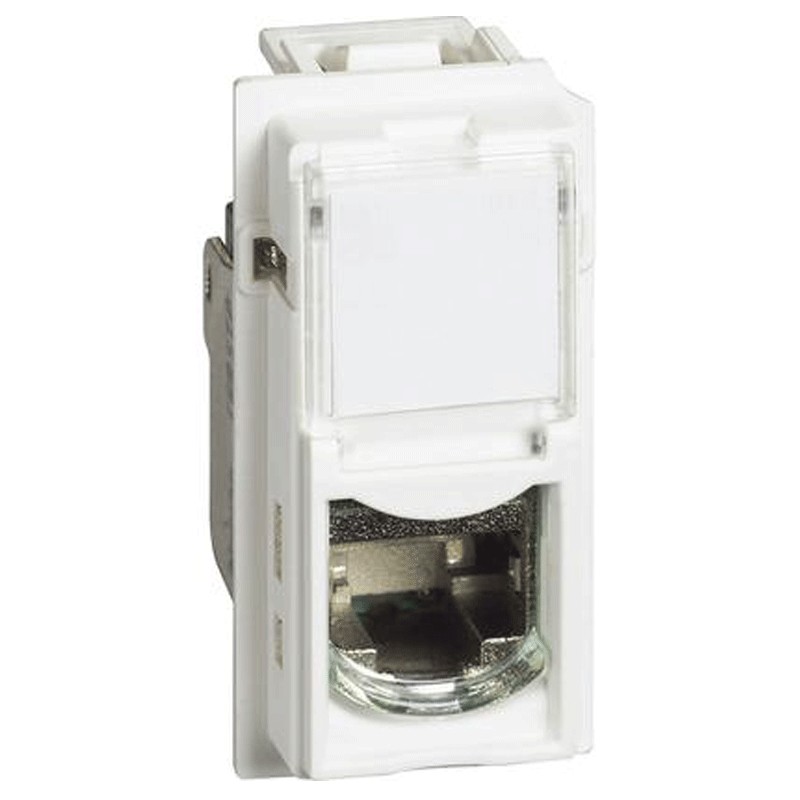

Bticino Living Now Toolless RJ45 Data Socket UTP CAT.6 White KW4279C6
BTI KW4279C6
8005543621707
The Bticino Living Now RJ45 Toolless UTP CAT.6 KW4279C6 data socket, in white, is designed to provide a reliable, high-quality connection for data and telephony systems. Thanks to the IDC Toolless connection system, installation is simple and requires no special tools such as pliers:
-
CAT.6 standard: Ideal for high-performance data transmission systems.
-
IDC Toolless Connection: Connection without the use of pliers, for added convenience.
-
Universal Compatibility: Usable for 4-pair systems for data and telephony.
-
Modular design: 1-module format, to be completed with the KW07 cover.
-
White colour: Perfectly integrated into the Living Now line.
€8.79
Items Available: 932
: 216
Frequently bought together
Bticino Living Now RJ45 Toolless UTP CAT.6 Data Socket - KW4279C6
Advanced performance
The RJ45 UTP CAT.6 socket offers stable and reliable transmission, ideal for Ethernet and telephone connections. Thanks to IDC Toolless technology, installation is quick and easy, without compromising on connection quality.
Simple and intuitive installation
With the IDC Toolless system, socket installation is intuitive and does not require the use of pliers. The 1-module format ensures seamless integration into Living Now series installations.
Ideal applications
- Connecting PCs to the Ethernet network.
- Telephone systems for homes and offices.
- Installations in local area networks with CAT.6 standards.
General Specifications
| Feature | Detail |
|---|---|
| Protection class | IP: 21 D, IK: 03 |
| Contacts | Gold/Nickel, minimum gold thickness > 0.8 μm |
| Metal Components | Bronze, Nickel, Platinum, Gold, Polycarbonate PBT |
| Material |
ABS for plates |
| Halogen free | Yes |
| UV resistant | Yes |
| Self-extinguishing |
|
Electrical Characteristics
| Feature | Detail |
|---|---|
| Breaking voltage | ≥ 1000 V |
| Contact resistance | ≤ 20 MΩ |
| Insulation resistance | ≥ 500 MΩ at 100 VDC |
| Connector tested | Compliant with POE (IEEE 802.3af standard) and POE+ (802.3at interim standard) stress signal, up to 2500 load connections/disconnections. |
| Tests performed | 2 simultaneous POE + circuits for a total minimum power of 50 W |
Climatic Characteristics
| Feature | Detail |
|---|---|
| Use and storage temperature | -5°C to +35°C |
Nice design and all round functionality, home assistant integration.
Serie living now Ticino color bianco, finitura ice. Esteticamente bellissima, finiture eleganti. Per la durata vedremo...
I prodotti sono di qualità ottima, la spedizione è stata rapidissima
Ottimo componente elegante e finissimo da comprare
E' ormai diverso tempo che acquisto su Elettronew, ho sempre la sicurezza di trovare la qualità dei prodotti BTicino ad un prezzo davvero concorrenziale ed un servizio efficace e rapido.
Tutto perfetto, spedizione e prodotti con prezzi fenomenali. Consigliato!!!!!
Ottimo prodotto, linee moderne e montaggio semplicissimo
Ottimo prodotto. Lo consiglio a chiunque deve cambiare l'impianto elettrico
Descrizione perfetta e conforme al prodotto ricevuto.
Come solito grande qualità da parte di Bticino.
Data sheet
- Main Commands: RJ45 Data Sockets
