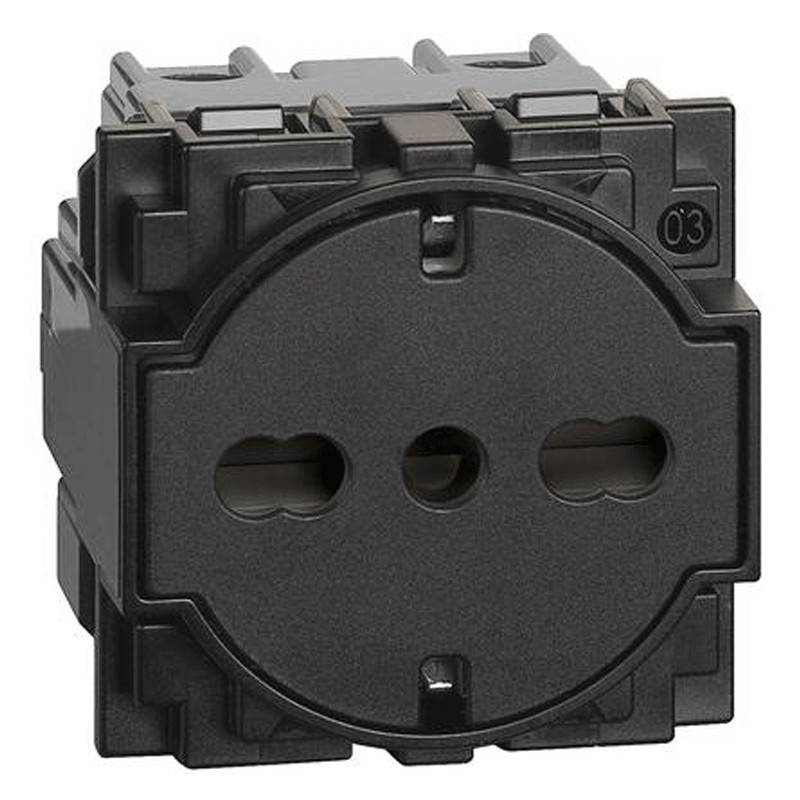

Bticino Living Now Schuko socket FLAT 10/16A Black KG4140A16F
BTI KG4140A16F
8005543615270
The Bticino Living Now 10/16A FLAT Schuko Socket is an ideal solution for those looking for a practical and safe installation, able to accommodate both standard German and Italian plugs. The socket, equipped with side ground contacts and a sleek design, is a product of the Bticino Living Now series, which stands out for its quality and innovation:
-
Compatibility: Suitable for standard German and Italian plugs.
-
Voltage: 250V AC, perfect for home and professional use
-
Current: 16A, ensuring high load capacity
-
Modules: 2 modules, with 19mm and 26mm spacing, for easy integration
-
FLAT design: Allows for smooth insertion of the plug, which slides inside the well and returns to its initial position when pulled out
-
Safety: protected alveoli and side ground contacts for complete protection
-
Compatible cover: to be completed with KG03 cover
€15.79
Items Available: 1933
: 415
Frequently bought together
Schuko FLAT Socket Bticino Living Now Black KG4140A16F
Innovative design for enhanced safety and comfort
The Bticino Living Now 10/16A FLAT Schuko Receptacle is designed for everyday use, combining functionality with elegant design. Its FLAT design allows the plug to slide gently into the receptacle, minimizing wear and tear and improving reliability over time. Once the plug is pulled out, the socket automatically returns to its original position, offering additional protection against accidental insertion.
Compatibility with German and Italian plugs
This receptacle is Schuko compatible, supporting both German and Italian plugs, providing unparalleled versatility. The side ground contacts are ideal for use with European-type plugs, while the protection against accidental contact offers greater safety than traditional sockets.
Easy installation and use
With its two-pin configuration and 19 mm and 26 mm spacing, the socket easily integrates into any type of installation. The surface of the socket is designed to minimize friction during plug insertion, allowing for a comfortable and safe user experience.
How to complete the installation
To complete the installation of the Bticino Living Now 10/16A Schuko FLAT Socket, you need to use the KG03 cover, which allows you to cover the socket and perfectly adapt it to the desired aesthetic and functional context. The cover is available separately and ensures an elegant and modern finish.
Technical features in detail
| Features | Detail |
|---|---|
| Screw clamps | Stripping length, rigid or flexible cables: 9 mm |
| Penetration by solids/liquids | IP 21 D |
| Impact test | IK 04 |
| Material | Polycarbonate |
| Color | Black |
| Halogen free | Yes |
| UV resistant | Yes |
| Self-extinguishing | 850°C/30 s for insulating parts that hold live parts in place, 650°C/30 s for other parts of insulating materials |
| Voltage | 250 VAC |
| Current | 10 or 16 A |
| Operating and storage temperatures | -5° C to +35° C |
Perfetta per un design minimale che lascia la placche totalmente chiuse.
Prodotti di ottima fattura, come da descrizione del venditore
Peccato che si incastra un po il pezzettino ogni tanto
Awesome. Highly recommend the store and product line
perfetta, bella anche per il fatto che è flat
Linea moderna e innovativa all’avanguardia con i tempi ,domotica eccellente è facile da gestire dallo smartphone
Esteticamente è più bella della classica schuko, leggermente scomoda nell'inserimento della presa
Nessuna imperfezione e colore superiore alle aspettative!
Qualità superiore rispetto alle altre marche.
Ben rifinito, prodotto di qualità, consigliato
Come da descrizione. Per la Serie living now
Data sheet
- Main Commands: Power Sockets
