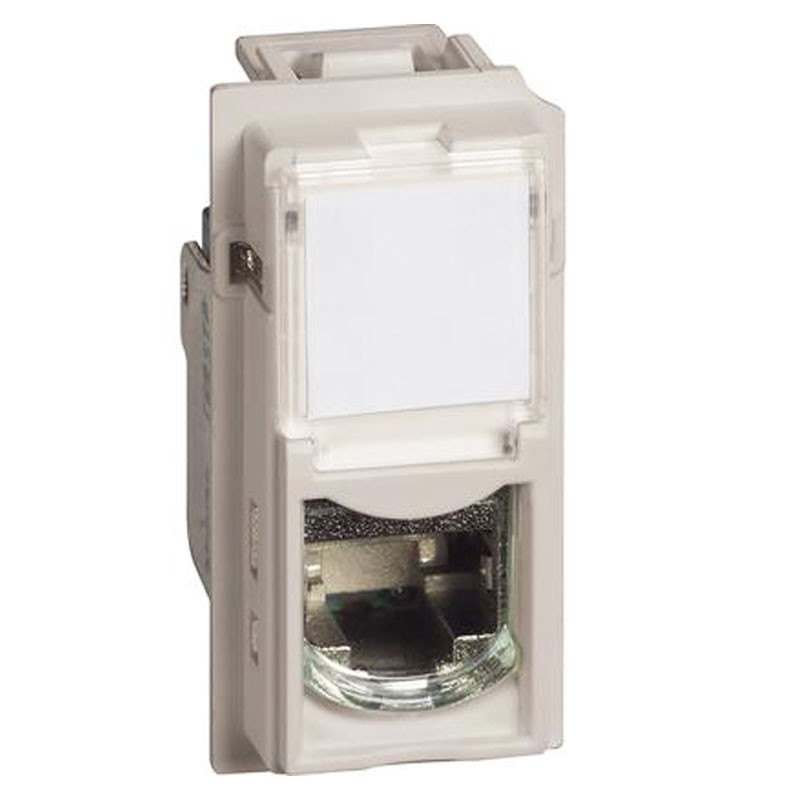

Bticino Living Now toolless RJ45 connectors STP cat6A sand KM4279C6AS

Bticino
Bticino
BTI KM4279C6AS 8005543621837

Bticino Living Now RJ45 connector, with the following characteristics:



  • Category 6A STP
  • TOOLLESS IDC type connection for data/telephony transmission
  • Can be used for 4-pair signal transmission systems
  • 1 module
  • Colour: sand
Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Living Now toolless RJ45 connectors STP cat6A sand KM4279C6AS
€25.54
€25.54

€25.54
Tax included
Calculate shipping cost
Items Available: 10
Further availability of the manufacturer
€25.54

Buy it within and receive it from Tuesday, 3 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Connector tested and guaranteed according to POE stress signal, IEEE 802.3af standard and POE+, 802.3at provisional standard, up to 2500 load connections/disconnections. Tests are performed with 2 simultaneous POE + circuits for a minimum total power of 50W.



Other features:

  • Breaking voltage ≥ 1000V
  • Contact resistance ≤ 20 MΩ
  • Insulation resistance ≥ 500 MΩ at 100 VDC
  • IP degree of protection: IP21
  • IK degree of protection: IK03
  • Contacts: gold/nickel, minimum gold thickness > 0.8 μm
  • Metal components: bronze, nickel, platinum, gold
  • Halogen free
  • UV-resistant
  • Use and storage temperature: - 5°C to + 35°C



Self-extinguishing:

  • 850°C/30 s for insulating parts that hold live parts in place
  • 650°C/30 s for other parts of insulating materials
