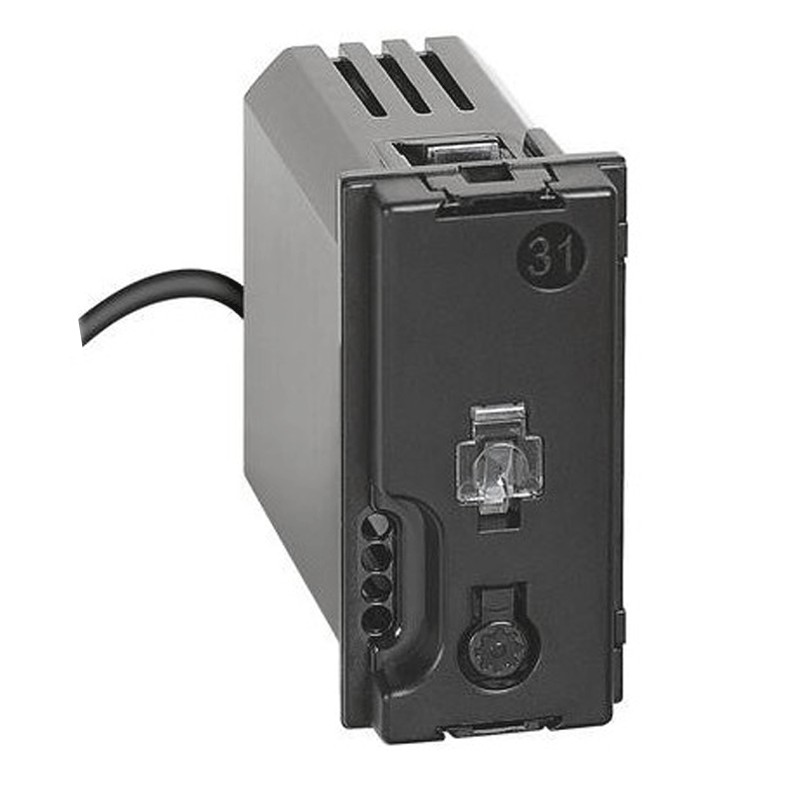

Bticino Living Now connected Module for socket K4531C
BT1 K4531C
8005543612606
The Bticino Living Now K4531C Connected Socket Module is designed to turn any power outlet into a smart device, allowing remote control and monitoring of electrical consumption of appliances up to 3680 W with a maximum power consumption of 16 A, guaranteeing safety and overload protection.
- Remote control: management of electrical devices via HOME + CONTROL App
- Consumption monitoring: instantaneous, daily and monthly
- Overload protection: up to 16 A / 3680 W
- LED indicator: blue, configurable for status and location
- Power supply: 100-240 V AC
- Installation: 1 module
- Compatible covers: KG31 - KM31 - KW31
€37.68
Items Available: 142
: 4
Frequently bought together
Bticino K4531C Connected Socket Module: Remote control for electrical devices
With the HOME + CONTROL App, you can remotely turn on, turn off or schedule electrical devices, as well as monitor their consumption in real time. The module records daily and monthly consumption and sends notifications in case of anomalies, allowing you to optimize energy costs and prevent overload situations.
Configurable LED indicator
The module has a blue LED, which is useful for locating the outlet or displaying the status of the load. The LED can be configured directly from the app to provide immediate feedback on the operation of the connected device.
Simple and safe installation
Compact and designed for 1 DIN module, the K4531C module plugs directly into the outlet and requires no complex work on the electrical system. The hidden RESET button allows the device to be returned to factory settings without hassle.
Compatibility and safety
The module is compatible with any electrical appliance within the stated power and power consumption limits, protecting the system from overloading thanks to the 16 A limit. Universal power supply (100-240 V AC) makes it suitable for installation in any standard household system.
Connection
| Feature | Value |
|---|---|
| Terminal type | Screw type |
| Clamp capacity | 2 × 2.5 mm² |
| Stripping length | 7 mm |
| Screwdriver type | Flat 3 mm |
Operation
| Feature | Value |
|---|---|
| LED indicator | Useful during installation |
| RESET button | Used to reset to factory settings |
Mechanical features
| Feature | Value |
|---|---|
| Degree of robustness | IK 04 |
| Protection from solids/liquids | IP 20 |
Material characteristics
| Feature | Value |
|---|---|
| Mechanism housing | Polycarbonate (PC) |
| Halogen-free | Halogen-free |
| UV resistance | UV resistant |
| Self-extinguishing | +850°C/30s for insulating parts that hold live parts in place +650°C/30s for other insulating components |
Electrical Characteristics
| Characteristic | Value |
|---|---|
| Voltage | 100 - 240 V~ |
| Current | 16 A |
| Frequency | 50 / 60 Hz |
| Power supply | 240 Vac - 3840 W (cosφ 0.8) |
| Stand-by consumption | 1 mA |
| Technology | Zigbee 2.4 GHz - 2.4835 GHz |
| Power level | < 20 dBm (REC 70-03) |
| Operating range | 200 m in open space, 10 m between devices |
Climate characteristics
| Feature | Value |
|---|---|
| Storage temperature | 0 °C to +45 °C |
| Usage temperature | +5 °C to +45 °C |
