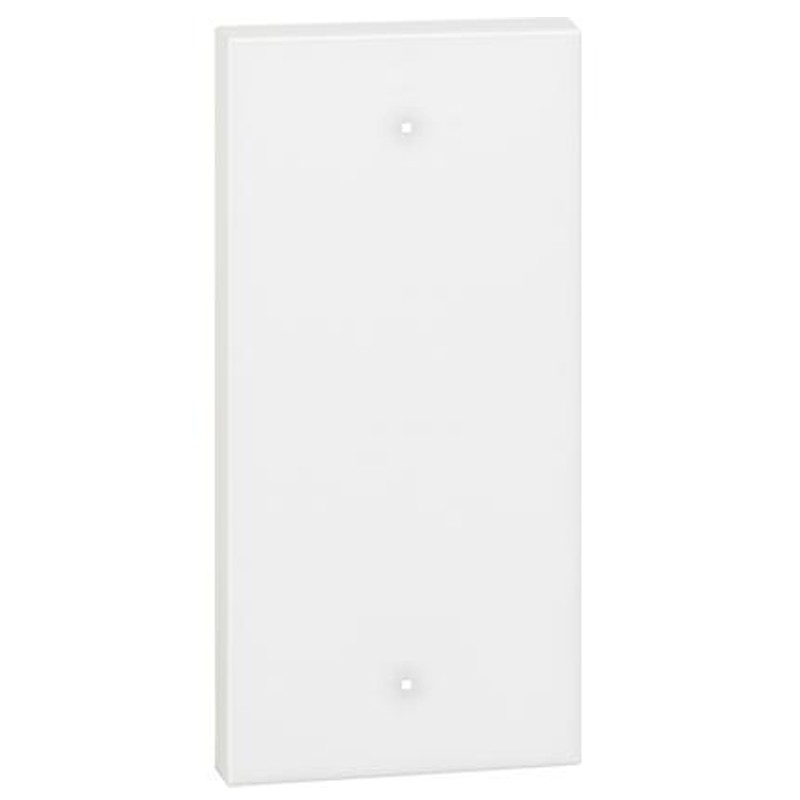

Light control digital touch Bticino Living Now White KW8010
BTI KW8010
8005543645994
Light control digital touch Bticino Living Now to manage functions light ON/OFF. A single command can be used to manage up to a maximum of two functions between individual lights, group of lights or general lights. 1 module. Color White. Mount only on support Living Now. Complete with actuator, flush-mounted article K8002L. No need to plate additional.
€29.54
Items Available: 31
: 2
Frequently bought together
The command can be moved while keeping the same configured function. Both user and installer can change the lighting function is configured through the app MyHOME_Up.
The command has led to discrete, which become blue in colour to signal when the light is turned on.
Features:
- Operating temperature: 5 to 40 °C
- Supply voltage: 18 to 27 Vdc
- Maximum absorption: 6 mA
- Electrical connections 4 clothespins link
- Installation on the wall 1 module
- Configurable through the app MyHOME_Up, or through the software MyHOME_Suite.
Functions And Lights:
- Cyclic control without adjusting the pressure the device behaves in ON/OFF mode. If the command is not configured in a point-to-point, not getting the return status, the device sends alternatively, the ON/OFF command
- OFF: if configured in this manner, the device sends only the OFF command
- PUL: if configured in this way, the device behaves like a button
- ON command timed: the device sends the off command after the time interval set. The length of time depends on the value of specific parameters
- Control brightness With the device configured, you can set the LED to the default level or at the maximum level.
Data sheet
- Bticino MyHOME: Touch controls
