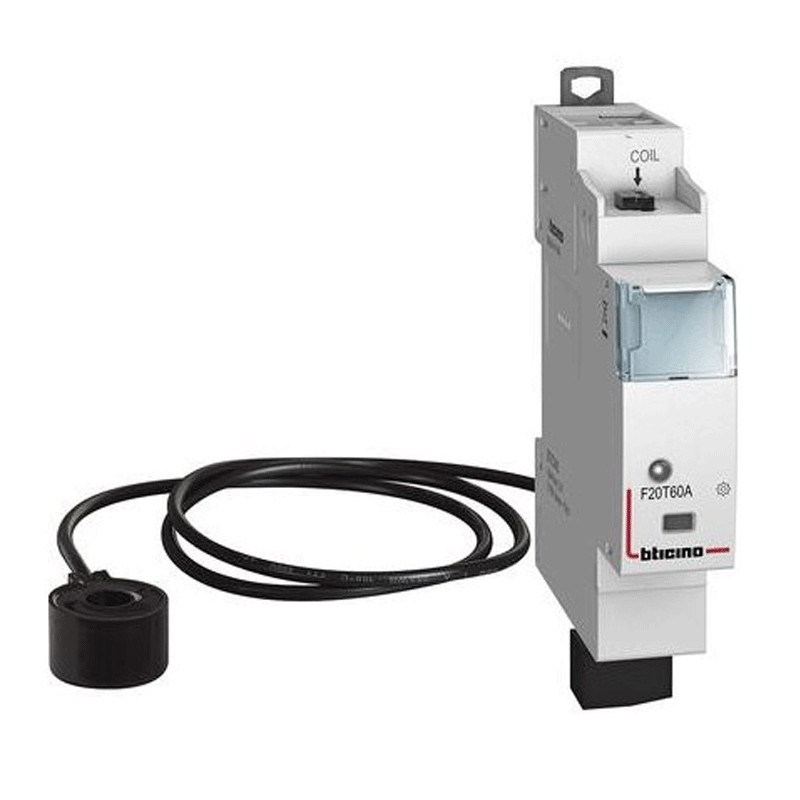

Bticino Living Now smart DIN meter F20T60A
BT1 F20T60A
8005543621097
The Bticino Living Now F20T60A DIN Meter is designed to provide complete control over the energy consumption of the entire single-phase home. With instantaneous, daily and monthly monitoring, it is possible to analyze electricity use both globally and by individual power lines, identifying any waste or abnormal consumption.
- Energy consumption metering: instantaneous, daily and monthly
- Individual line monitoring: monitors the absorption of each domestic circuit
- Blackout protection: notifications when contracted power is exceeded
- Compatibility: only with Bticino Living Now devices and gateways
- Power supply: 100-240 V a.c.
- Format: 1 DIN module
- Accessories included: toroid for current measurement, protective cover
- Integrated LED: indicates operating status
- Hidden RESET button: to restore factory settings
€61.12
Items Available: 27
Frequently bought together
Bticino Living Now F20T60A DIN meter for complete control over energy consumption
The device sends automatic notifications when the power consumed approaches the contracted maximum limit, thus preventing possible power outages. This allows you to proactively manage household energy and optimize consumption.
Simple and safe installation
The F20T60A is compatible only with the Bticino Living Now system, ensuring full integration with gateways and connected devices. DIN-rail installation is simple and safe, and the device comes with a toroid for current measurement and a protective cover. The LED indicator signals operational status, while the hidden RESET button makes it easy to restore factory settings without interfering with power management.
Advanced energy monitoring
With this meter, users can monitor individual power lines and obtain accurate data on their home's energy use. The ability to receive alerts when contracted power is exceeded makes this device a key ally for smart energy management, helping to save on electricity costs and protect the system.
Link
| Feature | Value |
|---|---|
| Terminal type | Screw-on |
| Clamp capacity | 1 × 2.5 mm² - 2 × 1.5 mm² |
| Stripping length | 7 mm |
| Screwdriver | Flat 3 mm |
Mechanical characteristics
| Feature | Value |
|---|---|
| Strength grade | IK 04 |
| Protection from solids/liquids | Assembled product IP 20 |
Material characteristics
| Feature | Value |
|---|---|
| Module | PC 10% GF |
| Halogen-free | Halogen-free |
| UV resistance | UV resistant |
| Self-extinguishing | +850°C/30s for insulating parts that hold live parts in place +650°C/30s for other insulating components |
Electrical Characteristics
| Characteristic | Value |
|---|---|
| Voltage | 100 - 240 V~ |
| Maximum intensity (coil) | 72 A |
| Frequency | 50 / 60 Hz |
| Power supply | < 100 mW |
| Stand-by consumption | 1 mA |
| Technology | Zigbee 2.4 GHz to 2.4835 GHz |
| Power level | < 20 dBm (REC 70-03) |
| Operating range | 200 m in open space, 10 m between devices |
Climate characteristics
| Feature | Value |
|---|---|
| Storage temperature | 0 °C to +45 °C |
| Usage temperature | +5 °C to +45 °C |
