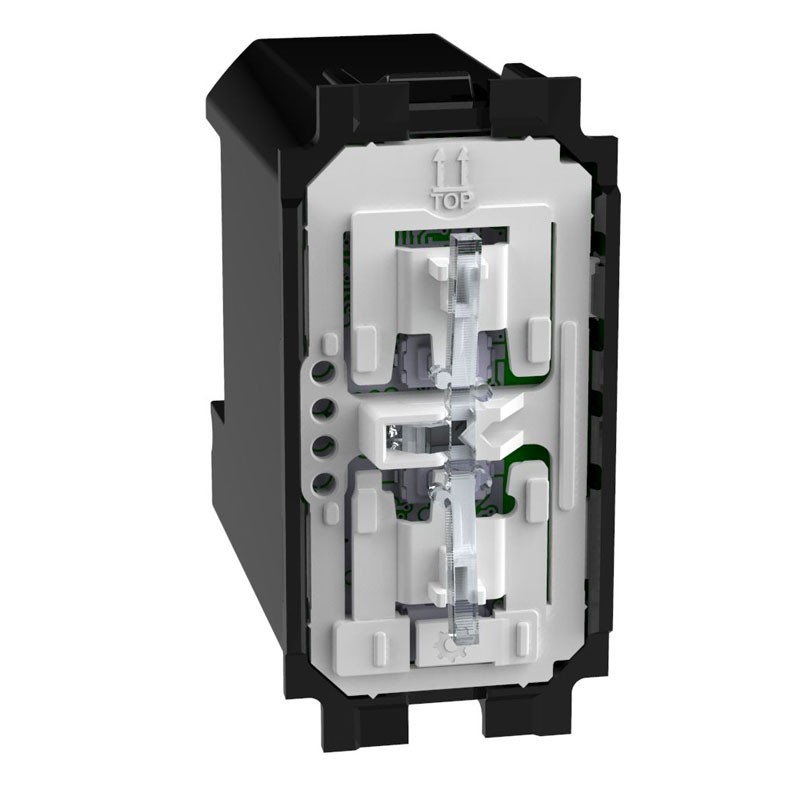

Bticino Living Now Universal push-button dimmer 100-240V AC 1M K4418
BTI K4418
8005543741559
Universal push-button dimmer Bticino Living Now, intelligent light control for every type of load, with the following features:
-
Nominal voltage: 100 - 240V AC
-
Supported power: From 75 to 150W (depending on load)
-
Control: Push-button (connection with neutral)
-
Modules: 1
-
Mounting: Flush-mounted
To be completed with covers KG19, KM19, KW19
€45.25
Items Available: 2
: 1
Frequently bought together
Living Now push-button dimmer for lighting control
The Living Now universal push-button dimmer, with a 1-module format, is the ideal solution for adjusting light intensity simply and effectively, with maximum compatibility with different types of loads. Designed for residential and commercial electrical systems, this device stands out for its versatility, reliability, and compatibility with the modern aesthetics of the Living Now series.
Universal compatibility with every light source
This dimmer is designed to handle a wide range of electrical loads, including:
-
Resistive lamps (e.g., halogen)
-
Inductive loads (traditional transformers)
-
Capacitive loads (electronic transformers)
-
Dimmable compact fluorescent lamps
-
Dimmable LED lamps
Thanks to universal technology, the dimmer automatically recognizes the type of connected load and adjusts its operation to ensure smooth, silent, and flicker-free regulation.
Simple installation and efficient operation
Installation is carried out in standard mode with neutral connection, ensuring greater stability and compatibility even with modern LED lamps. The control is via a push-button (not included), allowing you to turn on, off, and adjust light intensity with a single gesture.
The device operates in a voltage range from 100 to 240 Vac, with a network frequency of 50/60 Hz, making it compatible with the most common electrical systems.
Compact design and aesthetic integration with Living Now
The dimmer is contained in a single DIN module, perfect for installation in standard flush-mounted boxes, even where space is limited. It is part of the Living Now series, known for its modern and minimalist design, allowing perfect aesthetic harmony between technical functionality and high-quality finishes.
Ideal applications
This dimmer is suitable for a wide range of environments and uses:
-
Modern homes and smart homes
-
Offices and professional spaces
-
Shops and showrooms
-
Hotels and hospitality facilities
Personalized light regulation helps create comfortable environments and save energy, enhancing the living or working experience.
Although the K4411 is presented as a universal dimmer, the Philips A67 12W E27 CL dimmable LED bulb flashes annoyingly throughout the control area, accentuating up to 40% of the intensity. Installation is simple, involving only a switch and a light bulb. I tried all the setting options.
See https://www.assets.signify.com/is/content/Signify/Assets/philips-lighting/global/20210101-professional-led-mv-dimmer-list-q1.pdf, although I did not find the drive in the list K4411, I find that the only Bticino drive listed is not compatible with virtually any Philips dimmable LED bulb on the market.
I specify that the replaced drive worked without problems, the replacement being made for reasons of unitary appearance.
It would be useful to have a list of compatible bulbs on the BTicino website, so that it is not necessary to take a bulb for testing before any purchase of bulbs, or at least a disclaimer related to its non-universality.
Data sheet
- Main Commands: Dimmer
