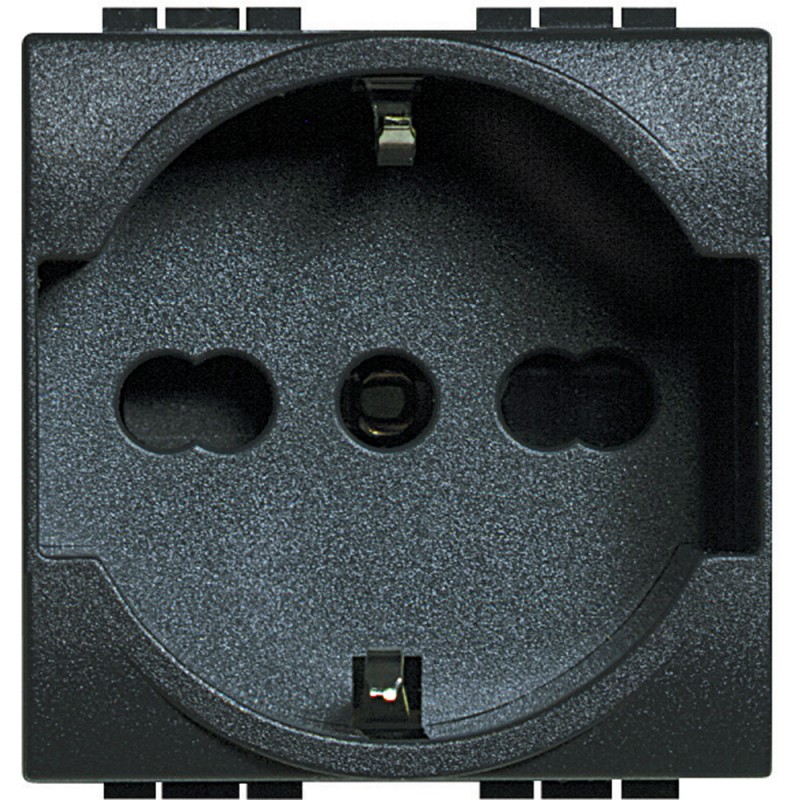

Bticino Livinglight Schuko Socket 2P+E 16A 250V Anthracite L4140/16
BTI L4140/16
8012199491691
Bticino Livinglight two-pin socket, compatible with Italian and German Schuko plugs. Safe, versatile and modern design, with the following features:
-
Two-pin outlet: 2P+E 10/16A, Italian and Schuko compatible
-
Rated voltage: 250V AC
-
Center distance: 19 mm and 26 mm
-
Modules: 2
-
Color: Anthracite
€17.52
Items Available: 2051
: 10
Frequently bought together
Livinglight 2P+T two-pin socket: dual compatibility, maximum safety
The 2P+E 16A two-pin socket of the Livinglight series, in anthracite color, is a versatile and safe solution for civil and professional electrical installations. Thanks to the two-pass configuration with 19 and 26 mm spacing, it allows the insertion of different types of plugs, making it perfect for any domestic or business need.
Compatible with Italian and German plugs
The outlet is designed to accommodate:
-
Italian 2P and 2P+E 10A and 16A plugs
-
German standard (Schuko) 2P+E 16A plugs
Integrated side ground contacts allow full compatibility with Schuko plugs, while the two-pin configuration ensures use with Italian plugs as well, without adapters.
Guaranteed safety with shielded alveoli
Equipped with shielded alveoli, this outlet provides effective protection against accidental contact, making it ideal even in environments frequented by children or in professional settings where safety is a priority.
Stylish design in anthracite color
The matte anthracite finish of the Livinglight by BTicino Series gives the socket a modern and refined look that can be easily matched with contemporary and minimalist furnishing styles. Aesthetics combine with functionality for an elegant, high-performance outlet.
Ease of installation and modularity
With its 2 modules, the socket is compatible with all Livinglight series holders and plates, ensuring perfect integration into the electrical system. Installation is quick and easy, making it ideal for both new installations and renovations.
Technical Characteristics Bticino Livinglight Socket
| Parameter | Value |
|---|---|
| Modules | 2 |
| Contact type | 2P+T two-pin |
| Rated current (In) | 10 / 16 A |
| Rated voltage | 250 V AC |
| Interaxes supported | 19 mm and 26 mm |
| Plug compatibility | Italy 10A and 16A, Schuko 16A |
| Ground contacts | Sides for Schuko plugs |
| Protected alveoli | Yes |
| Color | Anthracite |
| Installation | Recessed |
