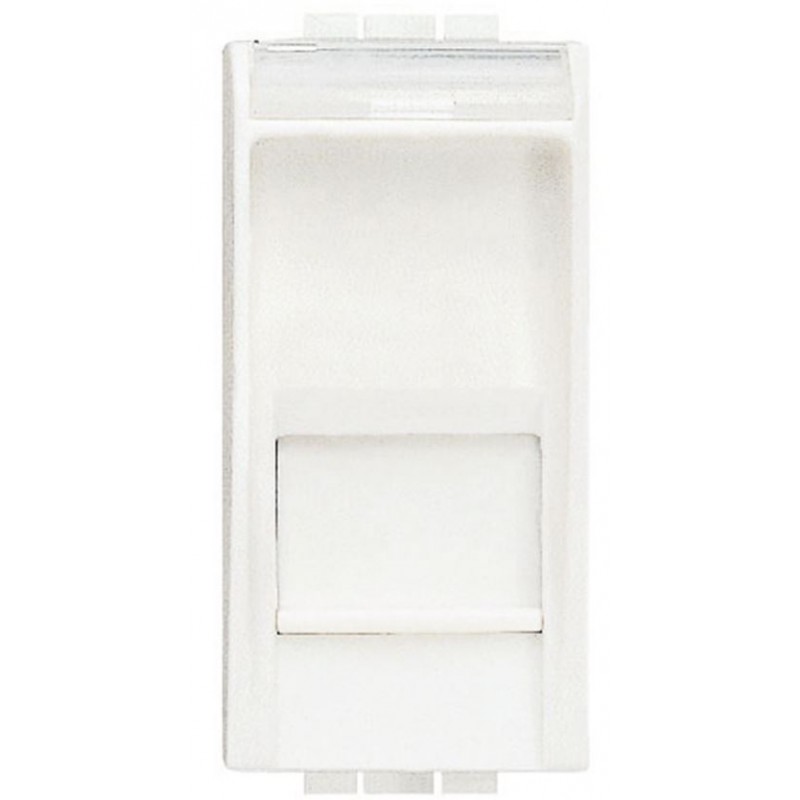

Bticino LivingLight RJ45 toolless data outlet cat6A N4279C6A
BTI N4279C6A
8012199976877
The Bticino BTNET RJ45 connector is a professional solution for building workstations and patch panels. Part of the Livinglight Civilian Series, it is designed to provide high performance in Gigabit Ethernet wired networks and other advanced applications:
-
Category: 6A STP (Shielded)
-
Compatibility: With F/UTP cables from 22 to 26 AWG
-
Installation: Tool-free insulation etching connection
-
Durability: 2500 insertion/disconnection cycles
-
Colour: White
-
Equipment: Nameplate and dust hatch
€29.45
Items Available: 5
: 3
Frequently bought together
Bticino LivingLight RJ45 toolless data outlet cat6A N4279C6A
The Bticino BTNET N4279C6A RJ45 connector is a professional solution for building workstations and patch panels. Part of the Livinglight Civilian Series, it is designed to deliver high performance in Gigabit Ethernet wired networks and other advanced applications. With its ease of installation and advanced technical features, it is perfect for business and residential environments.
High performance and standards compliance
Designed for advanced network applications, the Bticino N4279C6A RJ45 connector supports:
- Gigabit Ethernet (1000 Base-TX)
- 10 and 100 Base-TX
- Token Ring, ATM at 155 Mbps
- ISDN and 100 Mbps TP-PMD
It complies with international standards ISO/IEC 11801 (second edition), EN 50173-1 and TIA/EIA 568-B.2, ensuring reliable performance and stable transmission.
Ease of installation
Connector installation is simplified by the insulator-etched connection system, which requires no additional tools. It also offers the possibility of rewiring up to 5 times without the need to cut the attested cable.
| Feature | Value |
|---|---|
| Outer housing | Polycarbonate and metal for shielding |
| Localized area contacts | Gold/nickel with a thickness > 0.8 µm gold in localized area |
| Possibility of cable rewiring | 5 without cutting the attested cable |
| Insertions/disconnections | 2500 cycles |
| Operating temperature | -40/+70 degrees |
| Connection | T568A, T568B |
| Conductors | Shielded cable 22÷26 AWG |
| Impact Tool | Not required |
| Applications | Gigabit Ethernet (1000 Base - TX), 10 and 100 Base - TX, token ring, 155 MDps ATM, 100 Mbps TP-PMD, ISDN |
| Standards |
TIA/EIA 568-B.2 EN 50173 second edition ISO 11801 second edition NCF 20730 Standard 8877 - 603.7 |
There are no reviews
Data sheet
- Main Commands: RJ45 Data Sockets
