Advantages:

• The handset meets the IK07 degree of robustness, IP54 degree of protection.
• The video intercom has 2 physical buttons for controlling the main video intercom functions-answering and closing the call-and 3 touch buttons that allow activation of the electric lock, door station/cycling activation, and customization of a quick action that the user uses most frequently-e.g., staircase light control, intercom, activation
• Wall-mounted installation with bracket provided or table-top installation with video door phone base (part number 344692) to be purchased separately

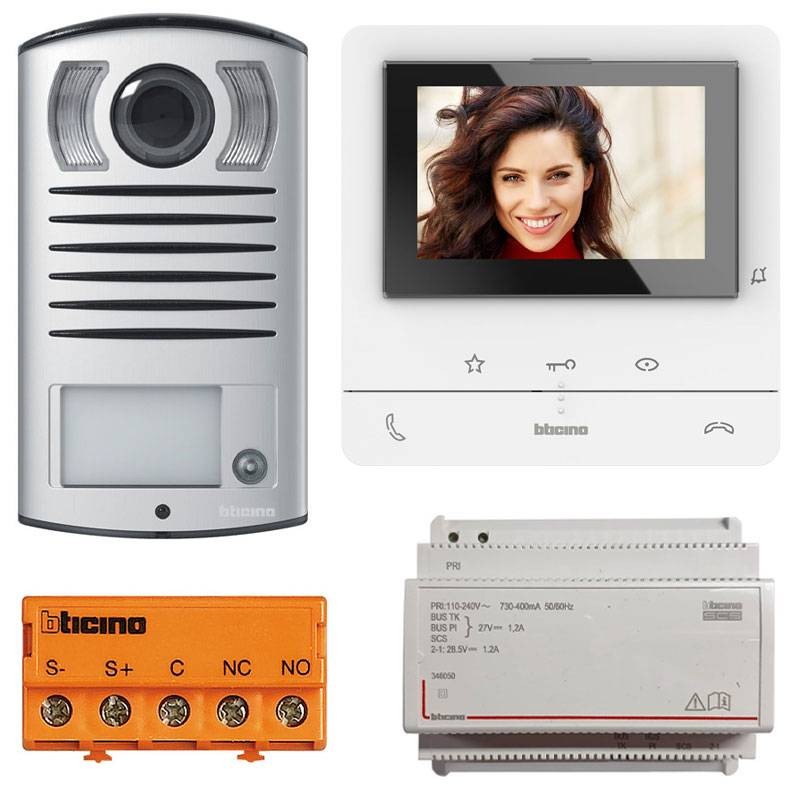

Technical specifications of kit parts:

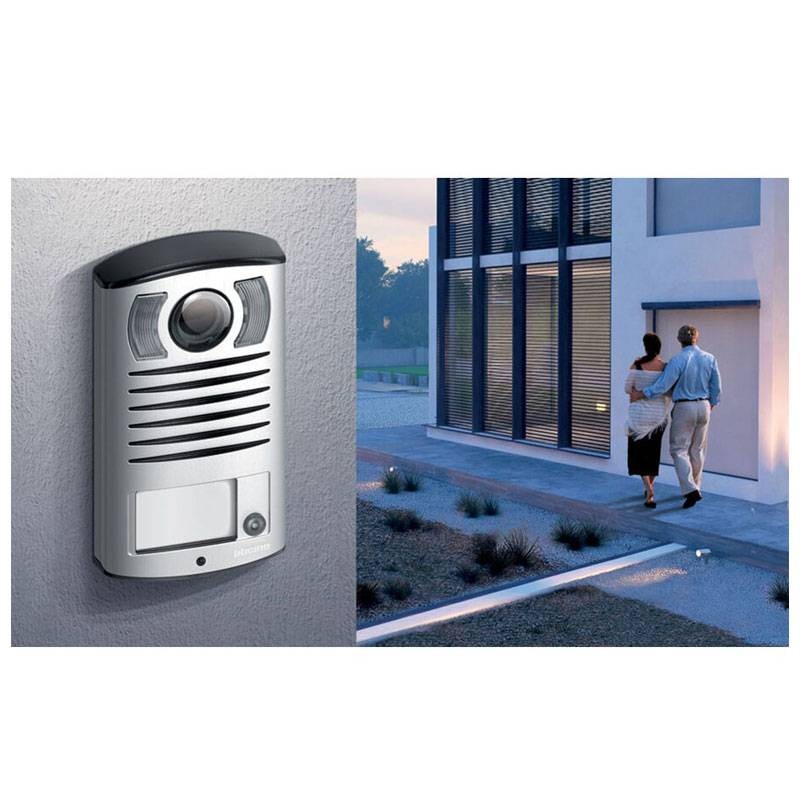

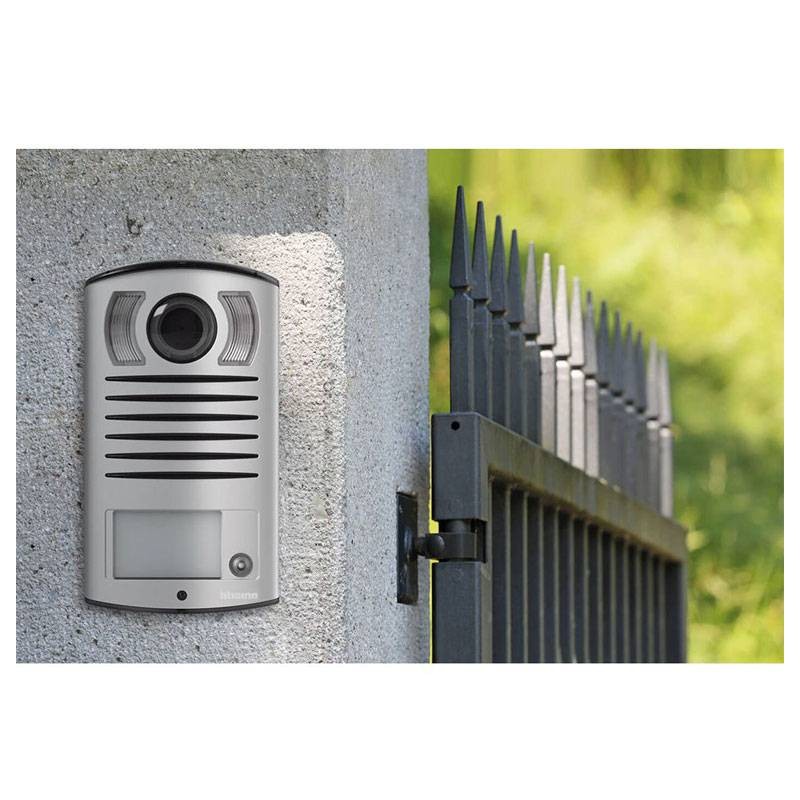

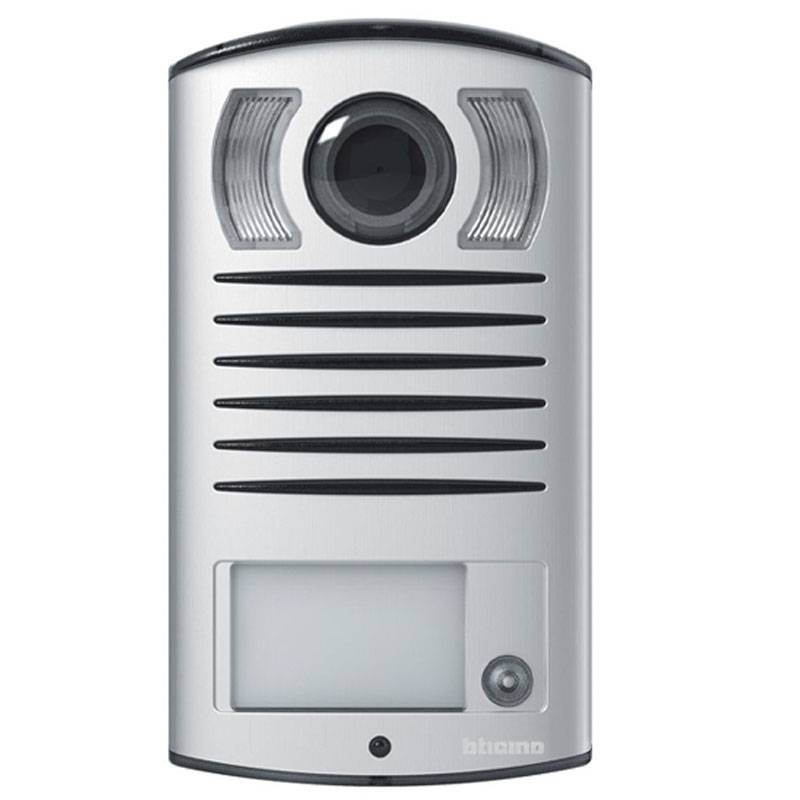

1 LINEA 2000 video button panel, 2-wire technology, with color camera and 1 call button (code 343031):

• 2-wire technology
• Wall-mounted installation with aluminum front panel
• Color camera and white LED lighting for nighttime shooting
• One call button
• Camera swivels on horizontal and vertical axes by +/- 15°
• Allows activation of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max)
• Green LED name tag illumination
• IP54 degree of protection
• Ruggedness grade IK07

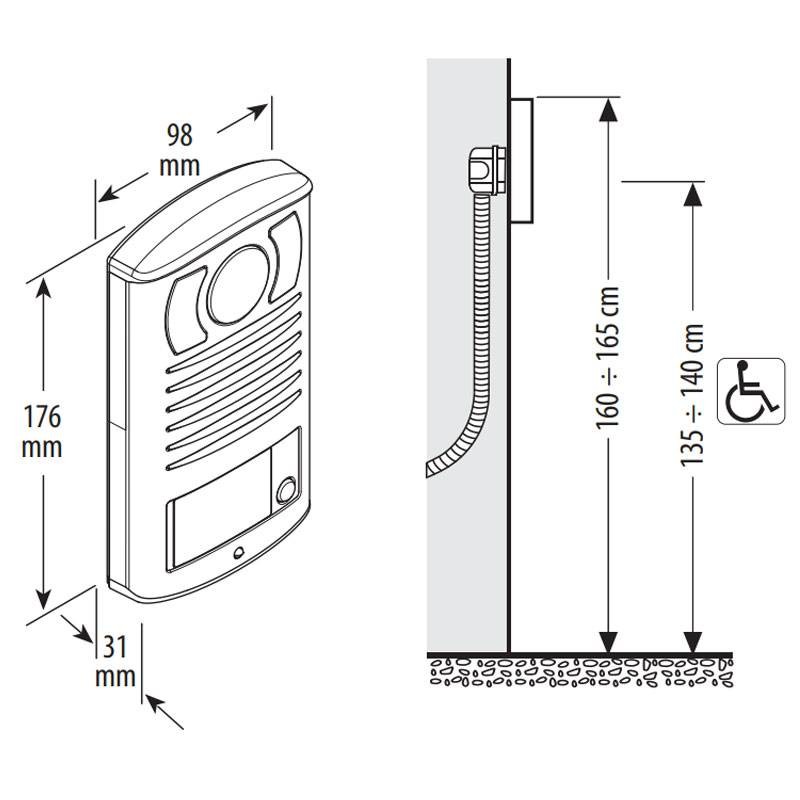

• Dimensions: Height 176mm - Width: 98mm - Depth 31mm
• Recommended installation height: 160/165cm.

Installation: The camera should not be installed in front of large light sources, or in places where the subject being filmed remains very backlit. To solve the previously described problems, it is recommended to vary the installation height of the camera, usually 160-165 cm, to a height of 180 cm and to orient the lens downward so as to improve the quality of the footage. Note: Cameras with color CMOS sensors have lower sensitivity than black/white cameras in low light conditions. Therefore, it is recommended in dimly lit environments to provide an additional lighting source.

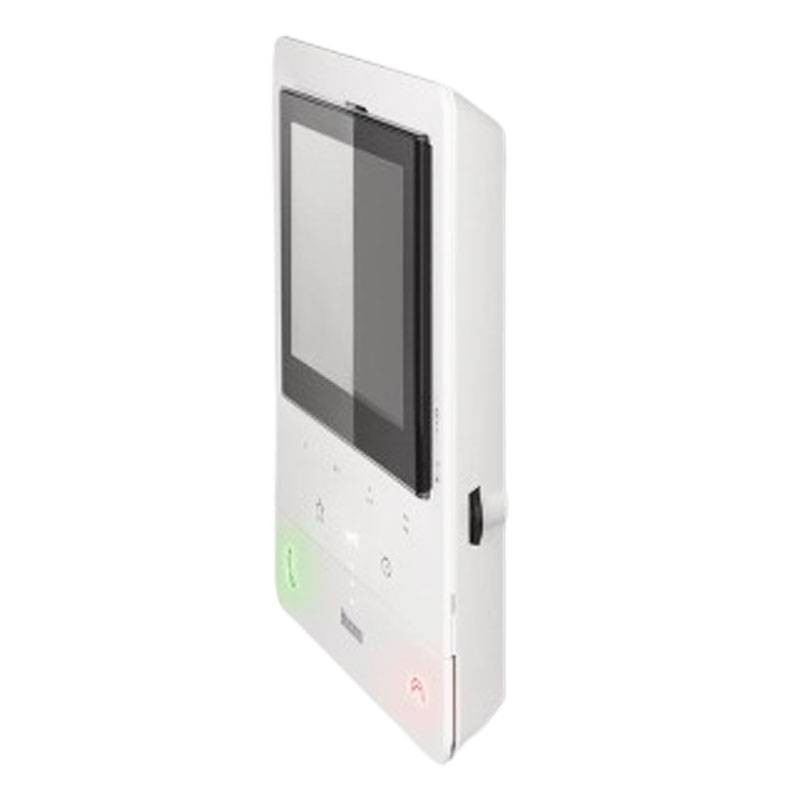

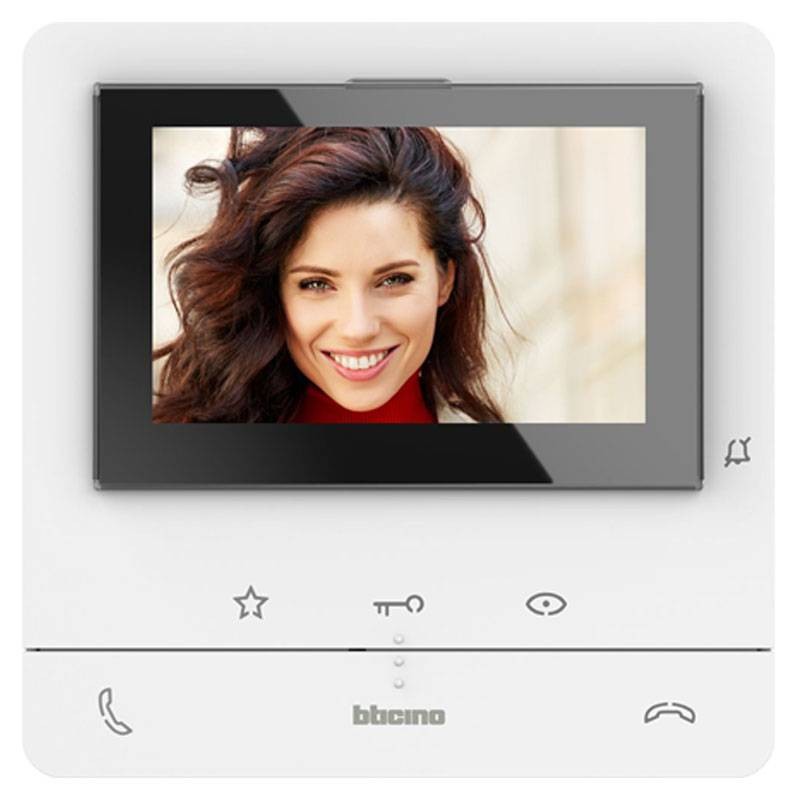

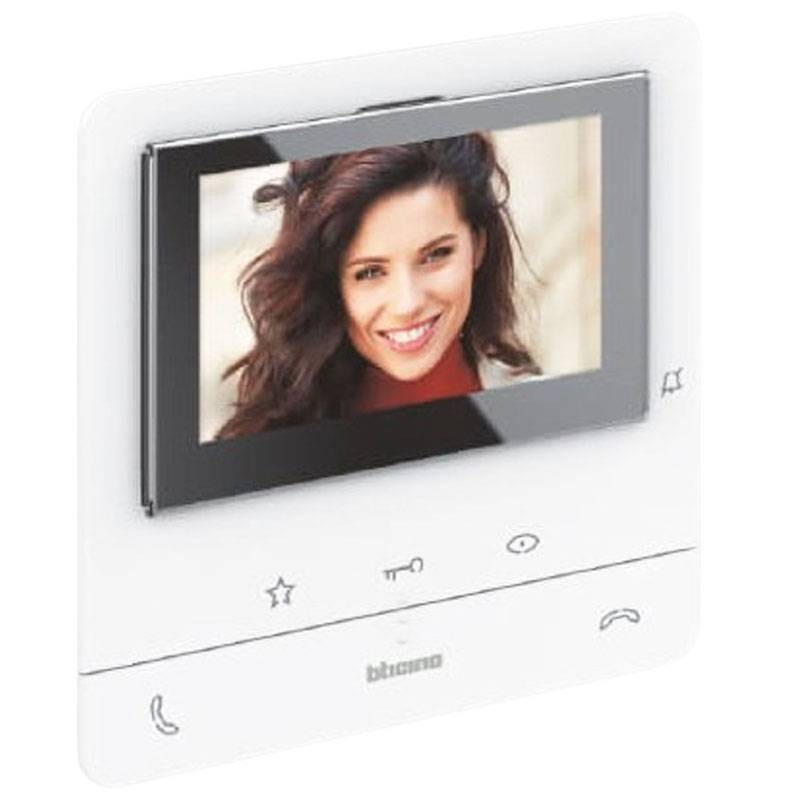

1 Class 100 hands-free 2-wire video intercom (code 344652):

• Video Door Station Class 100V16B
• 2-wire hands-free technology
• With 5-inch color LCD display
• The device has 2 physical buttons for controlling the main video door phone functions-answering and terminating the call-and 3 touch buttons that allow activation of the electric lock, activation of the door station/cycling, and customization of a quick action that the user uses most frequently-e.g., staircase light control, intercom, additional electric lock activation, and general activations
• The device is equipped with a side toggle for adjusting: display color, brightness and contrast, speech volume and call tone volume
• There is a signaling LED for call exclusion
• Installation can be done off-wall with special bracket (supplied) or via accessory table mounts (2 x 344692), to be purchased separately
• The device needs to be configured.



• Voltage: 20-27V

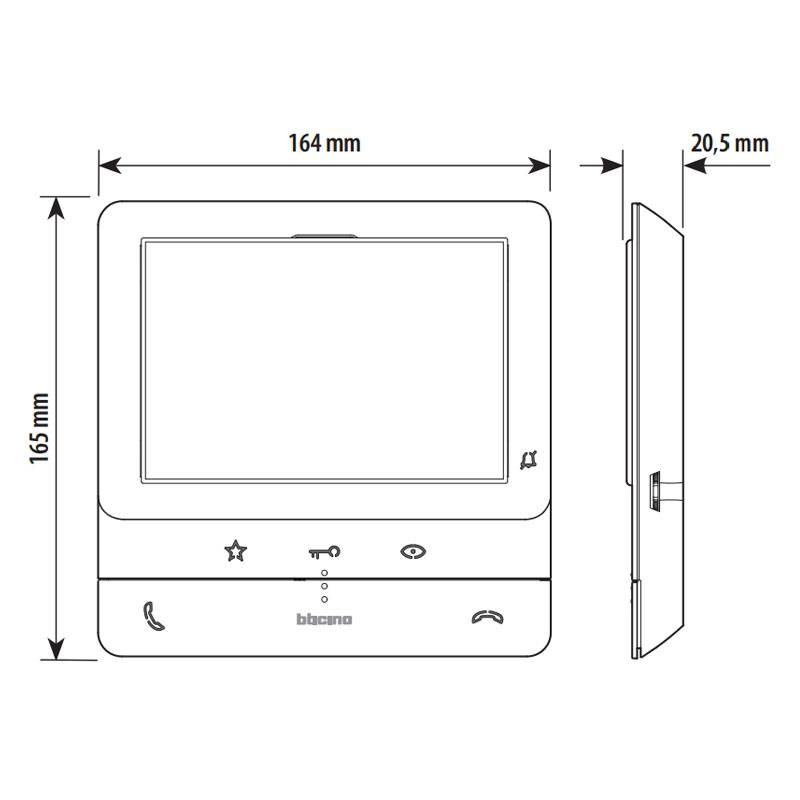

• Height: 165mm
• Width: 164mm
• Depth: 20.5mm
• Maximum cable cross-section: 2x1mmq
• Installation type: 2 wires
• Recommended installation height: 160-165cm
• Operating temperature: -5/+40°C
• Resolution: 800 x 480
• Wi-Fi: No
• Teleloop: Yes
• Color: White

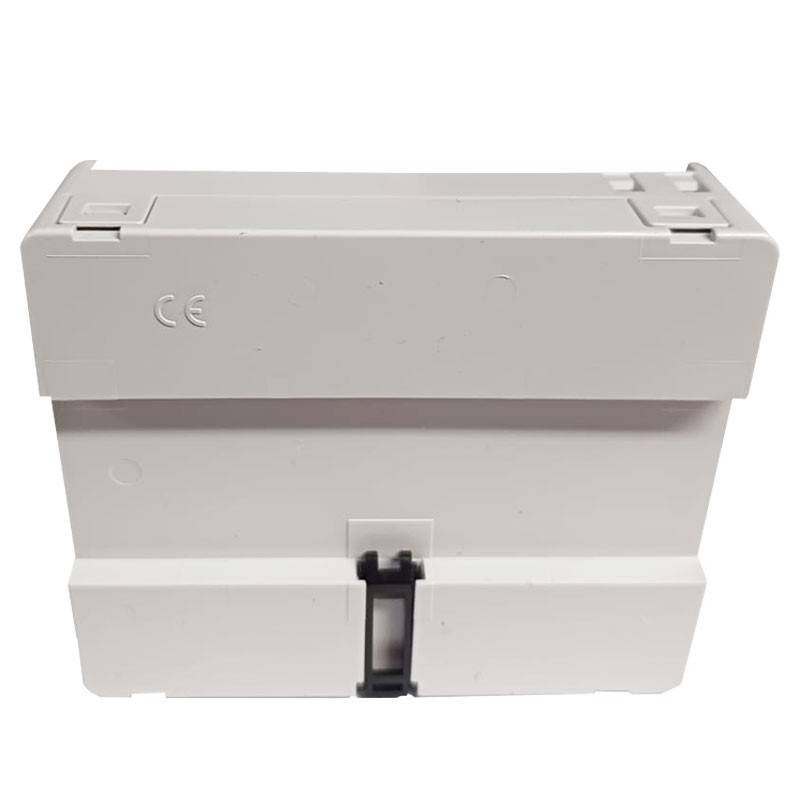

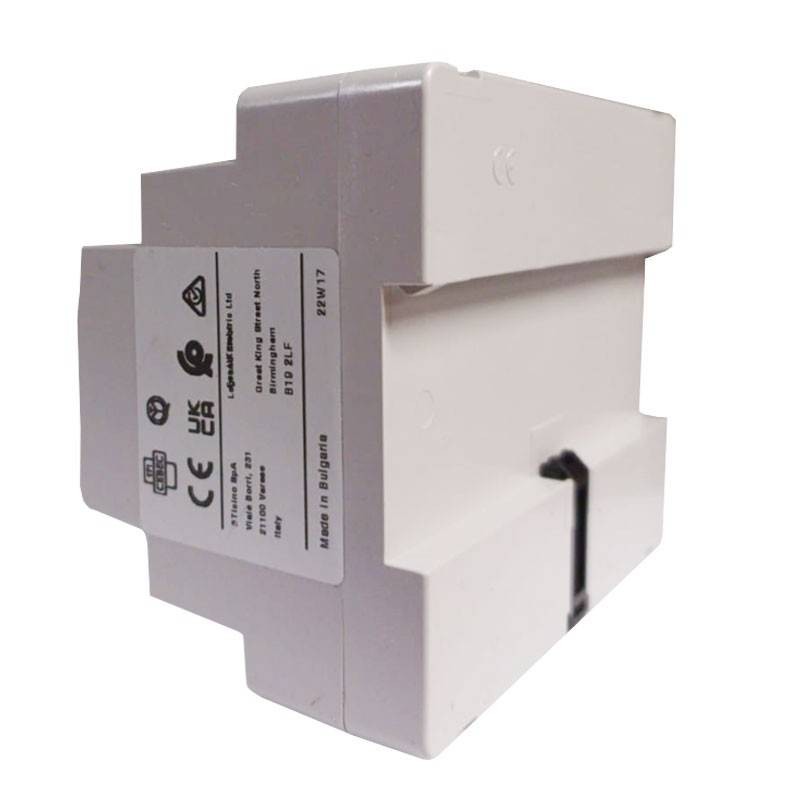

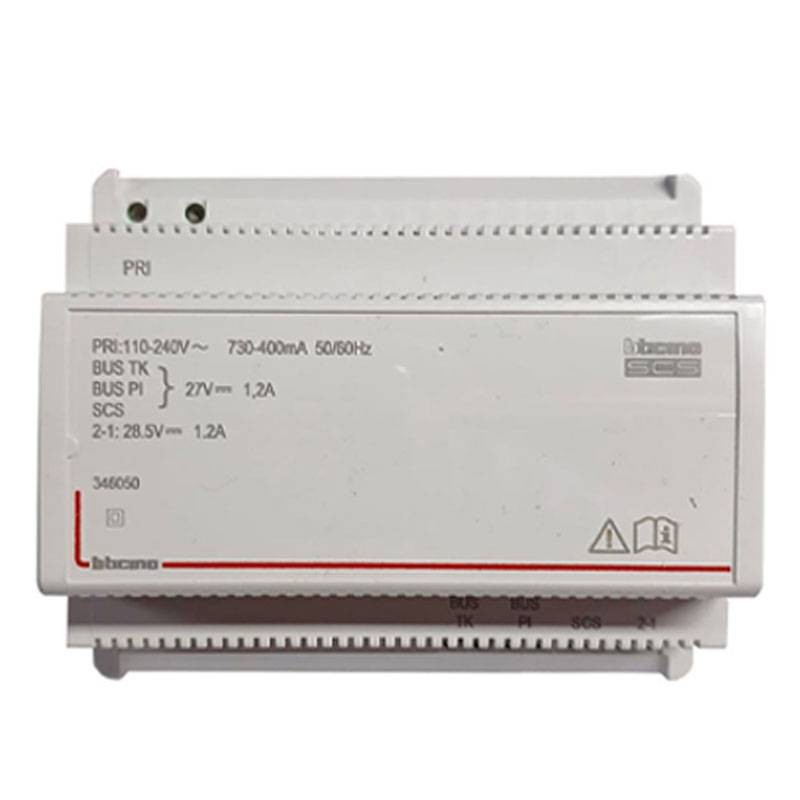

1 BUS-SCS modular power supply for 2-wire audio and video systems in 6 DIN modular housing (part number 346050):

• Power supply for 2-wire audio and video systems in 6-DIN modular housing.
• Power supply 110 - 240 Va.c. @ 50 - 60 Hz
• Provides two safety extra-low voltage supplies at the output (one on the 3 terminals BUS TK, BUS PI and SCS, one on terminal 1 - 2);
• To be used alternately and Not simultaneously
• The video adapter is built into the device (item 346830 should therefore not be used), so it is possible to avoid the use of the A/V node (F441) or multi-channel matrix (F441M) if from the BUS PI and BUS TK terminals a total of three leads are not exceeded (MAX 2 PI risers + 1 TK or 1 PI riser + MAX 2 TK)
• It can also be used as an additional power supply (output 1 - 2) for local power supply of indoor stations or prearranged outdoor stations (in this case no other output can be used)
• The device is electronically protected against overload and short circuit
• It is a double-insulated SELV safety device
• Installation must be carried out in accordance with current regulatory rules
• The device must NOT be configured
• Attention: the outputs (BUS PI), (BUS TK) and (SCS) can be used at the same time while respecting the maximum total power consumption of 1.2 A
• After overload or a short circuit, disconnect the power supply for 5 minutes
• This power supply is CAT II 2500 V category, so it needs additional protection from transient voltages (higher than the design overvoltage category) external to the equipment
• The power supply must be installed only in switchboards designed for DIN luminaires
• Must be installed only indoors
• An omnipolar switch with contact separation of at least 3 mm must be used, located in the vicinity of the power supply unit
• The switch described above is to be considered as a device for disconnecting the power supply unit from the mains supply
• Do not solder the end of the conductors that are inserted into the terminals

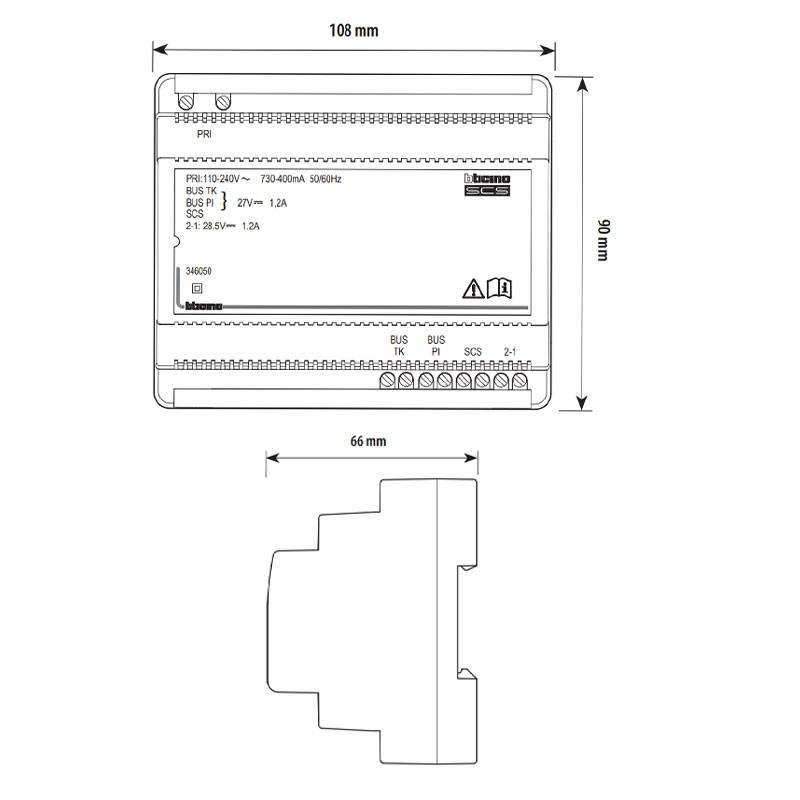

• Overall dimensions: 6 DIN modules

PRI (AC power input):

• Rated voltages: 110 - 240V
• Rated currents: 730 - 400 mA
• Working frequency range: 50 - 60 Hz
• Power consumption at full load: 40 W max
• Power dissipation: 8 W max
• Efficiency at full load: 80 % typ
• Stand-by power: < 1W
• Operating temperature: (-10) - (+55) °C
• Integrated fuse (PRI side): F1 T 3.15A 250 V




BUS TK, BUS PI, SCS:

• Rated voltage: 27 Vdc
• Rated current: 1.2 A
• Rated power: 32.4 W




1-2:

• Rated voltage: 28.5 Vdc
• Rated current: 1.2 A
• Rated power: 34.2 W



Power supply installation:

• The power supply unit must always be installed in appropriate enclosures.
• Must not be exposed to dripping or splashing water
• Do not obstruct ventilation openings
• A double-pole switch with contact separation of at least 3 mm must be used, placed near the power supply. The switch has the dual purpose of being able to disconnect the power supply from the mains and to protect the power supply from the mains.

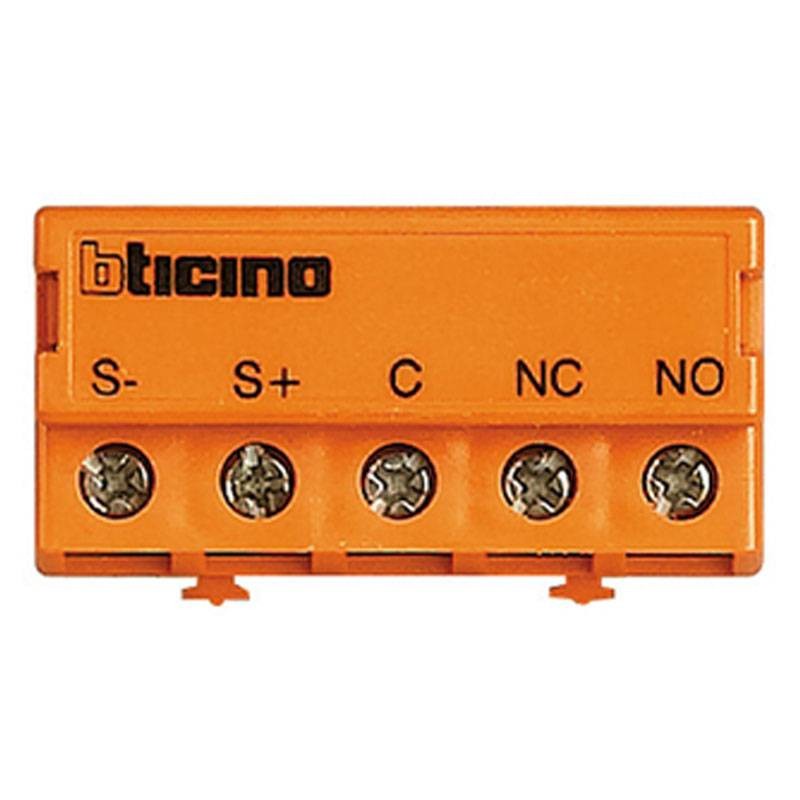

1 relay module for electromechanical locks not managed by BUS (code 346250): Relay module for gate opening to be combined with prearranged external pushbuttons. Allows opening of locks NOT operated by BUS via the door station. Contact type: NO-NC, system type: 2 wires.
