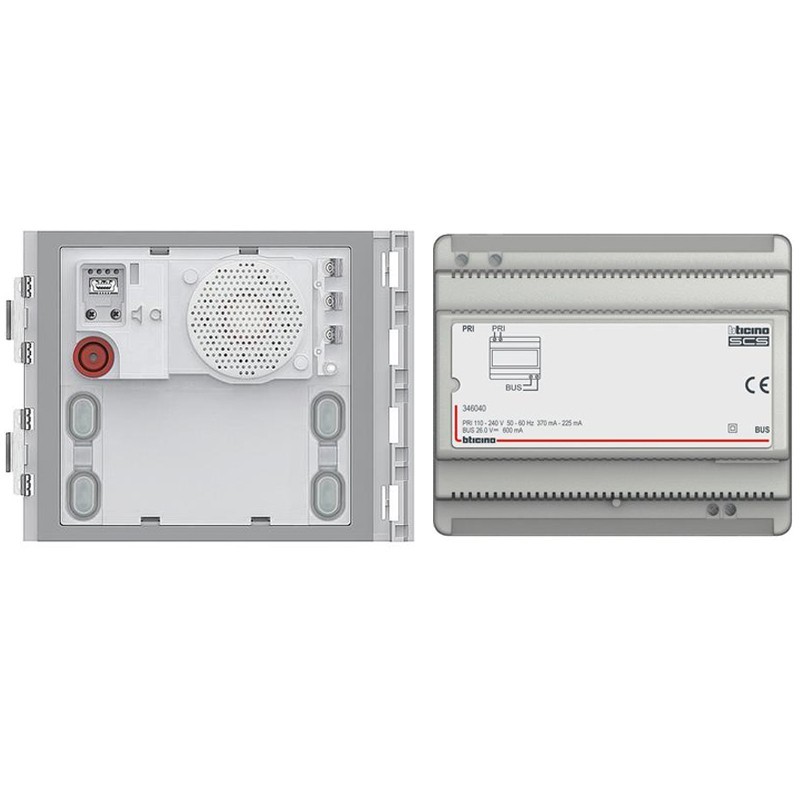

Condominium audio kit with Sfera sound module and power supply 360002

Condominium audio kit with Sfera sound module and power supply 360002


BTI 360002 8005543576960

Bticino Sfera condominium kit composed of the following basic items:

  • 1 Sfera audio module (351100)
  • 1 power supply unit for audio systems (346040)

The kit must be completed with the door unit finishing mechanisms (Sfera new and Sfera Robur), any button modules and audio apartment stations (see 2-wire range).

Request info about this product
Condominium audio kit with Sfera sound module and power supply 360002

Condominium audio kit with Sfera sound module and power supply 360002

€160.03
€160.03

Condominium audio kit with Sfera sound module and power supply 360002

€160.03
Tax included
klarna Pay in installments with Klarna
qty

Condominium audio kit with Sfera sound module and power supply 360002

€160.03

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Specifications Components in the KIT:

Sound Module 351100 for 2-WIRE door phone and video door phone systems.

  • Equipped with loudspeaker and microphone volume controls.
  • Manages up to 100 button calls using additional double row button modules
  • Allows opening of an electric lock connected directly to terminals S+ and S- (18 V 4 A impulsive - 250 mA maintenance on 30 ohm max) and connection of a local door opener button on terminals PL
  • Prepared for additional power supply
  • Equipped with front LEDs for signalling of operating status: door opener, active communication, call forwarded and system busy
  • Integrated optical sensor for switching on night backlighting
  • To be completed with finishing front panel
  • The device can be configured physically or via PC and TiSferaDesign software.

Power supply 346040 for 2-WIRE audio systems in 6 DIN modular housing.

  • Power supply 110-240 Va.c. 50-60 Hz
  • Provides a low voltage output rated at 26 Vd.c. and a maximum rated current of 600 mA and is protected on the PRI side (with fuse) against overload and short circuit
  • It is a SELV double insulation safety device.

Data sheet

KIT:
Intercom Base Kits
System:
2-Wire
