Technical specifications of kit parts:




1 LINEA 3000 video pushbutton panel, grey finish code 343091:

• Linea 3000 video pushbutton panel in gray finish
• 2-Wire Technology

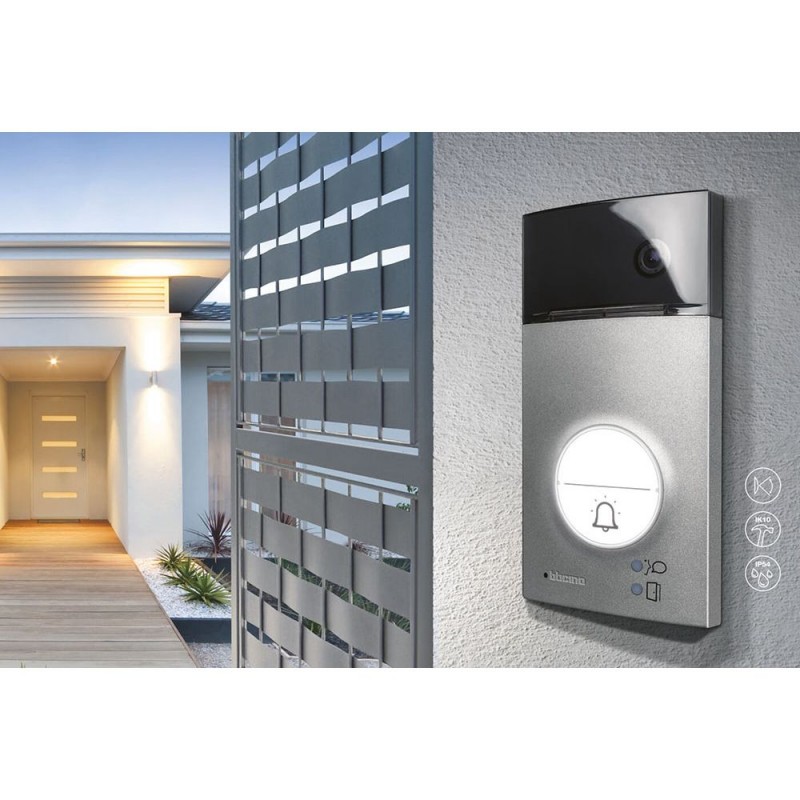

• Wall-mounted installation with zamak front panel

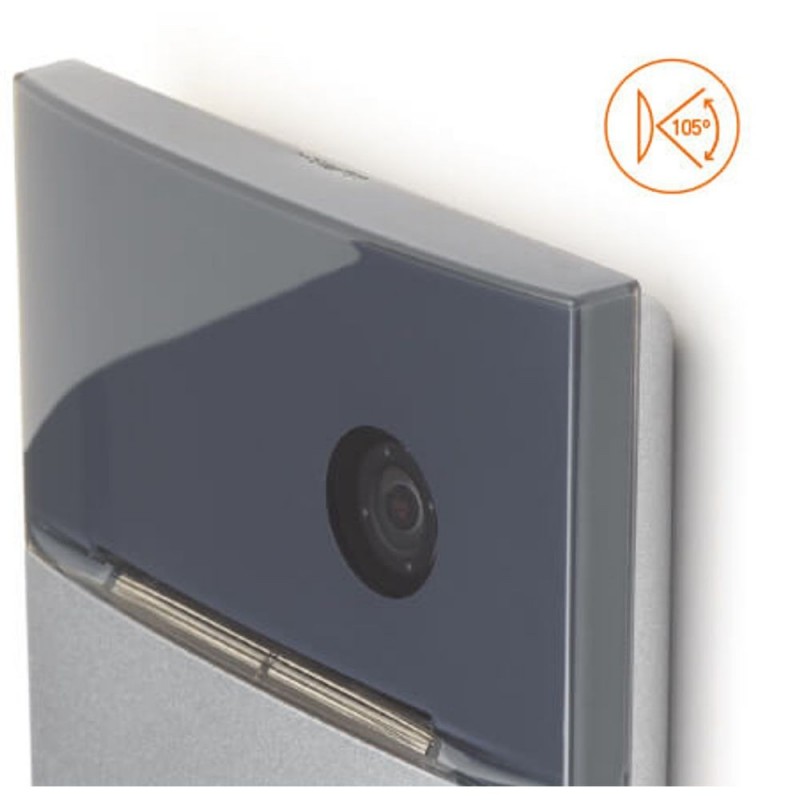

• Wide-angle color camera and proximity reader
• White LEDs for field illumination in low light conditions
• Configurable for single-family or two-family installations
• Allows activation of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max)

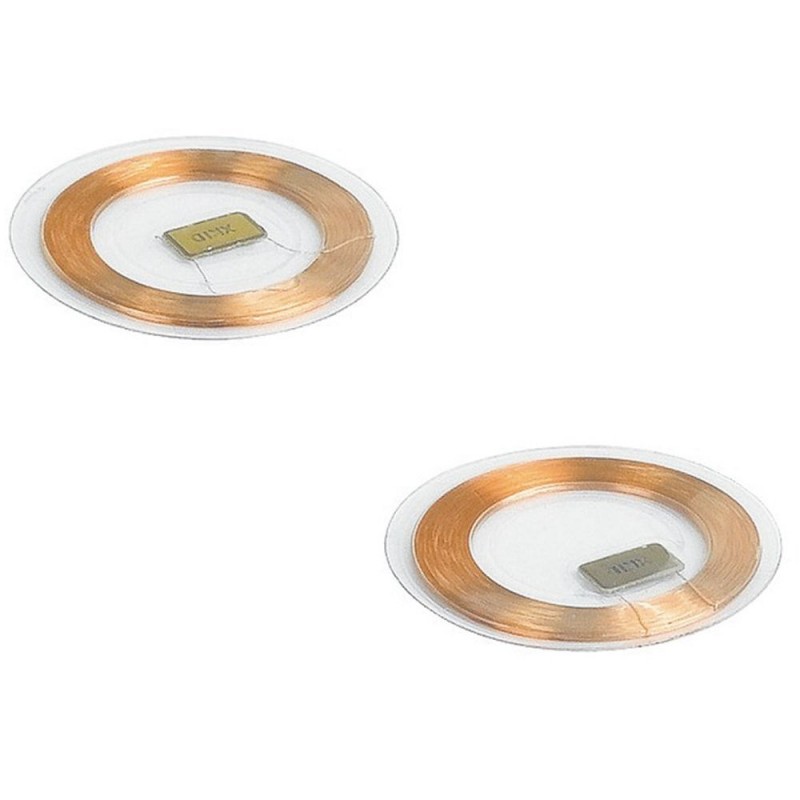

• Handles a maximum number of 20 badges (125 KHz) for electric lock activation (including the system management badge)
• Illumination of name tag with white LEDs
• Meets IP54 degree of protection - IK10 degree of ruggedness.

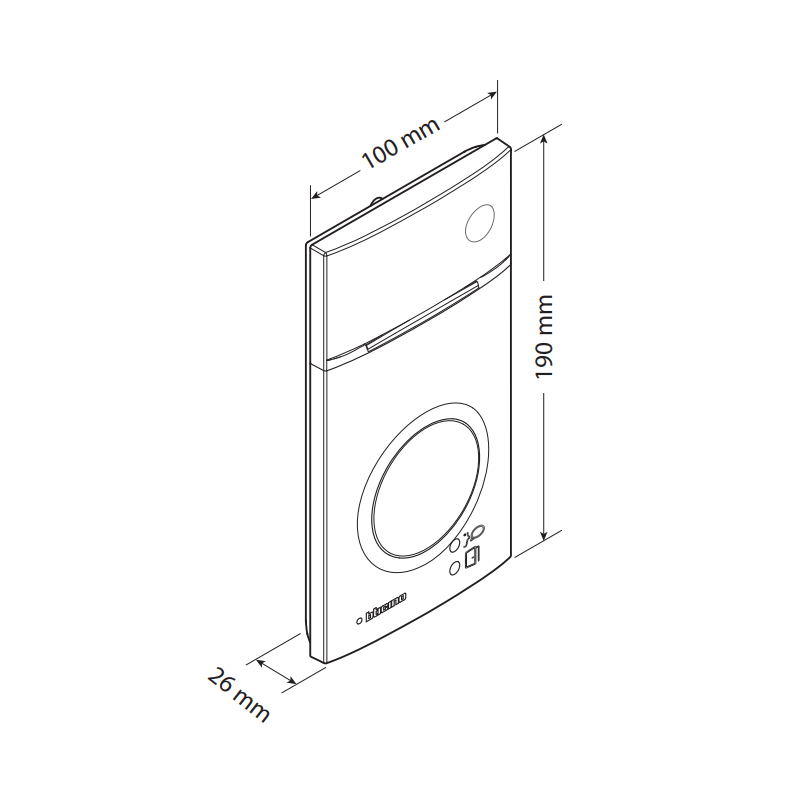

• Dimensions: 190x100x26.65mm
• Height: 190mm
• Width: 100mm
• Depth: 26.65mm
• Calls: 2
• System type: 2 wires
• Strength grade: IK10
• Recommended installation height: 160-165cm
• Operating temperature: -25°/+70° C
• Resolution: 330 TV Lines H / 330 TV Lines H
• Color: Gray

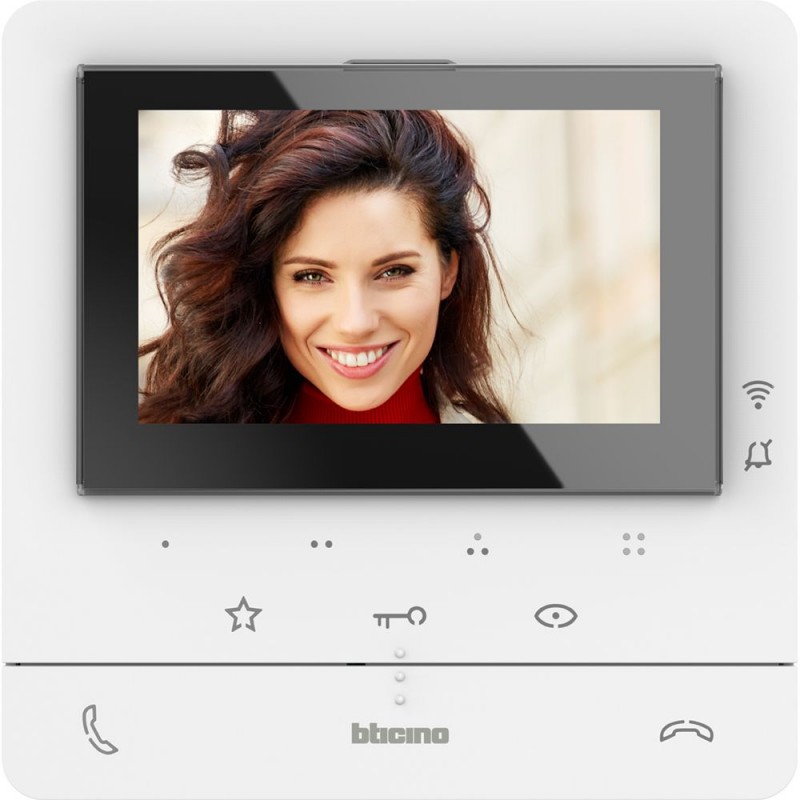

1 Classe 100X connected video intercom code 344682:

• Classe 100X16E connected videophone with Netatmo
• 2-Wire Technology
• Wifi hands-free with teleloop
• 5-inch color LCD display
• Has 2 physical buttons for controlling the main video door phone functions - call answering and closing - has 3 touch buttons for controlling the main functions - electric lock activation, stair light control and door station/clocking activation - plus an additional 4 configurable touch buttons that take on different functions - e.g. intercom, additional electric lock activation, general activations
• The device has a side toggle for adjusting: display color, brightness and contrast, speech volume, call tone volume and Wifi configuration
• There are signaling LEDs for call mute and Wifi
• In addition, thanks to the Wifi connection, it is possible to associate the video door phone with the Home + Security App (available for Android and iOS)
• From the App it will be possible to manage the main functions of the video door phone (call reception, electromechanical lock activation, door station/clocking, Firmware update and additional activations)
• Through the Home + Security App it is also possible to manage products from Netatmo's security offering (outdoor and indoor cameras, door and window sensors, indoor siren and smoke detector)
• This allows you to quickly and easily create a Smart security system

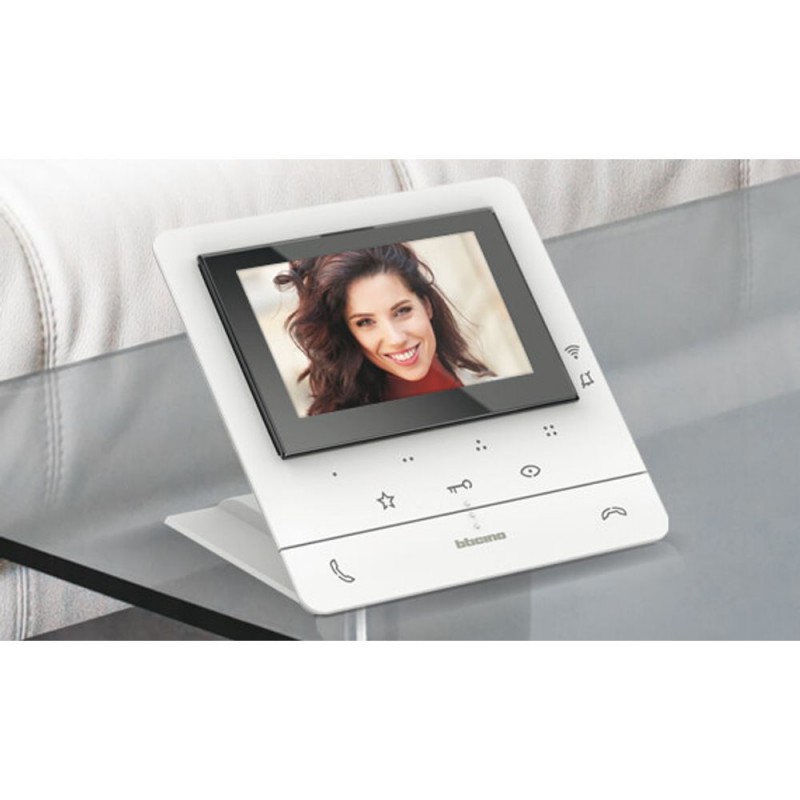

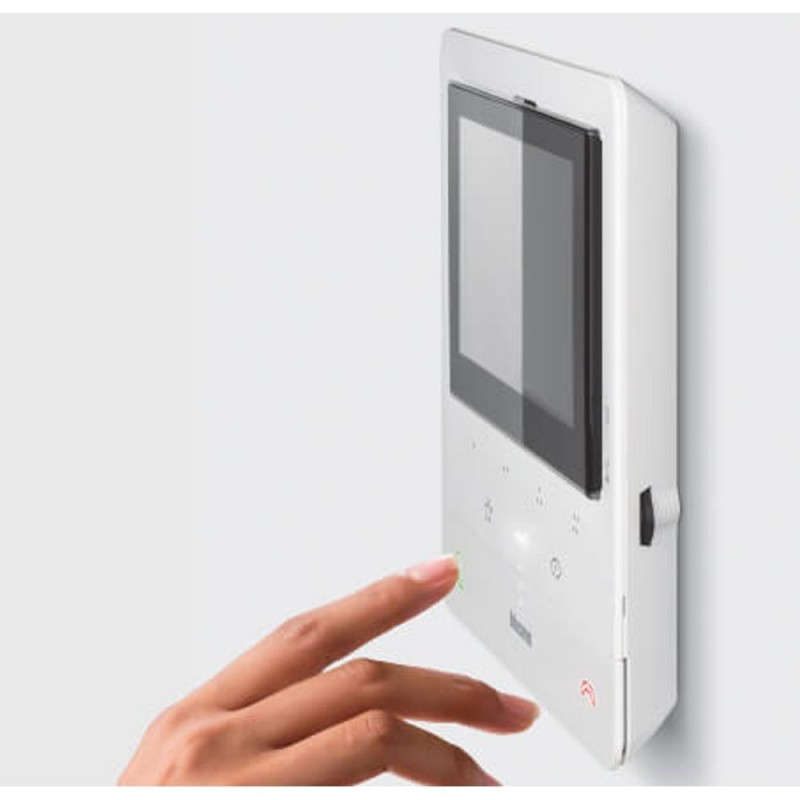

• Off-wall installation with special bracket (included) or desktop installation via accessory mounts (part number 344692 to be purchased separately)
• The device, which also has a professional studio function, must be configured.

• Voltage: 20/27V

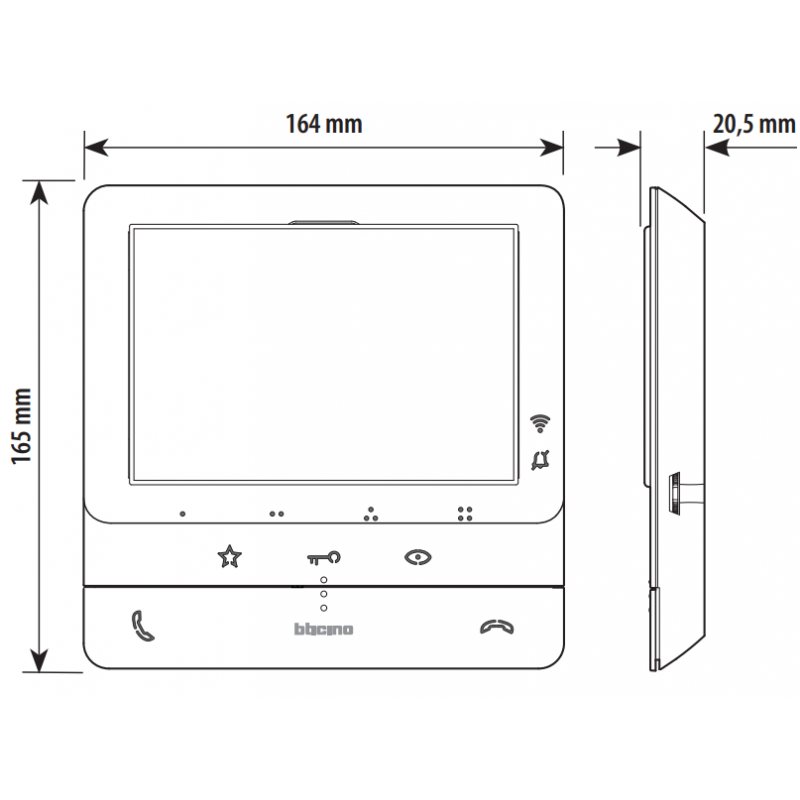

• Dimensions: 165x164x20.5mm
• Height: 165mm
• Width: 164mm
• Depth: 20.5mm
• Maximum cable cross section: 2x1mmq
• Installation type: 2 wires
• Recommended installation height: 160-165cm
• Operating temperature: -5/+40°C
• Resolution: 800 x 480
• Wi-Fi: yes
• Teleloop: yes
• Color: White

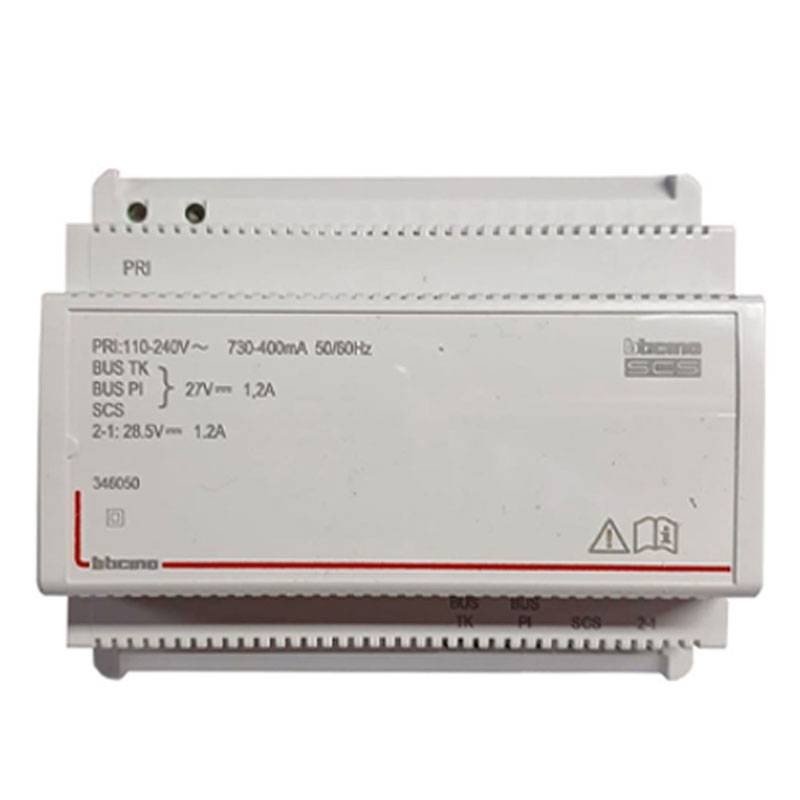

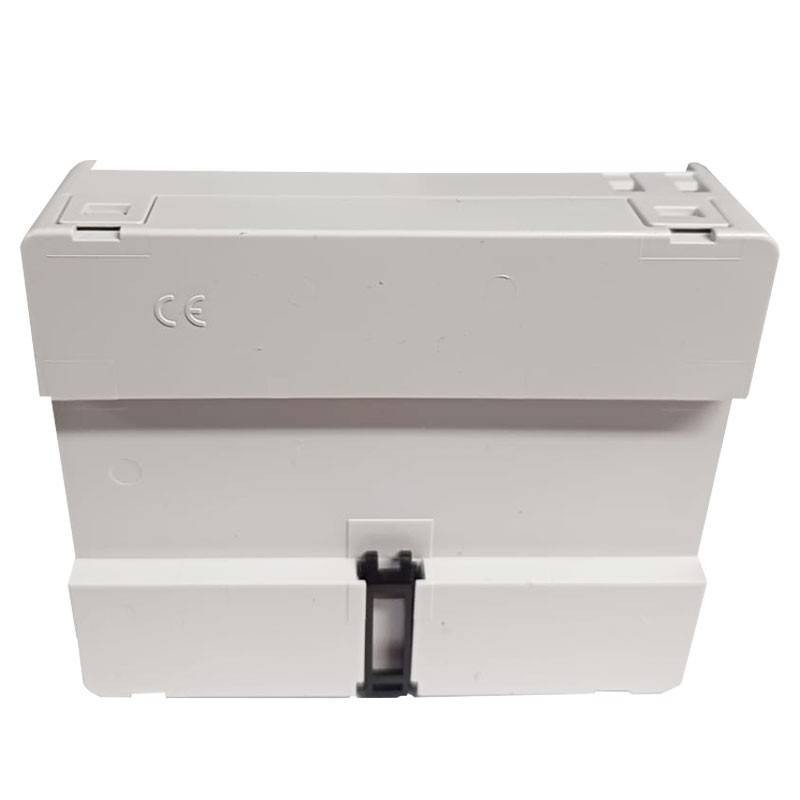

1 BUS-SCS power supply in 6 DIN modular housing for 2-wire audio and video systems code 346050:

• Power supply for 2-wire audio and video systems in 6 DIN modular housing
• Power supply 110 - 240 Va.c. @ 50 - 60 Hz
• Provides two safety extra-low voltage supplies at the output (one on the 3 terminals BUS TK, BUS PI and SCS, one on terminal 1 - 2);
• To be used alternately and Not simultaneously
• The video adapter is built into the device (item 346830 should therefore not be used), so it is possible to avoid the use of the A/V node (F441) or multi-channel matrix (F441M) if from the BUS PI and BUS TK terminals a total of three leads are not exceeded (MAX 2 PI risers + 1 TK or 1 PI riser + MAX 2 TK)
• It can also be used as an additional power supply (output 1 - 2) for local power supply of indoor stations or prearranged outdoor stations (in this case no other output can be used)
• The device is electronically protected against overload and short circuit
• It is a double-insulated SELV safety device
• Installation must be carried out in accordance with current regulatory rules
• The device must NOT be configured
• Attention: the outputs (BUS PI), (BUS TK) and (SCS) can be used at the same time while respecting the maximum total power consumption of 1.2 A
• After overload or a short circuit, disconnect the power supply for 5 minutes
• This power supply is CAT II 2500 V category, so it needs additional protection from transient voltages (higher than the design overvoltage category) external to the equipment
• The power supply must be installed only in switchboards designed for DIN luminaires
• Must be installed only indoors
• An omnipolar switch with contact separation of at least 3 mm must be used, located in the vicinity of the power supply unit
• The switch described above is to be considered as a device for disconnecting the power supply unit from the mains supply
• Do not solder the end of the conductors that are inserted into the terminals

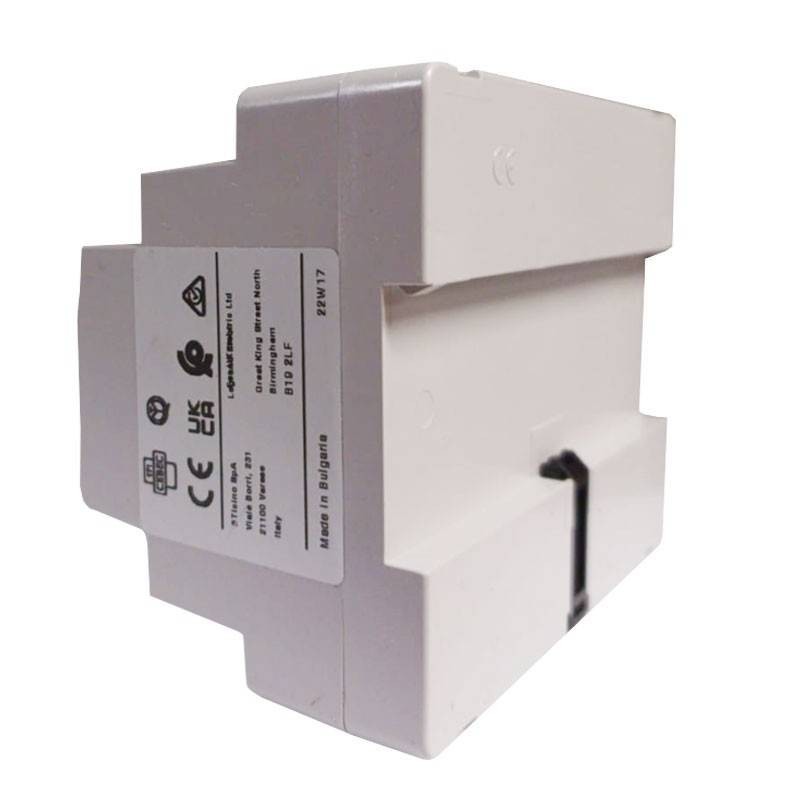

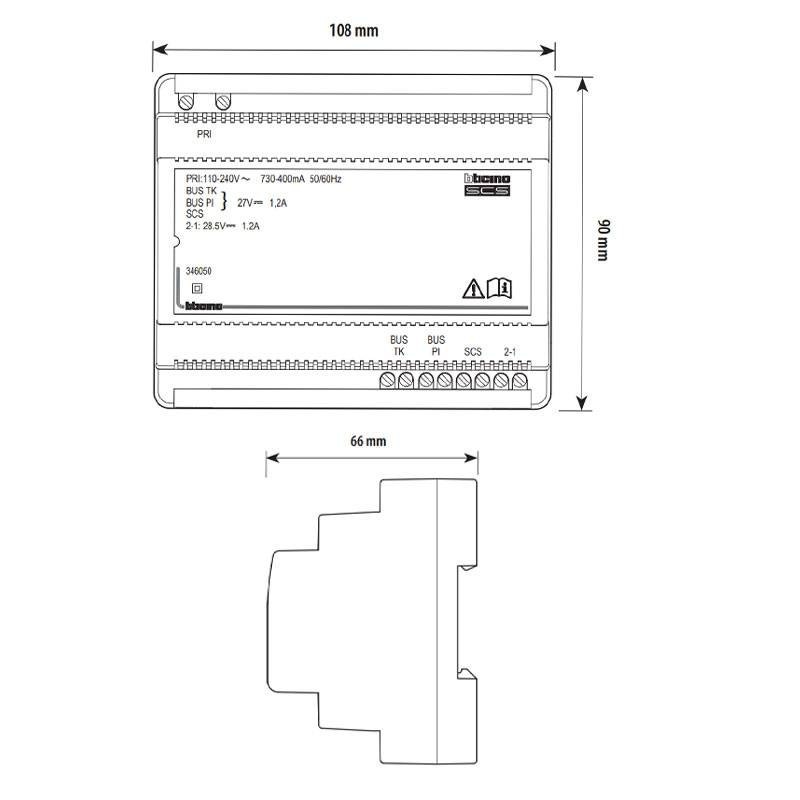

• Overall dimensions: 6 DIN modules

PRI (AC power input):

• Rated voltages: 110 - 240V
• Rated currents: 730 - 400 mA
• Working frequency range: 50 - 60 Hz
• Power consumption at full load: 40 W max
• Power dissipation: 8 W max
• Efficiency at full load: 80 % typ
• Stand-by power: < 1W
• Operating temperature: (-10) - (+55) °C
• Integrated fuse (PRI side): F1 T 3.15A 250 V




BUS TK, BUS PI, SCS:

• Rated voltage: 27 Vdc
• Rated current: 1.2 A
• Rated power: 32.4 W




1-2:

• Rated voltage: 28.5 Vdc
• Rated current: 1.2 A
• Rated power: 34.2 W



Power supply installation:

• The power supply unit must always be installed in appropriate enclosures.
• Must not be exposed to dripping or splashing water
• Do not obstruct ventilation openings
• A double-pole switch with contact separation of at least 3 mm must be used, placed near the power supply. The switch has the dual purpose of being able to disconnect the power supply from the mains and to protect the power supply.

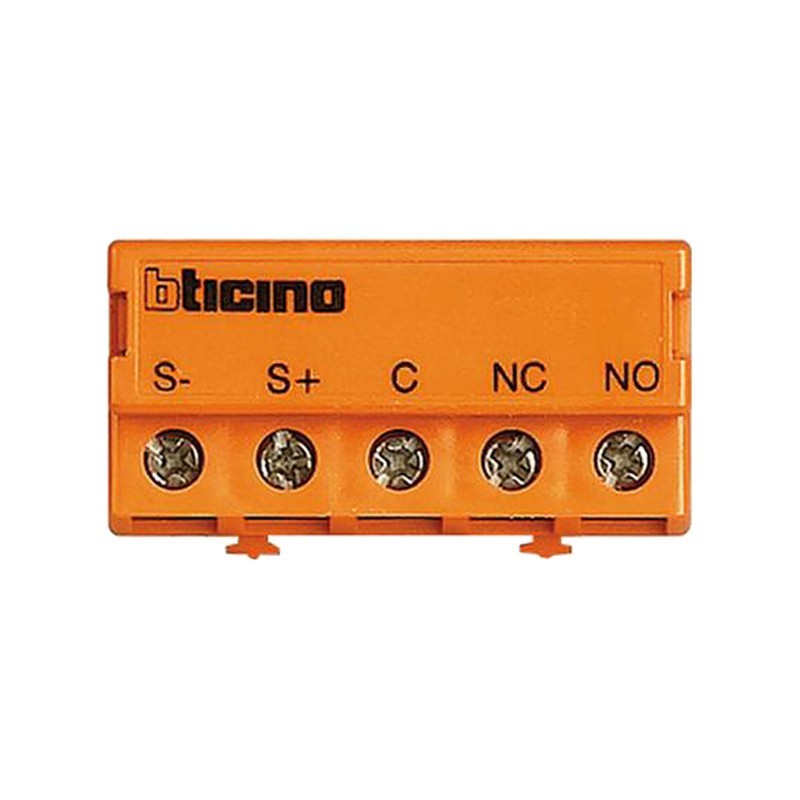

1 Relay module for electric locks not operated by BUS (code 346250): Relay module for gate opening to be combined with prearranged outdoor pushbuttons. Allows opening of locks NOT operated by BUS through the door station. Contact type: NO-NC, system type: 2 wires.
