Bticino Intercom Kit CLASSE 100A16M 2-Wire Single-Family 364231

Bticino
Bticino
BTI 364231 8005543631089

Bticino single-family audio intercom kit consisting of:



  • 1 piece code 343071 LINEA 3000 audio handset
  • 1 piece code 344292 2-wire intercom with Class 100 handset
  • 1 piece code 346040 Power supply for 2-wire audio systems in 6 DIN modular housing



Configurable for single-family or two-family installations.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Intercom Kit CLASSE 100A16M 2-Wire Single-Family 364231
€227.94
€227.94

€227.94
Tax included
Calculate shipping cost
Items Available: 42
Further availability of the manufacturer
€227.94

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Advantages of the kit:

  • Name tag illumination with white LED.
  • Wall-mounted and flush-mounted with specific accessories: (350020) flush-mounted box plus (343061) flush-mounted accessory to be purchased separately
  • Can be accessorized with rain roof (343051) to be purchased separately
  • The handset meets IP54 degree of protection IK10 degree of robustness
  • The intercom is equipped with 3 touch buttons for controlling the main functions - lock opening, stair light control, and door/clock activation - plus 4 additional configurable touch buttons that take on different functions - e.g., intercom, additional lock activation, general activations
  • Ringer volume adjustment (with call mute) via special selector switch

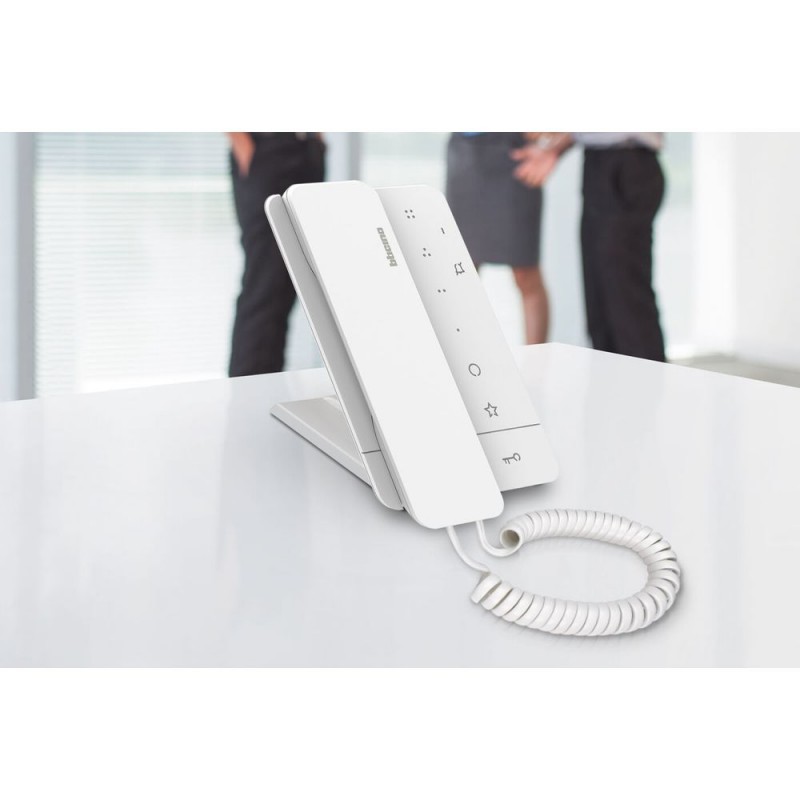

  • Installation can be done off-wall with special bracket or via accessory table stand (1 x 344692) to be purchased separately
  • The device, which also has a professional studio function, must be configured

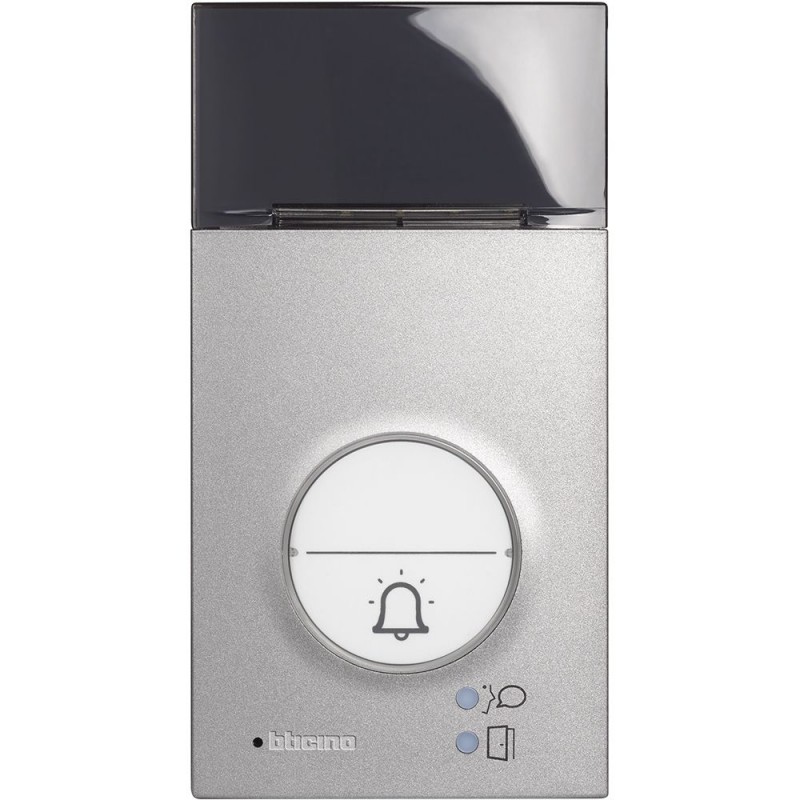

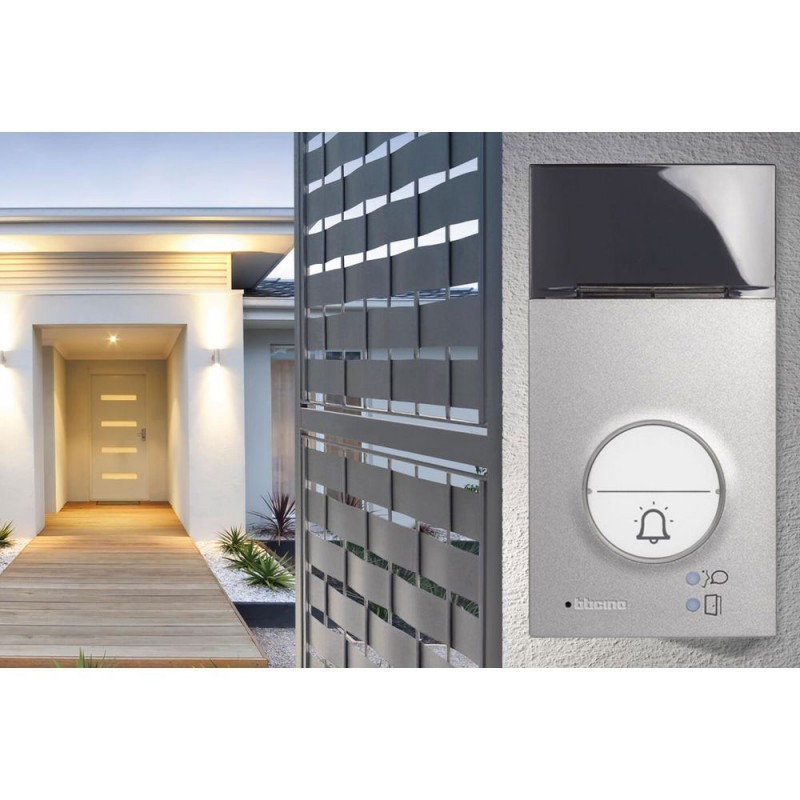

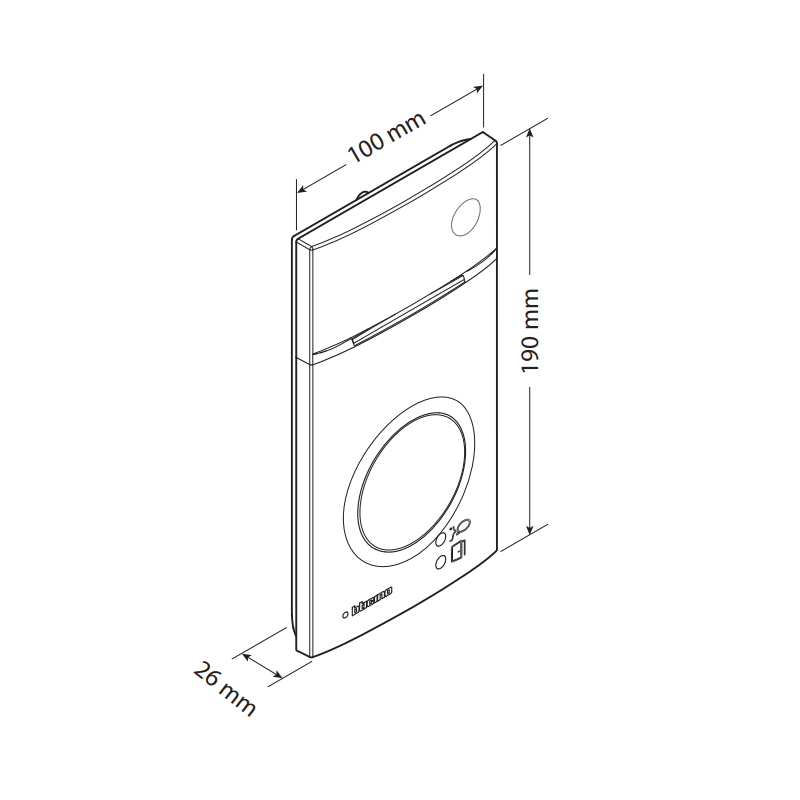

1 piece part number 343071 LINEA 3000 audio handset: LINEA 3000 audio handset. 2-wire technology, wall-mounted installation with zamak front panel. Configurable for single-family or two-family installations. Allows activation of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max). Illumination of name tag with white LED. Meets IP54 degree of protection - IK10 strength rating.



  • Dimensions: 190x100x26.65cm
  • Height: 190mm
  • Width: 100mm
  • Depth: 26.65mm
  • Calls: 2
  • System type: 2 wires
  • Ruggedness grade. IK10

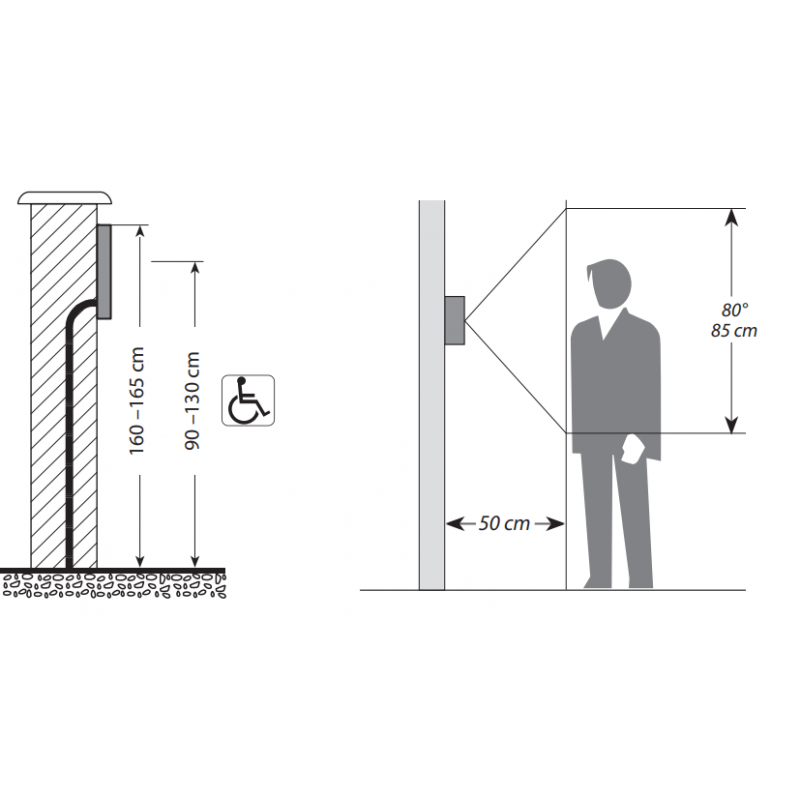

  • Recommended installation height. 160-165cm
  • Operating temperature: -25° - +70°C
  • Color: Gray

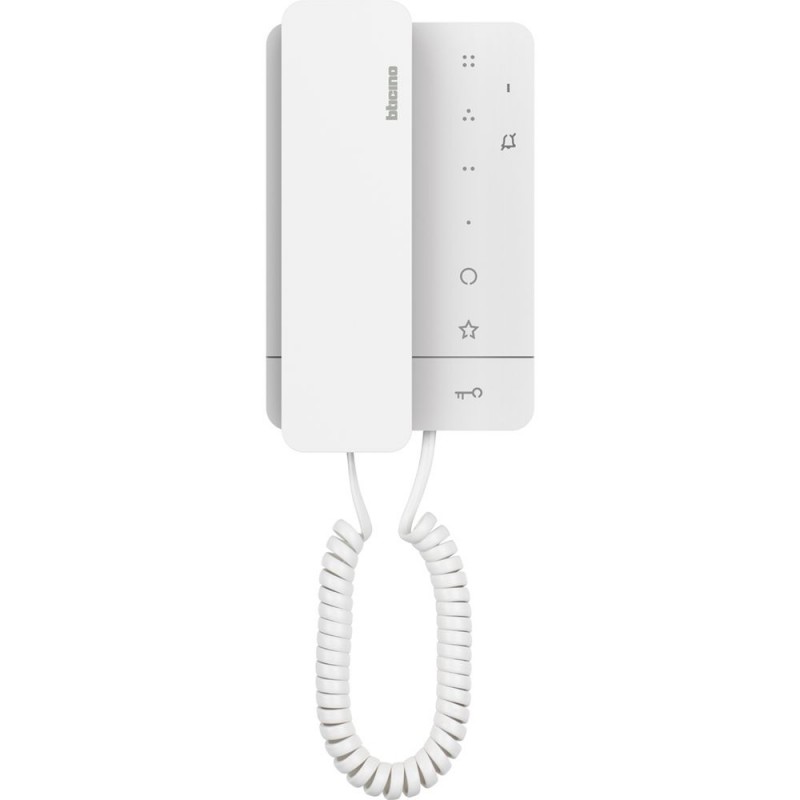

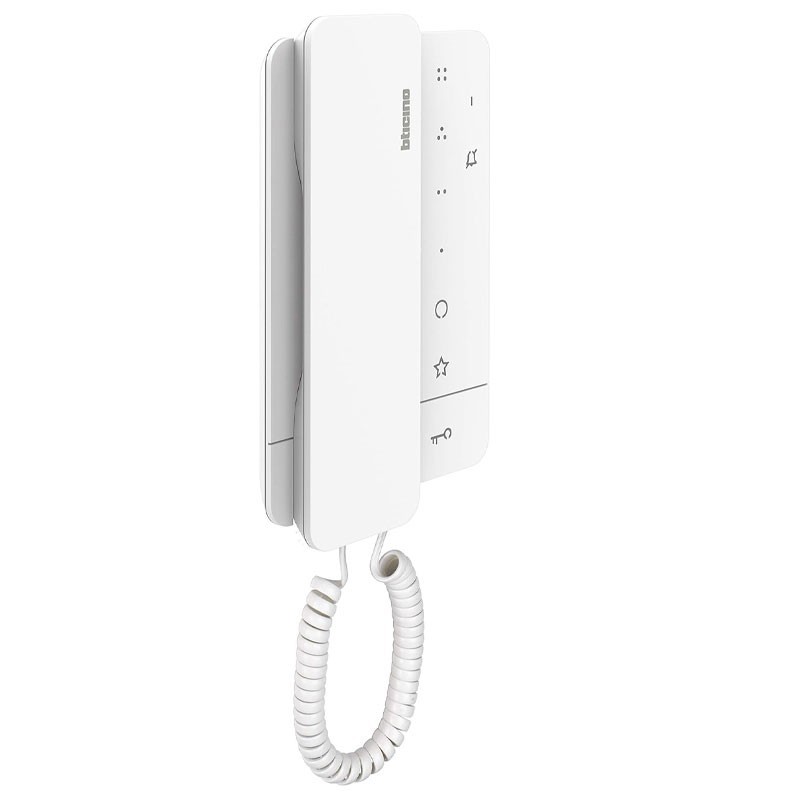

1 piece part number 344292 2-wire intercom with handset Class 100: Class 100A16M intercom. 2-wire technology with handset for wall or table-top installation. Features 3 touch buttons for control of main functions-electrical lock activation, staircase light control and door/clock activation-plus 4 additional configurable touch buttons that take on different functions-e.g., intercom, additional electric lock activation, general activations. Ringer volume adjustment (with call mute) via special selector switch. Installation can be done off-wall with special bracket (supplied) or via accessory table stand (code 344692), to be purchased separately. The device, which also has a professional studio function, must be configured.



  • Voltage: 20-27V

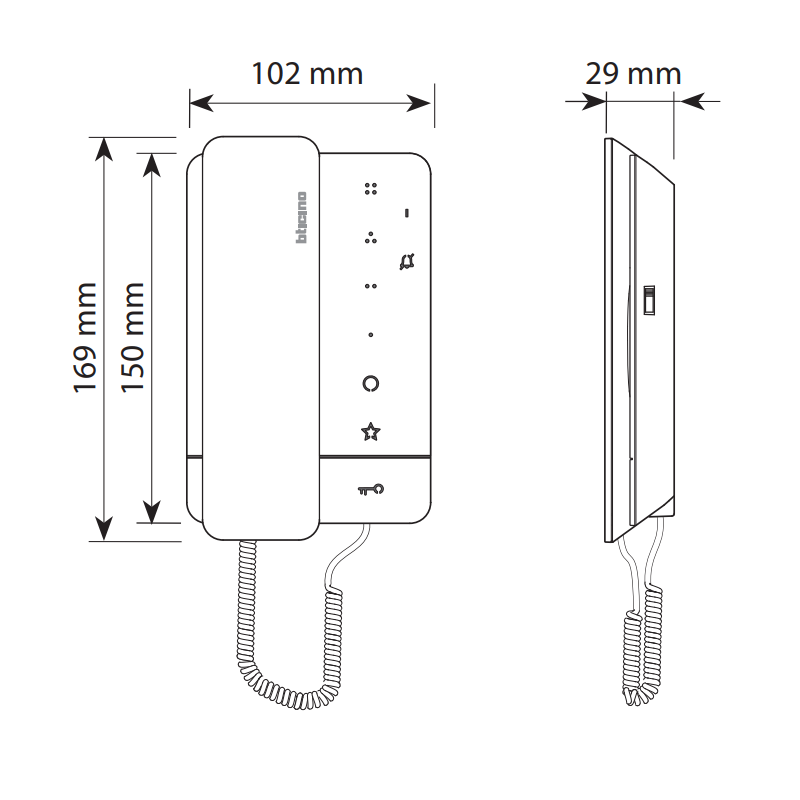

  • Dimensions: 169x102x29mm
  • Height: 169mm
  • Width: 102mm
  • Depth: 29mm
  • Maximum cable cross section: 2x1mmq
  • Installation type: 2 wire
  • Recommended installation height: 160-165cm
  • Operating temperature: -5/+40°C
  • Color: White

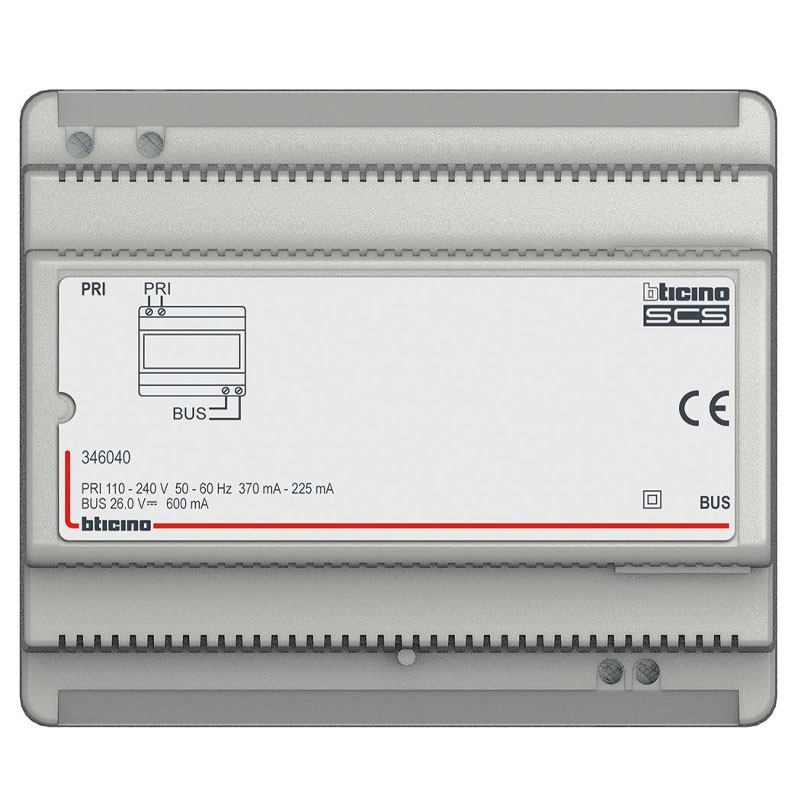

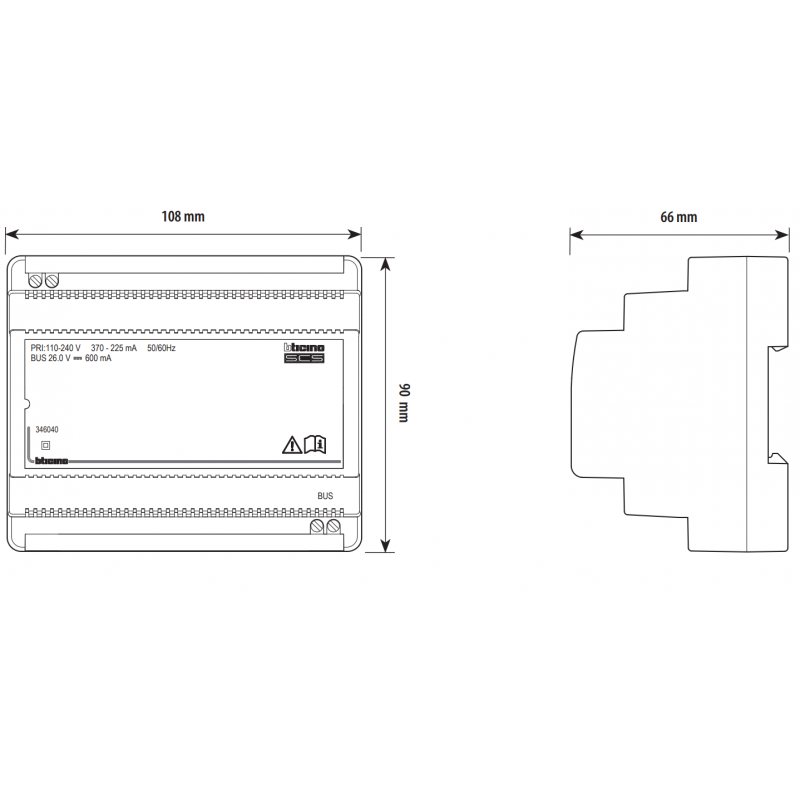

Power supply unit specifications code 346040:

  • 110-240 Vac power supply
  • Frequency: 50/60 Hz
  • It provides a low voltage output rating of 26 Vdc and a maximum current rating of 600 mA and is protected on the PRI side (with fuse) against overload and short circuit
  • It is a double-isolation SELV safety device.




PRI (AC power input):

  • Rated voltage: 110 - 240 Vac
  • Rated current: 370 - 225 mA
  • Working voltage range: 100 - 265 V
  • Working frequency range: 47 - 63 Hz
  • Power consumption at full load: 20.5 W
  • Power dissipation: 4.9 W (max.)
  • Efficiency at full load: 80 % (typ.)
  • Standby power: < 1 W
  • Operating temperature: -5 /+45 °C
  • Built-in fuse (pri side): F1 T2A 250 V (not replaceable)
  • Overall dimensions: 6 DIN modules

  • Reference standards: CEI EN60950 - CEI 64-8-4



BUS (DC output):

  • Rated voltage: 26V
  • Rated current: 0 - 0.6 A
  • Rated power: 15.6 W




Installation: Observe the following installation rules:

  • The power supply must always be installed in appropriate enclosures.
  • Must not be exposed to dripping or splashing water
  • Do not obstruct ventilation openings
  • A double-pole switch with contact separation of at least 3 mm must be used, placed near the power supply. The switch has the dual purpose of being able to disconnect the power supply from the mains and to protect the power supply

There are no reviews

Data sheet

KIT:
Intercom Kits
Model:
Intercom function
Single-family house
System:
2-Wire
