Bticino Intercom Kit CLASSE 100A16E 2-Wire Single-Family 364232

Bticino
Bticino
BTI 364232 8005543631140

Bticino Linea 3000_Class 100A16E single-family hands-free audio intercom kit consisting of:



  • 1 piece LINEA 3000 audio handset code 343071
  • 1 piece 2-wire hands-free intercom Class 100A16E code 344282
  • 1 piece DIN power supply for 2-wire audio systems code 346040



This kit can be configured for single-family or two-family installations.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Intercom Kit CLASSE 100A16E 2-Wire Single-Family 364232
€270.11
€270.11

€270.11
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€270.11

Buy it within and receive it from Thursday, 5 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Other information:

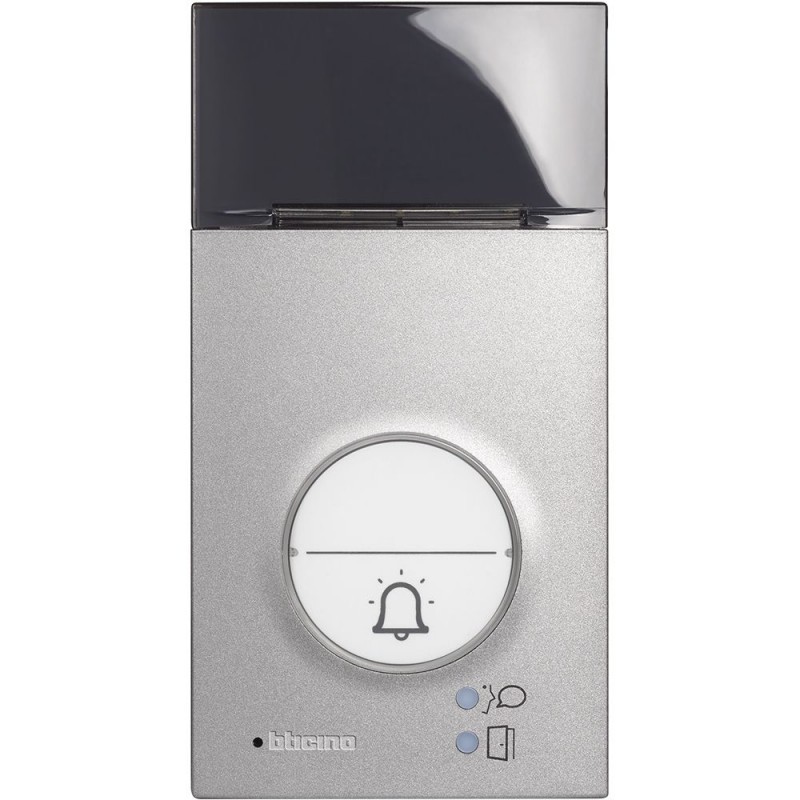

  • Name tag lighting with white LED.

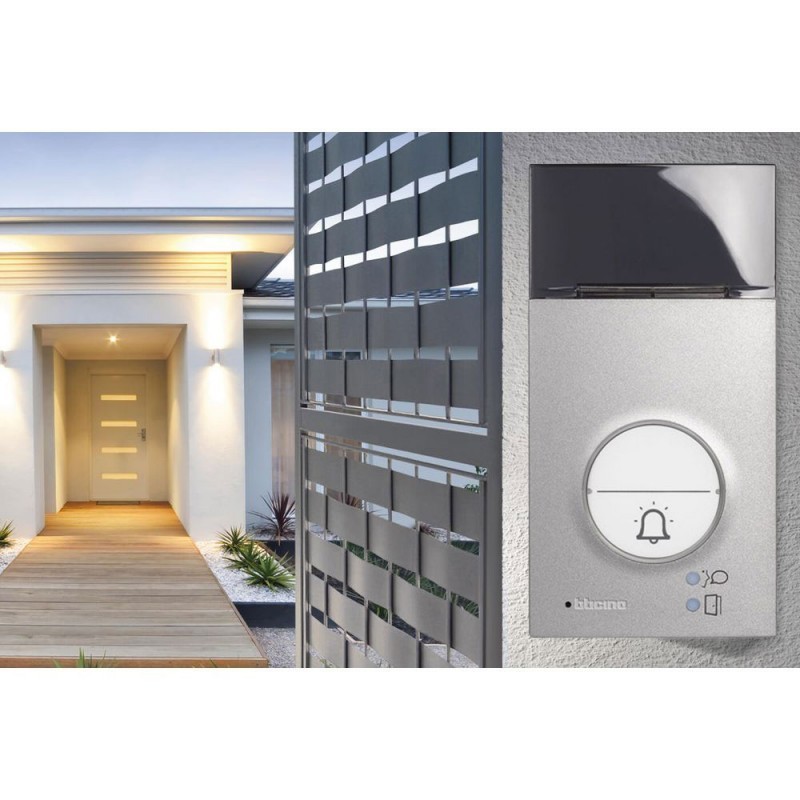

  • Can be wall-mounted and flush-mounted with specific accessories: (350020) flush-mount box plus (343061) flush-mount accessory to be purchased separately
  • Can be accessorized with rain roof (343051) to be purchased separately
  • The handset meets IP54 protection rating, IK10 strength rating, Recommended installation height 160-165cm

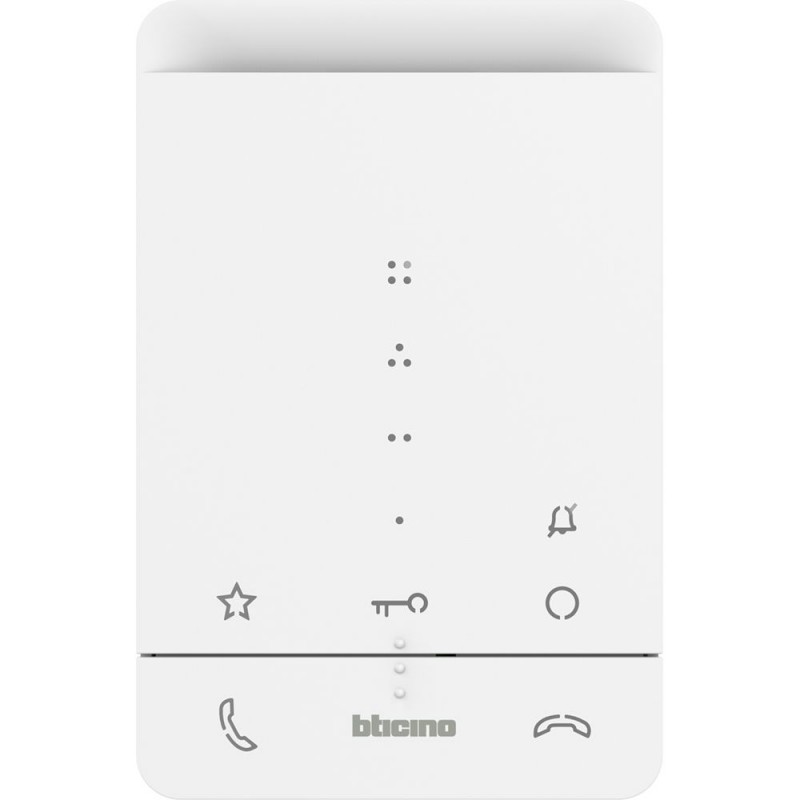

  • The intercom has 2 physical keys for controlling the main intercom functions call answering and closing and 3 touch keys for controlling the main functions lock opening, stair light control and door station/clocking activation plus 4 additional configurable touch keys that take on different functions e.g. intercom, additional lock activation, general activations
  • Ringer volume adjustment (with call mute) via special selector switch

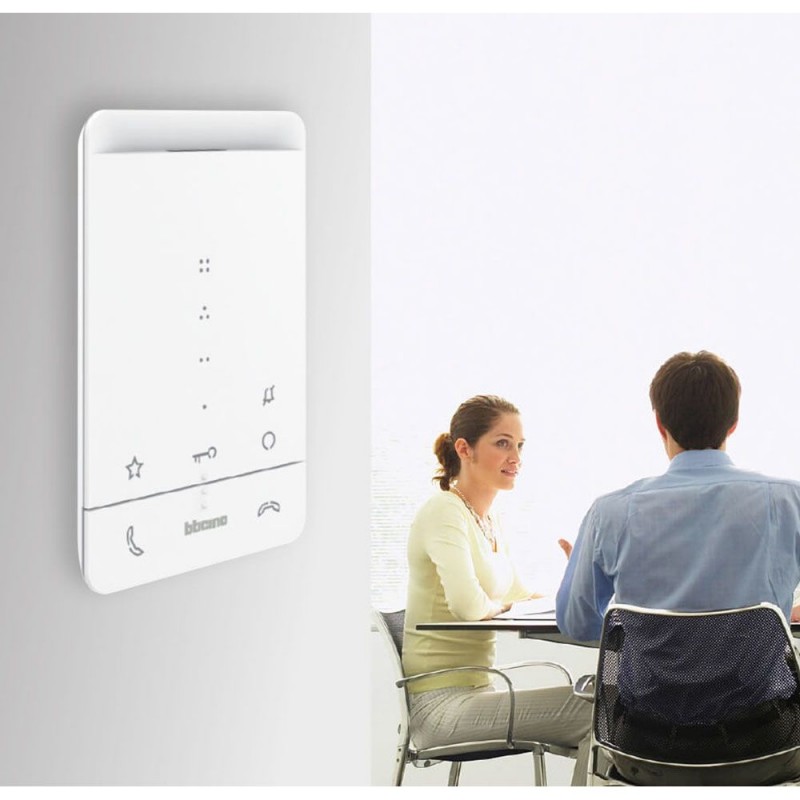

  • Installation can be done off-wall with special bracket or via accessory table stand (1 x 344692) to be purchased separately
  • The device, which also has a professional studio function, must be configured




Power supply specifications:

  • 110-240 Vac power supply
  • Frequency: 50/60 Hz
  • Provides a low voltage output rating of 26 Vdc and a maximum current rating of 600 mA and is protected on the PRI side (with fuse) against overload and short circuit
  • It is a double-isolation SELV safety device.



PRI (AC power input):

  • Rated voltage: 110 - 240 Vac
  • Rated current: 370 - 225 mA
  • Working voltage range: 100 - 265 V
  • Working frequency range: 47 - 63 Hz
  • Power consumption at full load: 20.5 W
  • Power dissipation: 4.9 W (max.)
  • Efficiency at full load: 80 % (typ.)
  • Standby power: < 1 W
  • Operating temperature: -5 /+45 °C
  • Integrated fuse (PRI SIDE): F1 T2A 250 V (NOT REPLACEABLE)

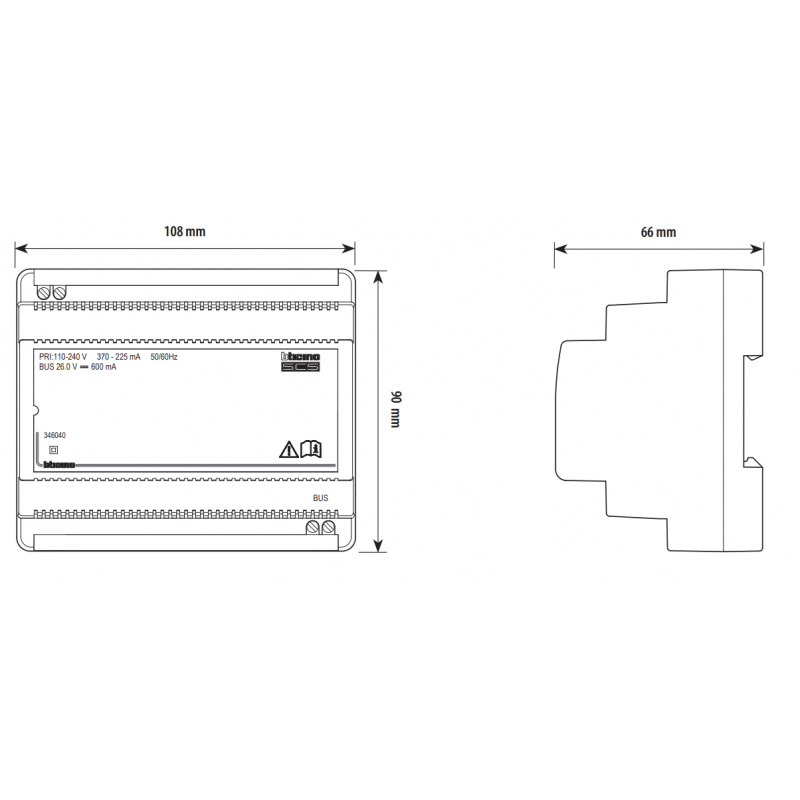

  • Overall dimensions: 6 DIN modules

  • Reference standards: CEI EN60950 - CEI 64-8-4



BUS (DC output):

  • Rated voltage: 26V
  • Rated current: 0 - 0.6 A
  • Rated power: 15.6 W




Installation Comply with the following installation rules:

  • The power supply unit must always be installed in appropriate enclosures.
  • It must not be exposed to dripping or splashing water
  • Do not obstruct ventilation openings
  • A double-pole switch with contact separation of at least 3 mm must be used, placed near the power supply. The switch has the dual purpose of being able to disconnect the power supply from the mains and to protect the power supply

There are no reviews

Data sheet

KIT:
Intercom Kits
Model:
Intercom function
Single-family house
System:
2-Wire
