Bticino EASYKIT Essential Plug in video intercom kit 2-wire monitor 7 inch 317913
BT1 317913
8005543533079
Bticino EASYKIT Single-Family Video Door Phone Kit color Essential and wall plate, 2-wire bus consisting of:
- 1 External push button panel with 2 backlit call buttons.
- 1 7-inch color monitor (4 touch buttons available: gate opening, door opening, answer or intercom, camera on)
- 1 Plug-In European plug-in power supply, compatible with camera code 391441
- Metal finish license plate with rain canopy, wide-angle color camera and LEDs for nighttime illumination of the field of view
The system is expandable up to 6 indoor posts (3 per license plate) and up to 2 outdoor posts.
An external color CCTV camera can be directly connected to the outdoor license plate (code 391441 to be purchased separately).
Great for single-family cottage; can become compatible with duplex cottage as it is expandable with up to 2 additional indoor monitors (code 333253 to be purchased separately).
€179.97
Items Available: 10
: 9
Frequently bought together
Technical specifications of KIT components:

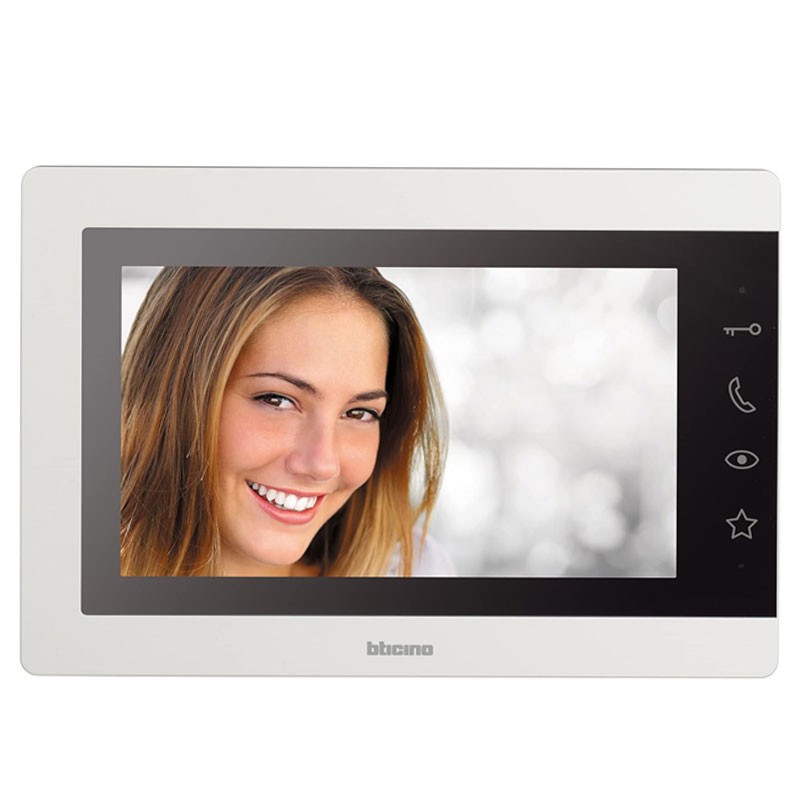

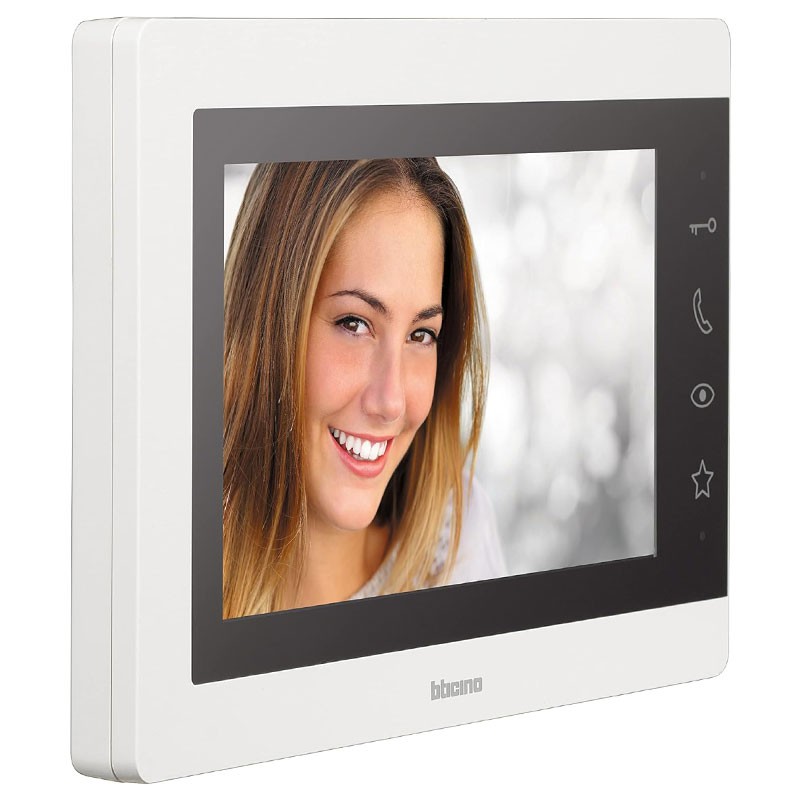

1 7-inch color monitor (4 touch keys available: gate opening, door opening, answering or intercom, camera on):
- 7 inches
- Color display
- Color/Finish: white
- Touch controls for main functions
- Installation: wall mount
- Height: 140 mm
- Length: 208 mm
- Depth: 26.5 mm
- Rated power: 30 Watt
- Rated voltage: 30V DC
- Maximum wire cross-section for each terminal 2 x 0.5 mm2
- Operating temperatures: -5/+40°C
- This added monitor is compatible with the 2-wire video intercom kit (code 317913).

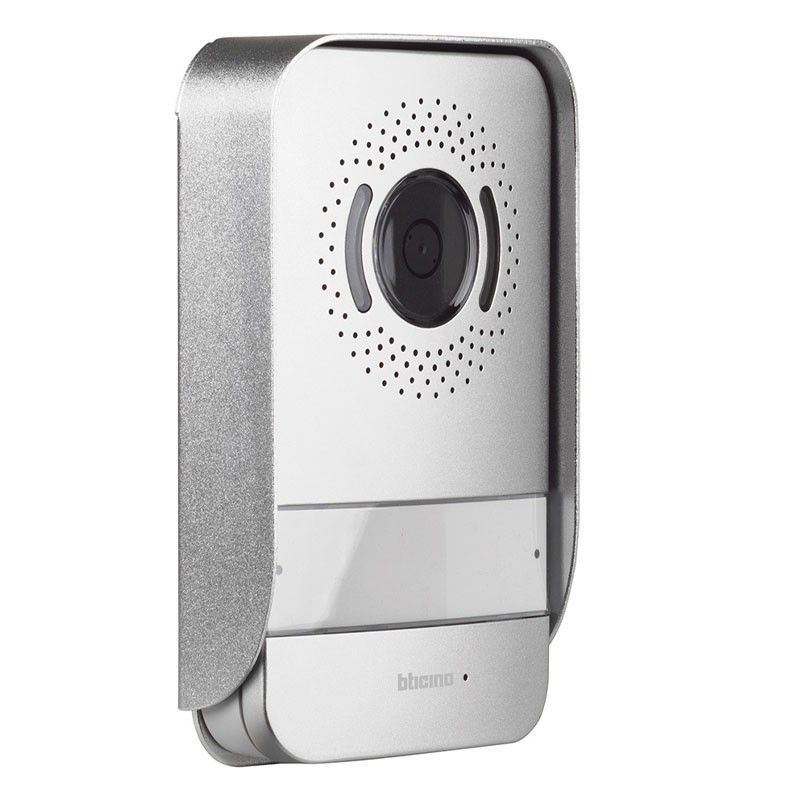

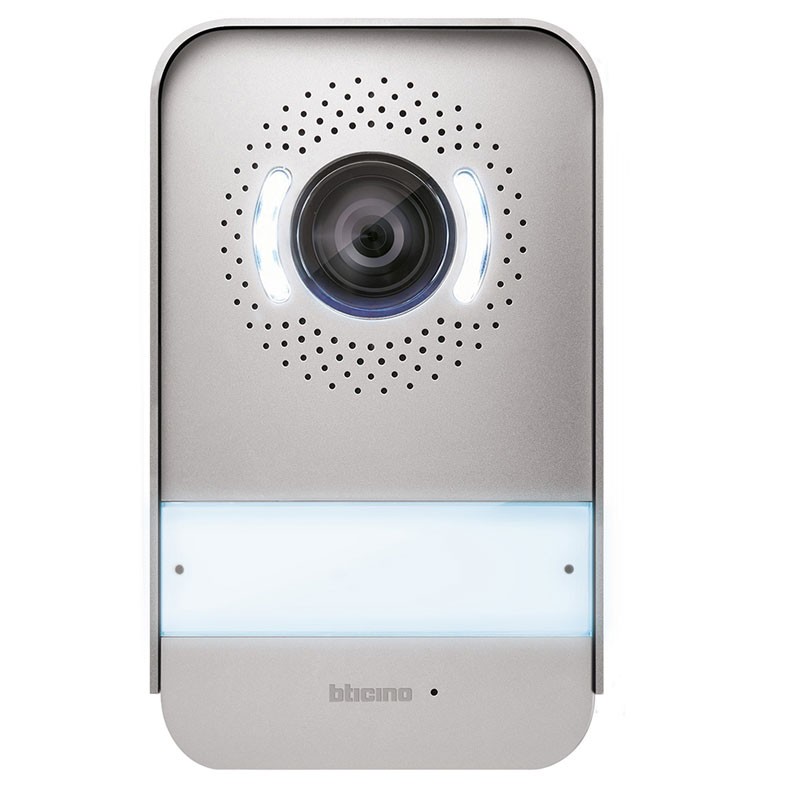

1 Outdoor intercom with 2 backlit call buttons:
- Weatherproof IP54
- Ruggedness grade IK07
- Dual opening (door and gate)
- Built-in rain visor
- Wall installation
- Material Metal
- Dimensions: Height 160.5 mm - Width 100 mm - Depth 36.6 mm
- 95° wide-angle camera
- Connection Type Wired
- Number of conductors/wires 2
- Power supply (in V) 220
- Transmission type Analog CMOS collector type
- Material of outer plate Aluminum
Tutto bene, il videocitofono è perfettamente funzionante
Ottimo prodotto qualità prezzo e facile da installare
Professionnel de confiance. Large choix et accès aux conseils
appareil efficace sur courte distance sur 100 m ne fonctionne pas
Tutto ok, spedizione veloce e prodotto come da descrizione
Apparecchio con funzioni base . peccato che non si può aggiungere un apparecchio citofono
Prodotto buono facile da installare servizio ottimo
E' un buon prodotto, ma lo conoscevo già.
Molto bello e buono sono soddisfatto lo consiglio
Non ho ancora istallato, sembra buona fattura puntuali nella consegna , prezzo in linea
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2-Wire
- WIFI: No
Single-family house
