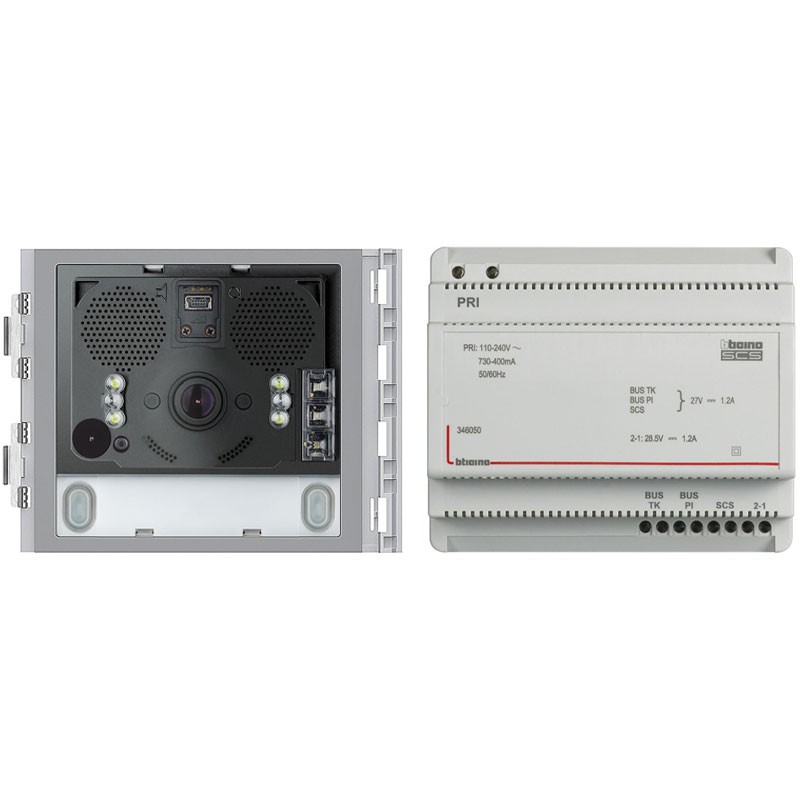

The Bticino Sfera 360005 basic system kit is an advanced solution for building 2-wire video intercom systems, combining high-quality technology, security and ease of use. This kit consists of:

  • 1 Sfera wide-angle audio video module, with 5 MP camera and 2-wire SCS BUS technology (351500)

  • 1 BUS-SCS power supply, which ensures stable and secure power supply for the entire system (346050)

Main Specifications:

  • 5 MP wide-angle camera, with digital filters and white LEDs for night vision

  • Wide viewing angle: horizontal 119°, vertical 92°

  • PAL video transmission over SCS BUS 2-wire technology

  • Volume adjustments for speaker and microphone

  • Management of up to 98 calls, with additional double row button modules

  • Integrated electric lock activation, with S+ and S- terminals (18V 4A impulsive - 250mA maintenance on 30 Ohm max)

  • Local door opener button connection on PL terminals

  • Status LED, to indicate door opener, active communication, call forwarded and system busy

  • Built-in optical sensor, for automatic activation of night backlighting

  • Physical configuration or via PC and dedicated software

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino audio video system base kit Sfera 360005
€365.02
€365.02

€365.02
Tax included
Calculate shipping cost
Items Available: 166
Further availability of the manufacturer
€365.02

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Bticino Sfera 360005 basic system kit components

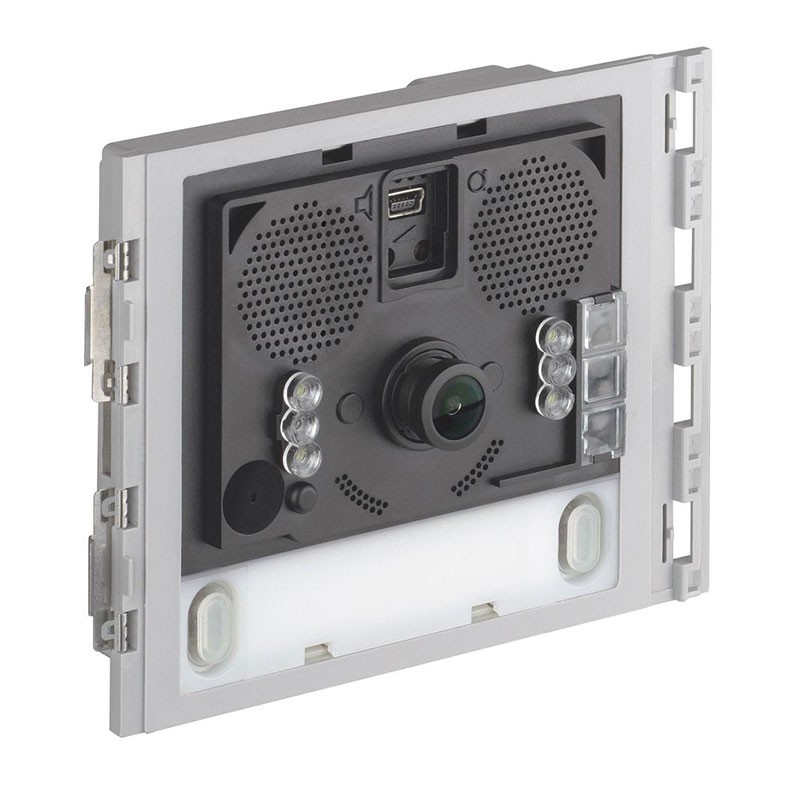

Sfera wide-angle audio video module 351500

Sfera audio video module for building 2-WIRE color video systems. Equipped with High Quality 5 MP wide-angle camera with digital filters and white LEDs for illuminating the shooting field. The video signal is transmitted to the video door phones via PAL coding on SCS BUS 2-WIRE technology.

Strengths of the Sfera 351500 Audio Video Module

  • Speaker and microphone volume adjustments

  • Handles up to a maximum of 98 button calls using additional double row button modules

  • Horizontal viewing angle (119°), vertical viewing angle (92°)

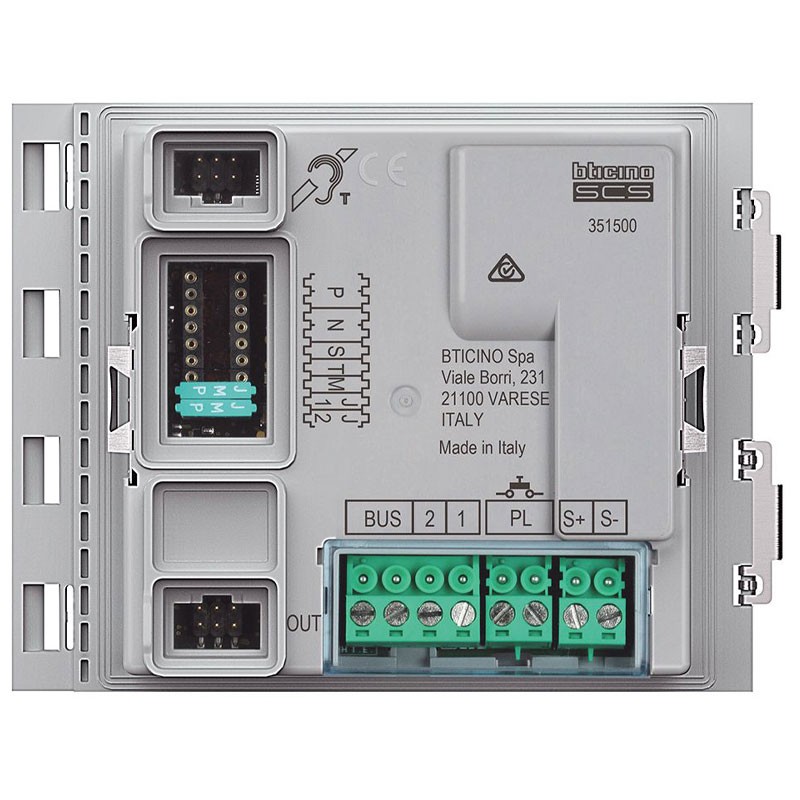

  • Allows activation of an electro-lock connected directly to terminals S+ and S- (18 V 4 A impulsive - 250 mA maintenance on 30 Ohm max) and connection of a local door opener button on terminals PL

  • Prepared for additional power supply

  • Equipped with front LEDs for signaling operating status: door opener, active communication, call forwarded, and system busy

  • Built-in optical sensor for switching on night backlighting

  • To be completed with the specific Sfera New and Sfera Robur finish faceplates

  • Device must be configured physically or via PC and specific software - free download from www.homesystems-legrandgroup.com

FeatureDescription
Voltage 20-27Vdc
Modules 1
Height 91mm
Width 115 mm
Calls 2
System type 2 Wires / 2 Wires
Recommended installation height 160-165 cm
Operating temperature -25° - +70°C
Resolution 5MP
Series Sphere

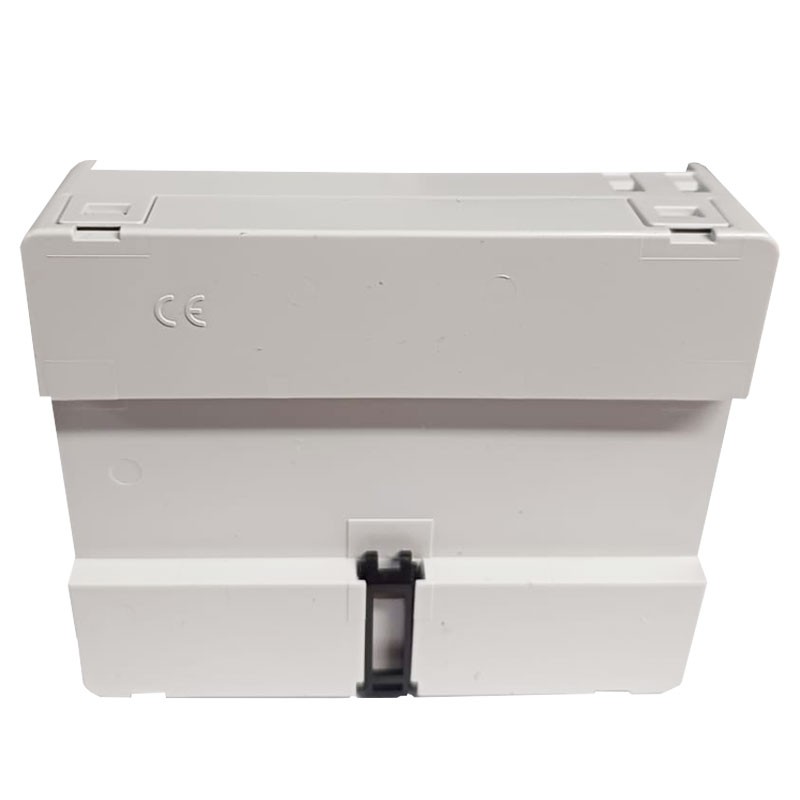

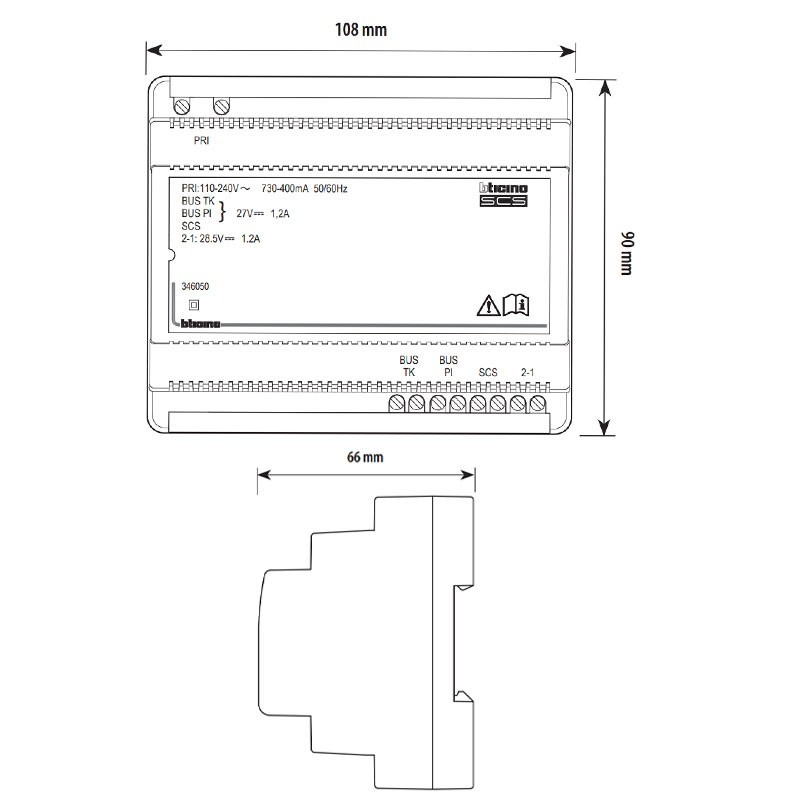

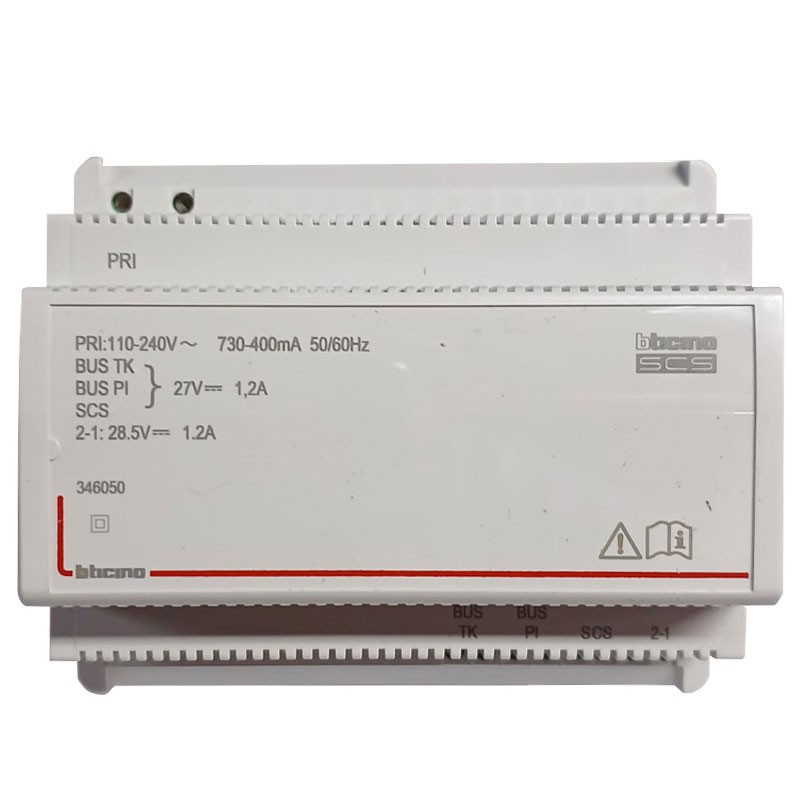

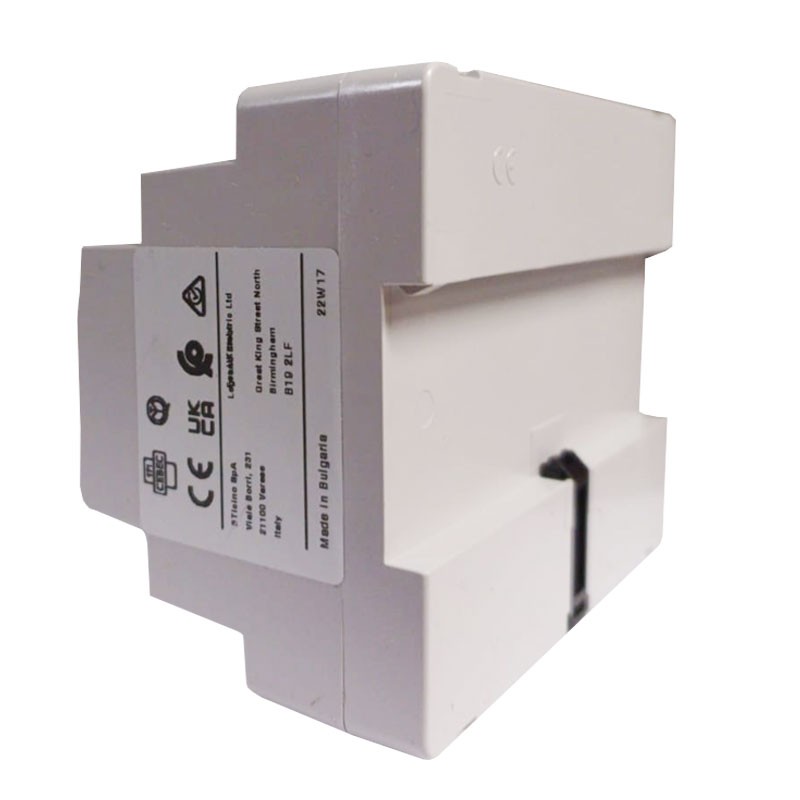

BUS-SCS power supply for 2-wire audio and video systems 346050

  • Power supply for 2-wire audio and video systems in 6 DIN modular housing

  • Power supply 110 - 240 Va.c. @ 50 60 Hz

  • Provides output of two safety extra-low voltage supplies (one on the 3 terminals BUS TK, BUS PI and SCS, one on terminal 1 - 2); to be used alternately and NOT simultaneously

  • The video adapter is built into the device (item 346830 should therefore not be used), so the use of the A/V node (F441) or multi-channel matrix (F441M) can be avoided if a total of three leads are not exceeded from the BUS PI and BUS TK terminals (MAX 2 PI risers + 1 TK or 1 PI riser + MAX 2 TK)

  • It can also be used as an additional power supply (output 1 - 2) for local power supply of indoor stations or prearranged outdoor stations (in this case, no other output can be used)

  • The device is electronically protected against overload and short circuit

  • It is a double-insulated SELV safety device

  • The device does NOT need to be configured

FeatureDescription
Voltage 110-240Vac
Rated frequency 50-60Hz
Modules 6
System type 2 Wires / 2 Wires
Operating temperature range -10° - +55°C

There are no reviews

Data sheet

KIT:
Video Intercom Basic Kits
System:
2-Wire
WIFI:
No
