Relay Actuator BPT remote for auxiliary services
CMC 62825400
8004487433612
Relay Actuator BPT remote for auxiliary services
€106.67
Items Available: 2

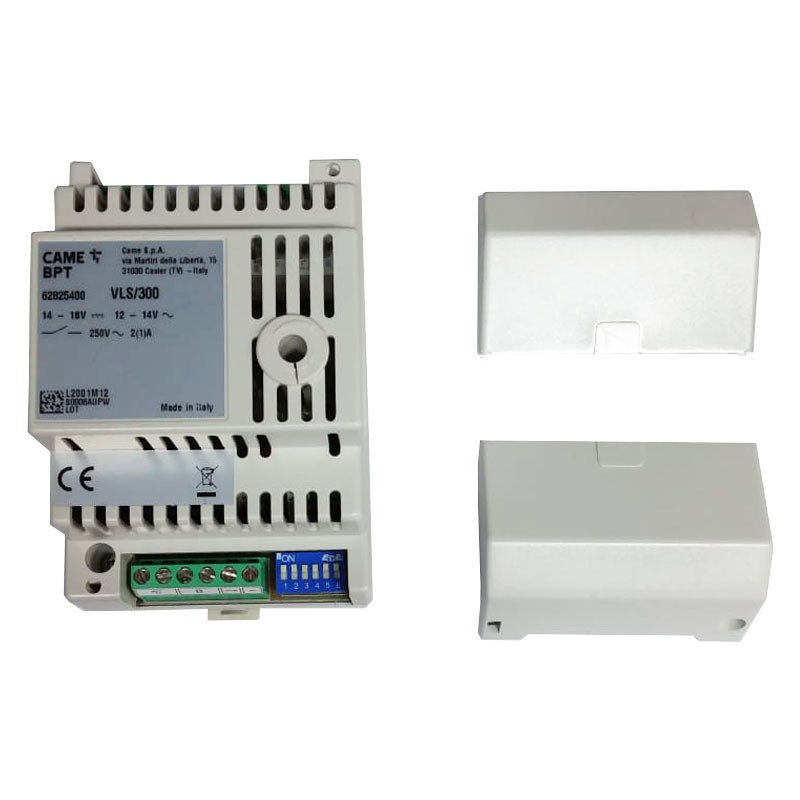

Relay unit for auxiliary services (lights control, openings, ringtones, etc).Made of plastic housing for installation in electrical panels (EN50022), size 4 DIN modules low. Degree of protection IP30. The unit has 2 relays with a contact in the switching power interruption 22 A resistive load (1 A inductive) at max voltage 250V AC (excitation coil with power supply 10/14V AC or 14/18V DC - 50 mA). The two relays are associated by default to the commands for the door lock and AUX2. It is also equipped with 6 switches for programming of the control box, 1 potentiometer for adjusting the activation time of relay 1 (door lock) and 1 indicator LED to indicate the status of data reception from the BUS line.
