BPT intercom system base kit with LITHOS push button panel 2-wire system

Bpt
Bpt
CMC 61700370 8004487057849

Basic Btp Came intercom system KIT FREE-LC expandable up to 4 internal extensions, consisting of:

  • 1 Lithos AUDIO monolithic intercom door station for X1 system expandable up to 4 Lithos calls (LC/01 60090650)
  • 1 Single double-height button with name tag (DPH 61800040)
  • 1 Additional power supply 18 V DC - 1000 mA (VAS/101 62700011)
Do you have questions about this product or did you not find what you were looking for? Ask us!
BPT intercom system base kit with LITHOS push button panel 2-wire system
€156.17
€156.17

€156.17
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€156.17

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Technical specifications of individual kit components:


1 Lithos AUDIO monolithic intercom door station for X1 system expandable up to 4 calls Lithos (LC/01 60090650): Brushed AISI 316L stainless steel finish. Allows adjustment of microphone audio, speaker, and electric lock activation time. Blue key backlighting with name tag. Programming can be manual or via software. IP54 water and dust protection rating. Dedicated to small residential environments. Call module can accommodate 1 to 4 buttons with blue backlighting and name tag. Programming can be done either directly on the device or via software. Intercom function. Adjustment of microphone audio and speaker volume. Adjustment of electric lock activation time.

  • Dimensions (mm): 99 x 207 x 30
  • Power supply (V): 16 ÷ 18 DC
  • Stand-by absorption (mA): 75
  • Max. absorption (mA): 120
  • Operating temperature (°C): -15 ÷ +50
  • Degree of protection IP54
  • Color: Brushed Stainless Steel

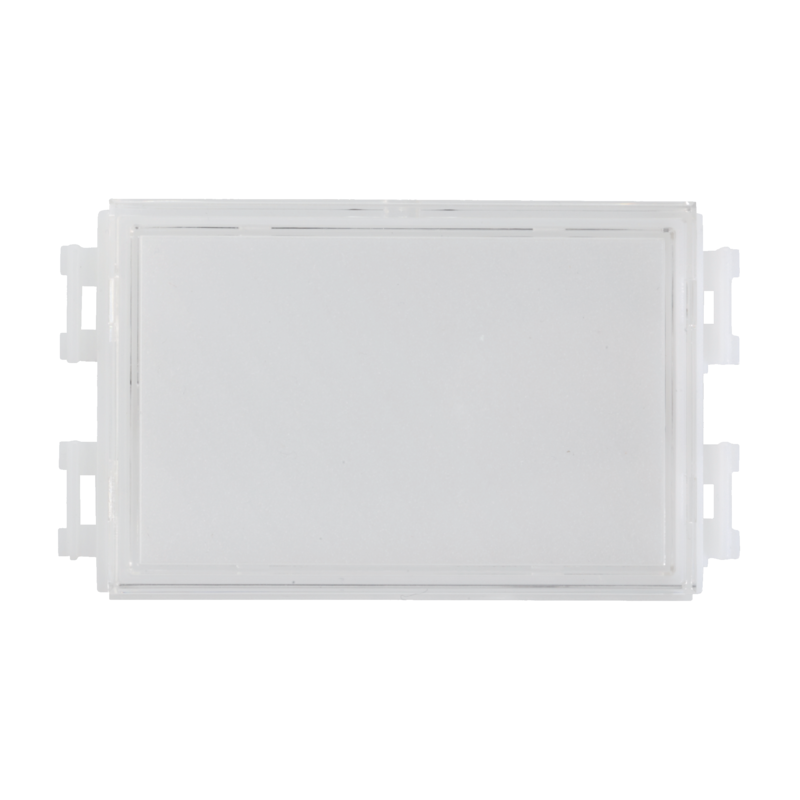

1 Double-height single pushbutton with name tag (DPH 61800040): Complete with base and transparent UV-resistant polycarbonate outer protective element. Name tag dimensions 53x33 mm.

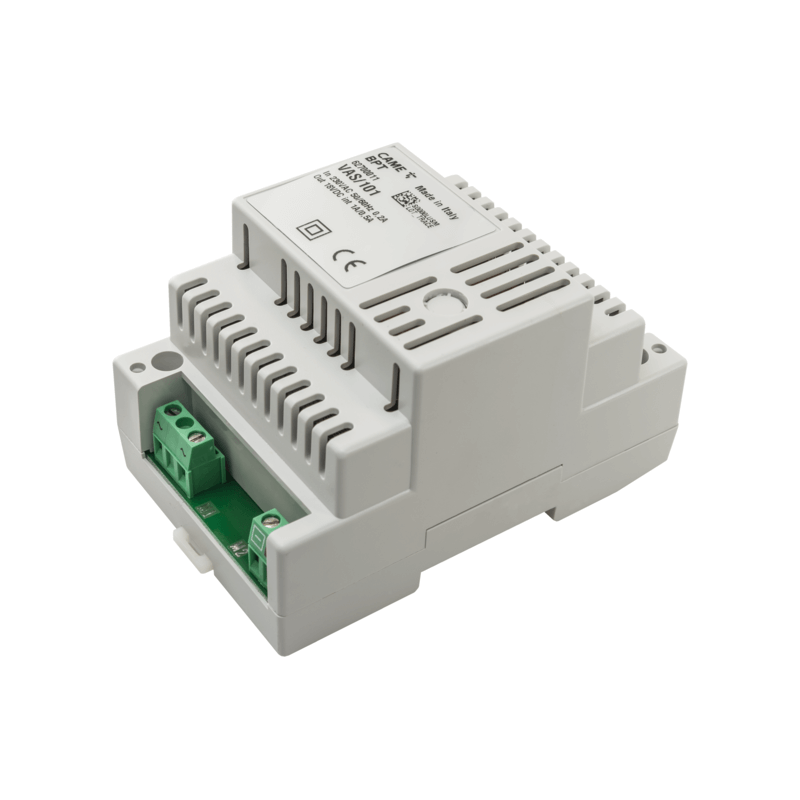

1 Supplementary power supply 18V DC - 1000 mA (VAS/101 62700011): Plastic enclosure for installation in electrical panels (EN50022) and size 4 low DIN modules. Complete electronic board for supplying power to door stations and internal extensions (18 V DC - 1000 mA max) with electronic protection against overloads or short circuits. Power supply from mains 230V AC 50/60 Hz. Water and dust protection rating IP30.

There are no reviews

Data sheet

KIT:
Intercom Base Kits
System:
2-Wire
