BPT intercom system base kit with THANGRAM 2-wire system handset
CMC 61700360
8004487057832
Basic BTP intercom system Came KIT FREE-DC, expandable up to 98 internal derivatives, consisting of:
- 1 Monolithic semi-modular intercom door station for X1 system, Metal finish (DC/01 ME code 60090020)
- 1 Anodized aluminum front plate, Matte Black finish (DPF NF 60090070)
- 1 Frame for flush-mounting Thangram series door stations, Metal finish (DCI ME 61800020)
- 1 Single button with name tag (DPS 61800030)

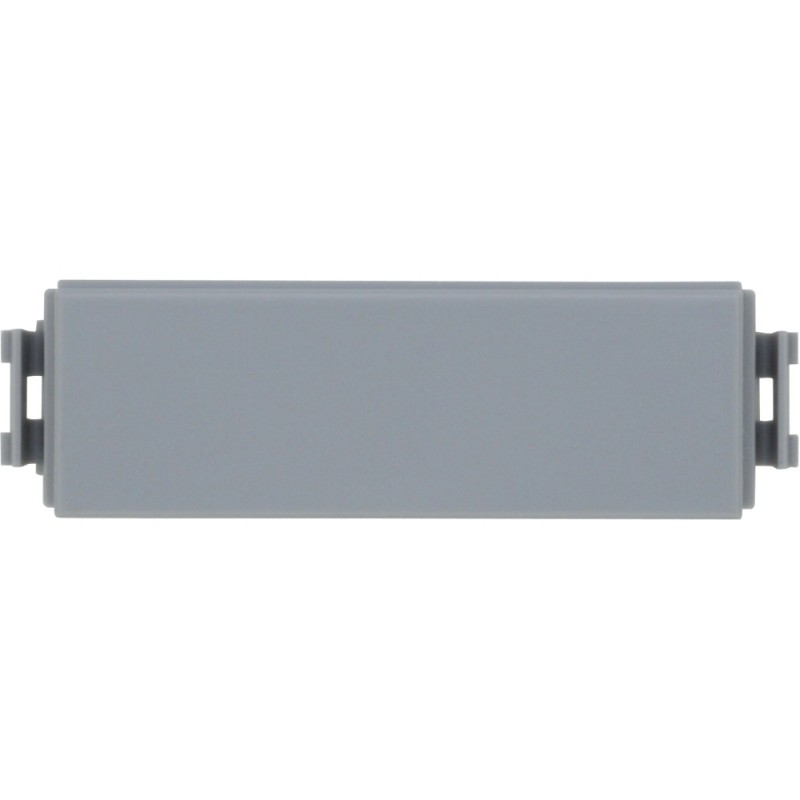

- 3 Single caps, Greyhound finish (DTS 61800060)
- 1 X1 18 V DC - 1100 mA power supply for intercom systems (A/01 61400010)
€309.55
Items Available: 7
Frequently bought together
Technical specifications of individual Kit components:

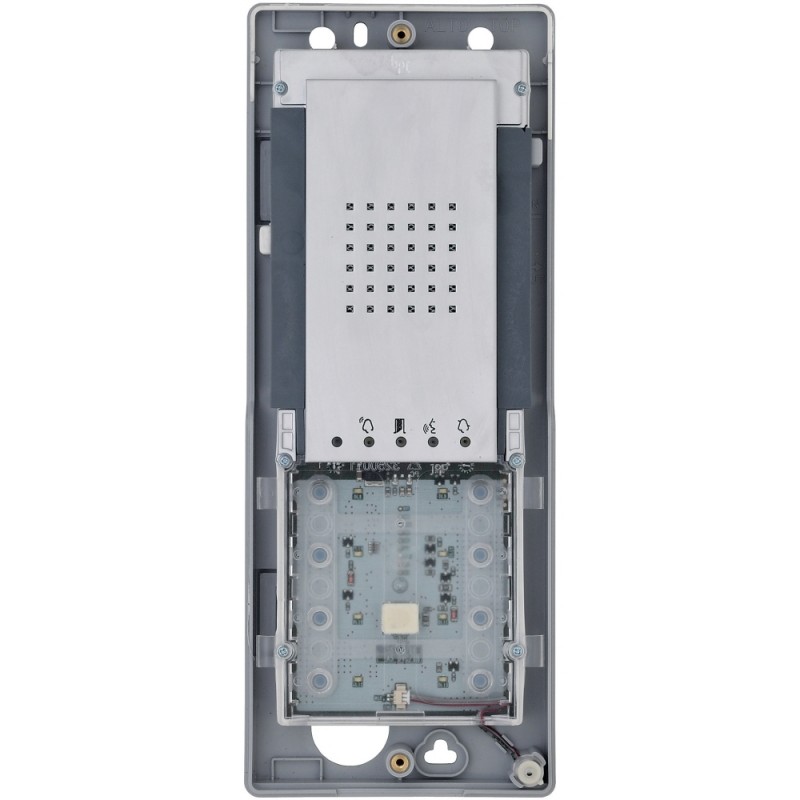

1 Monolithic semi-modular intercom door station for X1 system, Metal finish (DC/01 ME code 60090020): Monolithic semi-modular intercom door station for X1 system, Metal finish. Technopolymer body and Metal satin chrome finish. Equipped with local control for electric lock, inputs for door opener button and door status signaling, and output for external camera activation. Adjustment of microphone sound, loudspeaker and electric lock activation time. On the front is equipped with LEDs for visual signaling of system status. Blue backlighting of keys with name tag. Expandable, up to a maximum of 108 calls, with the additional keypad (DP/0) or a keypad module for digital calls. Water and dust protection rating IP54.
- Power supply (VDC) 14÷18
- Absorption (mA max) 320
- Standby absorption (mA) 130
- Dimensions (mm) 99x254x25
- Storage temperature (°C) -25/+70
- Operating temperature (°C) -15/+50
- Degree of protection IP54
- Video standard PAL/NTSC
- Resolution (pixels) 680x512
- Minimum Illumination (LUX) 1

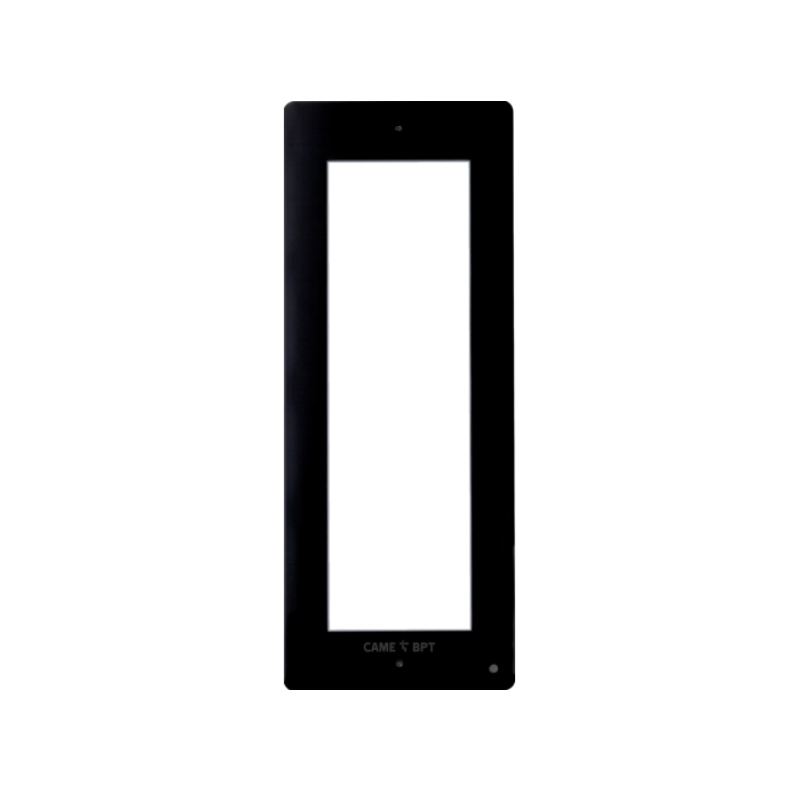

1 Anodized aluminum front plate, Matte Black finish (DPF NF 60090070): Made of anodized aluminum, Matte Black finish. For use with any Thangram series door station or DP/0 add-on panel.

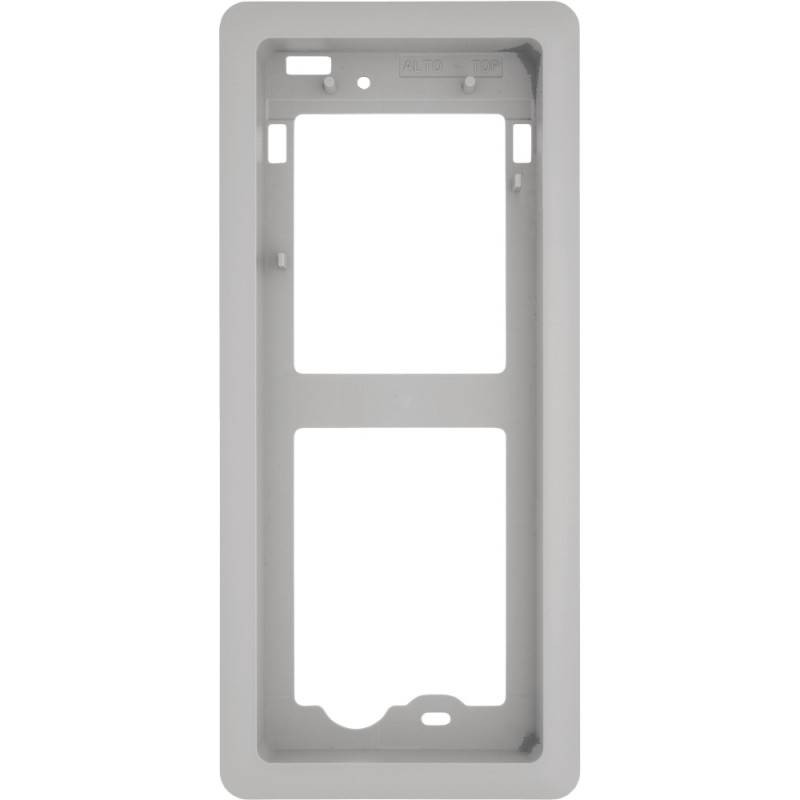

1 Frame for flush-mount installation of Thangram series door stations, Metal finish (DCI ME 61800020): Frame for flush-mount installation of Thangram series door stations, Metal finish. Frame made of plastic material coated in satin chrome, Metal finish. For use with flush-mount box (DSI) and any Thangram series door station with Metal finish or DP0 add-on panel.

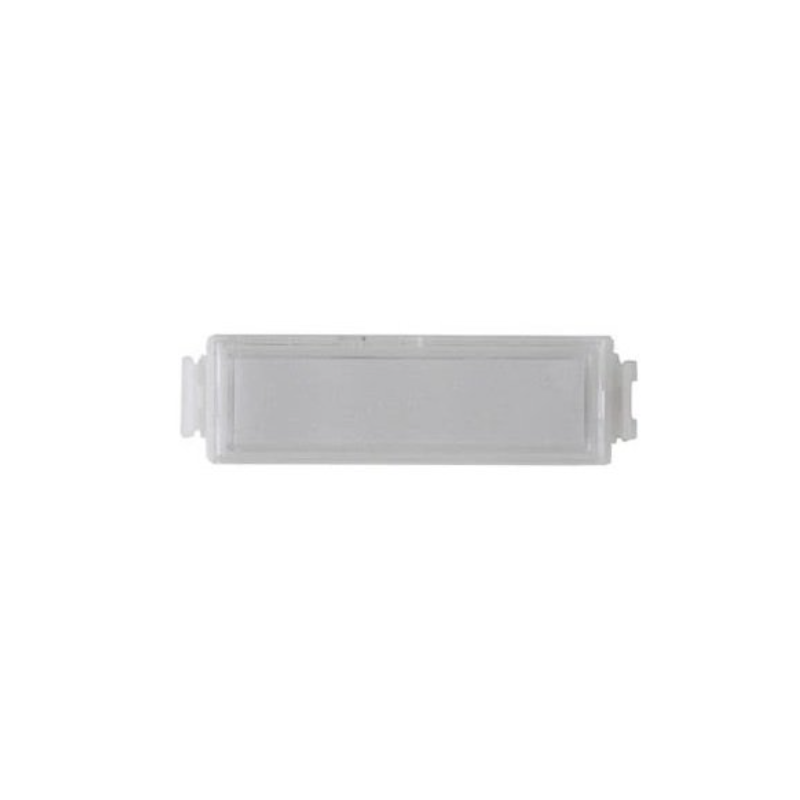

1 Single button with name tag (DPS 61800030): Complete with base and transparent UV-resistant polycarbonate outer protective element. Name tag dimensions 53x13 mm.
1 X1 18 V DC - 1100 mA power supply for intercom systems (A/01 61400010): 18 V DC - 1100 mA power supply for X1 intercom systems. Plastic housing for installation in switchboards (EN50022) and size 12 low DIN modules. Complete electronic board for management of intercom door stations (18 V DC - 1100 mA max) and for management of intercom riser (20 V DC - 800 mA max) with electronic protection from overloads or short circuits. Equipped with terminals for upright bus management and terminals for bus connection for 3 intercom door stations. Built-in intercom selector switch. Open collector outputs for auxiliary functions (AUX1 and AUX2). Manual programming or from PC through MINI USB connector. Access control device programming entry jumper. Power supply should be used only in purely intercom systems. Power supply from mains 230V AC 50/60 Hz. Water and dust protection rating IP30.
Perfetto in ogni particolare, cordialità super veloci e ottimi prezzi, sicuramente farò altri acquisti.
Data sheet
- KIT: Intercom Base Kits
- System: 2-Wire
