Came Single-family video intercom kit PLX V WIFI + LHS 8K40CF-042
CMC 8K40CF-042
8050456093981
The single-family video intercom kit CAME PLX V WiFi + LHS 8K40CF-042 for X1 system (2 non-polarized wires), brings video intercoms into the smart world: Wide Eye IK09 outdoor station and 5 hands-free monitor with Wi-Fi to also answer from a smartphone, plus 18 V DIN power supply.

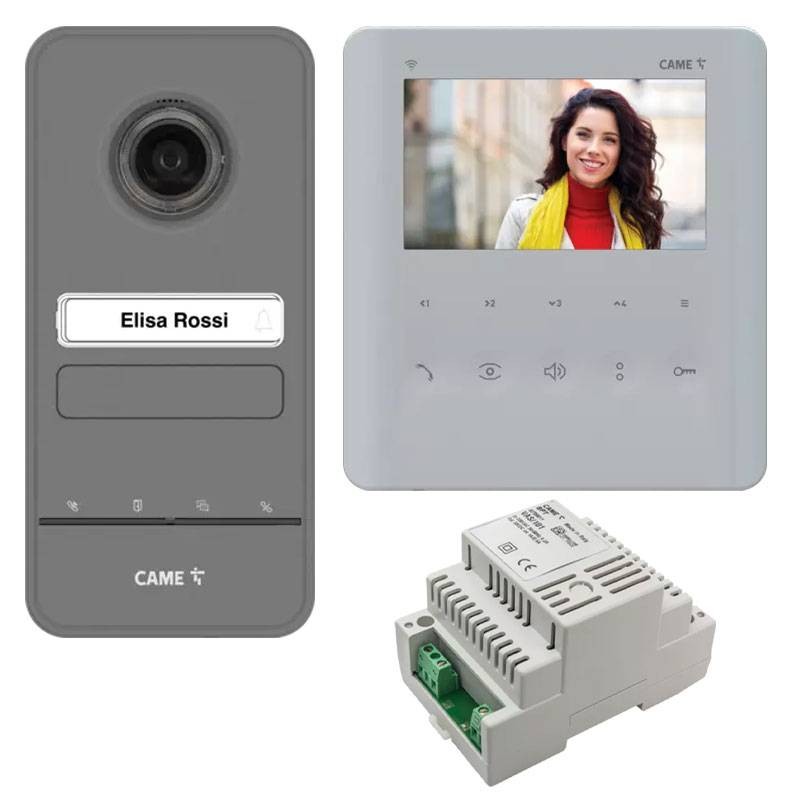

The kit consists of:
-
1 Outdoor station: 840AA-0040 Expandability: up to 4 calls
-
1 Hands-free video intercom 840CH-0130 (white) WIFI Display: 5 LCD
-
1 Power supply: 62700011 Output: 18 V DC 1000 mA max
The outdoor station is expandable up to 4 calls by adding additional buttons 840XA-0010 separately.
€450.62
Items Available: 6
: 1
Frequently bought together
Kit CAME 8K40CF-042: single-family video intercom with smart remote control
The CAME 8K40CF-042 PLX V WiFi + LHS is the complete solution for those who want a modern, reliable, and easy-to-manage single-family video intercom system. The combination of a monolithic outdoor unit and a hands-free Wi-Fi monitor enhances entrance security and adds a decisive convenience: the ability to receive and manage calls even on a smartphone or tablet, ideal when you're in the garden, garage, or away from home. The kit is based on the X1 system and is designed to grow over time, thanks to the expandability of the outdoor unit up to 4 calls.
-
Single-family CAME X1 system, expandable up to 4 calls
-
Outdoor unit 840AA-0040: Wide Eye camera + LED lighting
-
14 backlit call buttons, zamak finish with IK09 impact resistance
-
Hands-free video intercom 840CH-0130: 5" LCD display, soft-touch buttons, white color
-
Integrated Wi-Fi: call remote control on smartphone/tablet via dedicated app
-
Power supply 62700011: 18 V DC 1000 mA, DIN mounting with electronic protections

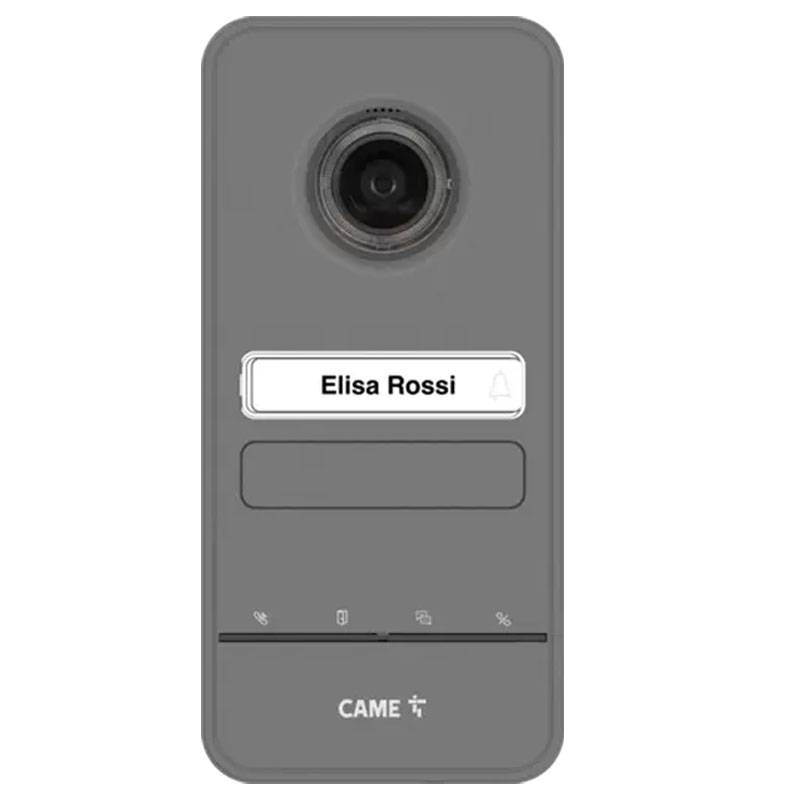

Outdoor unit 840AA-0040: wide vision and IK09 outdoor robustness
The outdoor unit 840AA-0040 is a monolithic video intercom module designed for outdoor installations where resistance and reliability are essential. The camera with Wide Eye optics offers a wider view of the entrance, useful for clearly seeing people, packages, or side areas, reducing blind spots. LED lighting supports visibility even in the evening or poorly lit areas. For user management, the device allows from 1 to 4 backlit call buttons, so you can start with a single-family system and, if necessary, expand to more calls without changing the system. The zamak finish ensures solidity and a refined appearance, with IK09 impact resistance. The system status LED helps verify operation, while configuration is simplified by programming via the SetUp APP (CAME Key).

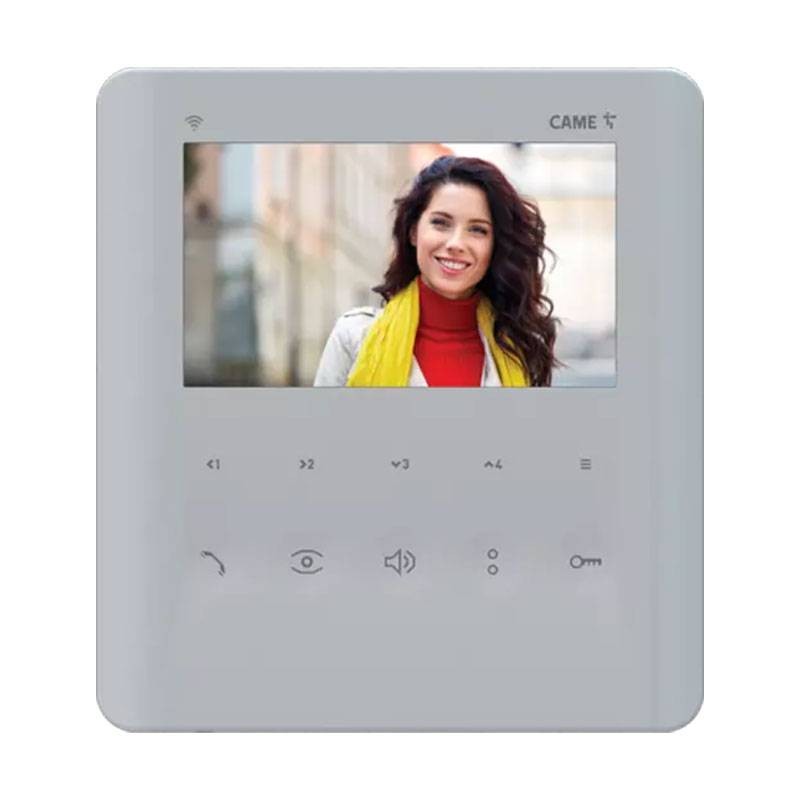

Hands-free video intercom 840CH-0130: 5" display and integrated Wi-Fi
Inside, the kit includes the 840CH-0130 video intercom in white color: a hands-free unit with a 5" LCD display and soft-touch controls for intuitive use. The dedicated button for adjusting/excluding the ringtone (with LED indication when deactivated) improves comfort, especially in the evening or in the presence of children.
The real plus is the integrated Wi-Fi, which allows call remote control on a smartphone or tablet via a dedicated app: you can see who is calling, answer, and manage access even if you're not in front of the monitor. The graphical menu facilitates the management of ringtones and Wi-Fi settings, making the device simple even for non-technical users.
Intercom, auxiliary functions, and security: more than just a video intercom
The 840CH-0130 features 4 configurable buttons for intercom calls or auxiliary commands. Depending on the system configuration, it allows up to 6 intercom calls or 4 additional auxiliary commands, increasing the versatility of the system. Also present are:
-
AUX2 for auxiliary functions and concierge call (if provided)
-
Panic Command for emergency request to the concierge (in prepared contexts)
-
Latch function (gate opener) for checking the status of external automation
-
Automatic door opener function for specific usage scenarios
The monitor can be powered via BUS cable or with local power supply, useful in installations where greater flexibility is desired.

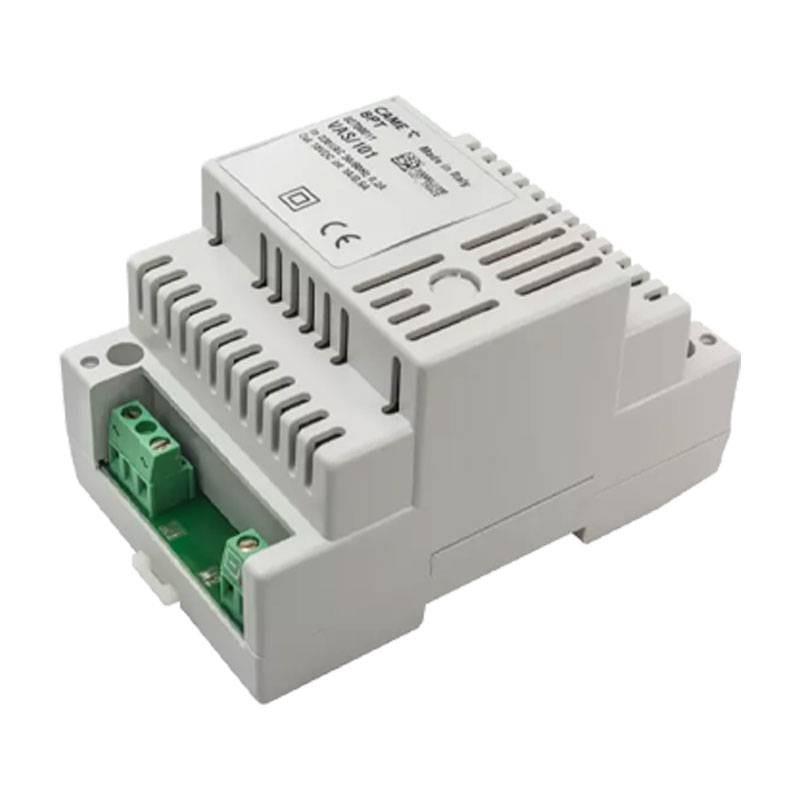

Power supply 62700011: stable power and electronic protection
The kit is completed by the power supply 62700011, a module in a plastic enclosure for electrical panels, installable on EN50022 rail in low 4 DIN module format. It delivers 18 V DC 1000 mA max for powering outdoor units and internal derivatives and integrates electronic protections against overloads and short circuits. The input is from a 230 V AC 50/60 Hz network with IP30 protection rating, suitable for protected environments.
| Outdoor unit – 840AA-0040 | |
|---|---|
| Expandability | Up to 4 calls |
| Camera | Wide Eye optics |
| Lighting | LED |
| Buttons | 1–4 backlit |
| Material | Zamak, impact resistance IK09 |
| Signals | System status LED |
| Programming | APP SetUp (CAME Key) |

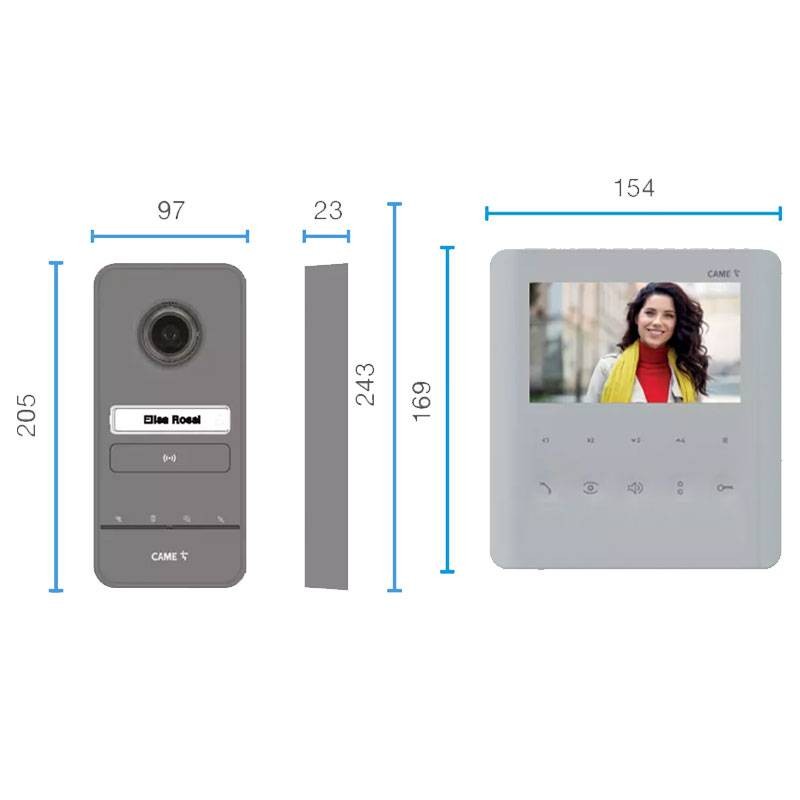

| Dimensions | 97 x 205 x 23 mm |
| Power supply | 16 ÷ 18 V DC |
| Stand-by consumption | 90 mA |
| Max consumption | 190 mA |
| Operating temperature | -25 ÷ +55 °C |
| Protection degree | IP54 |
| Video standard | PAL |
| Colour | Matte grey 9023 |
| Storage temperature | -25 ÷ +70 °C |
| Hands-free video intercom – 840CH-0130 (white) | |
| Display | 5” LCD |
| Controls | Soft-touch buttons, 4 intercom/auxiliary buttons, ringtone button |
| Connection | Integrated Wi-Fi (call remote via app) |
| Functions | Ringtone exclusion with LED, AUX2, intercom (up to 6) or 4 additional commands, “Panic”, Latch, automatic door opener |
| Power supply | Via BUS or local |
| Dimensions | 155 x 170 x 25 mm |
| Power supply from BUS | 15 ÷ 20 V DC |
| BUS consumption | 400 mA |
| Local power supply | 14 ÷ 18 V DC |
| Local consumption | 300 mA |
| Stand-by consumption | < 8 mA |
| Operating temperature | +5 ÷ +40 °C |
| Protection degree | IP30 |
| Frequency | 2.412 – 2.472 MHz |
| Wireless Standard | IEEE 802.11b/g/n |
| Colour | White |
| Storage temperature | -25 ÷ +70 °C |
| Power supply – 62700011 | |
| Output | 18 V DC – 1000 mA max |
| Input | 230 V AC 50/60 Hz |
| Mounting | EN50022 rail, 4 low DIN modules |
| Protections | Overload / short circuit (electronic) |
| Protection degree | IP30 |
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2-Wire
- WIFI: Yes
Single-family house
