Came Single-family video intercom kit LHS PLUS + PLX V WIFI 8K40CF-033

Bpt
Bpt
CMC 8K40CF-033 8050456089717

The single-family video intercom kit CAME LHS PLUS + PLX V WiFi 8K40CF-033 for X1 system (2 non-polarized wires), combines 5 hands-free video with remote access on smartphone, IK09 outdoor unit with Wide Eye and RFID/Bluetooth access control, plus 5 proximity tags and DIN power supply.

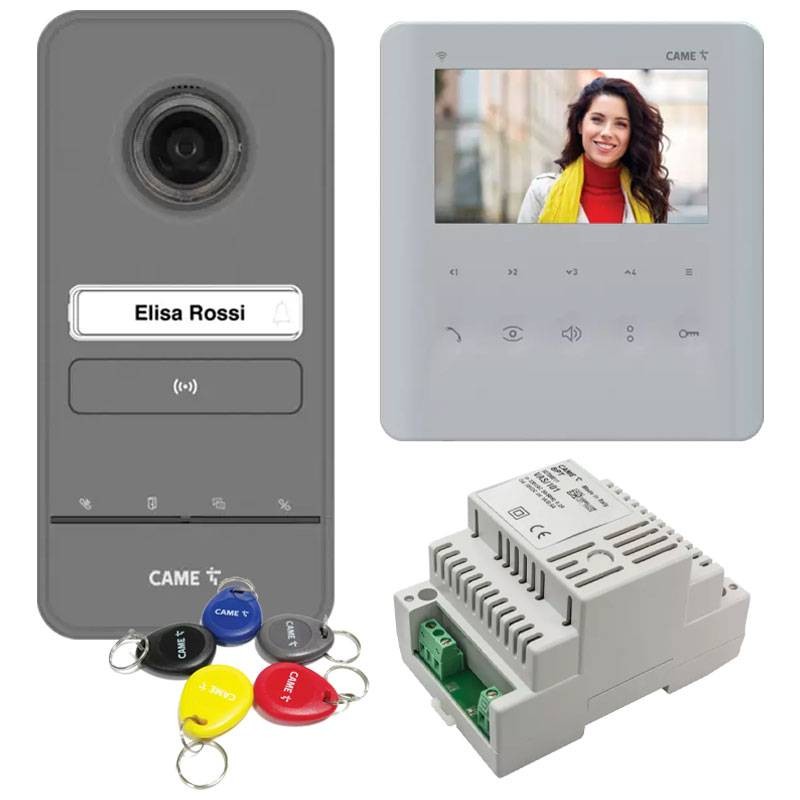

The kit includes:

  • 1 Outdoor unit: 840AA-0050 X1 system expandable up to 4 Bluetooth calls and integrated RFID reader

  • 1 Video intercom 840CH-013 hands-free with soft-touch buttons, 5” LCD display 4 buttons

  • 1 Power supply 18 V DC 1000 mA max

  • 5 Tags for RFID readers

The outdoor unit is expandable up to 4 calls by adding additional buttons 840XA-0010 separately.

  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!
Came Single-family video intercom kit LHS PLUS + PLX V WIFI 8K40CF-033
€578.15
€578.15

€578.15
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€578.15

Buy it within and receive it from Friday, 13 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Kit CAME 8K40CF-033: smart video intercom with access control

The CAME 8K40CF-033 LHS PLUS + PLX V WiFi is designed for those who want a complete, modern, and security-oriented single-family system. In addition to classic audio/video communication, this kit brings the convenience of call remote management via Wi-Fi, allowing you to answer and manage the entrance even when you're away, directly from a smartphone or tablet through a dedicated app. Moreover, it integrates true access control with RFID and Bluetooth, ideal for eliminating traditional keys and managing entries more practically (family, guests, service personnel).

  • Hands-free Wi-Fi video intercom with 5" LCD display: calls on smartphone/tablet via app

  • Monolithic outdoor unit in zamak IK09 with Wide Eye optics and LED lighting

  • Integrated access control: 125 kHz RFID reader and Bluetooth

  • Expandable: from 1 to 4 calls with backlit buttons

  • Advanced functions: intercom, AUX commands, Latch (gate opener), automatic door opener, Panic command

  • Complete kit with 5 multicolour RFID keychains + 18 V DC 1000 mA power supply with protections

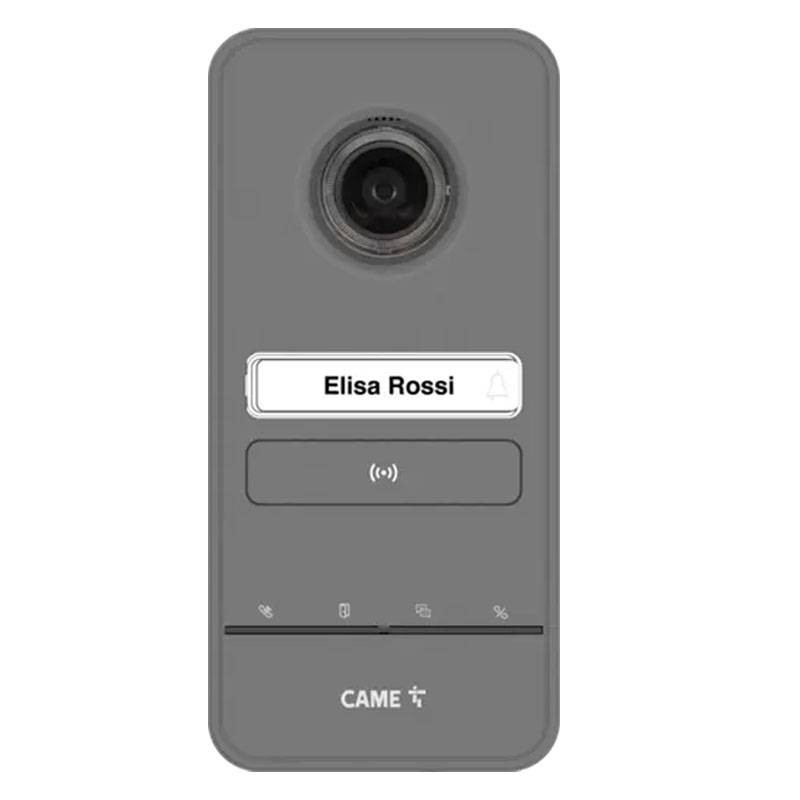

Outdoor unit 840AA-0050: Wide Eye, LED, and IK09 robustness

The monolithic video intercom outdoor unit 840AA-0050 offers high resistance thanks to the zamak finish and IK09 impact protection, an important feature for exposed installations. The camera with Wide Eye optics improves the framing of the entrance area, while the LED lighting supports vision in low light conditions.

The module is expandable up to 4 calls: you can start with a single button and move to multiple users in an orderly manner, thanks to the backlit buttons. The system status LED makes it easy to verify operation. Programming is done via the APP SetUp (CAME Key), useful for faster and more precise configurations.

Integrated access control: 125 kHz RFID and Bluetooth

The added value of the 8K40CF-033 kit is access management directly from the outdoor unit:

  • 125 kHz RFID reader to open the gate with proximity tags

  • Bluetooth for access via enabled devices (depending on system configuration).

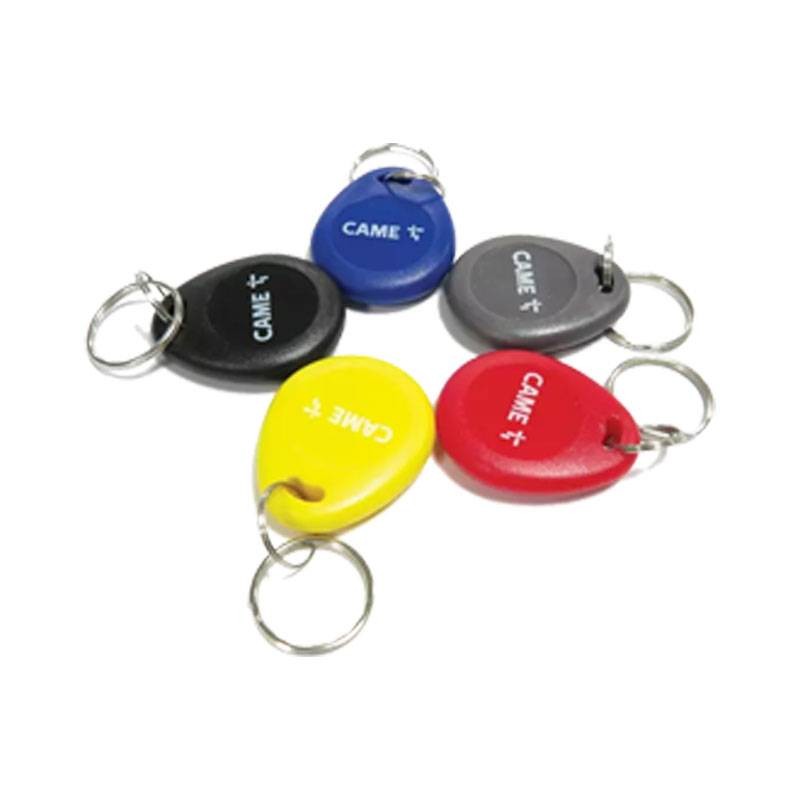

The package also includes the 840XC-0350 plates: 5 RFID keychains in different colours (black, blue, yellow, red, grey), practical for assigning a tag to each user and easily distinguishing the equipment.

Hands-free video intercom 840CH-0130: Wi-Fi, graphic menu, and advanced functions

The PLX V WiFi 840CH-0130 video intercom is a hands-free device in white with a 5" LCD display and soft-touch buttons. The presence of integrated Wi-Fi allows remote call management on smartphone/tablet, increasing security and convenience (for example, for couriers or visits while you're away from home).

The graphic menu allows you to manage settings such as ringtones and Wi-Fi network intuitively. The unit can be powered via BUS cable or local power supply, making installation more flexible.

In terms of commands and internal communications, it offers:

  • 4 buttons for intercom calls or auxiliary commands

  • Up to 6 intercom calls or 4 additional auxiliary commands

  • AUX2 for auxiliary functions and concierge call

  • Volume adjustment and ringtone exclusion with LED when deactivated

  • Latch function (gate opener) for verifying the status of external automation

  • Automatic door opener function

  • Panic command for requesting assistance from the concierge (where provided by the system)

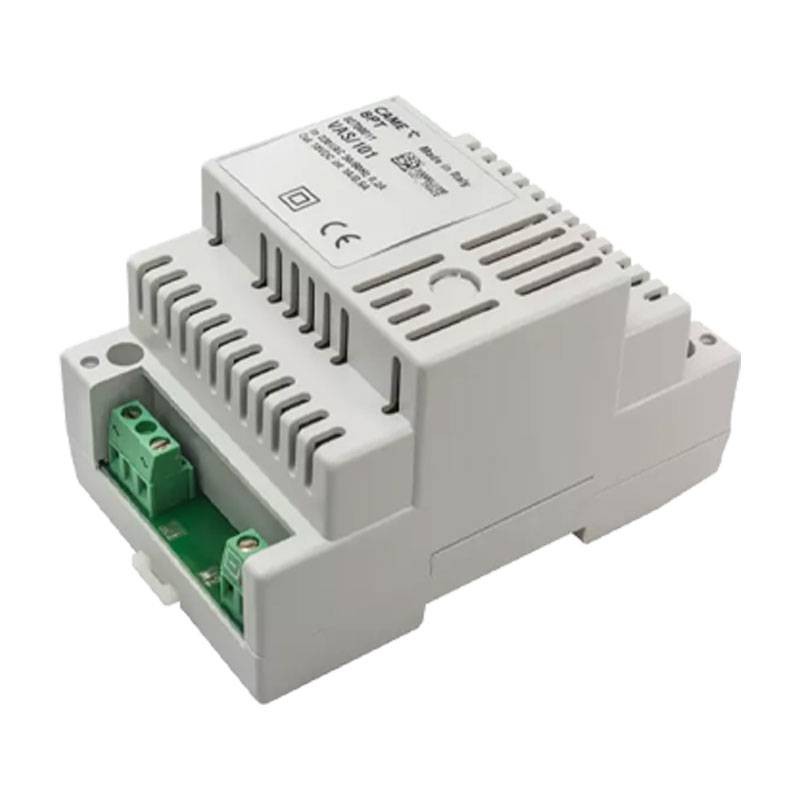

Power supply 62700011: DIN mounting and electronic protection

The kit includes the 62700011 power supply in a plastic enclosure for electrical panels, installable on EN50022 rail in 4 low DIN module format. It provides 18 V DC 1000 mA max for outdoor units and internal derivatives, with electronic protection against overloads and short circuits. Power supply from 230 V AC 50/60 Hz network and IP30 protection rating.

Outdoor unit – 840AA-0050
Optics Wide Eye
Lighting LED
Buttons 1–4 backlit
Material Zamak, IK09 impact resistance
Signals LED system status
Access control RFID 125 kHz + Bluetooth
Programming APP SetUp (CAME Key)

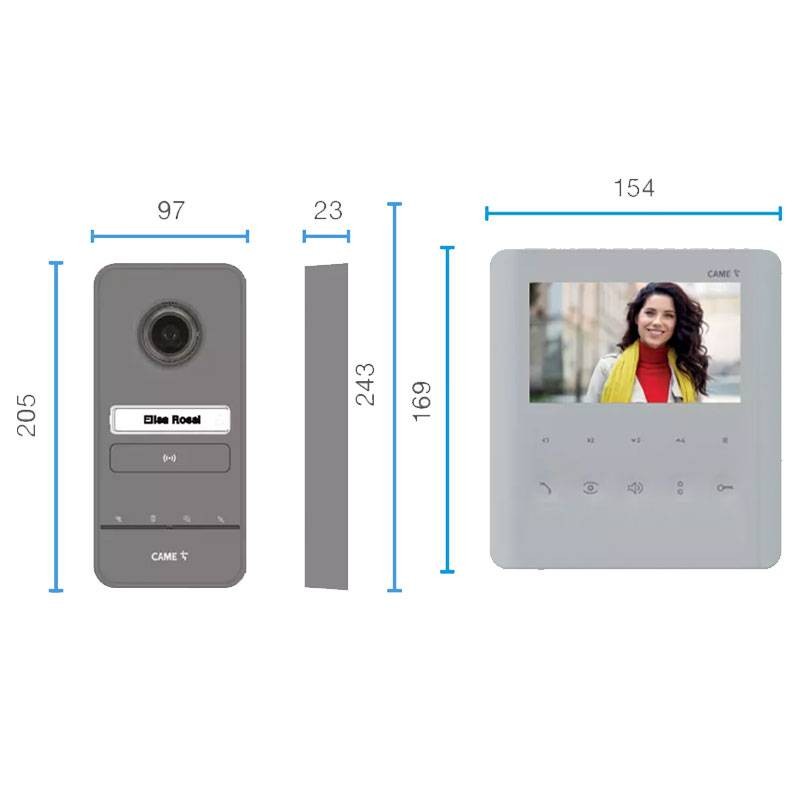

Dimensions 97 x 205 x 23 mm
Power supply 16 ÷ 18 V DC
Stand-by consumption 110 mA
Max consumption 220 mA
Operating temperature -25 ÷ +55 °C
Protection rating IP54
Video standard PAL
Colour Matte grey 9023
Storage temperature -25 ÷ +70 °C
Hands-free video intercom – 840CH-0130 (white)
Display LCD 5”
Connection Integrated Wi-Fi (call remote on smartphone/tablet via app)
Intercom / Auxiliary 4 buttons + up to 6 intercoms or 4 additional commands
Functions AUX2, ringtone exclusion with LED, “Panic”, Latch (gate opener), automatic door opener
Power supply Via BUS or local
Dimensions 155 x 170 x 25 mm
Power supply from BUS 15 ÷ 20 V DC
BUS consumption 400 mA
Local power supply 14 ÷ 18 V DC
Local consumption 300 mA
Stand-by consumption < 8 mA
Operating temperature +5 ÷ +40 °C
Protection rating IP30
Frequency 2.412 – 2.472 MHz
Wireless Standard IEEE 802.11b/g/n
Colour White
Storage temperature -25 ÷ +70 °C
Power supply – 62700011
Output 18 V DC – 1000 mA max
Input 230 V AC 50/60 Hz
Mounting EN50022 rail, 4 low DIN modules
Protections Overload / short circuit (electronic)
Protection rating IP30

There are no reviews

Data sheet

KIT:
Video Intercom Kits
Model:
Intercom function
Single-family house
System:
2-Wire
WIFI:
Yes
