Came Single-family video intercom kit AGT + LHS X1 system 8K40CF-030
CMC 8K40CF-030
8050456089687

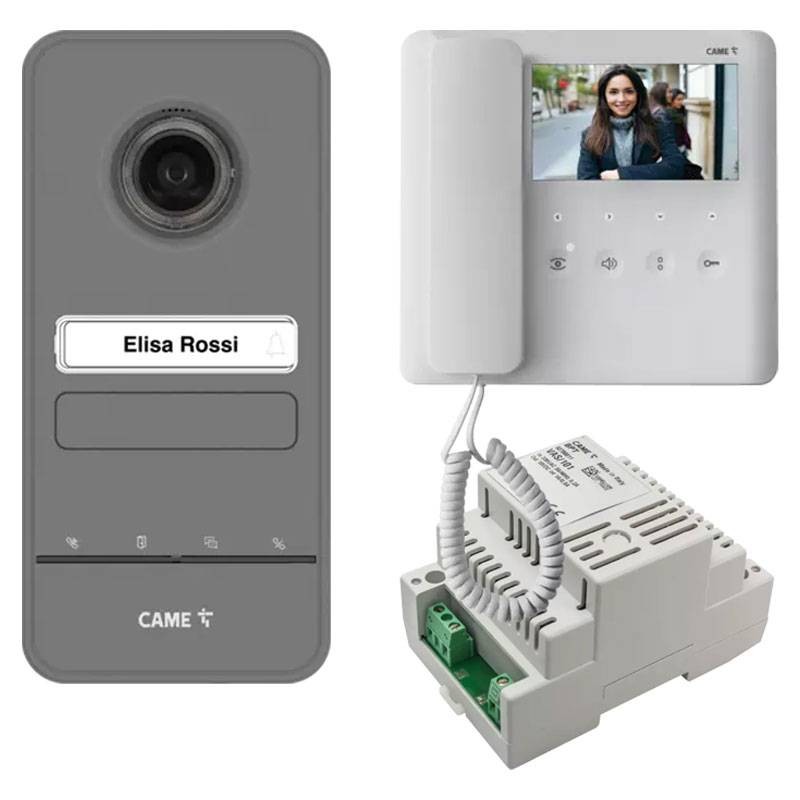

The CAME AGT + LHS X1 8K40CF-030 single-family video intercom kit for X1 system (2 non-polarized wires) combines a monolithic external unit in IK09 zamak with a Wide Eye camera and backlit buttons, a handset video intercom with 5 LCD display, and a protected DIN power supply: security and access control in a single solution.
The kit consists of:
-
External video intercom unit: 840AA-0040 expandable up to 4 calls
-
1 Internal video intercom LCD 5: 840CF-0020 (handset, white)
-
1 Power supply: 62700011 Output: 18 V DC 1000 mA max
The external unit is expandable up to 4 calls by adding additional buttons 840XA-0010 separately.
€334.42
Items Available: 12
: 3
Frequently bought together
CAME 8K40CF-030 Video Door Phone Kit: more control, more security, more comfort
The CAME X1 8K40CF-030 single-family video door phone kit is designed for those who want to increase the level of security and convenience in accessing their home, combining audio communication and video verification in a complete and orderly system. Thanks to the X1 system, the kit is perfect for villas and independent houses, but maintains great flexibility: the outdoor unit is expandable up to 4 calls, useful if in the future you need to manage more entrances or more users (for example, annex, office, or second home in the same context).
-
CAME X1 System: ideal for single-family, expandable up to 4 calls
-
Outdoor unit 840AA-0040: Wide Eye camera, LED lighting, and backlit buttons
-
Zamak structure with IK09 impact resistance + system status LED
-
Quick programming via APP SetUp (CAME Key)
-
Video door phone 840CF-0020: handset with 5 LCD display, soft-touch buttons, programmable AUX
-
Advanced functions: Latch (gate opener), automatic door opener, programmable ringtones, and video adjustments via OSD.

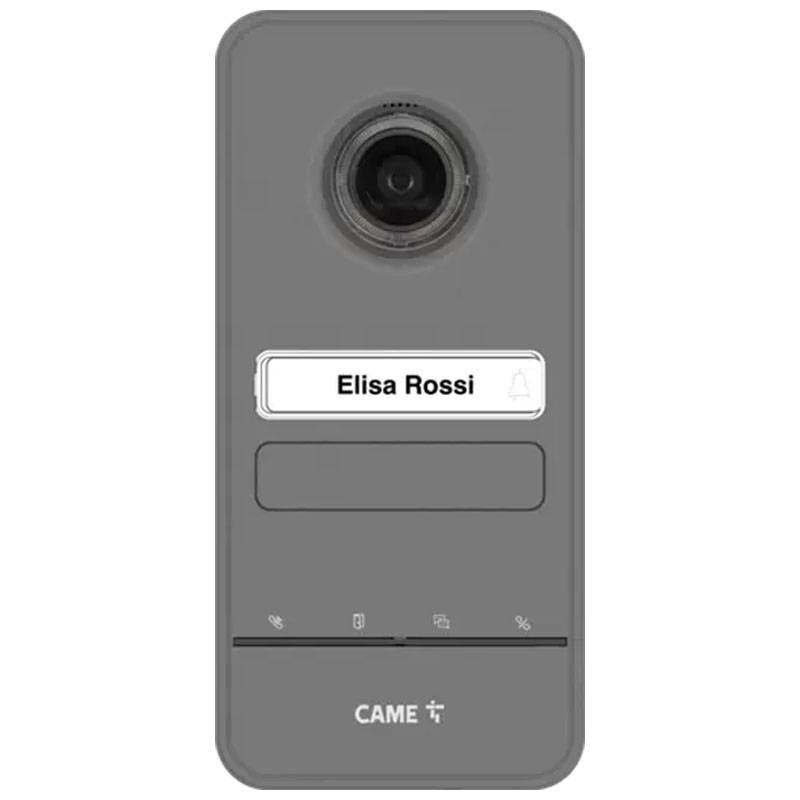

Monolithic outdoor unit 840AA-0040: Wide Eye capture and IK09 robustness
The outdoor unit 840AA-0040 is a monolithic video door phone unit designed to withstand time and offer a clear view of the visitor. The Wide Eye camera lens expands the field of view, improving the framing of the entrance and reducing blind spots, while the LED lighting helps maintain good visibility even in low light. The call buttons are backlit and configurable from 1 to 4, so the system can grow without having to replace the button panel. The zamak finish ensures solidity and a neat appearance, with IK09 impact resistance, ideal for outdoor installations subject to intense use. The system status LED makes it easy to verify correct operation and simplifies any control activities.
Smart configuration with APP SetUp (CAME Key)
Programming via APP SetUp (CAME Key) speeds up configuration and allows for more intuitive management of system parameters. It is a concrete advantage during installation, especially when you want to correctly set calls and functions without cumbersome procedures.

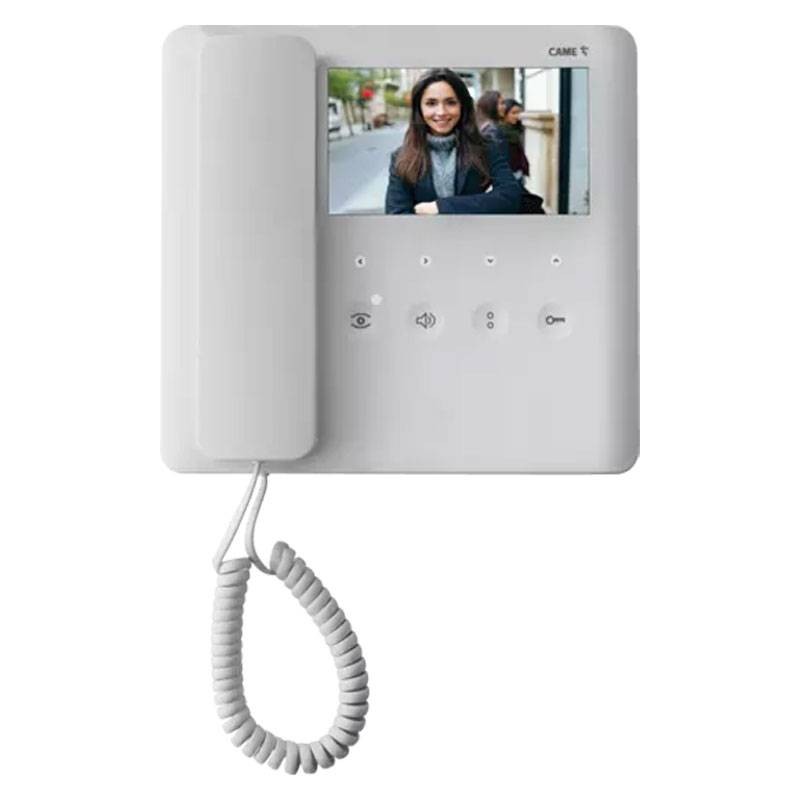

Handset video door phone 840CF-0020: 5 display and soft-touch controls
Inside, the kit includes the 840CF-0020 handset video door phone, with a clean design in white color, equipped with a 5 LCD display to clearly see who is calling. The soft-touch buttons make use immediate and pleasant, while the programmable AUX button allows you to customize a command based on needs (for example, stair lights, secondary gate opening, or dedicated function). Programmable melodies based on the type of call help immediately distinguish the origin of the call. Additionally, from the OSD menu, you can adjust the color, brightness, and contrast of the display, adapting the video output to environmental conditions and installation position.
Advanced functions for gates and automation: Latch, AUX2, and automatic door opener
This kit is designed to integrate access management: volume adjustment and ringtone exclusion (with LED indication when excluded) improve home comfort, especially in the evening hours. The presence of AUX2 expands possibilities with auxiliary functions and porter call (if provided in the system context). The Latch function (gate opener) is useful for verifying the status of external automation, while the automatic door opener function makes entry even more convenient in certain usage scenarios (for example, controlled access or specific opening needs).
Power supply 62700011: DIN installation and electronic protection
The kit includes the 62700011 power supply, in a plastic enclosure for installation on EN50022 rail, low 4 DIN module format, ideal for electrical panel. It provides power to the outdoor unit and internal derivatives with 18 V DC 1000 mA max, and integrates electronic protection against overloads and short circuits. The input is from 230 V AC 50/60 Hz network, with IP30 protection rating for installations in a protected environment.
| Video door phone outdoor unit – 840AA-0040 | |
|---|---|
| Lens | Wide Eye |
| Lighting | LED |
| Buttons | 1–4 backlit |
| Material | Zamak |
| Impact resistance | IK09 |
| Indicators | System status LED |
| Programming | APP SetUp (CAME Key) |

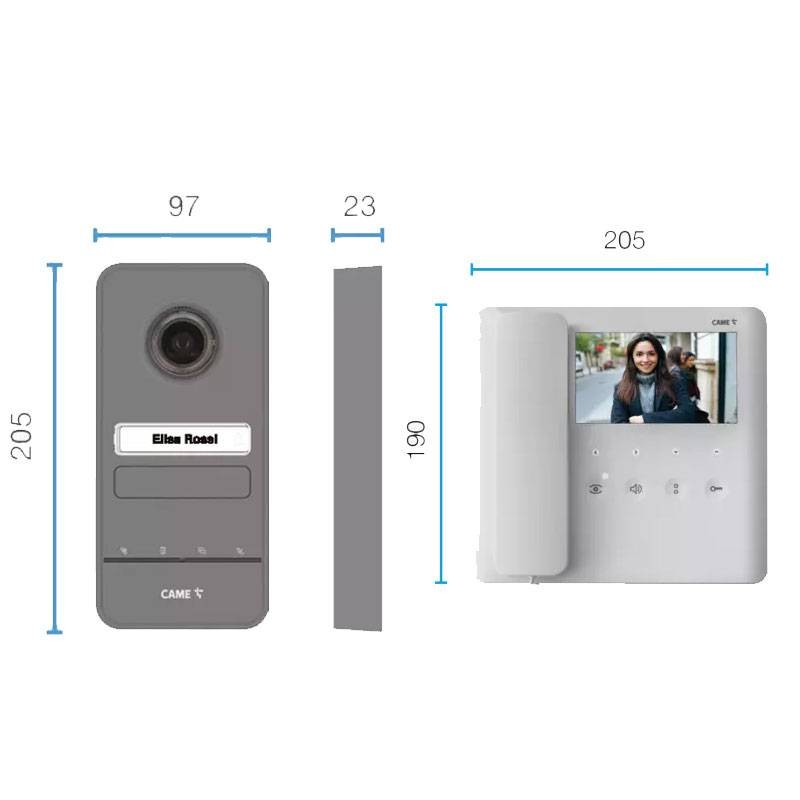

| Dimensions | 97 x 205 x 23 mm |
| Power supply | 16 ÷ 18 V DC |
| Stand-by consumption | 90 mA |
| Max consumption | 190 mA |
| Operating temperature | -25 ÷ +55 °C |
| Protection rating | IP54 |
| Video standard | PAL |
| Colour | Matte grey 9023 |
| Storage temperature | -25 ÷ +70 °C |
| Internal video intercom – 840CF-0020 (handset, white) | |
| Display | 5 Inch LCD |
| Controls | Soft-touch buttons, programmable AUX, AUX2 auxiliary functions/concierge call |
| Audio | Programmable melodies, volume adjustment, ringtone exclusion with LED |
| Video | Colour/brightness/contrast adjustment via OSD |
| Functions | Latch (gate opener), automatic door opener |
| Dimensions | 204 x 190 x 44.5 mm |
| Power supply from BUS | 15 ÷ 20 V DC |
| BUS consumption | 175 mA |
| Stand-by consumption | < 1 mA |
| Operating temperature | +5 ÷ +40 °C |
| Protection rating | IP30 |
| Video standard | PAL/NTSC |
| Colour | White |
| Storage temperature | -25 ÷ +70 °C |
| Power supply – 62700011 | |
| Output | 18 V DC – 1000 mA max |
| Input | 230 V AC 50/60 Hz |
| Protections | Overload / short circuit (electronic) |
| Mounting | EN50022 rail, 4 low DIN modules |
| Protection rating | IP30 |
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Single-family house
- System: 2-Wire
- WIFI: No
