Came BTP one-family video door phone kit X1 system 8K40CF-021
CMC 8K40CF-021
8050456087935
Came BTP one-family video door phone kit for X1 system consisting of:
- 1 Monolithic wall-mounted push-button door station expandable up to 4 calls, with Bluetooth and built-in RFID reader for access control
- 1 Hands-free video intercom with soft-touch buttons, 5" LCD display
- 1 Additional power supply 18 V DC - 1000 mA
€364.78
Items Available: 5
: 1
Frequently bought together
Specifications of individual kit components:
LHS door station V/01 PLUS code 840AA-0050:
- Monolithic video intercom door station for X1 system expandable up to 4 calls, with Bluetooth and integrated RFID reader for access control
- Zamak finish, IK09 impact resistance
- Equipped with PAL camera sensor with 728 x 560 resolution and built-in microprocessor for digital signal processing
- "Wide eye" optics with 98° horizontal and 72° vertical aperture
- Enables access control via proximity cards using built-in 125kHz RFID reader and via BT Automation APP thanks to Bluetooth connectivity
- Two outputs available for controlling the electro lock and an additional gateway
- Allows adjustment of microphone audio, speaker and electro lock activation time
- Keys with name tag with white backlighting
- Programming can be manual, from App SetUp (via CAME Key device) or via programming software on systems with VA/01
- Water and dust protection rating IP54

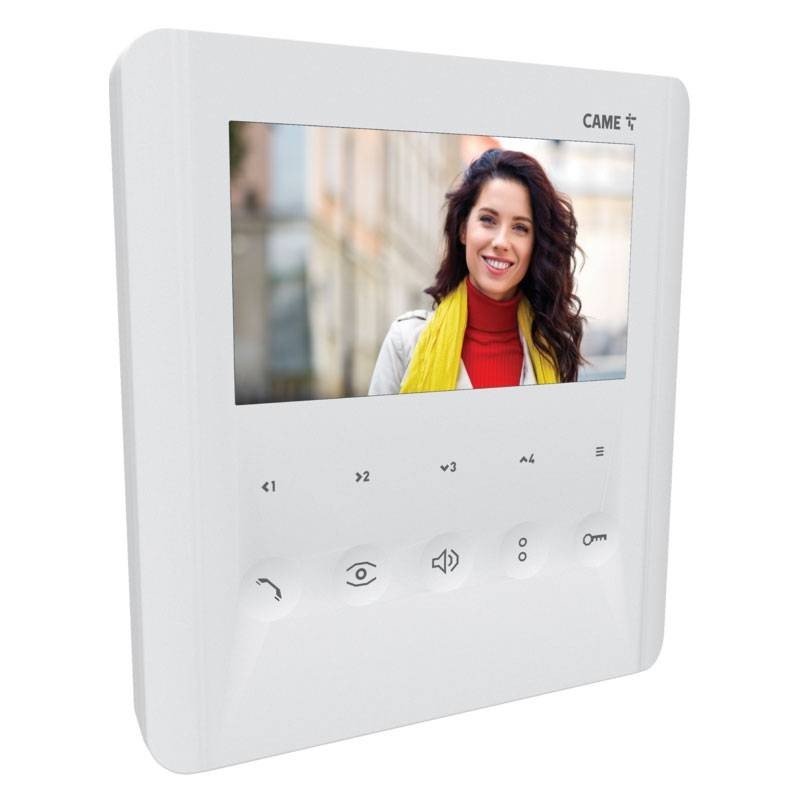

Hands-free videophone Came BPT PLX V for X1 systems code 840CH-0110:
- Soft-touch keys
- 5" LCD display with OSD
- 4 keys for intercom calls or auxiliary commands
- White color
- Concealed signaling LEDs
- Video auto switchover of door stations
- Quality hands-free audio
- Soft-touch buttons
- Master/Slave function and Video dribble function between extensions in simultaneous call
PLX is the hands-free video door phone with a modern, minimalist design, elegant matte white finish and 5 display. It features soft-touch buttons with hidden indication LEDs, no holes in the front for audio speaker and microphone, and only 24 millimeters thick. The large display with 480 x 272 pixel resolution has OSD for color, brightness and contrast adjustment.
Features and Benefits:
- Equipped with ringer adjustment/exclusion button
- Wall monitor with 5 color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast)
- The 5 main touch buttons allow management of primary functions such as answering and hanging up communication, door opening, auto video insertion of door stations, ringer adjustment/exclusion (with LED signaling when excluded) and sending a programmable auxiliary command
- Suitable for multi-user systems in that it enables up to 6 intercom calls and the sending of "Panic" signaling for a distress call to the doorman
- If configured enables up to 4 additional auxiliary commands, alternative to intercom calls
- Enables management of "gate-opener" function and display of controlled gate status via signaling LEDs
- Bracket for wall installation on 503 box (horizontal or vertical) and on Ø 60 mm round box is included
Technical data:

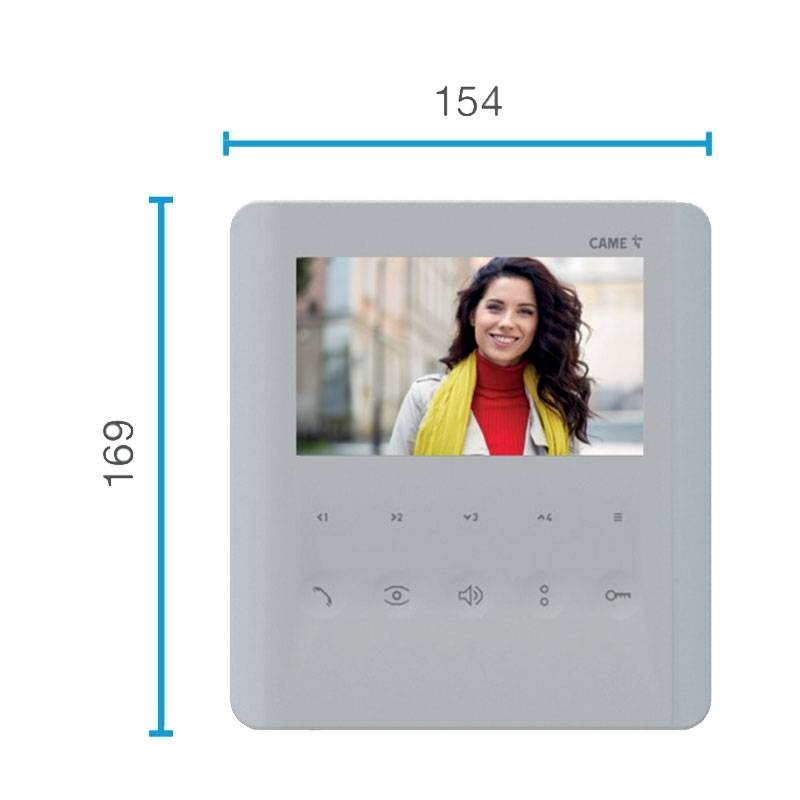

- Dimensions (mm) 155 x 170 x 25
- Power supply from BUS (V) 15 ÷ 20 DC
- Absorption from BUS (mA) 200
- Stand-by absorption (mA) <1
- Operating temperature (°C) +5 ÷ + 40
- Degree of protection (IP) 30
- Video standard PAL/NTSC
- Color White
Power supply VAS/101 62700011:
- Additional power supply 18 V DC - 1000 mA
- Plastic housing for installation in electrical panels (EN50022) and size 4 low DIN modules
- Complete electronic board for supplying power to door stations and internal extensions (18 V DC - 1000 mA max) with electronic protection against overloads or short circuits
- Power supply from mains 230V AC 50/60 H
- Water and dust protection rating IP30
Data sheet
- KIT: Video Intercom Kits
- Model: Intercom function
- System: 2-Wire
- WIFI: No
Single-family house
