The CAME X1 8K40CA-030 single-family intercom kit for X1 system (2 non-polarized wires) is a complete and robust solution for home: monolithic push-button panel in zamak IK09 with LED and app programming, soft-touch intercom with door/gate opening functions and 4-module DIN power supply.

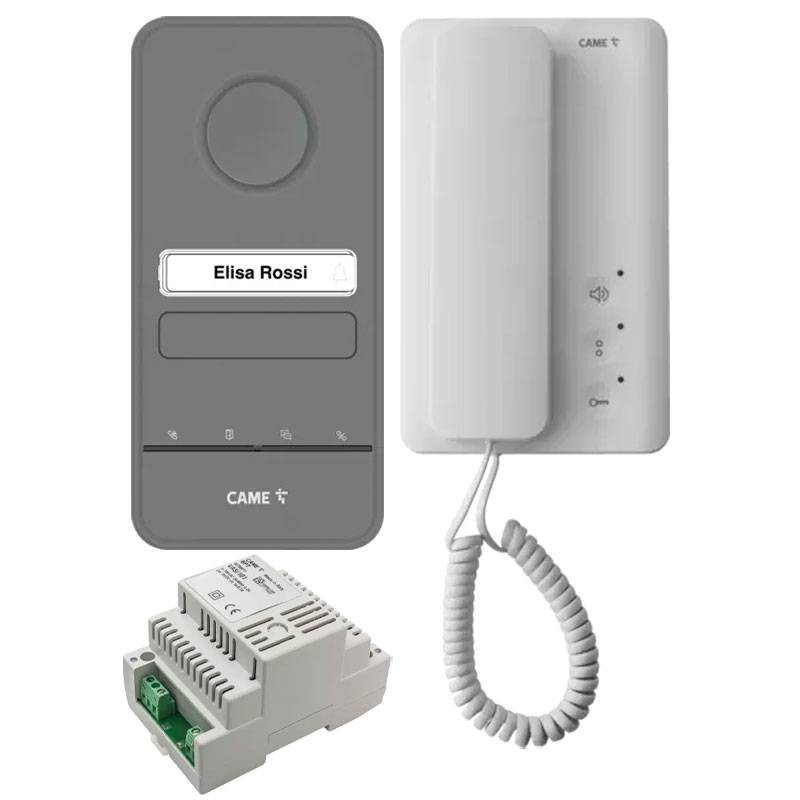

The Kit consists of:

  • 1 outdoor station 840AA-0060 expandable up to 4 calls

  • 1 intercom 840CA-0040 with 3 soft-touch buttons

  • 1 Additional power supply 18V DC 1000 mA

The outdoor station is expandable up to 4 calls by adding additional buttons 840XA-0010 separately.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Came Single-family intercom kit system X1 8K40CA-030
€161.54
€161.54

€161.54
Tax included
Calculate shipping cost
Items Available: 10
Further availability of the manufacturer
€161.54

Buy it within and receive it from Wednesday, 11 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

CAME 8K40CA-030 Intercom Kit: reliable communication and access control

The CAME single-family intercom kit 8K40CA-030 is designed to create a modern, durable, and easy-to-manage intercom system, ideal for single homes but also for contexts with multiple users thanks to the possibility of expansion up to 4 calls. The combination of a robust outdoor unit, an indoor intercom with intuitive controls, and a DIN rail power supply makes the kit a complete solution for those who desire clear communication and immediate access control, without complications during installation.

  • CAME X1 system: ideal for single-family systems, expandable up to 4 calls

  • External panel in zamak with IK09 impact resistance and backlit buttons

  • System status LED and easy management via APP SetUp (CAME Key)

  • Wall-mounted intercom with 3 soft-touch buttons: door opener, programmable auxiliary, ringtone on/off

  • Gate opener function and passage status LED for immediate control

  • DIN power supply with electronic overload/short circuit protection (18 V DC 1000 mA max)

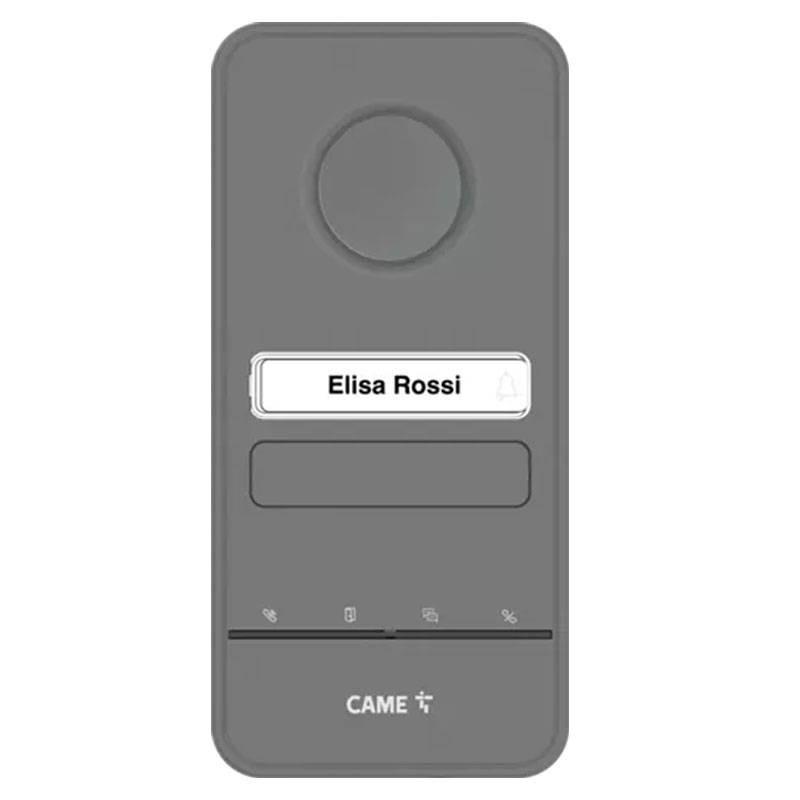

Monolithic external panel: IK09 robustness and backlit buttons

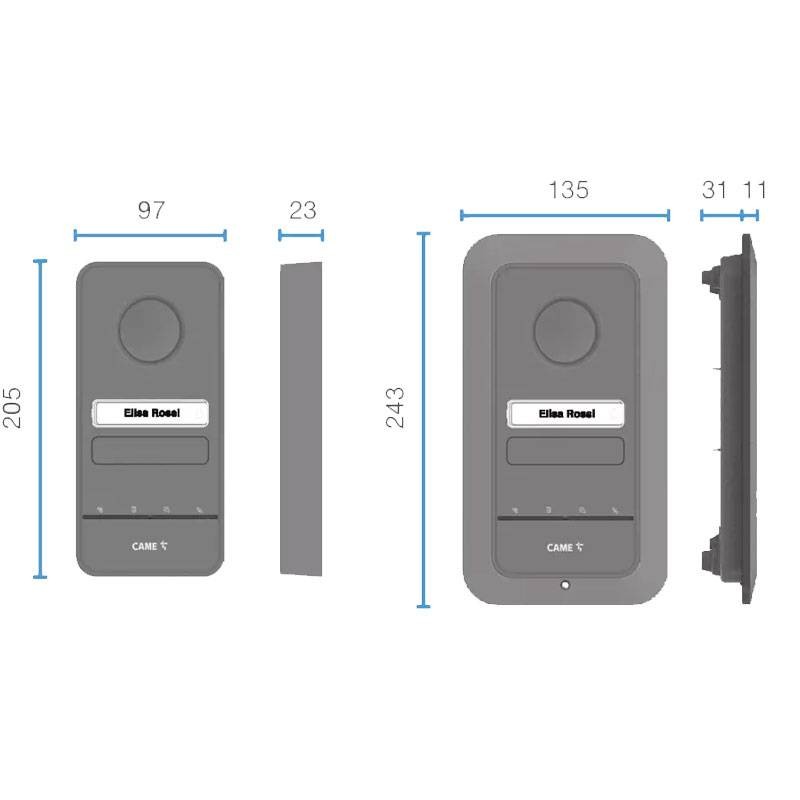

The heart of the system is the 840AA-0060 panel, a monolithic outdoor intercom unit for the X1 system. The zamak finish offers a sense of solidity and high resistance to daily use, with an IK09 impact resistance rating: an important plus when the device is exposed to weather, frequent passages, and possible stresses. The call buttons are backlit and configurable from 1 to 4, so you can start with a single-family system and expand it in an orderly manner if needs change (annex, office, second internal unit). The system status LED helps monitor operation and makes diagnostics more immediate.

Smart programming with APP SetUp (CAME Key)

A practical advantage of this kit is programming via the APP SetUp (CAME Key): faster management during configuration and a more modern approach for settings and parameters, reducing installation times and making the system easier to customize.

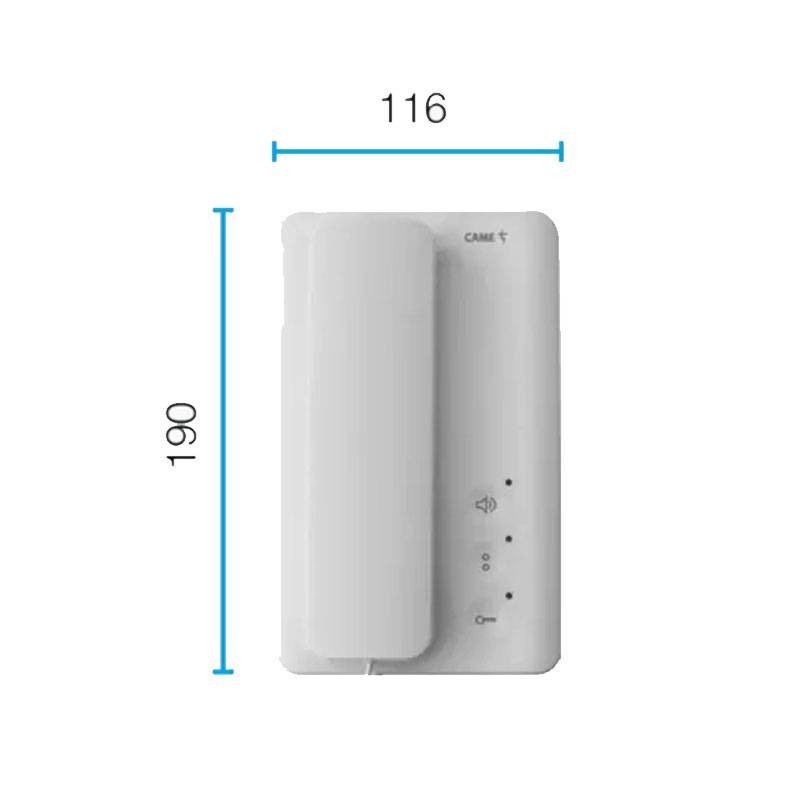

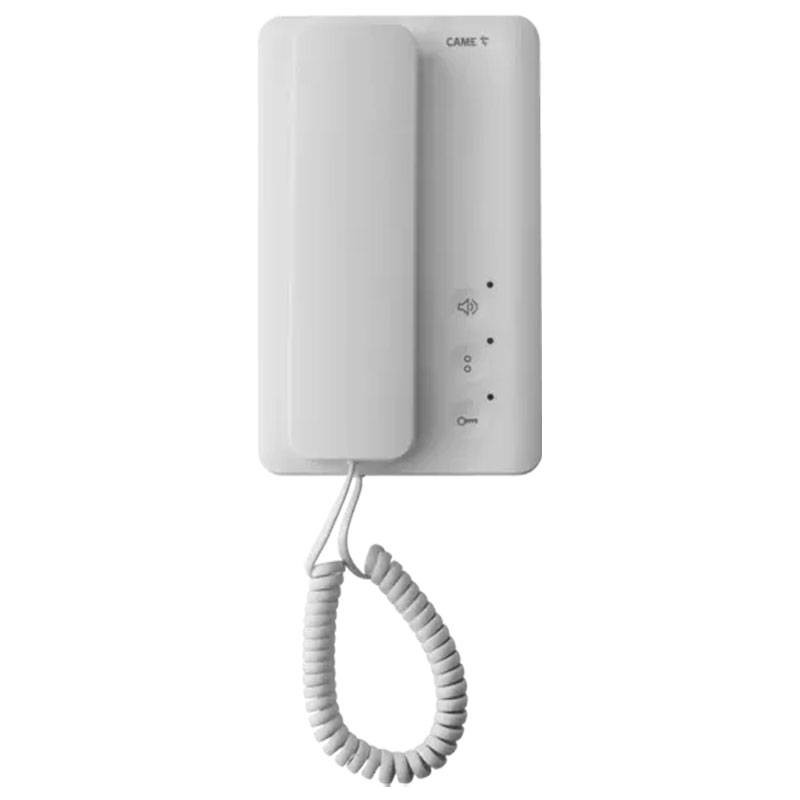

Wall-mounted indoor intercom: soft-touch controls and passage management

The 840AA-0060 indoor intercom is designed for immediate and clean use. The 3 main soft-touch buttons allow:

  • Door opening (door opener)

  • Programmable auxiliary command (for additional functions)

  • Ringtone adjustment/exclusion, with LED indicating when the ringtone is deactivated

Additionally, the device allows the management of the gate opener function and the visualization of the controlled passage status via the signal LED: useful for knowing at a glance if access is active/managed, improving convenience and control at home.

Flexible installation: 503 or round Ø60 box and X1/XIP compatibility

The intercom is prepared for wall installation on a 503 box (both horizontal and vertical) and on a round Ø 60 mm box, making the kit suitable for both new installations and replacements on existing systems. Compatibility with X1 and XIP systems further expands usage and integration scenarios.

DIN 4-module power supply: safety and electronic protection

The kit includes the 62700011 power supply, in a plastic container for installation on EN50022 rail and in a low 4-module DIN format, ideal for electrical panels. The electronic board provides power to external units and internal derivatives with 18 V DC 1000 mA max, including electronic protection against overloads and short circuits. Power is supplied from a 230 V AC 50/60 Hz network, with an IP30 protection rating, perfect for protected installations inside the panel.

External unit – 840AA-0060
Call buttons 1–4, backlit
Material / Finish Zamak
Impact resistance IK09
Signals System status LED
Programming APP SetUp (CAME Key)
Indoor intercom – 840AA-0060 (wall-mounted)
Controls 3 soft-touch buttons (door opener, auxiliary, ringtone on/off)
Functions Gate opener, passage status LED


Power Supply – 62700011
Output 18 V DC – 1000 mA max
Protections Overload and short circuit (electronic)
Input 230 V AC 50/60 Hz
Installation EN50022 rail, 4 low DIN modules
Protection degree IP30
Installation compatibility On 503 box (horizontal/vertical) and on Ø60 mm
Compatibility X1 and XIP
Notes LED ringtone excluded
