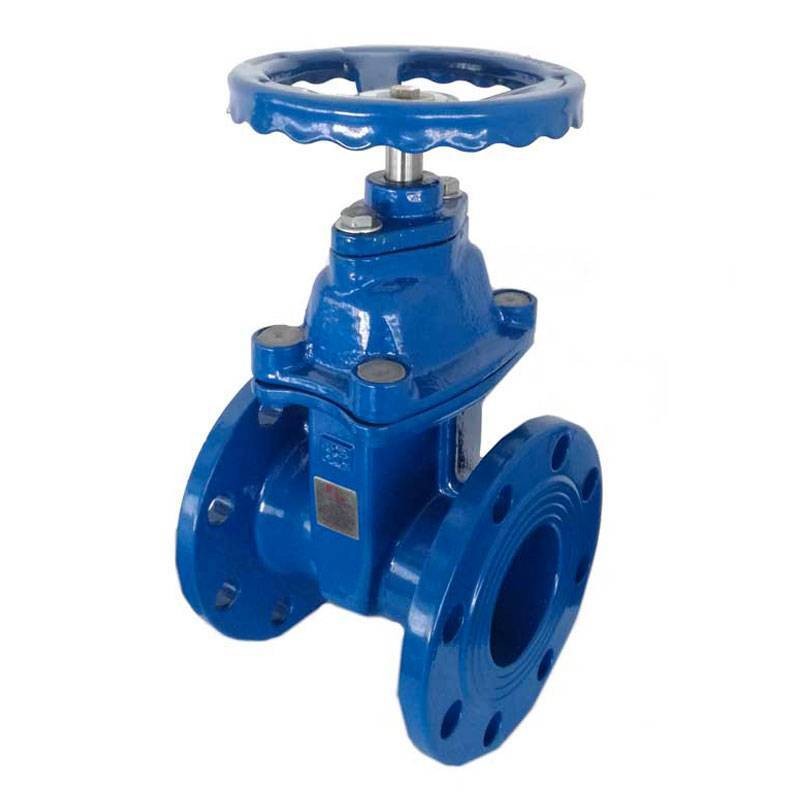

BF Control Flat body gate valve PN16 100 mm 4 inches cast iron BS160100
68O BS160100
BF Control flat body gate valve, EPDM rubberized wedge, cast iron body, short gauge, suitable for potable water and HVAC systems, with the following characteristics:
-
Operating pressure: PN16
-
Nominal diameter: 100 mm (4 in.)
-
Body: Spheroidal cast iron coated with epoxy powder
-
Wedge: EPDM coated for effective and durable seal
-
Temperature up to: 110 degrees
-
Suitable for: HVAC, water networks, industrial and fire protection systems
€106.13
Items Available: 10
: 9
BF Control rubberized gate valve reliability in every water system
BF Control's F4 flat-body gate valve with rubberized wedge is a versatile and durable solution for regulating and intercepting flows in water, HVAC and industrial systems. The flat-body design with short gauge allows easy integration even in limited spaces, optimizing installation time and cost.
Durable construction and secure EPDM seal
The EPDM elastomer-coated wedge ensures excellent bidirectional sealing, even under pressure conditions up to 16 bar. The ductile iron body is protected internally and externally by a layer of blue epoxy powder (RAL 5017), applied with FBE technology for optimum corrosion resistance.
Broad applications, including for drinking water
Certified according to DM 174/2004, this valve is suitable for distribution of water intended for human consumption. It can be used in HVAC systems, hot water networks, fire protection systems, irrigation systems, shipbuilding and wastewater treatment. Not suitable for fluids containing mineral oils, hydrocarbons or chemicals aggressive to EPDM.

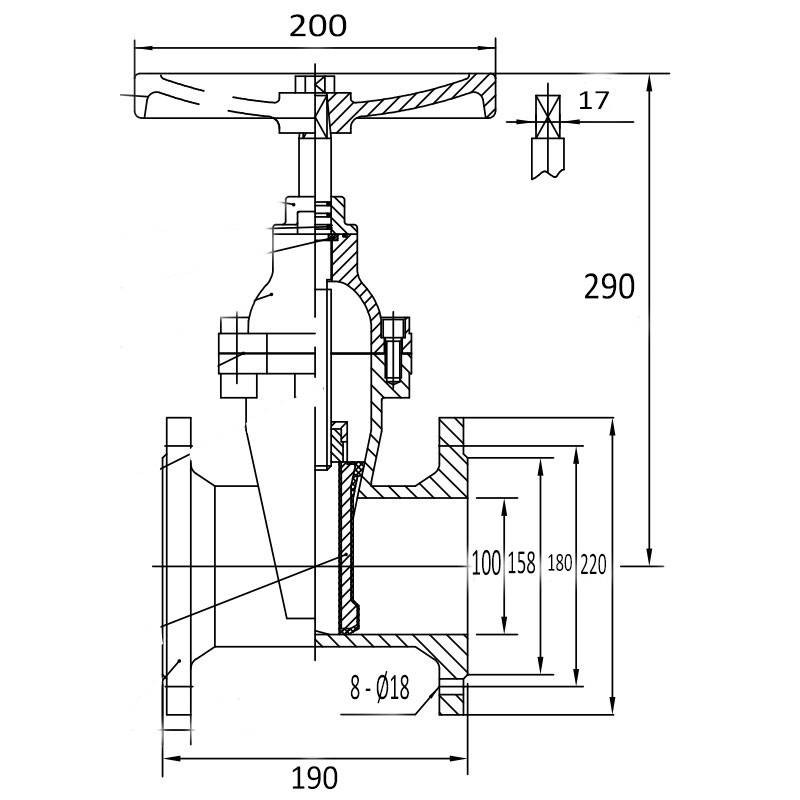

Technical Specifications BF Control Gate Valve
| Type | Flat body gate valve, rubberized wedge |
|---|---|
| Nominal diameter | 100 mm (4 in.) |
| Pressure rating | PN16 |
| Operating temperature range | -10/+110 degrees |
| Body material | Spheroidal cast iron |
| Seal | EPDM |
| Reference Standards | EN 1171, EN 1074-1, EN 1074-2 |
| Gauge | EN 558 Series 14 (F4) |
| Flanges | EN 1092-2 |
| Tests | EN 12266-1, in accordance with DM 174 |
| Internal/external coating | Epoxy powder FBE RAL 5017, ≥250 μm |
There are no reviews
Data sheet
- Diameter: 100mm
- Type: Gate valves
- Connections: 4 inches
- Material: Cast iron
