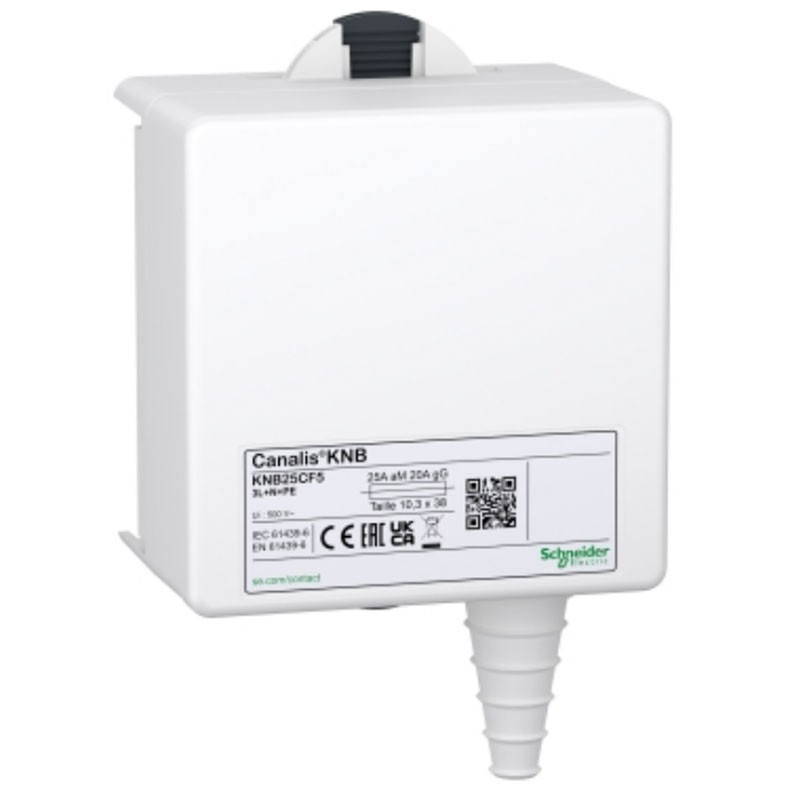

Telemecanique branch unit for fuse 10x38 25A 4P KNB25CF5

Schneider
Schneider
SNR KNB25CF5 3606480003295

Schneider branch unit for NF 10x38 fuse Canalis series, with the following characteristics:

  • Rated use current [Ie]: 25 A at 35 °C
  • Type of protection: fuse insulator: for aM cylindrical fuse 10 x 38 mm - 25 A complying with NF, fuse insulator for gG cylindrical fuse 10 x 38 mm - 20 A complying with NF
  • Mounting mode: plug-in with fixed polarity
  • Branch unit polarity: 3L+N+PE - 3L+PE
  • Color: white (RAL 9001)
  • Rated operating voltage [Ue]: 230...500 V depending on the protective device
  • Rated impulse withstand voltage [Uimp]: 4.6 kV
  • Rated insulation voltage [Ui]: 500V depending on the protective device
  • Mains frequency: 50/60 Hz
Do you have questions about this product or did you not find what you were looking for? Ask us!
Telemecanique branch unit for fuse 10x38 25A 4P KNB25CF5
€58.89
€58.89

€58.89
Tax included
Calculate shipping cost
Items Available: 49
Further availability of the manufacturer
€58.89

Buy it within and receive it from Tuesday, 3 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Canalis branch unit for KN. It is compatible with Canalis KN busbar conduit with plug-in sockets.

The rated operating voltage is 230VAC to 500VAC 50/60 Hz depending on the protective device. The rated operating current is 25A at 35℃. Provides protection by fuses complying with the NF standard. Mounting by plug-in technology with fixed polarity. Junction unit polarity is 3L+N+PE and 3L+PE; disconnection by extraction. The door/cover can be opened on the front side. Features a white RAL 9001 surface treatment. Cable clamp can be provided, but fuse must be ordered separately. Provides IP55 degree of protection complying with IEC 60529. IK08 conforms to IEC 62262. It complies with IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Other technical features:

  • Electrical connection: Cable clamping terminal 6 mm² flexible, Cable clamping terminal 10 mm² rigid
  • Door/cover opening side: Front
  • Branch unit disconnection mode: By pulling out
  • Reference Standards: IEC 61439-1, IEC 61439-6
  • Width 103 mm
  • Depth 48.8 mm
  • Height 161 mm
  • Weight: 0.38 kg
  • IP rating: IP55 in accordance with IEC 60529
  • IK degree of protection: IK08 in accordance with IEC 62262

produit conforme, rien a redire, si ce n'est: merci

Read all reviews

Data sheet

Type:
Tap-off unit
Voltage:
500V
Degree of protection:
IP55
Amps:
25A
