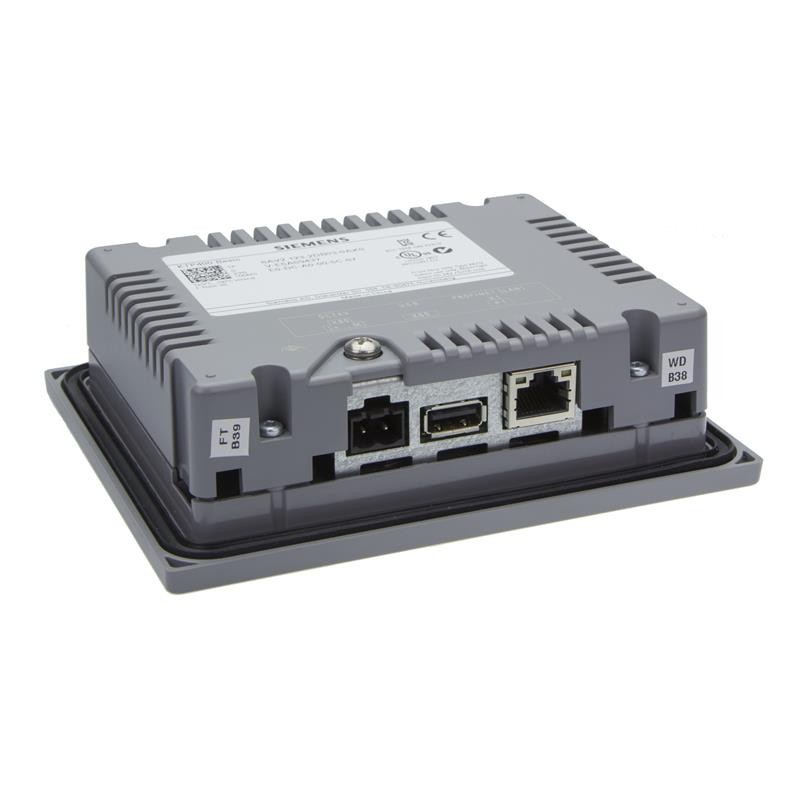

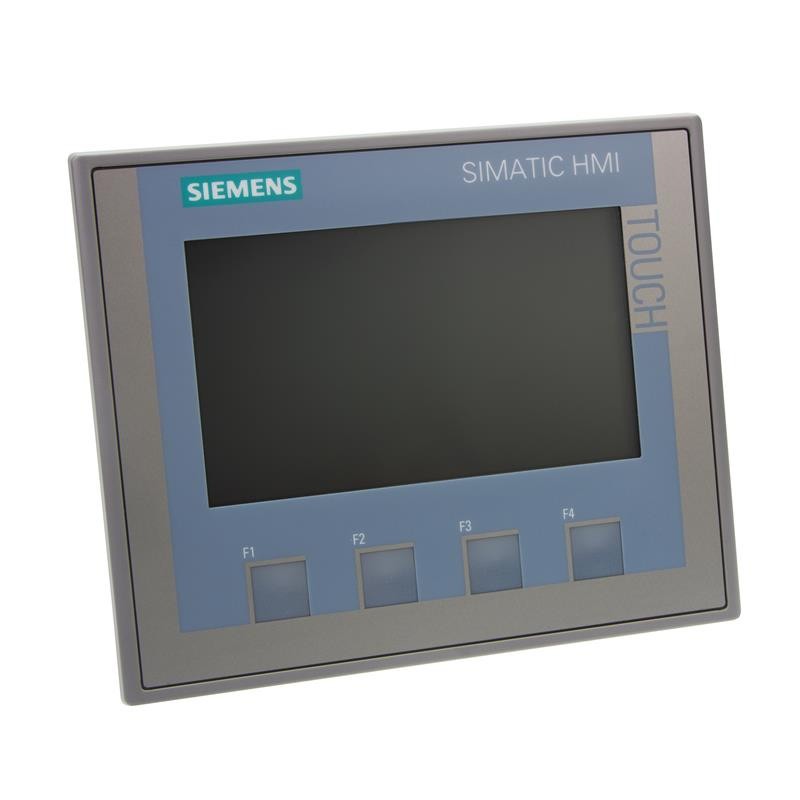

Siemens Simatic Basic KTP400 4 inch touch panel 6AV21232DB030AX0

Siemens Simatic Basic KTP400 4 inch touch panel 6AV21232DB030AX0


SIE 6AV21232DB030AX0 4034106029203

Siemens Simatic Basic KTP400 panel, with the following features:

  • Type of supply voltage DC
  • Nominal value (DC) 24 V
  • Permissible range, lower limit (DC) 19.2 V
  • Permissible range, upper limit (DC) 28.8 V
  • Current consumption (nominal value) 125 mA
  • Active power consumption, typ. 3 W
  • Key/touch operation
  • 4" TFT display, 65536 colors
  • PROFINET interface
  • Can be programmed from WinCC Basic V13/ STEP 7 Basic V13
  • Includes Open Source Software
Request info about this product
Siemens Simatic Basic KTP400 4 inch touch panel 6AV21232DB030AX0

Siemens Simatic Basic KTP400 4 inch touch panel 6AV21232DB030AX0

€471.65
€471.65

Siemens Simatic Basic KTP400 4 inch touch panel 6AV21232DB030AX0

€471.65
Tax included
klarna Pay in installments with Klarna
qty

Siemens Simatic Basic KTP400 4 inch touch panel 6AV21232DB030AX0

€471.65

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Siemens Series
  • Screen diagonal 4.3 in
  • Display width 95 mm
  • Display height 53.9 mm
  • Number of colours 65,536
  • Horizontal image resolution 480 pixels
  • Vertical image resolution 272 pixels
  • Backlight MTBF (at 25 °C) 20 000 h
  • Dimmable backlighting Yes
  • Vertical installation position
  • Direct / wall mounting No
  • Vertical installation possible (portrait format) Yes
  • Horizontal installation possible (landscape format) Yes
  • Maximum angle of inclination allowed without forced ventilation 35°C
  • Degree of protection: (on front side) IP65 - (on rear side) IP20

Dimensions:

  • Width of housing front 141 mm
  • Height of housing front 116 mm
  • Flush-mounted window, width 123 mm
  • Flush-mounted window, height 99 mm
  • Installation depth 33 mm

Data sheet

Type:
Control panels
