Siemens CSM 1277 SIMATIC S7-1200 Compact Switch Module 6GK72771AA100AA0
SIE 6GK72771AA100AA0
4019169854399
Siemens CSM compact switch module, for connecting SIMATIC S7- 1200 and up to 3 other nodes over Industrial Ethernet with 10/100 Mbit/s, with the following features:
- Supply voltage / 1 / rated value: 24V
- Power dissipation / 1 / nominal value: 1.6W
- Supply voltage / 1 / rated value: 19.2 ... 28,8V
- Current consumption / 1 / max: 0.07A
- Product integral part / 1 / protection on power input: Yes
- Voltage/power supply type: DC
- Transmission speed 10 Mbit/s, 100 Mbit/s
- Number of electrical connections: for network components or terminal equipment 4
- Number of SC ports at 100 Mbit/s: for multi mode 0
- Number of LC ports at 1000 Mbit/s: for multimode 0, for single mode (LD) 0
- Number of electrical connections: for voltage supply 1
- Execution of electrical connection for voltage supply: 3-pole terminal block
![](https://www.elettronew.com/50177-large_default/module-compact-switch-siemens-csm-1277-simatic-s7-1200-6gk72771aa100aa0.jpg)

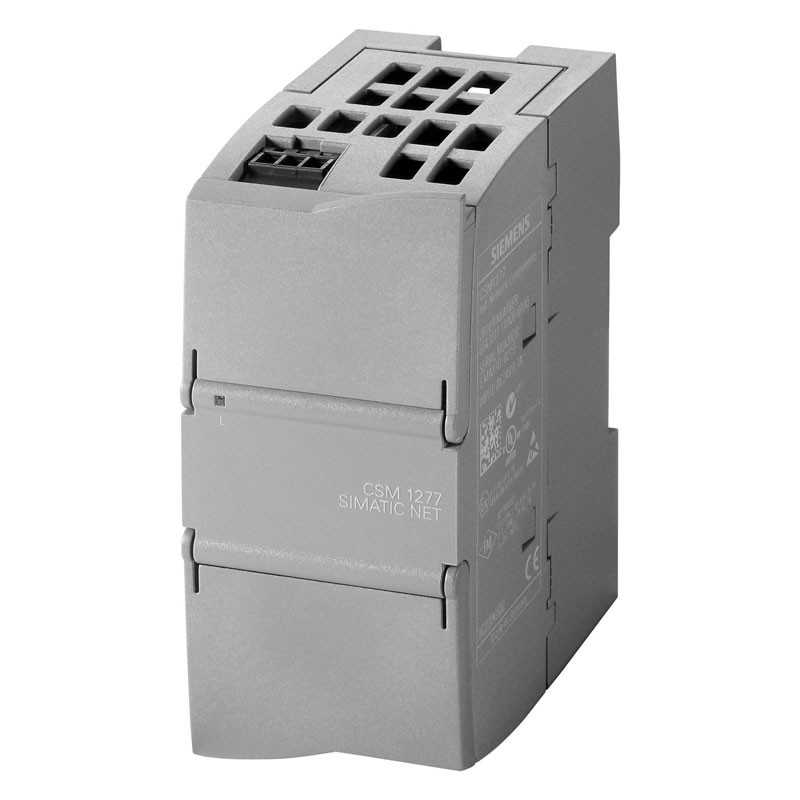

Siemens CSM 1277 SIMATIC S7-1200 Compact Switch Module 6GK72771AA100AA0
€211.29
€211.29
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 18
Temperature, humidity and IP protections:
- During operation 0/+60°C
- During storage -40/ +70°C
- During transport -40/+70°C
- Relative humidity: at 25°C without condensation / during operation: Max 95 %
- Degree of protection IP20
Type of mounting:
- 35 mm DIN profile rail mounting Yes
- Wall mounting Yes
- Mounting on S7-300 profile rail No
- Mounting on profile rail S7-1500 No
Design shape, dimensions and weights:
- Design Design of the SIMATIC S7-1200 equipment.
- Width 45 mm
- Height 100 mm
- Depth 75 mm
- Net weight: 150 grams
Data sheet
- Type:
- Switch Modules
- Voltage:
- 24V
- Degree of protection:
- IP20
