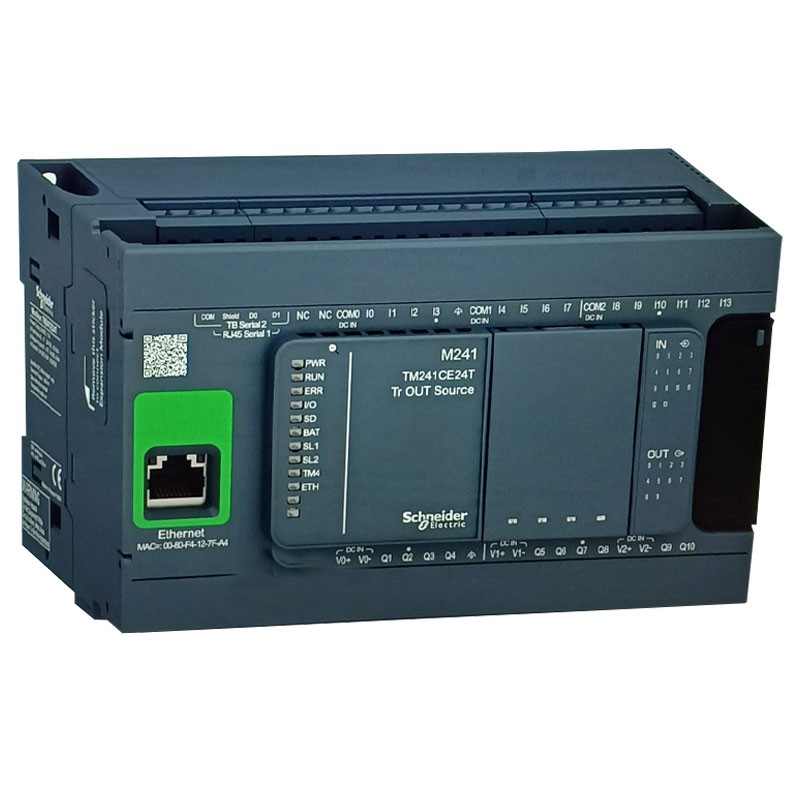

Other technical features:

• Digital input logic: Sink or source
• Digital input voltage: 24 V
• Digital input voltage type DC
• Voltage status 1 guaranteed >= 15 V per input
• Voltage status 0 guaranteed <= 5 V per input
• Digital input current: 5 mA per input, 10.7 mA per fast input
• Input impedance: 4.7 kOhm per input, 2.81 kOhm per fast input
• Digital output logic: positive logic (source)
• Output voltage limits: 30V DC
• Accuracy: +/-0.1% at 0.02...0.1 kHz for fast output, +/- 1 % at 0.1...1 kHz for fast output
• Maximum leakage current; 5 µA per output
• Maximum voltage drop: <1V
• Maximum tungsten load: <2.4W
• Reset time: 10 ms auto reset output, 12 s auto reset fast output
• Memory capacity: 8 MB per program - 64 MB per system memory RAM
• Data backup: 128 MB built-in flash memory for user program backup
• Data backup drive: <= 16 GB SD card (optional)
• Battery type: BR2032 lithium non-rechargeable, battery life: 4 years
• Backup time: 2 years at 25 °C
• Real-time clock: With
• Clock drift: <= 60 s/month at 25 °C
• Power supply: (Serial 1) serial link power supply: 5 V, <200 mA
• Communication port protocol: non-isolated serial link: Modbus master/slave protocol
• Ethernet port: 10BASE-T/100BASE-TX - 1 copper cable port
• Electrical connection: removable screw terminal block for inputs and outputs (5.08 mm pitch), removable screw terminal block to connect 24V DC power supply (5.08 mm pitch)
• CE Symbology
• Number of slaves: 64 Modbus TCP, 16 Ethernet/IP:
• Cycle time: 10 ms 16 Ethernet/IP, 64 ms 64 Modbus TCP
• Pollution degree 2
• Operating altitude 0...2000 m
• Storage altitude 0...3000 m
• Shock resistance: 15 gn for 11 ms




Protection type:

• Short-circuit protection
• Short circuit and overload protection with automatic reset
• Reverse polarity protection for fast output




Dimensions, weight, temperatures, relative humidity and IP ratings:

• Operating ambient temperature: -10/+50 °C (vertical installation), -10/+55 °C (horizontal installation)
• Storage temperature: -25/+70 °C
• Relative humidity: 10...95 %, non-condensing (operating), 10...95 %, non-condensing (storage)
• IP rating: IP20 with protection cover mounted
• Height 90 mm
• Depth 95 mm
• Width 150 mm
• Weight 530 grams



Vibration resistance:

• 3.5 mm at 5...8.4 Hz on Symmetrical Guide
• 3 gn at 8.4...150 Hz on symmetrical rail
• 3.5 mm at 5...8.4 Hz on panel mount
• 3 gn at 8.4...150 Hz on panel mount



Electromagnetic emission:

• Conducted emission 120...69 dBµV/m QP ( power line) at 10...150 kHz in accordance with EN/IEC 55011
• Conducted emission 63 dBμV/m QP ( power line) at 1.5...30 MHz complies with EN/IEC 55011
• Radiated emission 40 dBμV/m QP class A at 30...230 MHz complies with EN/IEC 55011
• Conducted emission 79...63 dBμV/m QP ( power line) at 150...1500 kHz complies with EN/IEC 55011
• Radiated emissions 47 dBμV/m QP class A at 230...1000 MHz complies with EN/IEC 55011



• 10 V/m 80 MHz...1 GHz complies with EN/IEC 61000-4-3
• 3 V/m 1.4 GHz...2 GHz complies with EN/IEC 61000-4-3
• 1 V/m 2 GHz...3 GHz complies with EN/IEC 61000-4-3



Fast transient resistance:

• 2 kV complies with EN/IEC 61000-4-4 (power line)
• 1 kV complying with EN/IEC 61000-4-4 (Ethernet line)
• 1 kV complying with EN/IEC 61000-4-4 (serial link)
• 1 kV in accordance with EN/IEC 61000-4-4 (input)
• 1 kV complying with EN/IEC 61000-4-4 (transistor output)



Overvoltage resistance:

• 1 kV Power line (DC) common mode complies with EN/IEC 61000-4-5
• 1 kV shielded cable common mode complying with EN/IEC 61000-4-5
• 0.5 kV Power line (DC) differential mode complies with EN/IEC 61000-4-5
• 1 kV relay output differential mode complies with EN/IEC 61000-4-5
• 1 kV common mode input complies with EN/IEC 61000-4-5
• 1 kV common mode transistor output complies with EN/IEC 61000-4-5



Maximum cable length between devices:

• Unshielded cable: <50 m per input
• Shielded cable: <10 m per fast input
• Unshielded cable: <50 m per output
• Shielded cable: <3 m per fast output



• 50 µs turn-on, I0...I13 terminals per input
• 50 µs turn-off, I0...I13 terminals per input
• <= 2 µs turn-on, I0...I7 terminals for fast input
• <= 2 µs turn-off, I0...I7 terminals for fast input
• <= 34 µs turn-on, Q0...Q9 terminals for output
• <= 250 µs turn-off, Q0...Q9 terminals for output
• <= 2 µs turn-on, Q0...Q3 terminals for fast output
• <= 2 µs turn-off, Q0...Q3 terminals for fast output



Configurable filtering time:

• 1 µs for fast input
• 12 ms for fast input
• 0 ms per input
• 1 ms per input
• 4 ms per input
• 12 ms per input
