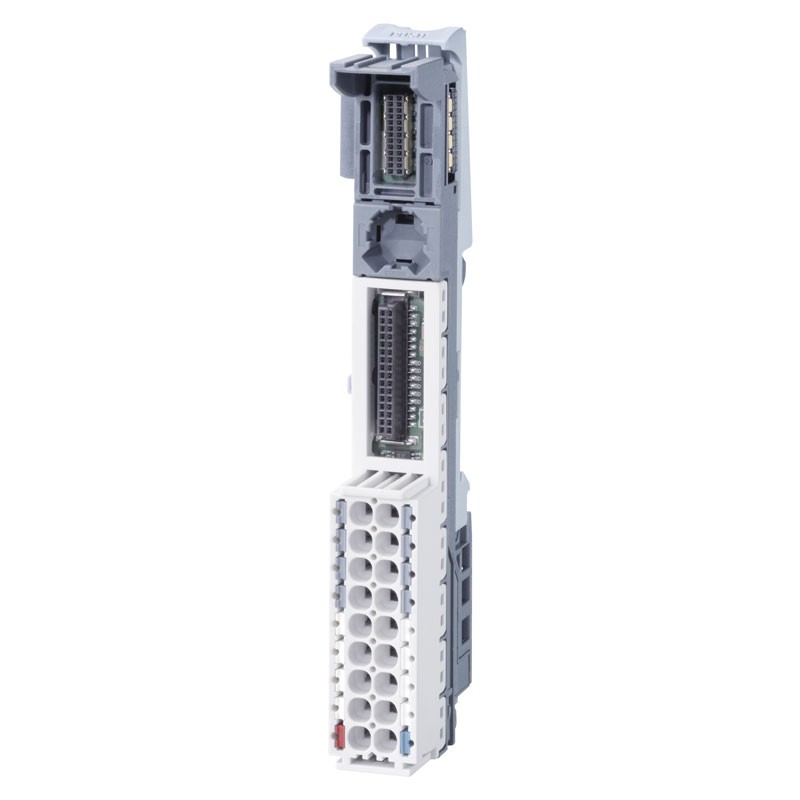

Basic unit Siemens Simatic ET 200SP BU15 - P16 + A0 + 2D 6ES71936BP000DA0
SIE 6ES71936BP000DA0
4025515080855
Basic unit Siemens Simatic ET 200SP BU15-P16+A0+2D , BU type A0, push-in terminals, without auxiliary terminals, new load cell, LaxA: 15x 117 mm.
€34.20
Items Available: 555
: 450
Characteristics:
- Product Type Designation BU Type A0
- Hardware version from FS06
- Supply voltage Nominal value (DC) 24 V - External power cable protection Yes; Thermal-magnetic circuit breaker DC 24 V / 10 A with trip characteristic type B or C
- Integrated mains filter
- Current carrying capacity for P1 busbar and P2 busbar, max. 10 A - For process terminals, max. 2 A
- Potential group formation New potential group Yes - Potential group continued from the left No
- Number of slots 1; Type A0
- Potential separation between the potential groups
- Insulation tested with DC 707 V (Type Test)
- Dimensions: Width 15 mm - Height 117 mm - Depth 35 mm
- Weight 40 gr
There are no reviews
Data sheet
- Type: Basic Units
