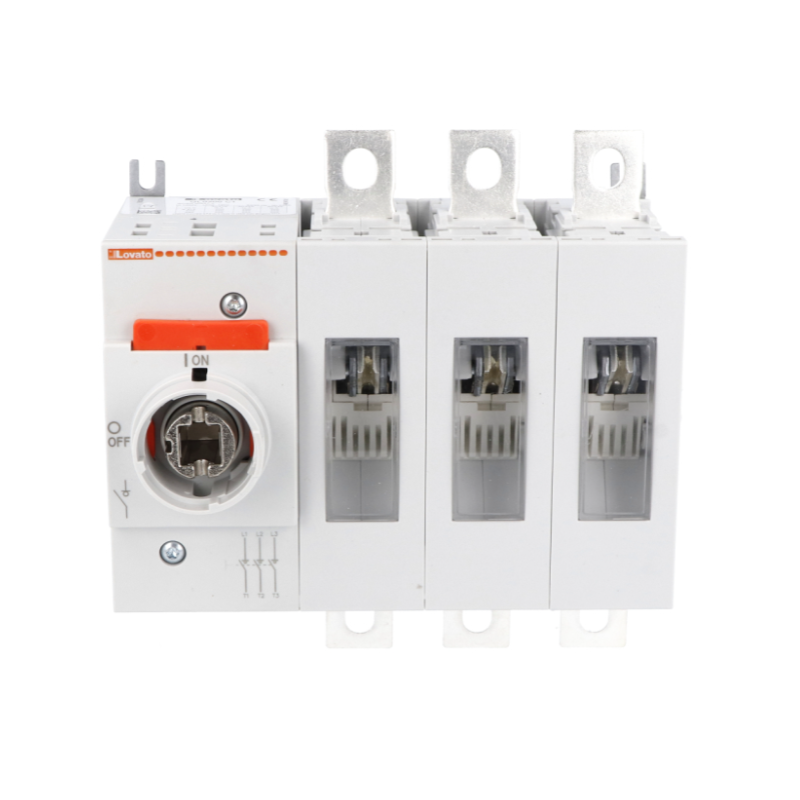

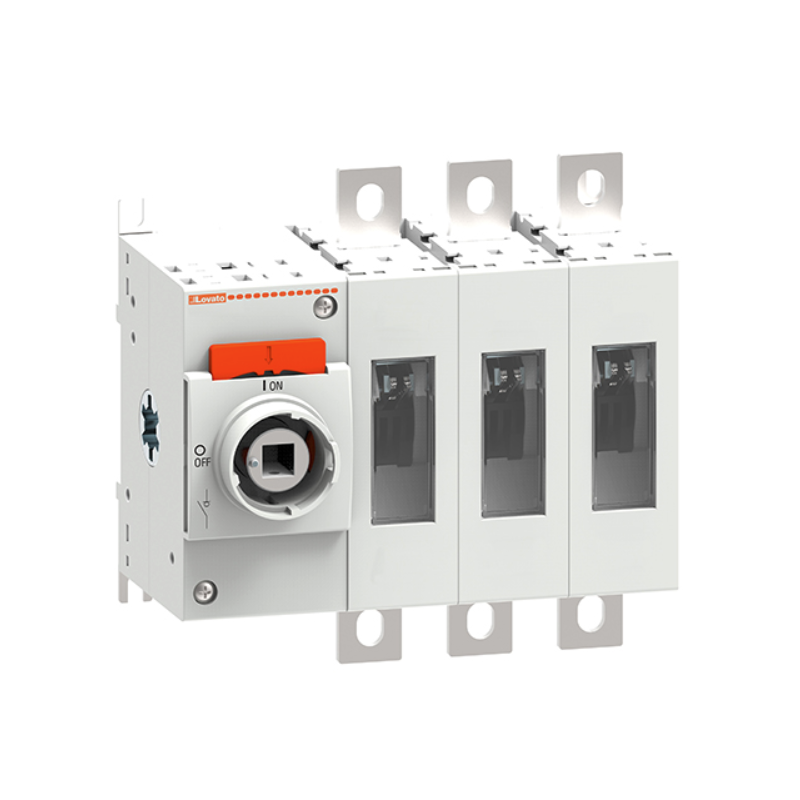

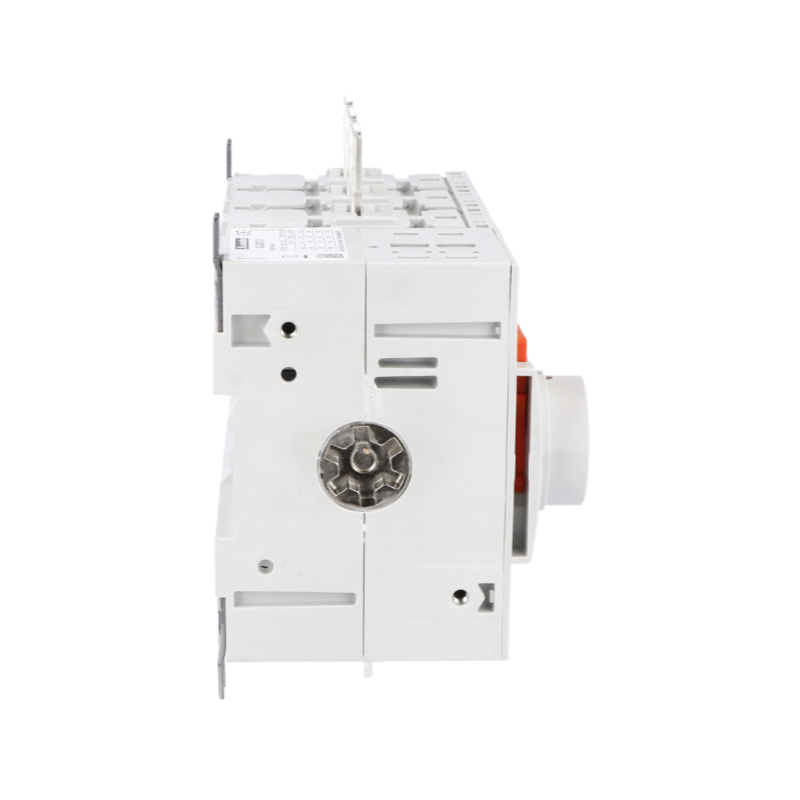

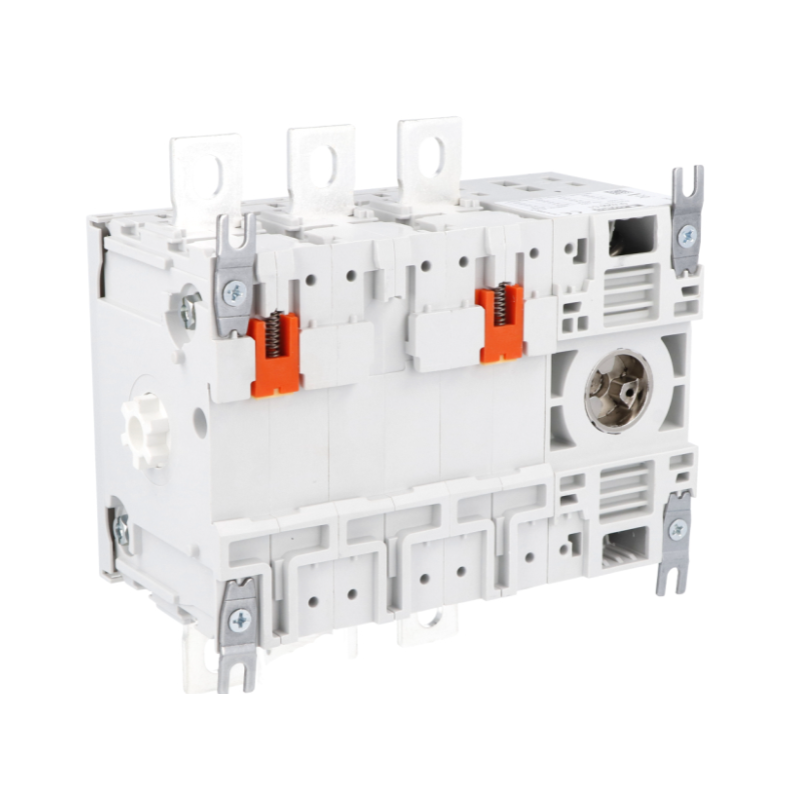

Lovato IEC 250A Tripolar Switch Disconnector GL0250C1

Lovato IEC 250A Tripolar Switch Disconnector GL0250C1

Lovato
Lovato
LOV GL0250C1 8013975228623

Lovato IEC 250A three-pole IEC 250A switch disconnector with direct control and door bolocco execution, UL98 approved. Can be snap mounted on DIN rail or mounting plate by screw fastening.

Possibility to add fourth pole art.GLX420315, and complete with extension and door lock handles articles GLX61, GLX7300S10, GLX61DB.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato IEC 250A Tripolar Switch Disconnector GL0250C1
Lovato IEC 250A Tripolar Switch Disconnector GL0250C1
€165.78
€165.78

€165.78
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€165.78

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Other technical features:

  • Number of poles: 3
  • Type of operating voltage: alternating current
  • IEC Conventional free air thermal current Ith UN 250
  • IEC/EN rated insulation voltage Ui: 1000V
  • Rated impulse withstand voltage Uimp kV: 12
  • Power dissipation per pole maX: 6.5W
  • Mechanical life cycles: 20000Mechanical characteristics
  • Operating position: normal vertical plane, permissible any
  • Fixing: screw / 35mm DIN rail
  • Operating temperature: min °C -25 - max °C +55
  • Storage temperature: min °C -40 - max °C +70
  • Maximum altitude: m 3000

There are no reviews

Data sheet

Voltage:
1000V
Poles:
3P
Amps:
250A
Circuit Protections:
Disconnectors
