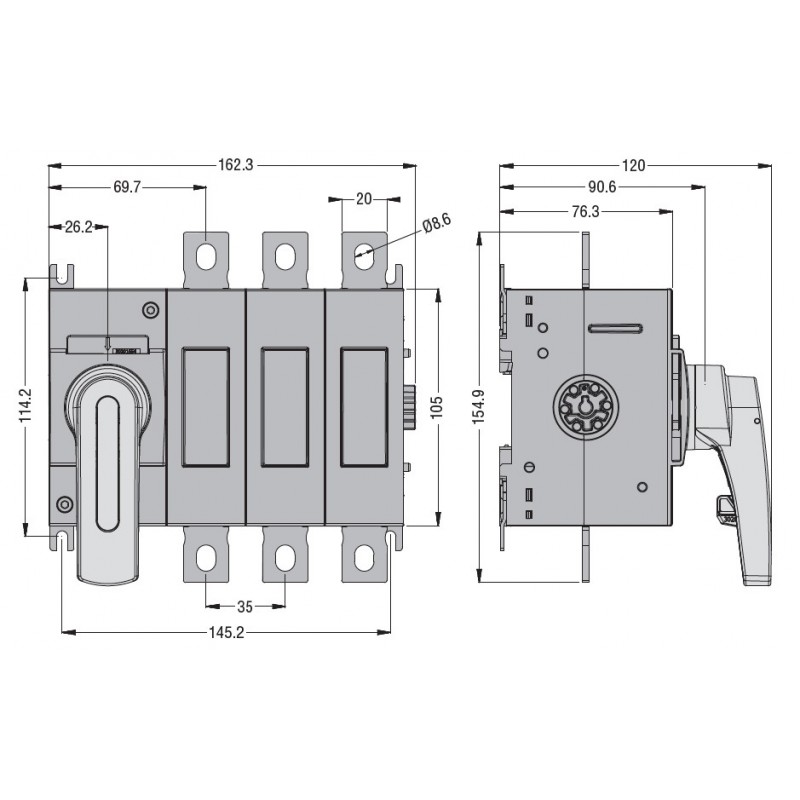

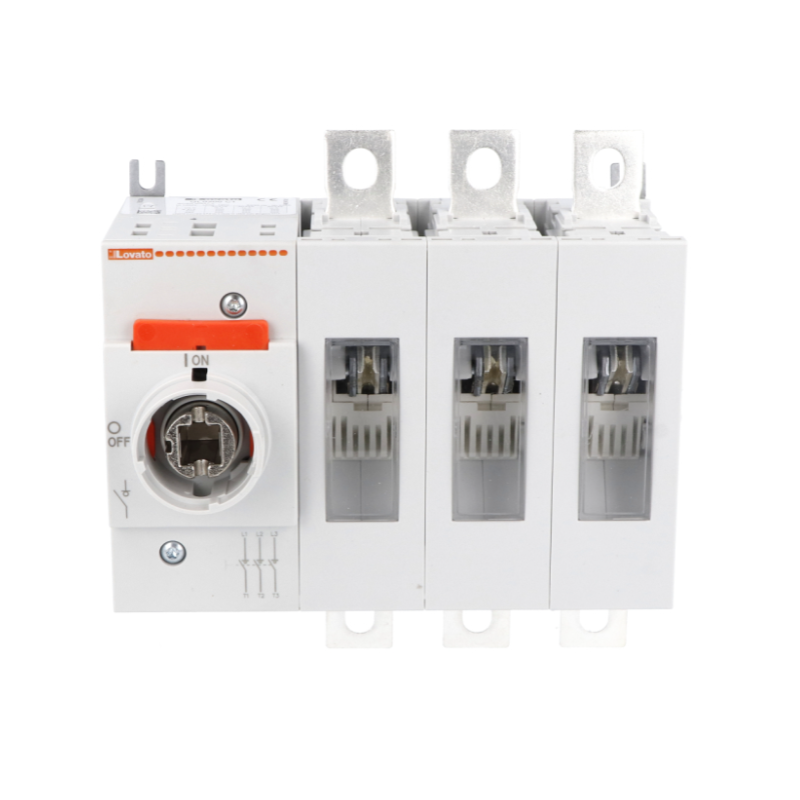

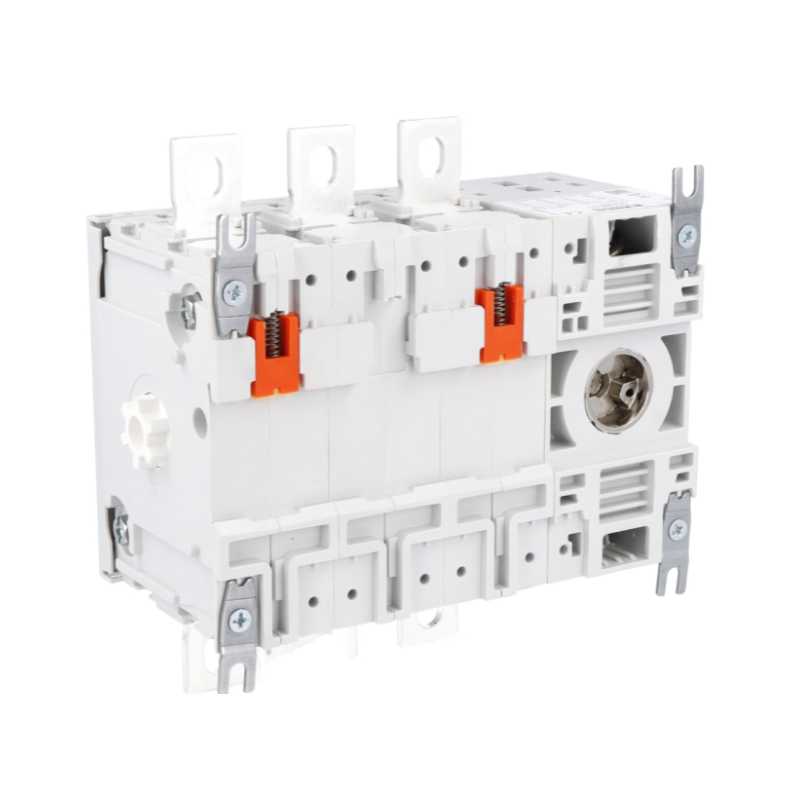

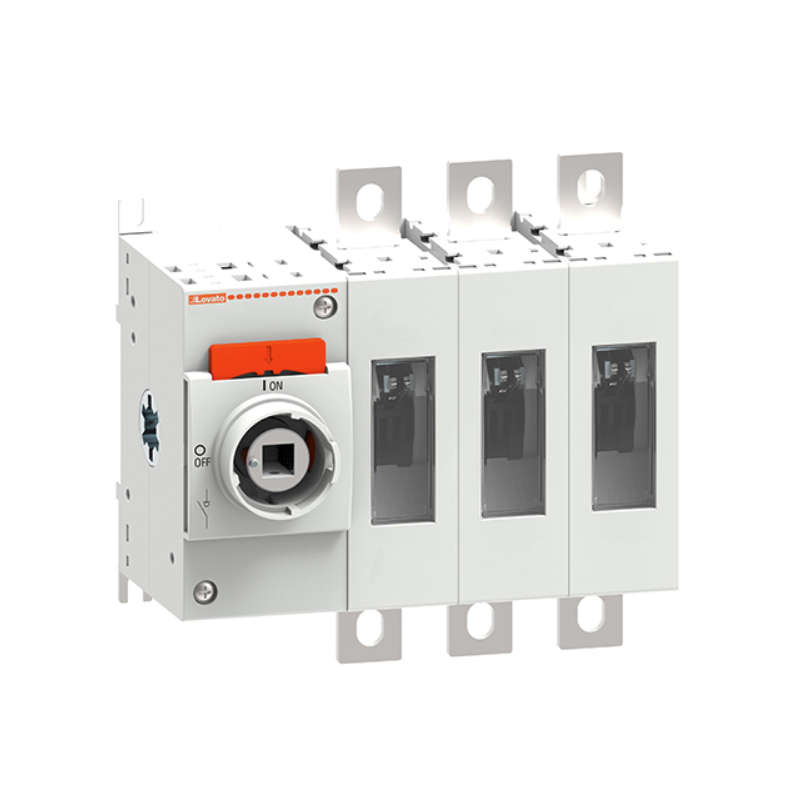

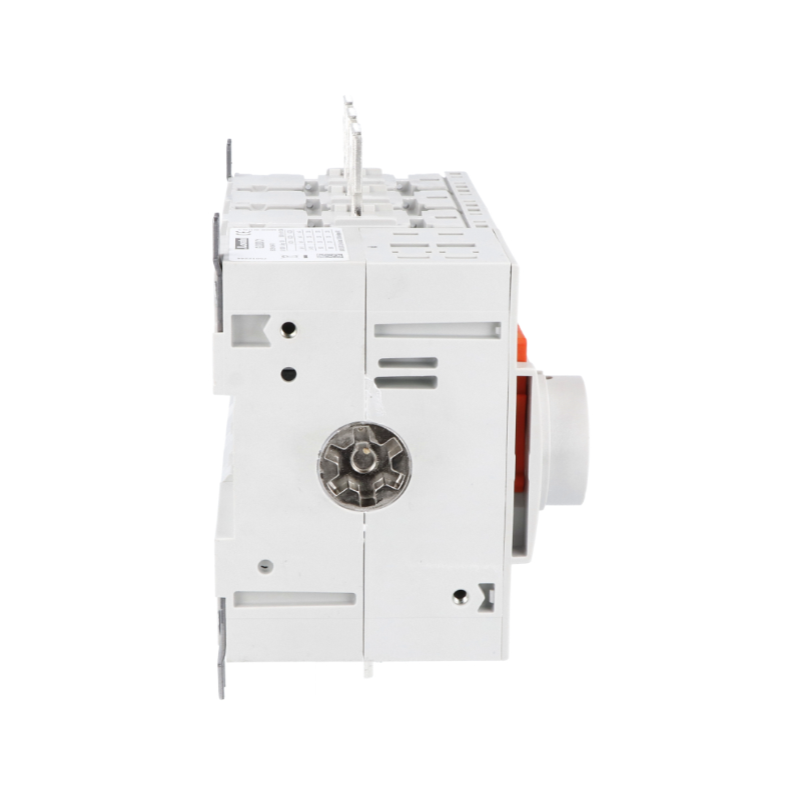

Lovato Three-Pole IEC 160A Switch Disconnector GL0160C1
LOV GL0160C1
8013975228609
Lovato three-pole switch/disconnector with the following characteristics:
- Number of poles: 3
- Type of operating voltage: AC
- Ith IEC conventional free air thermal current: 160A
- IEC/EN rated insulation voltage: 1000V
- Rated impulse withstand voltage (Uimp): Kv 12
- Power dissipation per pole max: 3.2W
- Rated power AC23A - 400V kW 90 - 690V kW 134
- Reactive power for capacitor drive at: 400V kvar 80
- Rated short-time withstand current (1s) Icw (rms): kA 6
- Rated short-time withstand current (0.3s) Icw (rms): kA 12
- Conditional short-circuit current (rms): kA 100
- Protection against short circuit with fuses: Class/A gG/160
€104.81
Items Available: 2
Frequently bought together
Other technical features:
- Closing power AC23A 400V: 1600A
- Opening power AC23A 400V: 1280A
- Mechanical life: cycles: 20000
- Mounting position - Normal: Vertical plane, Allowed Any
- Fixing: screw / DIN rail 35mm
- Connections: type M8 x 25
- Pollution degree: 3
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- Maximum altitude: m 3000
There are no reviews
Data sheet
- Voltage: 1000V
- Poles: 3P
- Amps: 160A
- Circuit Protections: Disconnectors
