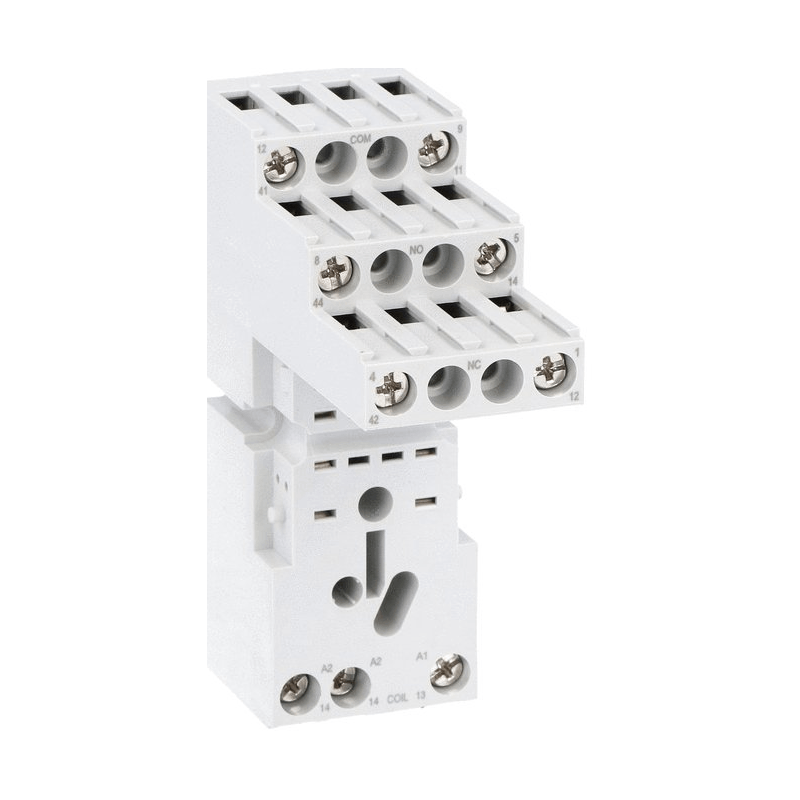

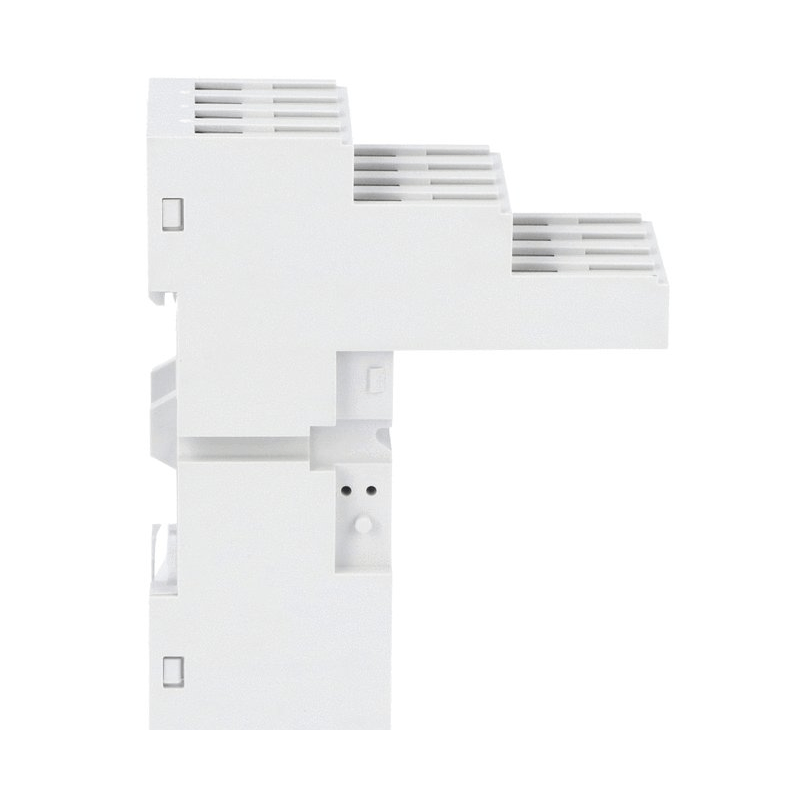

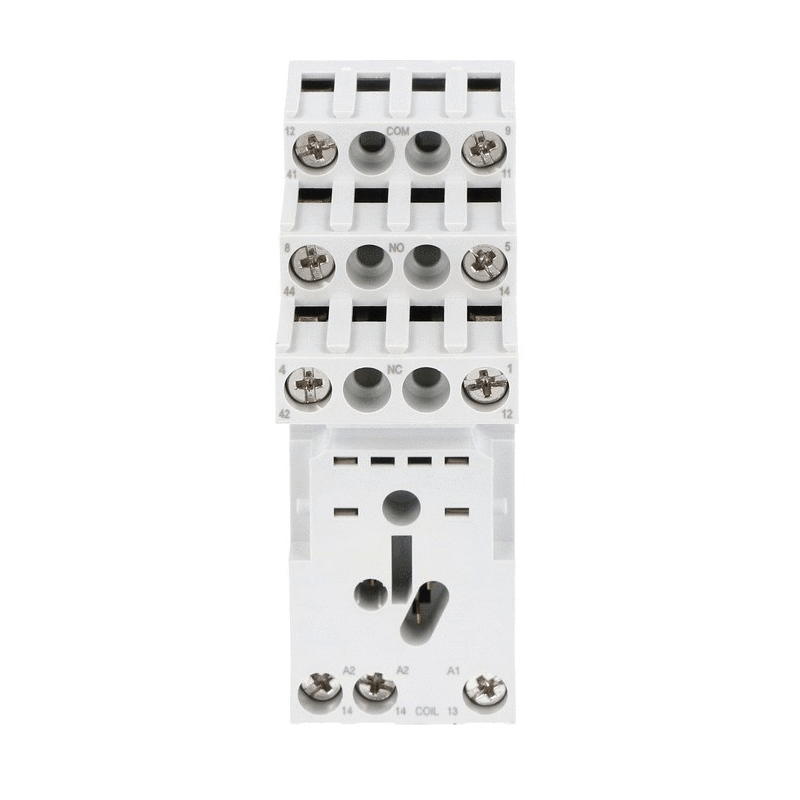

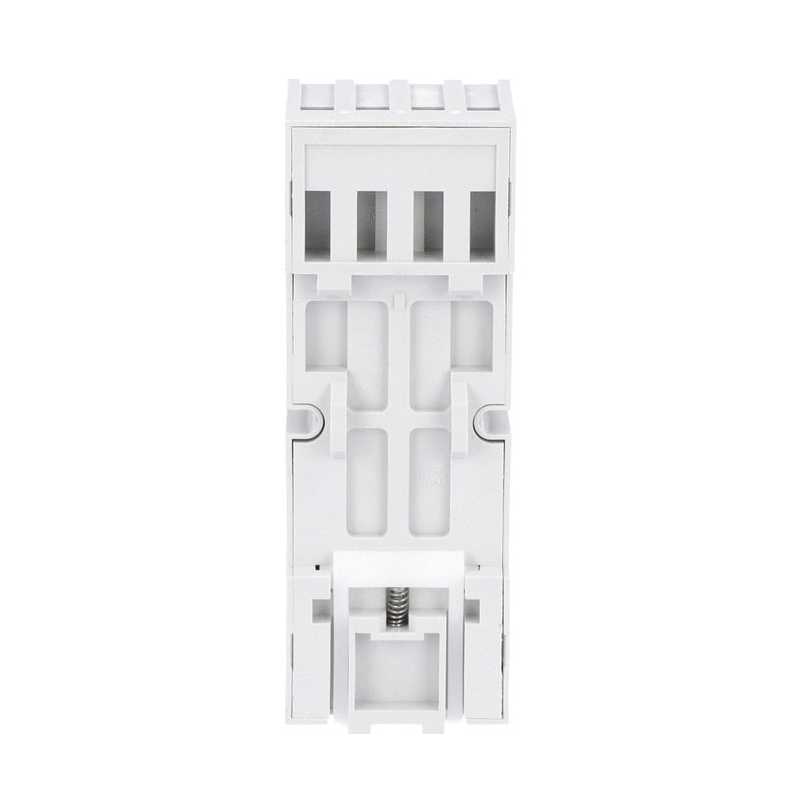

Lovato industrial relay socket with 2 switches for series HR602C HR6XS21
LOV HR6XS21
8013975233672
Lovato socket for relays, DIN rail or screw mounting, with the following characteristics:
- IEC/EN rated insulation voltage: 250V
- Rated impulse withstand voltage (Uimp): kV 4
- Socket screw tightening tool (cross/flat blade): Phillips 1/4.5mm
- Conductor cross section AWG/Kcmil: min 20 - max 14 - IEC min mm² 0.5 - max mm² 2.5
- Fixing : 35mm DIN rail or with screws
- Contact terminals all on the top side
Compatible relays for this socket, to be purchased separately: part numbers HR602CA230, HR602CD024, HR602CA024.
€4.94
Items Available: 32
: 2
Frequently bought together
Socket for industrial relays Lovato with 2 exchanges for a series HR602C, for Din rail mounting or screw-in, screw terminals, terminals, contacts, everything on the top side.
There are no reviews
Data sheet
- Type: Plinth
- Voltage: 250V
