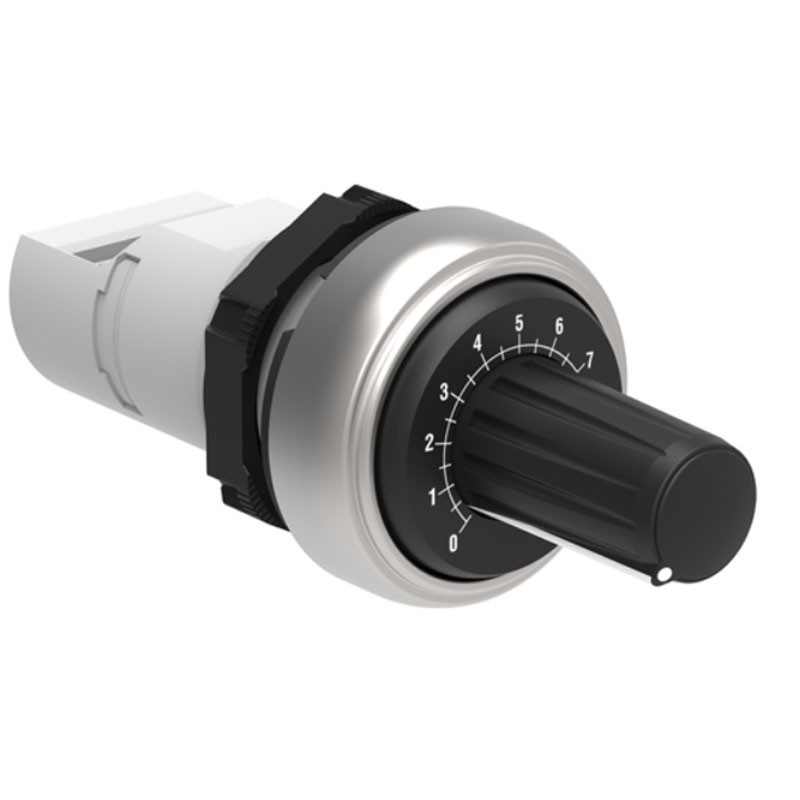

Lovato 1KOHM Monoblock Potentiometer LPCPA001

Lovato
Lovato
LOV LPCPA001 8013975215265

Lovato monoblock potentiometer with the following characteristics:



  • IEC/EN rated insulation voltage Ui: 250V AC
  • Rated impulse withstand voltage Uimp: kV 4
  • Maximum power: 1W
  • Resistance value: KΩ 1
  • Material: polyamide - Resistive material: cermet
  • IEC degree of protection : IP66, IP67; IP96K at the front and IP20 at the back
  • Mechanical travel: °290
  • Weight: 40 grams
  • UL degree of protection: 1, 2, 3R, 4, 4X, 12, 12K on the front
  • Operating temperature: min °C -25 - max °C +70
  • Storage temperature: min °C -40 - max °C +85
  • Resistance tolerance: ±10%
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato 1KOHM Monoblock Potentiometer LPCPA001
€39.29
€39.29

€39.29
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€39.29

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Type:
Potentiometers
Degree of protection:
IP67
