Lovato GSM Modem for Remote Control via SMS EXCGSM01
LOV EXCGSM01
8013975266410
Lovato GSM modem for remote control and monitoring via SMS. 1 relay output, 1 digital input and 1 analog input. Remote event and alarm management, with the following features:
-
Mounting: DIN rail, 4 modules
-
Power supply: 100-240 VAC
-
Power consumption: 5 VA
-
Outputs: 1 relay output 3A 250VAC
-
Inputs: 1 self-powered digital input - 1 analog input (0-10V, 0-20mA, NTC)
-
Communication: SMS sending and receiving
-
Degree of protection: IP40 (front), IP20 (terminals)
€316.06
Items Available: 1
GSM modem intelligent remote control
The Lovato GSM modem is a professional solution for remote control and remote supervision of plants and devices by sending and receiving programmable SMS messages. Due to its versatility and ease of use, it is ideal for industrial, agricultural, plant engineering and technical system monitoring applications.
Event-driven operation and programmable logic
Allows event-driven management of outputs and notifications: an active digital input or an SMS with specific text can, for example, activate a relay, send an alarm or return a status message. Programming is done through dedicated software, which can be downloaded free of charge from the Lovato Electric website.
Remote monitoring with analog input
The analog input supports 0-10V, 0-20mA or NTC signals, making it perfect for monitoring quantities such as temperature, tank level or pressure. You can receive real-time readings via SMS or set thresholds to send automatic alarms.
Advanced time management
The device automatically updates its internal clock, sunrise and sunset times, and location via GSM network, allowing programmed actions on an hourly or geolocated basis. Most useful feature for automatic management of loads or lighting systems.
Practical applications
-
Temperature threshold detection and alarm in boilers
-
Monitoring liquid levels in tanks
-
Remote management of electrical loads and HVAC systems
-
Hourly control of lights on/off
-
Rental equipment displacement alarm
Installation and structure

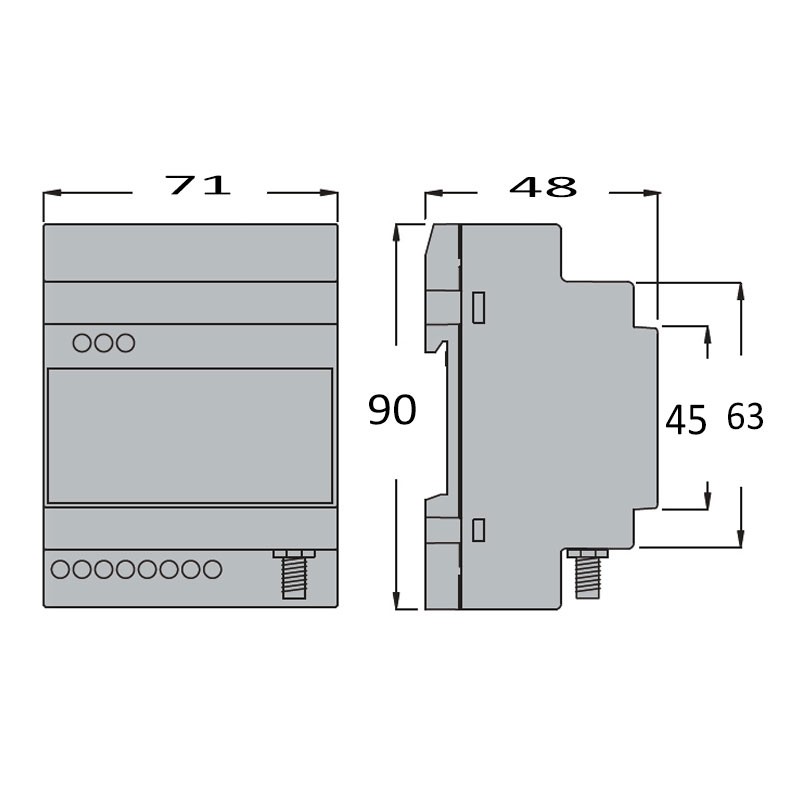

The modem installs on DIN rail (4 modules), with IP40 protection rating on the front and IP20 on the terminals. It comes with IP69K external antenna, equipped with 2.5m cable and M10 hole fixing. SIM card (3V or 1.8V) fits directly into the slot, with built-in PIN management.
Lovato GSM Modem Technical Specifications
| Parameter | Value |
|---|---|
| Type | GSM modem for remote control via SMS |
| Mounting | DIN rail (4 modules) |
| Power supply | 100-240 VAC |
| Power consumption | 5 VA |
| Outputs | 1 relay output 3A 250VAC |
| Inputs | 1 digital self-powered, 1 analog (0-10V / 0-20mA / NTC) |
| SIM card supported | 3V / 1.8V with PIN management |
| Communication | Sending and receiving SMS |
| Functionality | Relay control via SMS, alarm sending, automatic responses, time/sunrise/sunset/position update |
| Operating temperature range | -20 ÷ +60 °C |
| Degree of protection | IP40 (front), IP20 (terminals) |
| Certifications | FCC part 15B compliant |
External Antenna
| Parameter | Value |
|---|---|
| Type | Quad band (850/900/1800/1900/2100 MHz) |
| Protection | IP69K |
| Cable | 2,5 m |
| Fixing | M10 hole with gasket or nut |
ottimo prodotto! Non si trova da nessun'altra parte.
Ottimo! Esattamente quello che cercavo. G
Data sheet
- Type: Modem GSM
- Voltage: 110/240V
- Degree of protection: IP40
