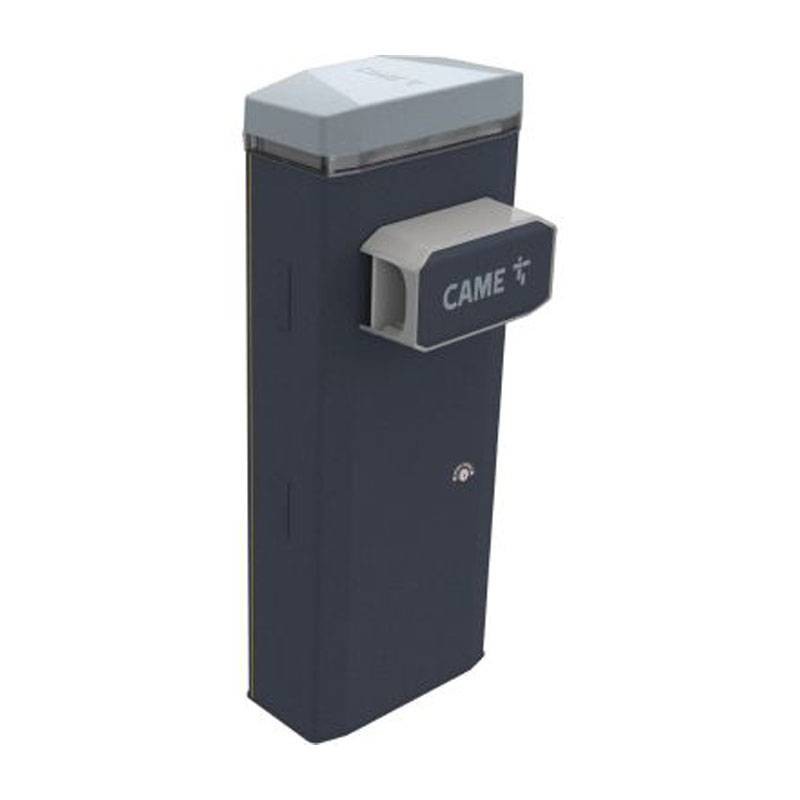

Came Gard GT8 Automatic Barrier 803BB-0180
CMC 803BB-0180
8050456086471
Automatic barrier Came Gard GT8, Ideal solution for condominium and industrial applications model max useful passage width 7.8 meters:
- With 24 V DC irreversible gear motor with encoder
- Galvanized and painted steel cabinet with provision for accessories
- Balancing springs included
€1,801.17
Items Available: 5
Frequently bought together
Strengths:
- 24 V DC gear motor with Advanced Speed Control
- Tested for intensive use of 160 cycles/hour with MCBF 3 million cycles
- Cabinet available in galvanized and painted RAL7024 steel, AISI 304 and AISI 316 steel, or custom color
- Electronic board with display, CONNECT technology and inputs for CXN BUS accessories
- Accessories that can be integrated directly into the cabinet
- High-visibility red/green signal LEDs on the crown and both sides of the rod
Features:
- Degree of protection (IP) 54
- Power supply (V - 50/60 Hz) 230 AC
- Motor power supply (V) 24 DC
- Power (W) 300
- Opening time at 90° (s) 4 ÷ 8
- Cycles/hour @ 55°C 160
- Operating temperature (°C) -20 ÷ +60
- Color RAL 7024
There are no reviews
Data sheet
- Type: Road barriers
