Ajax StarterKit Hub2 (4G) + MotionProtect + DoorProtect + SpaceControl white
08T 51174
4823114027802
Ajax StarterKit Burglar Alarm Hub2 (4G) is an advanced security system designed to protect your home, apartment, office or commercial property from intrusion.

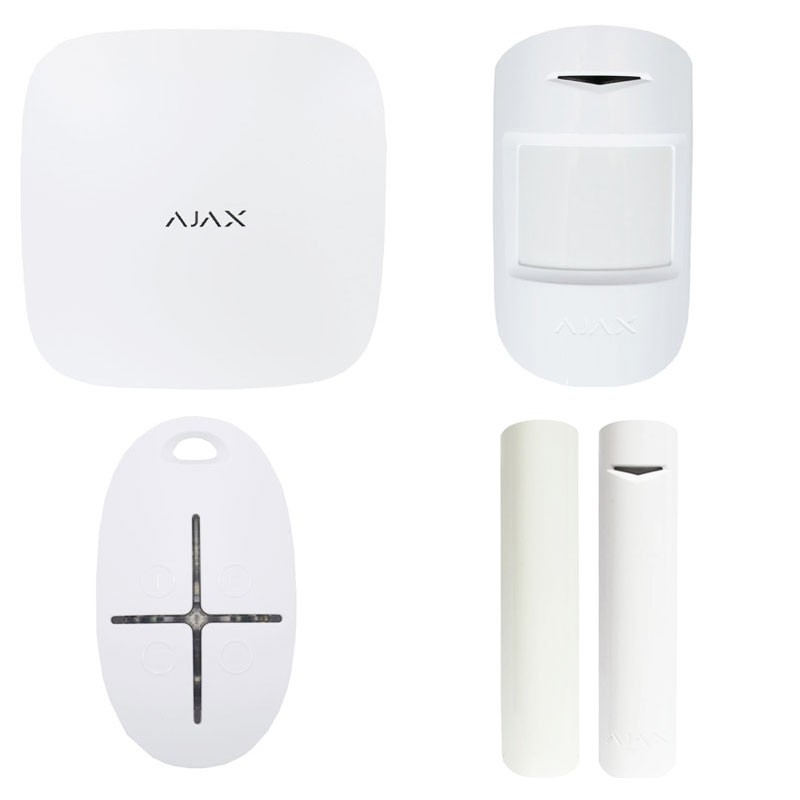

The kit includes:
-
1 Ajax Hub2 (4G) alarm center, provides stable connection via 4G and Ethernet, with 2 SIM cards for continuous coverage, with support of photo-verification of alarms
-
1 MotionProtect motion detector with Pet Immune technology designed to avoid false alarms caused by pets, providing reliable protection.
-
1 DoorProtect magnetic contact for door and window protection, detects the opening of doors and windows for complete security
-
1 SpaceControl remote control allows you to engage, disengage and activate panic mode with a simple click.
€539.80
Items Available: 31
Frequently bought together
Ajax StarterKit Hub2 (4G) for an advanced security system
The Ajax Anti-Theft Hub2 (4G) StarterKit is an advanced security system designed to protect your home, apartment, office, or commercial property from intrusion. The kit includes high-quality devices, all of which are easy to install and configure thanks to the Ajax Hub2 (4G) central unit that manages the entire system. The central unit supports 4G and Ethernet, with dual SIM cards for secure and continuous connection.
- Helps protect entrances from break-ins and intrusions through doors and windows
- Uses Ethernet and two SIM cards with LTE support to send alarms to the Alarm Receiving Center and system users
- Can be controlled via app and remote control
StarterKit Ajax: The starting point for maximum protection
StarterKit (4G) is the basis for building a complete security system that protects against intrusion. It can be connected to up to 100 detectors or devices of various types and 25 cameras or DVRs. With additional devices, the kit can be used in spaces of all sizes: two-level apartments, three-story villas, offices, stores, bars, warehouses.
Easy installation
A professional installer can install StarterKit (4G) in 30 minutes. Installation requires minimal effort and very few tools. All devices are immediately ready to use: they have default settings and come with pre-inserted batteries. The interactive installation wizard available on the app helps you connect the detectors and test the detection zones. If you need expert help, you can contact the installers.
Flexible access settings
StarterKit (4G) can be controlled via remote control and via the free app for iOS and Android. It supports up to 50 users, who can turn the system on and off, invite other users to monitor, receive notifications, and respond to alarms. The system administrator controls access and can restrict the rights of other users.

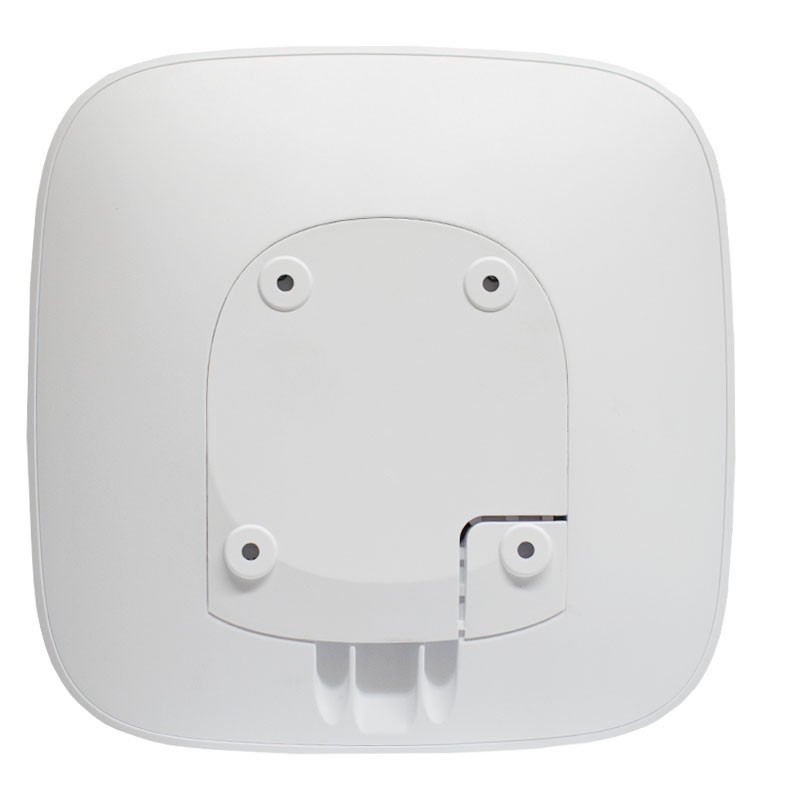

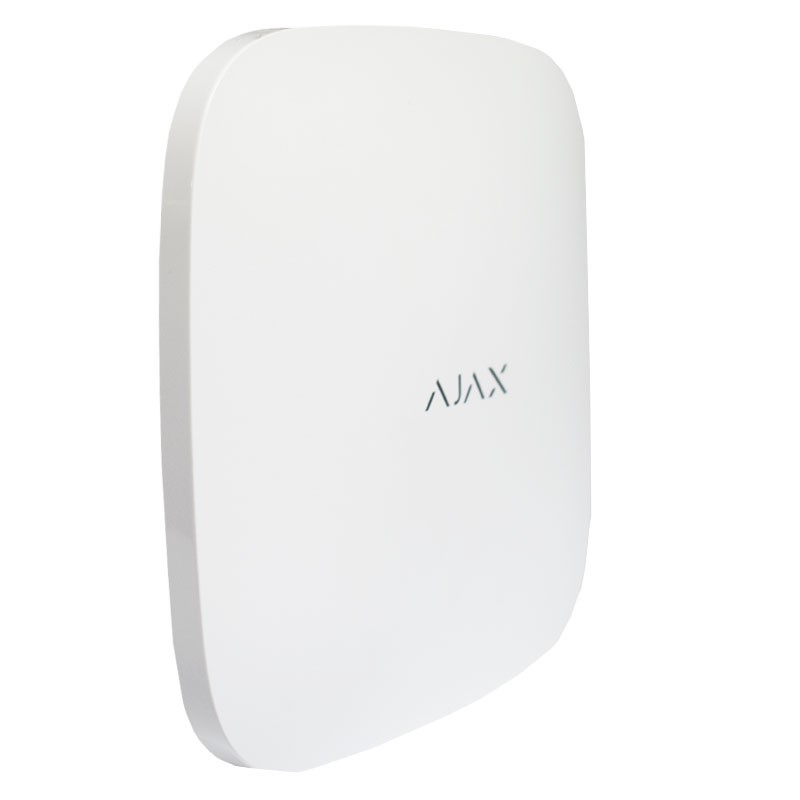

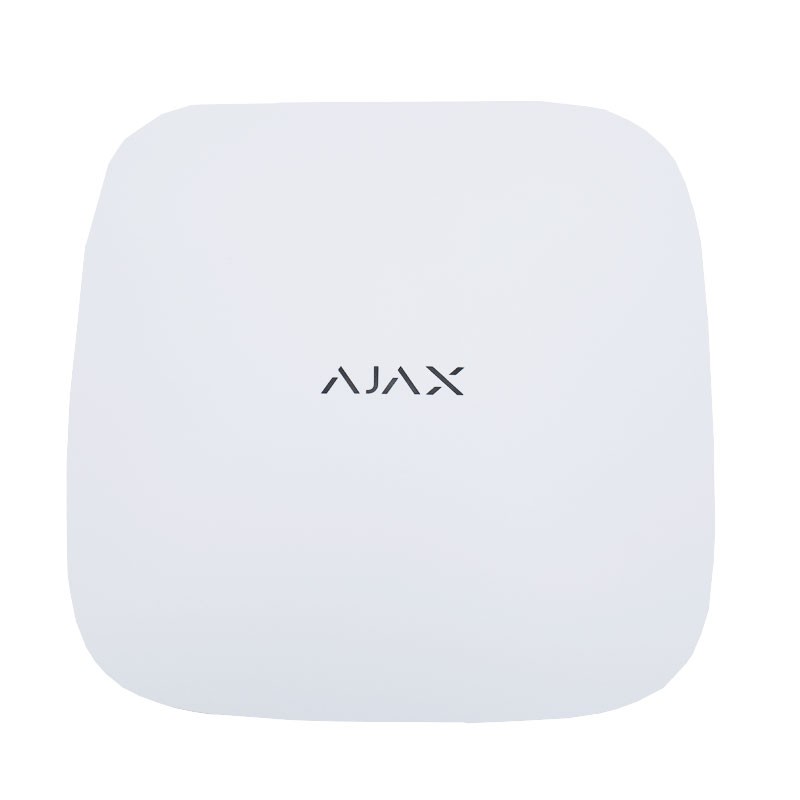

Ajax Hub 2 Jeweller 4G 2 Sim central unit with white photo-verification
The Ajax Hub 2 Jeweller 4G central unit in white is the heart of the Ajax security system, designed to offer intelligent and highly reliable protection with photo-verification alarm features, 4G communication and multiple connections.
It supports up to 100 wireless devices, integrates Ethernet + dual SIM (2G/3G/LTE) for seamless connectivity, and provides advanced event and automation management.
- Triple connection: Ethernet + 2 4G SIMs (with automatic fallback)
- Photo-verification support: Photo per alarm / Photo per scenario / Photo on demand / Photo per schedule (with Malevich 2.19+ OS firmware)
- Up to 100 compatible wireless Ajax devices
- Support for 10 sirens or keypads with built-in siren
- Up to 5 radio repeaters
- Up to 25 IP cameras or DVRs, with direct integration for Dahua, Hikvision, Safire, EZVIZ and Uniview
- RTSP protocol support
- Up to 50 total users (including PROs and administrators)
- Up to 32 automation scenarios
- Up to 9 security zones and 50 configurable rooms
| Feature | Value |
|---|---|
| Wireless Ajax devices |
|
| IP cameras or DVRs |
|
| Users |
|
| Automation scenarios |
|
| Safety Areas. | Up to 9 |
| Rooms | Up to 50 |
Jeweller Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology for transmitting alarms and events. |
| Key Features. | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Instant notifications. - Remote configuration via Ajax apps. |
| Operating frequencies. | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Radio signal modulation | GFSK |
| Automatic power control | Reduces power consumption and noise interference. |
| Communication range | Up to 2,000 m (between the hub and connected devices in the open field). Maximum range depends on connected devices. |
| Ping interval | 12 to 300 seconds, configurable via Ajax app by a PRO or administrator. |
| Encrypted communication. | All saved and transmitted data is protected by block encryption with a moving key. |
| Frequency hopping | Prevents radio interference and radio signal interception. |
Wings Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary radio communication technology to transmit photo-verification of alarms. |
| Key Features. | - Two-way communication. - Block encryption with a moving key. - Advanced anti-sabotage system. - Data packet reloading in case of transmission errors. - Photo delivery control. |
| Frequency bands. | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and noise interference. |
| Communication range | Up to 1,700 m (between the hub and connected devices in the open field). Maximum range depends on connected devices. |
| Encrypted communication. | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping. | Prevents radio interference and radio signal interception. |
Installation and Communication Channels
| Feature | Description |
|---|---|
| Operating voltage | 110-240 V~ |
| Installation | The hub is designed for indoor installation. |
| Ethernet | - 1 8P8C connector - Speed up to 100 Mbps |
| Mobile | 2 micro SIM slots |
| Cellular frequencies | 2G: GSM900/DCS1800 (B3/B8) 3G: WCDMA 850/900/2100 (B1/B5/B8) 4G(LTE): FDD B1/B3/B5/B7/B8/B20 |
| Automatic switching | - Switching from Ethernet to SIMs - instant. - Switching between 4G (LTE), 3G and 2G networks of the same SIM - instant. - Switching between different SIMs - up to 4 minutes. |
| Channel Priority. | 1. Ethernet 2. Cellular connection |
| Parallel operation. | Communication channels operate in parallel to increase reliability. Most data is transmitted via Ethernet. |
Notifications
| Feature | Description |
|---|---|
| Types of notifications supported | - Push notifications - SMS - Calls |
| Event Types. | - Alarms - Malfunctions - Security mode change - System events - Non-security alerts - Automation device events Notification types are set individually for each user. |
Photo-verification
| Feature | Description |
|---|---|
| Photo-verification types | - Photos per alarm - Photos per scenario - Photos per request - Photos per programming The Photos per programming feature is available for hubs with OS Malevich firmware 2.19 or later. |
| Photo delivery time | up to 9 s (default setting) |
| Photo resolution | up to 640 × 480 pixels (depends on the detector) |
| Number of photos in a series | 1 to 5 pictures |
Monitoring
| Feature | Description |
|---|---|
| Supported protocols | - SIA (DC-09) - SurGard (Contact ID) - ADEMCO 685 - Other proprietary protocols |
| Event Types. | - Alarms and system events - Panic button coordinates - Photo-verification |
Power supply
| Feature | Description |
|---|---|
| Main | 110-240 V~, 50/60 Hz Up to 10 W mains power supply. |
| Back-up | Built-in rechargeable battery: Li-ion 3 Аh Runs up to 15 hours in offline mode when Ethernet is not active. The Battery Power Saving function allows you to extend the life of the backup battery. Thehub has a 3-pin battery. To replace the hub's battery, use it. |
| Alternative power supply | - 6 V⎓ via alternative power supply 6V PSU (type A), sold separately. - 12-24 V⎓ via alternative power supply 12-24V PSU (type A), sold separately. |
Antisabotage
| Feature | Description |
|---|---|
| Anti-sabotage tamper | Warning if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication |
| Frequency hopping | The hub sends notifications to all users and the security institution in case of inhibition or loss of connection with devices. |
Housing
| Feature | Description |
|---|---|
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Operating temperatures | -10°C to +40°C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP20 |

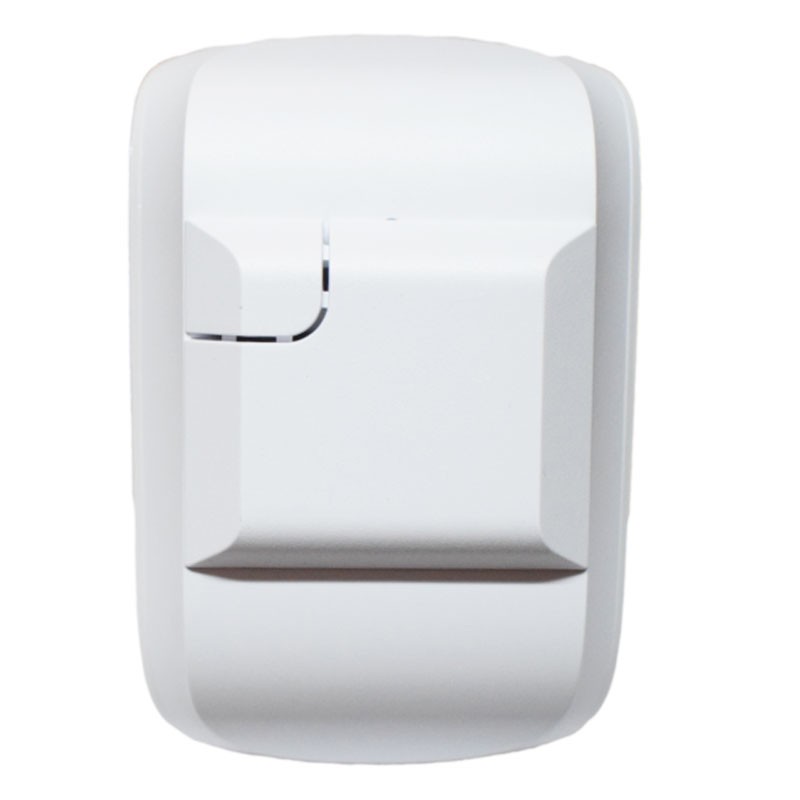

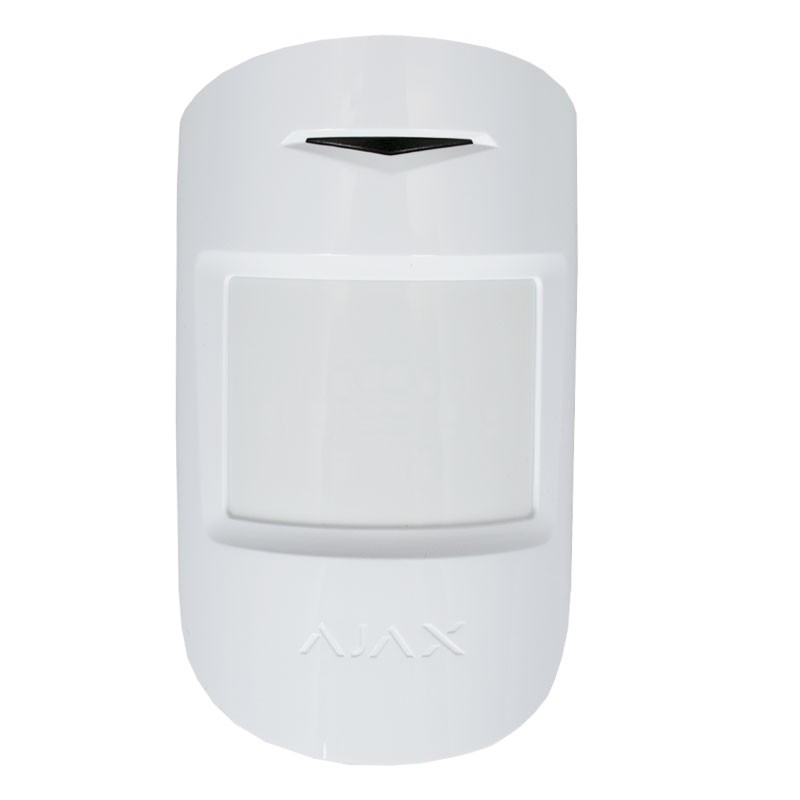

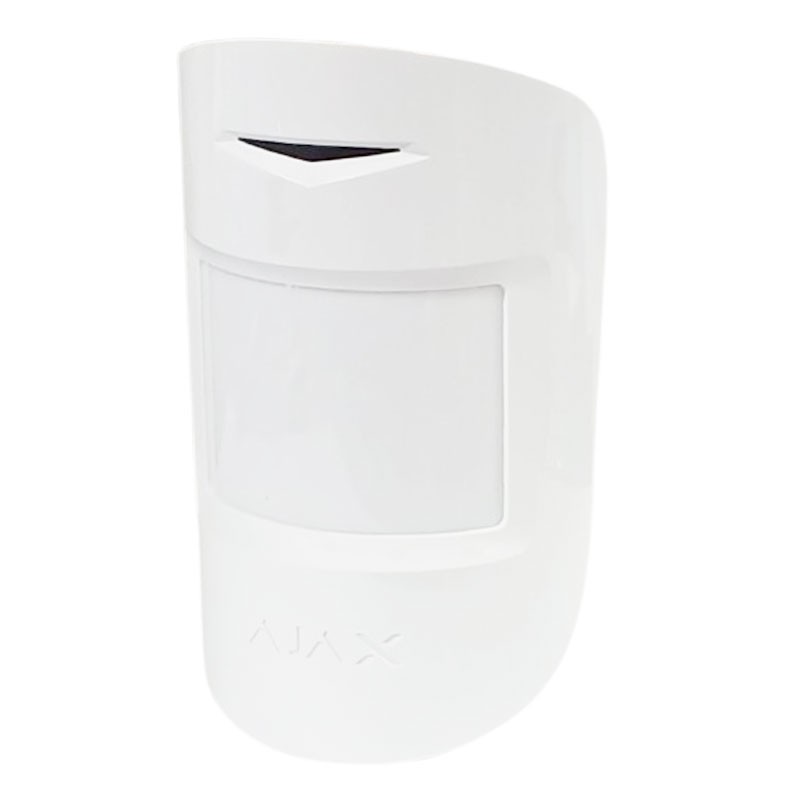

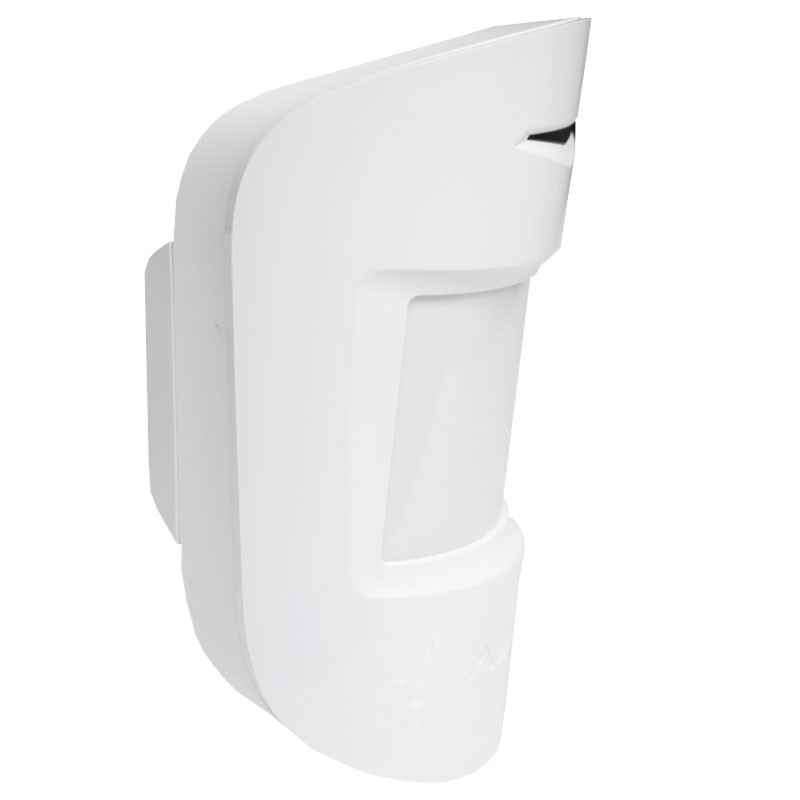

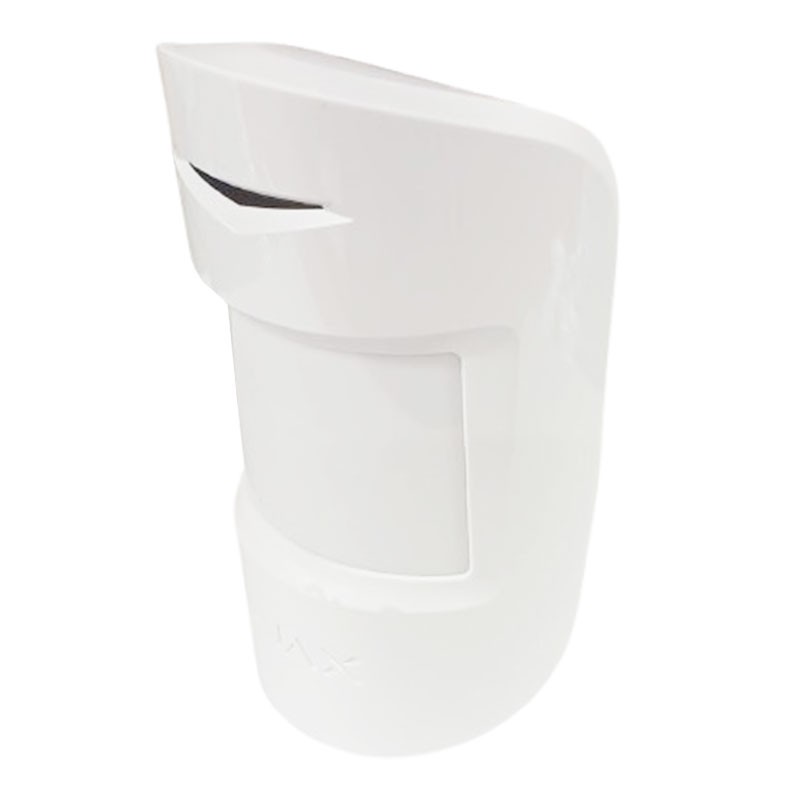

Ajax MotionProtect Pet Immune White Wireless IR Motion Detector
The AJAX MotionProtect Jeweller white motion detector is an advanced solution for home and commercial security. Featuring wireless technology, a detection range of up to 12 meters, pet immunity and advanced false alarm prevention algorithms, it provides reliable protection and remote control via Ajax applications:
-
Compatibility: Ajax hub (any version) required for operation
-
Detection Range: Up to 12 meters, ideal for medium and large environments.
-
Viewing angles: Horizontal 88.5°, vertical 80° for optimal coverage
-
Pet immunity: Unresponsive to animal movements up to 20 kg and 50 cm in height
-
False alarm prevention: Advanced optical system and software to minimize false positives
-
Encrypted two-way communication: Range of up to 1700 m between hub and detector
-
Long battery life: Up to 5 years of operation with preinstalled batteries
-
Remote configuration and control: Management via Ajax app for Android and iOS.

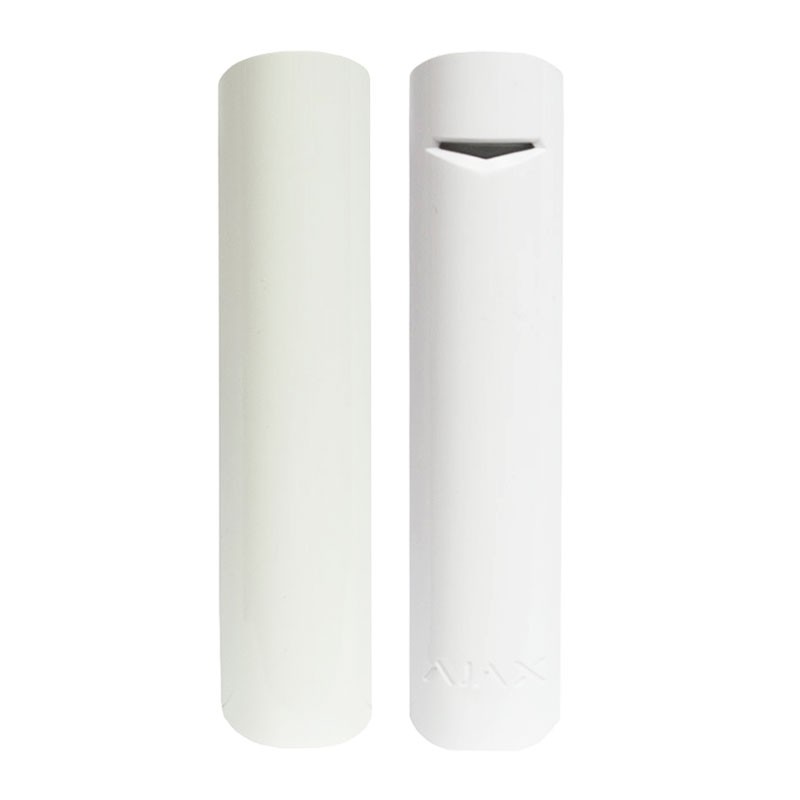

Ajax DoorProtect Jeweller magnetic contact detector white
The white version of the Ajax DoorProtect Jeweller magnetic detector is a wireless device designed to detect the opening of doors and windows, sending immediate notifications to the security system. It is ideal for protecting the main entrances to your home or office and can be installed on any surface, including metal surfaces.
With Jeweller radio communication, it provides stable coverage, low power consumption and a long battery life of up to 7 years.
- Wireless magnetic opening detector with high-quality reed relay
- Can be installed on any type of doors and windows, even on metal surfaces
- Battery life of up to 7 years
- External contact available for third-party wired sensors
- Complete set with two magnets: Large magnet: up to 2 cm distance / Small magnet: up to 1 cm distance
- Transmitter function for signal from wired sensors to hub
- Easy installation on SmartBracket
- Instant configuration via Ajax mobile app
- Full compatibility with Ajax systems equipped with Jeweller technology

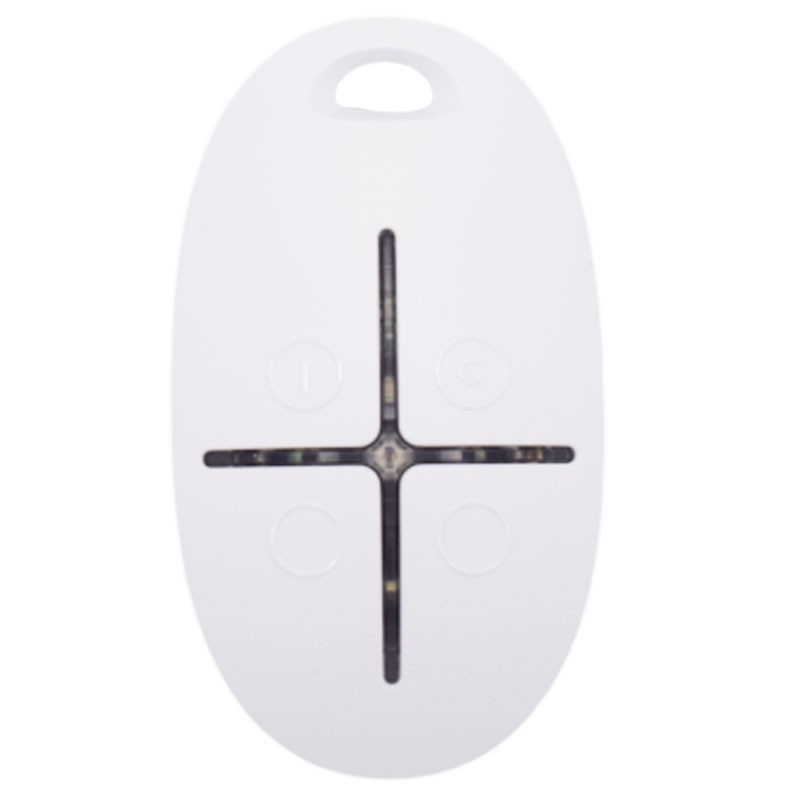

Ajax SpaceControl Jeweller remote control 4 buttons white
The Ajax SpaceControl Jeweller remote control is a 4-button wireless device designed to conveniently manage the security modes of your Ajax system. In the compact and stylish white version, it also features a panic button, which allows you to immediately send an alarm to the Central Alarm Receiving Authority (CRA) and trusted contacts in case of an emergency.
- 4 dedicated buttons: Full system arming / Disarming / Night mode / Panic button
-
Area management: you can select which area to control
-
LED feedback for confirmation of commands executed
-
Two-way communication with the Ajax hub
-
Authentication system to prevent forgery
-
Protection against inhibition attempts (jamming)
-
Encrypted and secureconnection
-
Ready to use with preinstalled battery
-
Simple configuration via Ajax app
