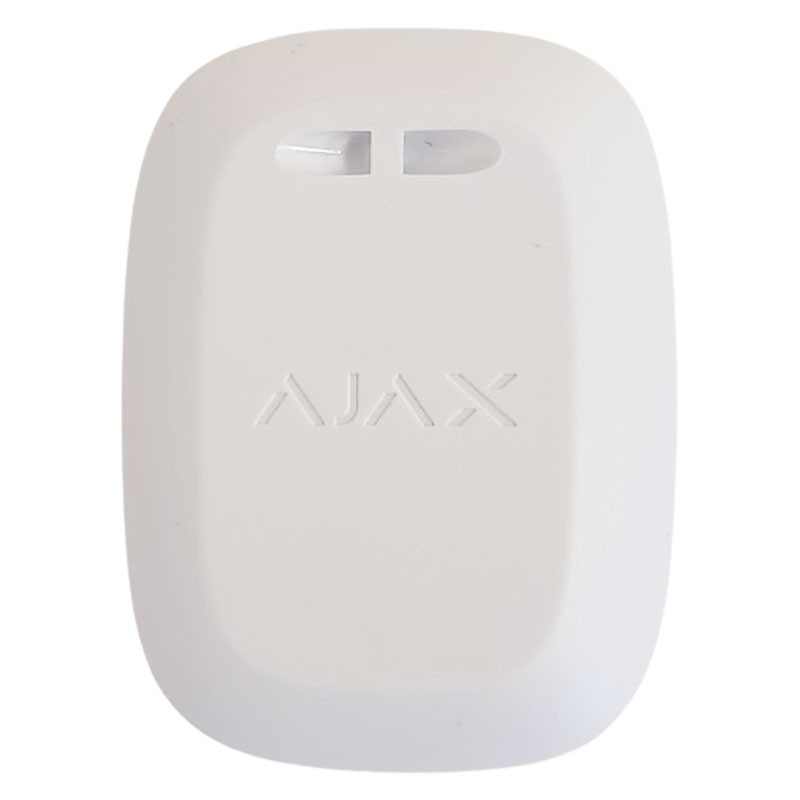

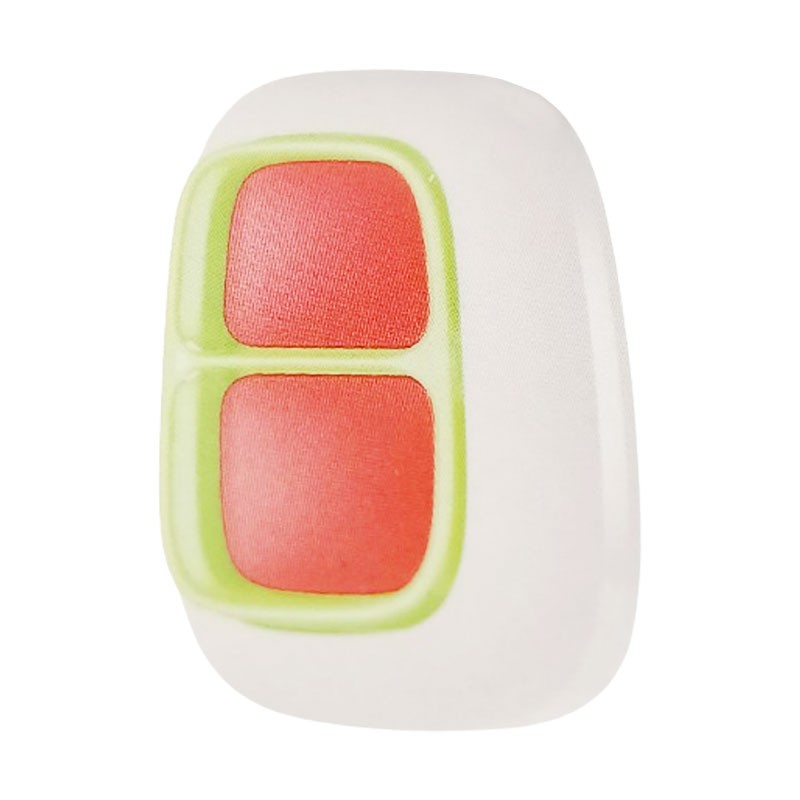

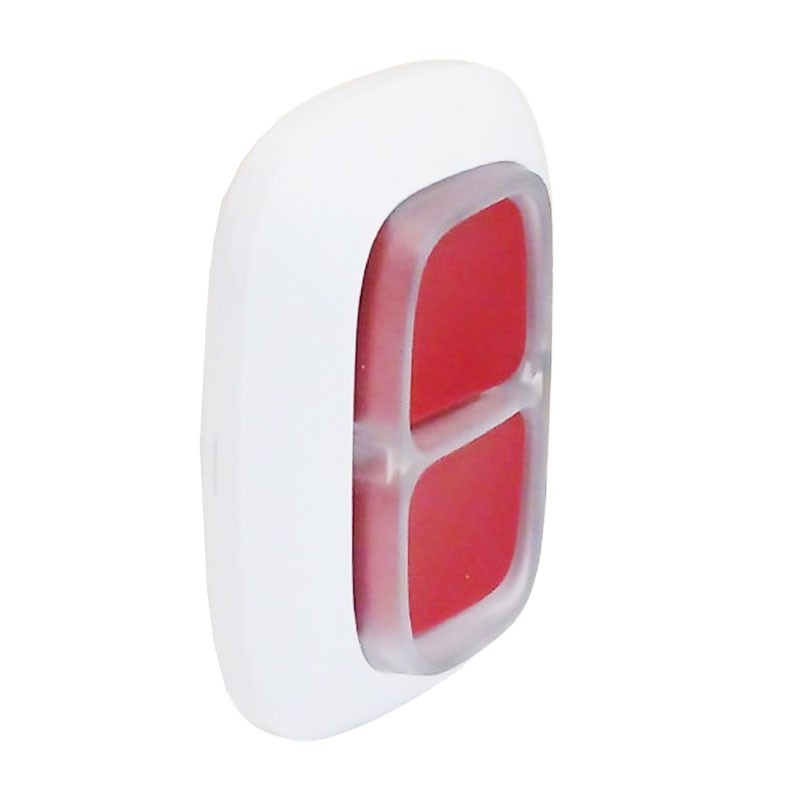

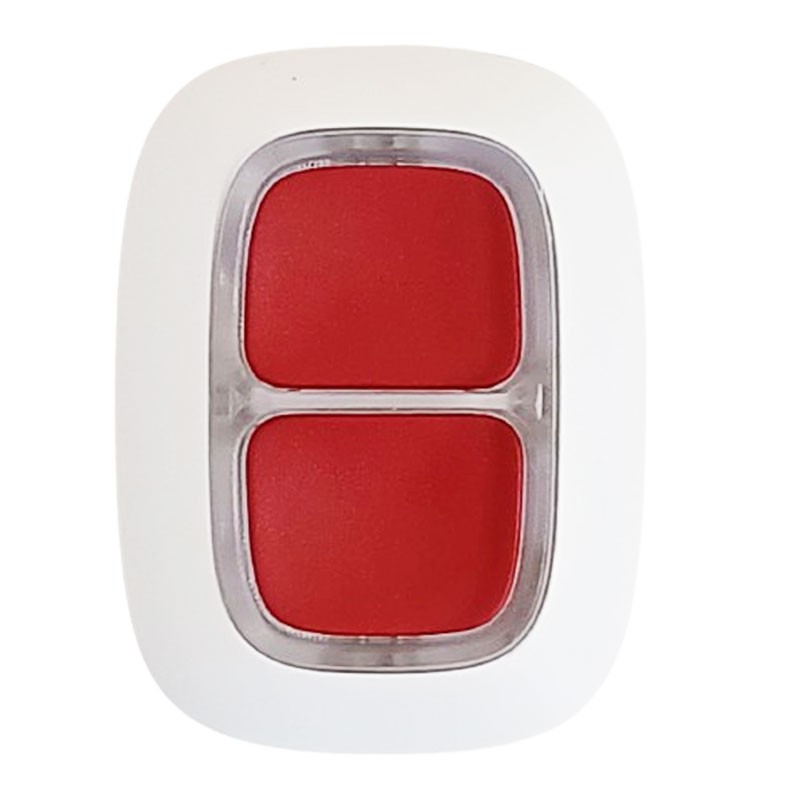

Ajax DoubleButton Jeweller Wireless Emergency Button White
08T 38103
4823114014895
The Ajax DoubleButton Jeweller white wireless emergency button provides security and reliability with communication up to 1300 meters, AES encryption and advanced features to securely trigger automated alarms and scenarios.
- Radio range of up to 1300 meters
- AES encryption for protected data
- Alarm confirmation function to ensure secure activations
- Dust, temperature and splash resistant (IP55)
- Battery life of up to 5 years
- Triggering automated alarms and scenarios (e.g., sirens, locks)
Triggering an alarm is the priority function of DoubleButton. But not the only one. By transmitting an alarm signal, the emergency button can activate all or specific sirens in the system. In addition, it can run automation scenarios: activate a smoke machine, close electric locks, lower shutters.
€41.39
Items Available: 3
Frequently bought together
DoubleButton: advanced security with reliable communication
No accidental pressure
Both buttons must be pressed to trigger the alarm. The buttons are rigid and separated by a plastic divider. This prevents false alarms when you keep DoubleButton in your pocket or purse.
No unnecessary intervention by patrols
DoubleButton supports confirmation of alarms. This feature involves users deciding what sequence of presses is required to generate a confirmed alarm. It provides a complete guarantee that an alarm is triggered intentionally and only by an authorized user.
Guaranteed alarm communication
The emergency button transmits a signal to the hub via the Jeweller two-way radio protocol, communicating up to a distance of 1300 meters. A flashing LED verifies that DoubleButton's alarm has been delivered. Jeweller encrypts the transmitted data. In the event of signal interference or radio frequency inhibition, the Ajax system changes the radio frequency and sends a notification about the situation to the user and the security institution.
- Radio signal range of up to 1,300 m
- Confirmation of alarm receipt
- AES encryption
- Frequency jumps
PRO-technology solution for any facility
DoubleButton meets the requirements of European professional security standards and can be used in both private and commercial properties. Wireless connection with a hub and a wide communication range offer freedom of plant placement and possibility to take DoubleButton with you.
Alarm management with DoubleButton Ajax
Triggering an alarm is the priority function of DoubleButton. But not the only one. By transmitting an alarm signal, the emergency button can activate all or specific sirens in the plant. In addition, it can perform automation scenarios: activate a smoke machine, close electric locks, lower shutters.
The body of the device is resistant to extreme temperatures, dust and splashes. The buttons withstand thousands of clicks. With a preinstalled battery that lasts up to 5 years, DoubleButton requires no maintenance for a long period of time.
Technical specifications of the DoubleButton Ajax
Compatibility with Ajax devices
| Feature | Value |
|---|---|
| Compatibility with Ajax devices |
|
Jeweller communication technology
| Feature | Value |
|---|---|
| Technology | Proprietary wireless for transmission of commands, alarms and events |
| Two-way communication | Yes |
| Advanced anti-sabotage system | Yes |
| Block encryption with mobile key | Yes |
| Instant notifications | Yes |
| Remote control and configuration in Ajax apps | Yes |
| Operating frequencies | 866.0-866.5 MHz, 868.0-868.6 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and noise interference |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,300 m (between panic button and central unit in open field) |
| Encrypted communication | All data is protected by block encryption with a moving key |
| Frequency hopping | To prevent radio interference and signal inhibition |
Key Features
| Feature | Value |
|---|---|
| Number of buttons | 2 |
| Protection from accidental activation | Pressing both buttons, plastic protective divider |
| Alarm confirmation | With one DoubleButton or more |
| To launch a confirmed alarm (emergency event). | You must perform the selected action |
| LED Backlighting | Indicates sending a command, brightness adjustable in Ajax apps |
| Scenario for alarm | Pressing DoubleButton |
| Control mode for automation devices | Not supported |
Anti-sabotage protection
| Feature | Value |
|---|---|
| Protection against counterfeiting | Device authentication |
Power supply
| Feature | Value |
|---|---|
| Battery | 1 × CR2032 (preinstalled) |
| Calculated battery life | Up to 5 years |
| Button operating voltage | 1,8-3,3 V⎓ |
| Rated operating voltage of the button | 3 V⎓ |
| Current consumption of the device at rest (rated voltage) | 0.54 μA |
| Maximum device current consumption | 34.8 mA |
| Full battery capacity | 235 mAh |
| Low battery voltage | 2,2 V⎓ |
| Low battery recovery voltage | 2,3 V⎓ |
| Battery voltage at end of life | 1.8 V⎓ (Device is turned off) |
| Battery capacity at end of life | 40 mAh |
| Manufacturer | Panasonic |
Case
| Feature | Value |
|---|---|
| Dimensions | 47 × 35 × 16 mm |
| Weight | 17 g |
| Operating temperatures | -10 °C to +40 °C |
| Maximum allowable humidity | Up to 75% |
| Protection class | IP55 |
Material in the package
| Feature | Value |
|---|---|
| Button Jeweller | Yes |
| CR2032 Battery (pre-installed) | Yes |
| Quick Start Guide | Yes |
Data sheet
- Colour: White
- Type: Remote controls
- System: Wireless
