Urmet 1068 home professional burglar alarm system kit 1068/906
UTD 1068/906
8021156070466

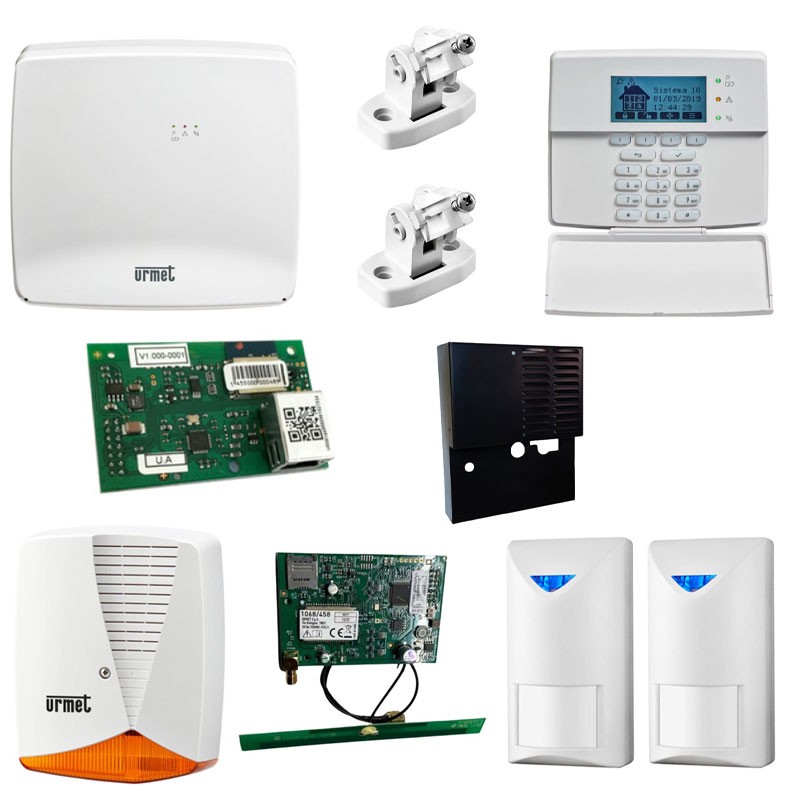

The Urmet 1068 Home Professional Intrusion Kit is an advanced and comprehensive system for residential and commercial security. With its multifunction bus control panel and included devices, it offers effective and flexible control to protect your property:
-

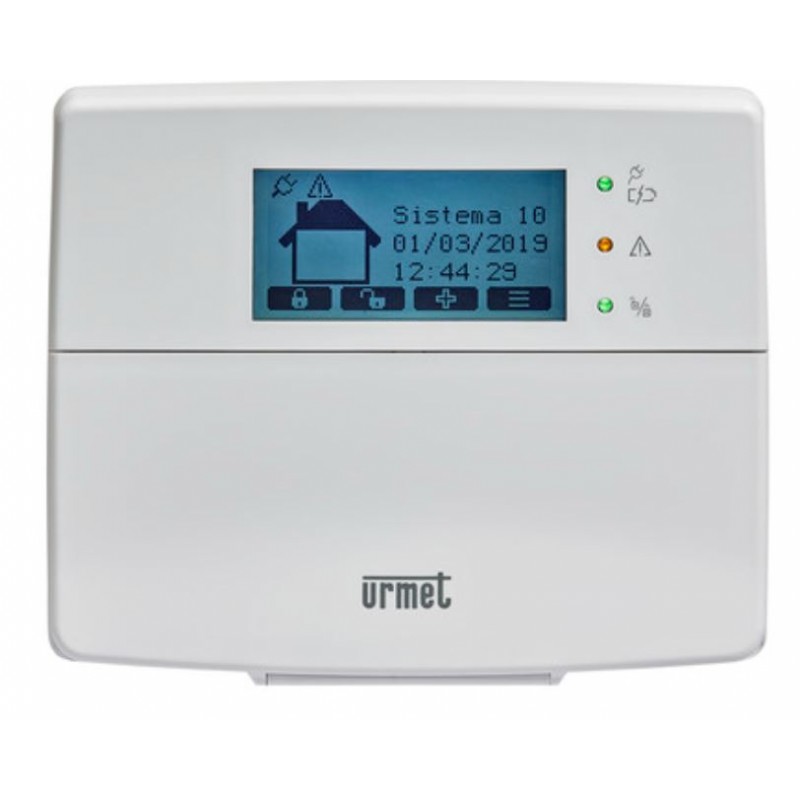

10-input multifunction bus control panel (expandable to 66) 1068/010A: Heart of the system, supports extensive configurability and integration.
-
Control keypad with LCD display 1068/021: For intuitive system management, with simple and clear interface
-
Ethernet and WiFi IP interface 1068/013: Allows remote control of the system via Internet network
-
GSM telephone communicator 1068/458: Allows notifications and commands via mobile network, ideal as a backup
-

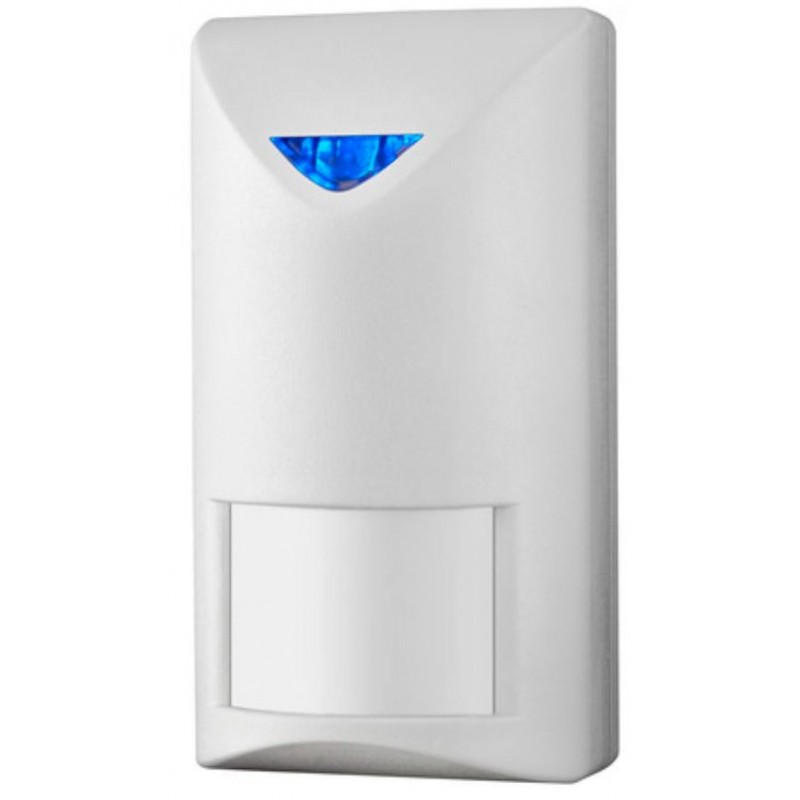

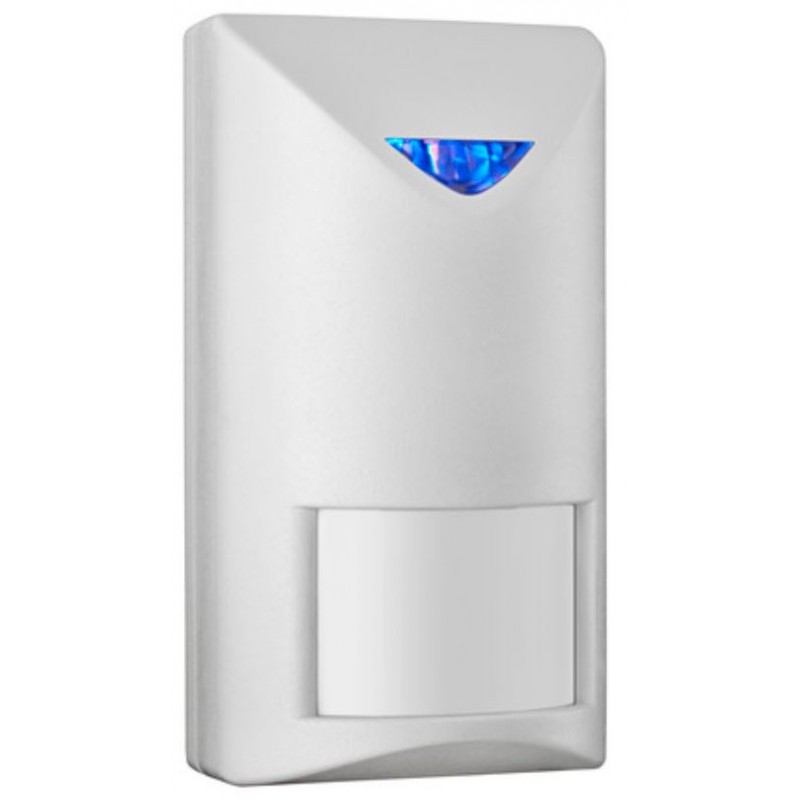

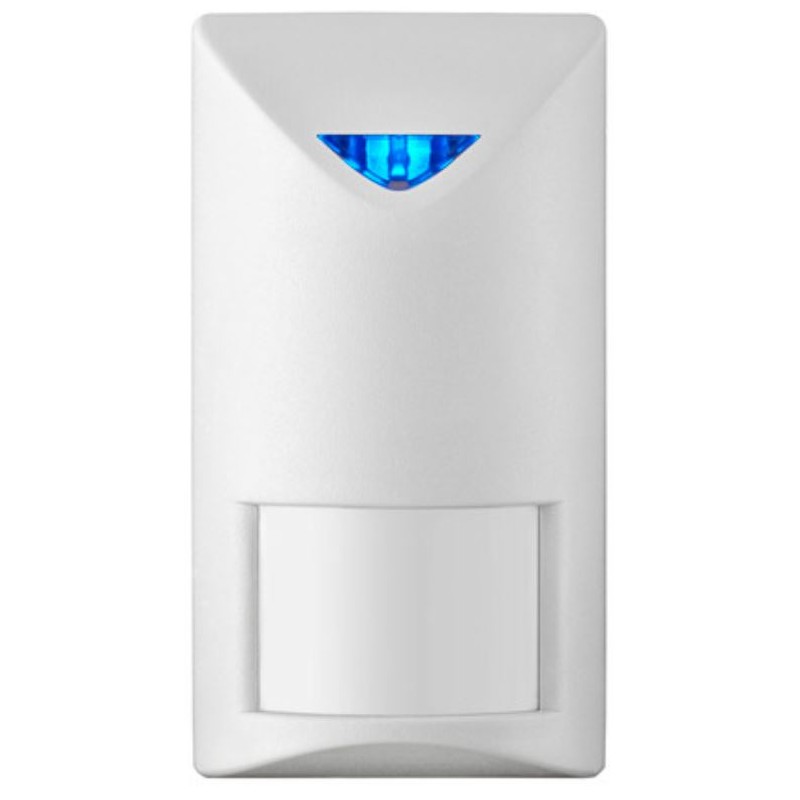

2 dual technology detectors 1033/132: Advanced sensors for accurate and reliable detection
-
2 joints for dual technology detectors 1033/119: Accessories for correct positioning of detectors
-

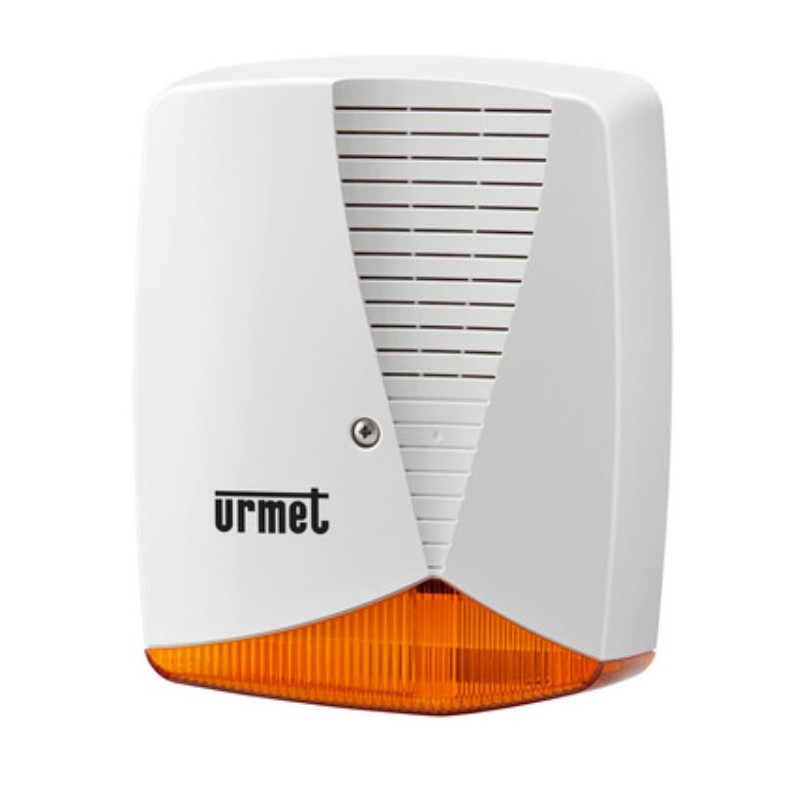

Self-powered outdoor siren with flashing light 1033/414: Compliant with EN50131-4 Grade 2, provides reliable audible and visual signaling
-

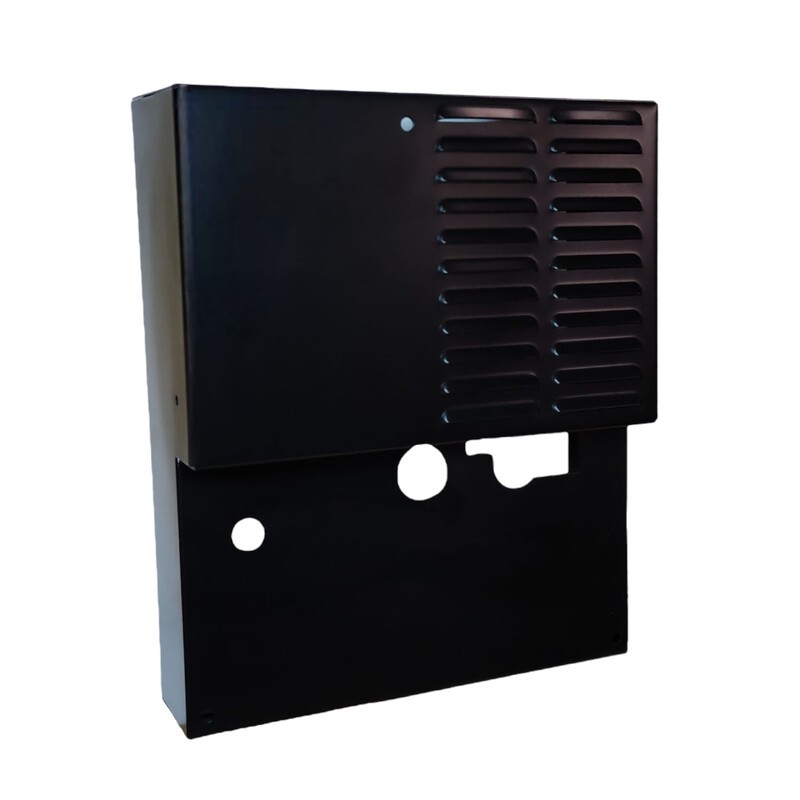

Protective grid for the siren 1033/417: Protects the siren from external damage.
€460.98
Items Available: 47
: 9
Intrusion Alarm System Kit Urmet 1068 Home Professional
Benefits
- Complete system: Includes all components for effective protection.
- Expandability: The control panel supports up to 66 inputs to adapt to any need.
- Remote control: Advanced management via IP connection, WiFi and GSM network.
- Certified reliability: Siren complies with EN50131-4 Grade 2 standards.
- Advanced sensors: Dual technology detectors ensure accuracy and reduce false alarms
Applications
- Security for residential homes.
- Protection for offices, stores and businesses.
- Modular systems that can be configured for specific needs

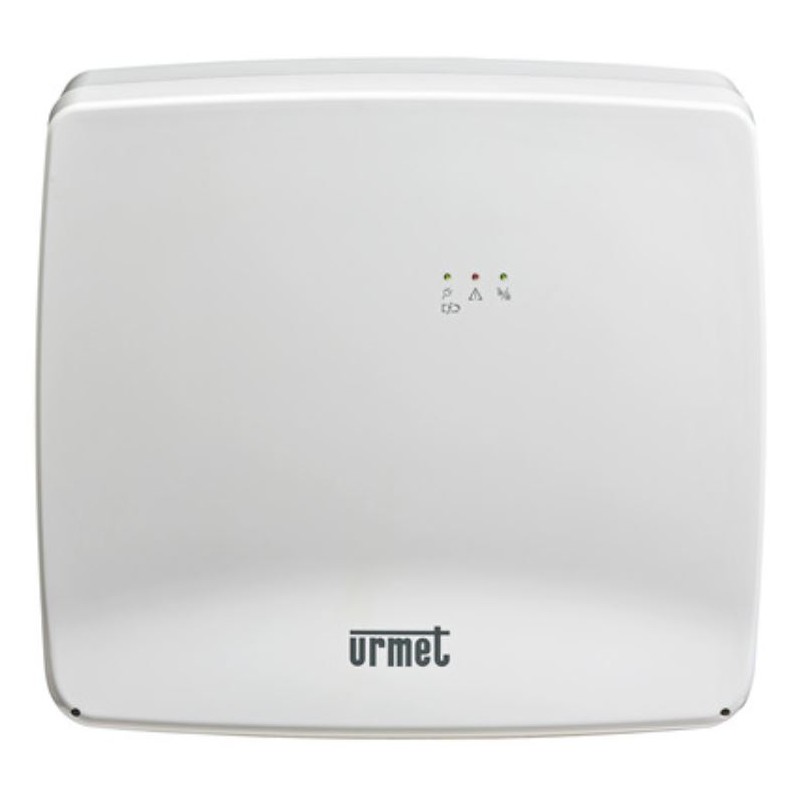

Central Technical Specifications
| Specifications | Details |
|---|---|
| Multilingual Menus | Italian, English, French and German |
| Programming | Via tablet with Android App 1068set |
| Programming storage | On micro SD Card, for transfer between tablet and control unit or for back-up copy |
| Firmware Update | Via micro SD Card or IP interface 1068/013 |
| System Management | Via Urmet Secure User App (iOS and Android) |
| Communication Vectors | IP (Ethernet and Wi-Fi) and GSM |
| Notifications | Push, voice messages, email and SMS |
| Voice Alarm Calls | Sending voice alarm messages specific to individual zones and/or inputs |
| Wireless Device Management | Supported |
| Video Surveillance Management | Via Urmet Secure APP |
| Integrated Voice Synthesis | Resides in GSM Carriers |
| Digital Transmission | DC05 and DC09 digital protocols to surveillance institutions |
| SIM Expiration Warning | Included |
| Self-learning Devices | Connected on bus |
| Time Programmer | Included |
| Telephone Operation | Command on one output with no response time, GSM number recognition |
| Technological Alarm Management | Supported |
| Coercion Alarm | H24 active coercion signaling |
| Distress Signaling | Generate service alerts via dedicated button |
| Auxiliary Input Functions | GONG, courtesy light and door opener |
| Specialization | Inputs and Outputs |
| Dimensions | 290 x 275 x 95 mm |

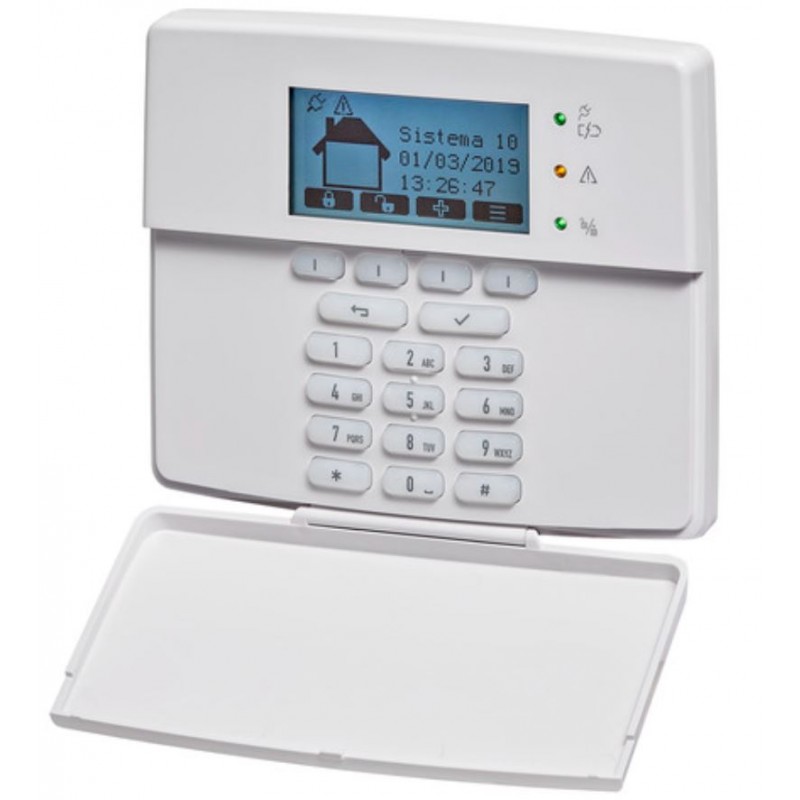

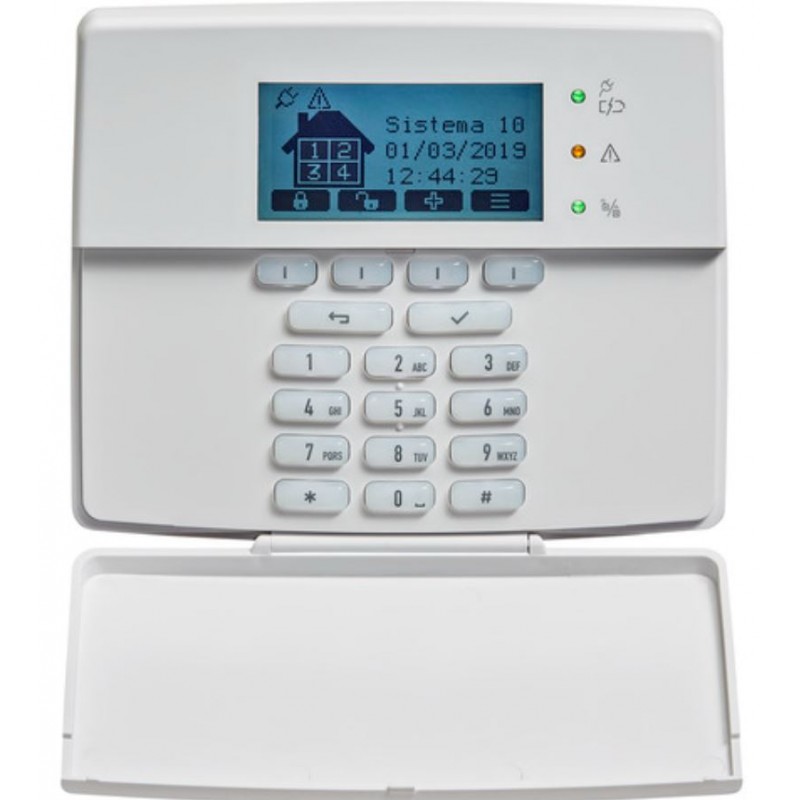

Specifications Command Keypad
| Specifications | Details |
|---|---|
| Display | 128 x 64 pixel backlit LCD graphic with contrast and brightness adjustment |
| Status indication | 3 LEDS |
| Keys | 18 backlit keys |
| Buzzer | With adjustable sound level |
| Programmable input | 1 |
| Power supply | Via bus |

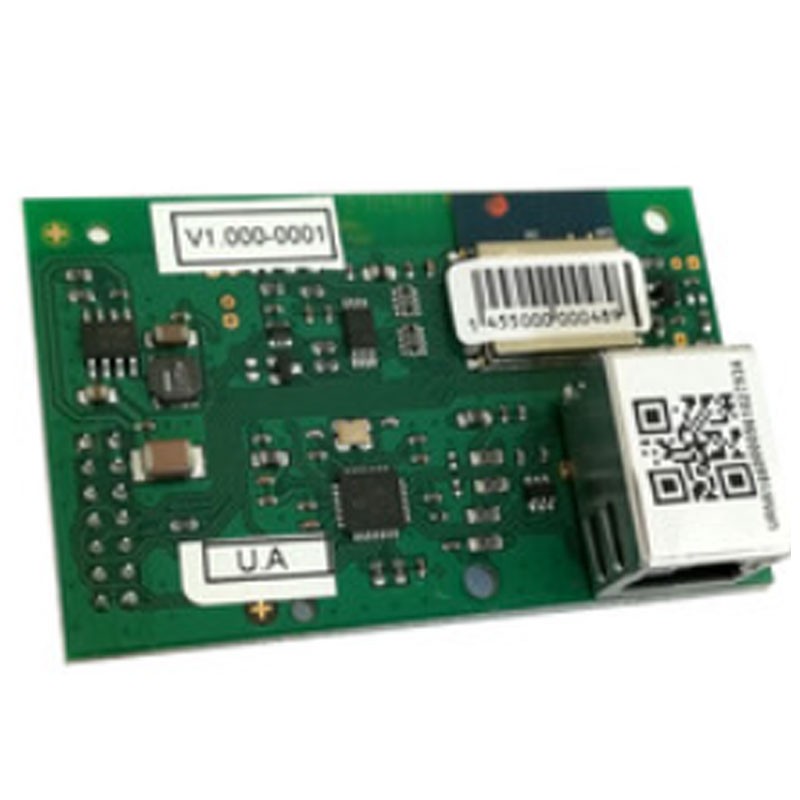

IP Interface Specifications
| Specifications | Details |
|---|---|
| Connection to the Internet Network | Through built-in Ethernet or WiFi interfaces |
| Current Consumption | 60 mA |
| Ethernet Baudrate | 10 Mbps |
| WiFi baud rate | 54 Mbps |

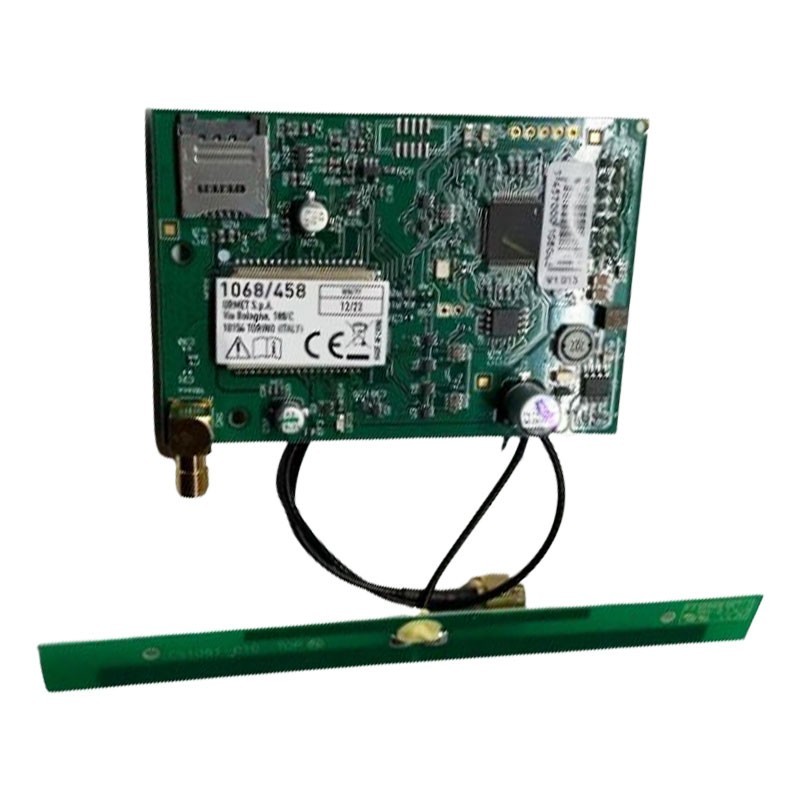

Technical Specifications GSM Telephone Communicator
| Specifications | Details |
|---|---|
| GSM Module | Bi-band GSM transmitter/receiver (900/1800 MHz) |
| Antenna | Included, to be inserted inside the control unit |
| Alarm Transmission | Uses "Ademco® Contact ID protocol" (IDP) format |
| Connection | Direct connection on the control panel board via connector |
| Communication | Dedicated serial connection with host control panel |
| Absorbed Current at Idle | 35 mA |
| Current Consumed with Active Connection | 170 mA |
Technical Specifications Dual Technology Detector
| Specifications | Details |
|---|---|
| Type of Detector | Volumetric, consisting of an IRP + MW at 10.525 GHz |
| Power supply | 12V +/- 3V- |
| Maximum Power Consumption | 22 mA |
| Range | Adjustable (via trimmer) |
| Opening Angle | 90 degrees |
| Lens |
|
| LED | OFF |
| Fixing |
|
| Dimensions | 61.5 (W) x 10.8 (H) x 47.5 (D) mm |

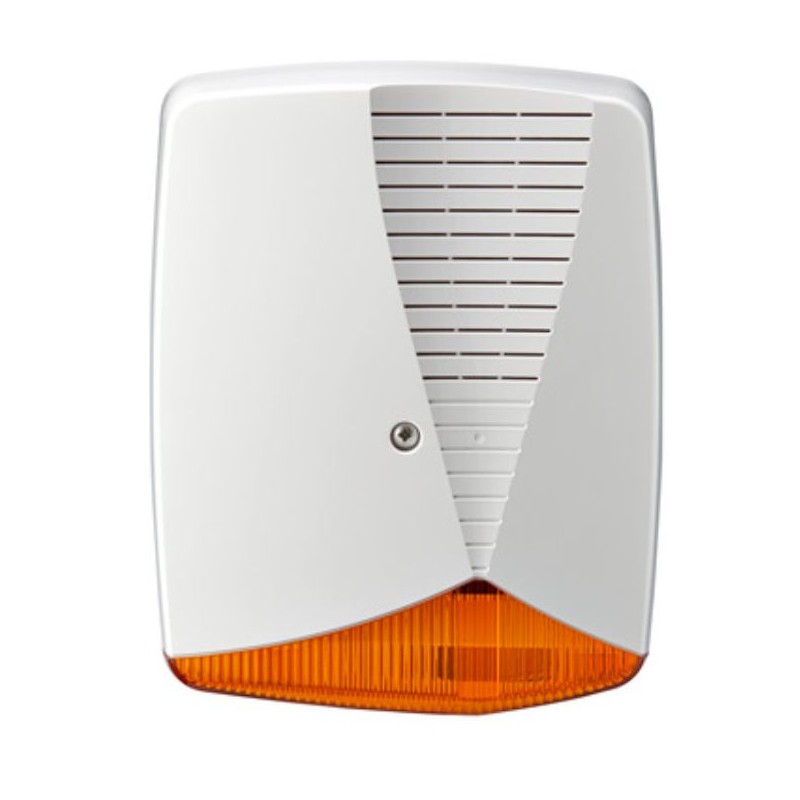

Technical Specifications Siren
| Specifications | Details |
|---|---|
| Power Supply Voltage | 12Vdc |
| Max Absorption in Alarm | 1600 mA |
| Acoustic Pressure | 107 dB (A) @ 1 m |
| Functions | Scaffolding, alarm counting programming, ringing time programming |
| Low Battery Threshold | 11.5 VDC |
| Operating Temperature | -25 °C TO +70 °C |
| Degree of Protection Enclosure | IP44 |
| Material | PC-ABS self-extinguishing |
| Accumulator Allocable | 1 pc of 12Vdc @ 1.9A |
| Dimensions | 203 x 253 x 87 mm |

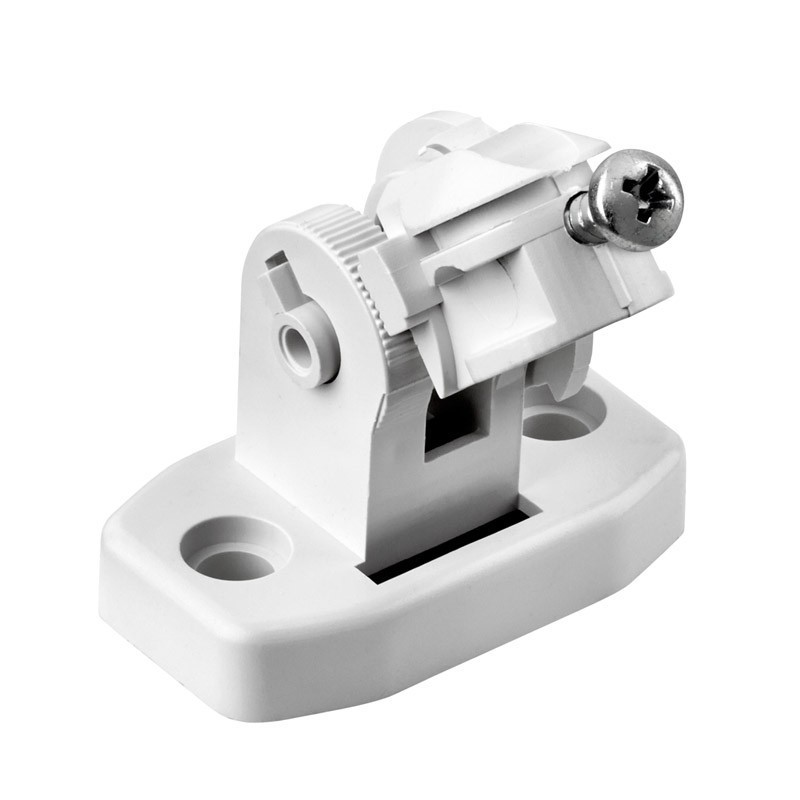

Technical Specifications Joint
| Specifications | Details |
|---|---|
| Type | Joint for mounting volumetric detectors on wall or ceiling |
| Features | Equipped with cable routing for the detector |
| Compatibility |
|
There are no reviews
Data sheet
- KIT: Burglar alarm kits
- System: With Wires
