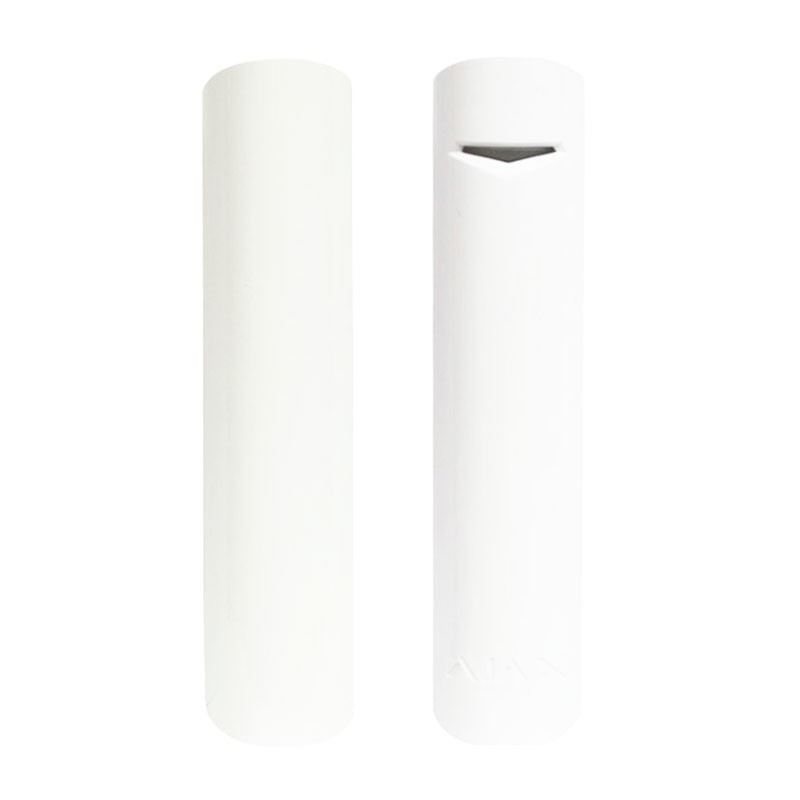

Ajax DoorProtect Plus Jeweller Magnetic Contact Detector White
08T 38101
4823114014918
Ajax DoorProtect Plus Jeweller's white version of the Ajax DoorProtect Plus Jeweller opening detector is an advanced wireless security device that combines opening, bumping and tilt detection in one compact and discreet body. Designed to protect doors, windows, skylights and even safes, it offers complete coverage against intrusion attempts, even when windows are in ventilation mode.
Equipped with reed relay, built-in accelerometer and wired detector contact, DoorProtect Plus is an excellent choice for those who want proactive, customizable and easy-to-install security.
-
Magnetic opening detection (high-quality reed relay)
-
Built-in shock sensor with 3 levels of sensitivity
-
Tilt detection adjustable from 5° to 25° with customizable delay
-
Two magnets included: small (max 1 cm), large (max 2 cm)
-
Protective shockproofreed relay capsule for transportation/installation
-
External NC contact for connection to third-party wired detectors
-
"Bell on opening" function for commercial environments
-
Compatible with all Ajax control panels with Jeweller protocol
-
Simple installation on SmartBracket, configuration via Ajax app
€74.16
Items Available: 628
: 355
The article is also included in the kit:
Frequently bought together
DoorProtect Plus Jeweller: with shock and tilt sensors
DoorProtect Plus Jeweller is designed to detect intrusion and theft attempts, providing comprehensive coverage for doors, windows, skylights and safes. Equipped with a reed relay as an opening sensor, the detector is protected against vibration in its operation. Two magnets of different sizes offer more mounting options. The device also identifies bumps and tilt thanks to a built-in accelerometer, protecting the system even when windows are in ventilation mode. All in line with the Ajax user experience, which ensures quick and easy installation of the device.
Difference between DoorProtect and DoorProtect Plus contact
DoorProtect and DoorProtect Plus are both Ajax system door and window sensors, but they have some key differences:
DoorProtect
- Opening detection via magnetic sensor
- Supports connection of external wired sensors.
DoorProtect Plus:
- Opening detection via magnetic sensor
- Built-in vibration sensor (shock detector).
- Tilt sensor (tilt sensor) to detect opening of vasistas windows or abnormal tilting
- Also supports external wired sensors.
Reed relay for reliable opening detection
DoorProtect Plus Jeweller features a durable reed relay that ensures decades of trouble-free operation. Housed in a durable plastic capsule, the reed relay remains intact during transport, even if dropped. Two magnets of different sizes offer more installation possibilities: the small magnet operates at a maximum distance of 1 cm from the reed relay, the large magnet up to 2 cm. The detector works effectively regardless of magnet placement.
- Two magnets included: small and large
- Plastic capsule to protect the reed relay during transport
Immediate threat detection
Built-in accelerometer responds quickly to bumps, detecting potential intrusion attempts such as door pry and burglary. The shock sensor has three levels of sensitivity that can be adjusted according to system specifications. The detector can also ignore a single impact to minimize the risk of false alarms triggered by external factors. The installer can choose the appropriate settings for accurate detection, even in environments with vibrations from nearby buildings or heavy traffic.
- Early identification of threats thanks to the shock sensor
- Three adjustable sensitivity levels
- The option to ignore a single impact to prevent false alarms
Protection of windows in ventilation mode
Built-in accelerometer protects open windows, adapting perfectly to different system characteristics. For doors and windows, installers can set a detector tilt angle ranging from 5 to 25 degrees. The system quickly detects even the smallest deviations from the initial value and provides an adjustable tilt alarm delay, ranging from 1 second to 1 minute. If the tilt angle exceeds the initial value for longer than the specified time, the system issues an alarm.
- Tilt detection
- Adjustable tilt angle
- Adjustable tilt alarm delay
Increased security with additional detectors
DoorProtect Plus Jeweller has terminals for connecting any third-party wired NC detector3 that can be used to increase system reliability. The installer can integrate a detector that operates on a different principle, such as a shutter motion detector4. When connected to DoorProtect Plus Jeweller, a third-party detector promptly responds to alarms from other detectors and cable breakage.
DoorProtect Plus Detector Specifications
Compatibility with Ajax devices
| Compatible devices |
|---|
| Hub (2G) Jeweller |
| Hub (4G) Jeweller |
| Hub 2 (2G) Jeweller |
| Hub 2 (4G) Jeweller |
| Hub 2 Plus Jeweller |
| Hub BP Jeweller |
| Hub Hybrid (2G) |
| Hub Hybrid (4G) |
| Hub Hybrid (4G) (without casing) |
| Hub Plus Jeweller |
| ReX 2 Jeweller |
| ReX Jeweller |
Jeweller Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology to transmit alarms and events. |
| Key Features. | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Instant notifications. - Remote configuration from Ajax apps. |
| Radio frequency band | - 866.0 - 866.5 MHz - 868.0 - 868.6 MHz - 868.7 - 869.2 MHz - 905.0 - 926.5 MHz - 915.85 - 926.5 MHz - 921.0 - 922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio signal range | up to 1200 m (between the detector and hub or repeater in open space) |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | To prevent radio interference and radio signal interception. |
Detection
| Feature | Description |
|---|---|
| Type of sensor | - 1 × accelerometer - 1 × reed switch The magnet is to be installed on the right side of the detector. |
| Connection for additional detector | Third-party wired detector with NC (normally closed) type contact. |
| Shock sensor sensitivity | 3 levels (set by a PRO or administrator in the Ajax app) |
| Option to ignore a single bump | Set by a PRO or administrator in the Ajax app |
| Tilt sensor activation limit | 5° to 25° (set by a PRO or administrator in the Ajax app) |
Installation and Anti-sabotage Protection
| Feature | Description |
|---|---|
| Magnet placement. | The magnet must be fixed to the right of the detector. It can be placed horizontally. |
| Installation directions. | Do not install the detector with the LED indicator facing downward, as it may fall and be damaged. The device is designed to be used indoors only. |
| Tamper-resistant tamper | Notifications if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication |
Power supply
| Feature | Description |
|---|---|
| Battery | 1 × CR123A (preinstalled) |
| Type | C type |
| Calculated battery life | up to 5 years |
| Rated operating voltage | 3 V⎓ |
| Device current consumption at rest | 11.8 μA |
| Maximum device current consumption | 24 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 2,5 V⎓ |
| Low battery recovery voltage | 2,7 V⎓ |
| Battery voltage at end of life | 2.1 V⎓ (device off) |
| Battery capacity at end of life | 300 mAh |
| Manufacturer | Huiderui |
Enclosure
| Feature | Description |
|---|---|
| Dimensions | Ø 20 × 90 mm |
| Weight | 29 g |
| Operating temperatures | -10 °C to +40 °C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP50 |
Package contents
| Element | Description |
|---|---|
| Main device | DoorProtect Plus Jeweller |
| Mounting panel | SmartBracket |
| Battery | CR123A (preinstalled) |
| Magnets | Large magnet, small magnet |
| Additional terminal | Terminal for connecting a third-party detector |
| Installation accessories | Installation kits |
| Documentation | Quick Start Guide |
