General advantages:

• Built-in IP and 4G communicators, to send high-speed data, voice messages or SMS in case of alarm
• Wi-Fi connection, to program and manage the system locally
• Free MYZENO management APP
• Web panel for installer for local configuration/programming from PC
• Web portal for the user for system management from PC
• Wireless signal measurement
• Management flexibility
• Video surveillance integration
• Range 2 km in free air
• Display-driven programming menu
• Multi-language menu
• Compatibility with Google Home and Alexa

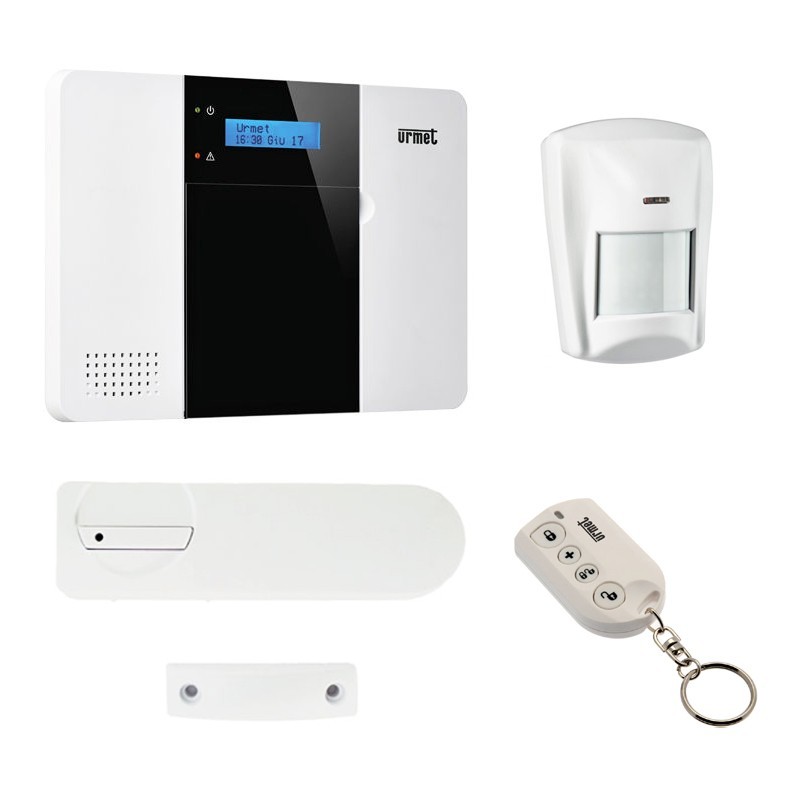

Specific features of the kit components:

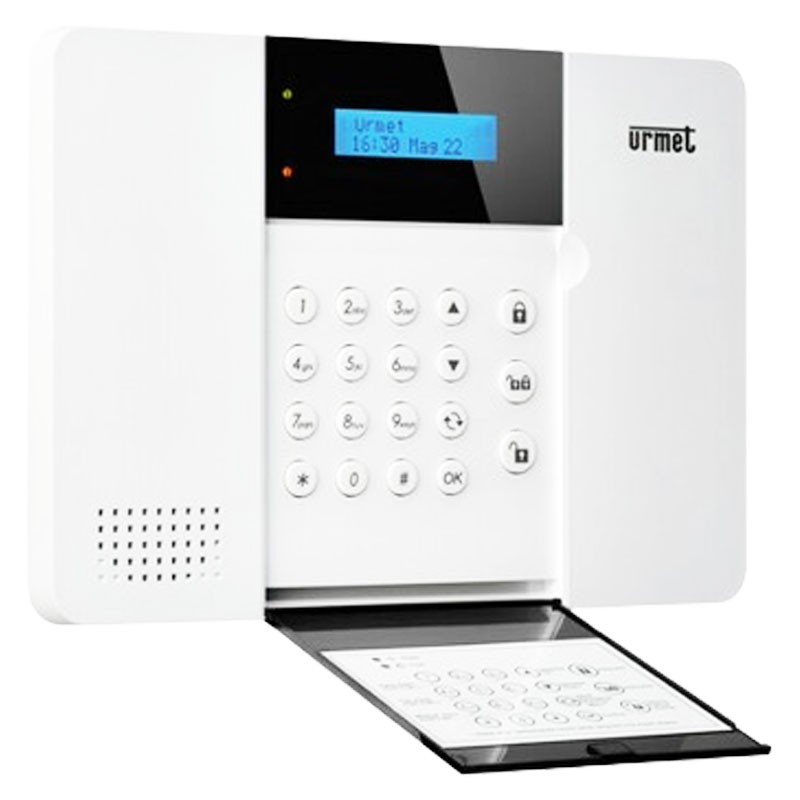

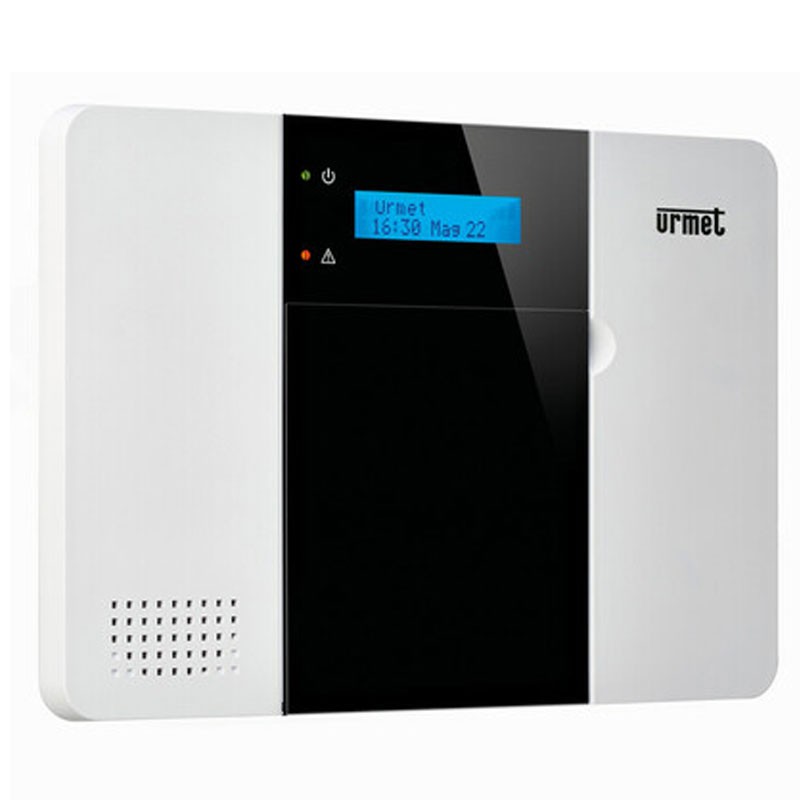

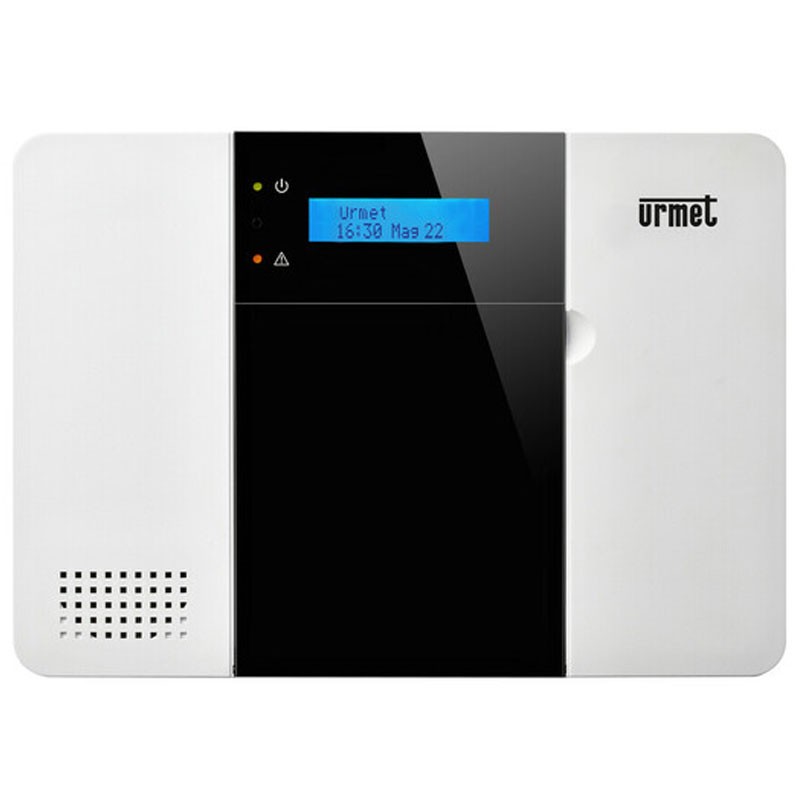

1 piece management center with integrated 4G/IP/WIFI communicator (art.1051/020): Zeno Pro is the new version of the Zeno control center. The most relevant performances introduced in the new version, are: new graphics for the web configurator, Wi-Fi connectivity, higher number of manageable devices, multilingual menu, dialogue with voice assistants. The system is bidirectional, flexible and easy to install. It is ideal for all residential environments. Connectivity is one of the basic security elements of Zeno Pro: sending voice alarms, sending SMS, sending images, sending emails, sending numeric protocols, sending notifications. Supervision, anti jamming, and signal measurement in the field ensure the security of Zeno Pro and make the product comply with EN50131 Grade 2 certifications.



Features:

• Two-way radio frequency communication with all devices, ZigBee and 868 MHz connections.
• Built-in power supply: 230Vac
• Range: 2 km in free air (without reflections and attenuation)
• Internal backup battery with 15-hour battery life (average value)
• Radio frequency connection for up to 80 devices
• Full compatibility with ZigBee devices (IR with camera code 1051/104A and status LED code 1051/003) and devices in 868MHz (all current devices)
• Connection of up to 6 IR detectors with camera for alarm verification
• Recording of 3 photos at each alarm event
• Integrated voice synthesis
• Siren: integrated
• Connections: IP/WiFi/4G
• WiFi mode: client
• Alarm Coercion
• Web menu languages: multilingual (Italian, French, German, English)
• Activations/deactivations via remote controls, keypads, smartphones, tablets
• Three Partialization Areas: partial entry A/B/C
• Association of each device to one or more partialization areas
• Maximum 20 configurable users (codes and remote controls)
• Maximum 10 configurable activation/deactivation/partialization codes
• Capacity to store up to 200 events
• Sending alarms/images, e-mail, SMS, push notifications, CID and SIA protocols
• Remote control via APP (iOS and Android)
• Cycle 3 voice calls for each number entered (max 15 calls)
• Call cycle blocking by dialing 9 (the call taker does it)
• Integrated keypad and lcd display
• Measurement of wireless and 4G signals
• Ability to disable fault alerts from the central unit not connected to the Internet via the Disable IP/GSM menu
• Supervision of all devices except remote control and keypad
• Radio frequency interference detection (Anti Jamming)
• Compatible with Google Home and Alexa
• Compatible with IP camera cod. 1051/004
• Compatibility with the current Zeno Portal and MyZeno APP
• Internal siren sound level: 95dB @ 1m
• Operating temperature: -10° to +45°C
• Weight: 600 grams
• Dimensions (W x H x D): 260 x 176 x 30 mm

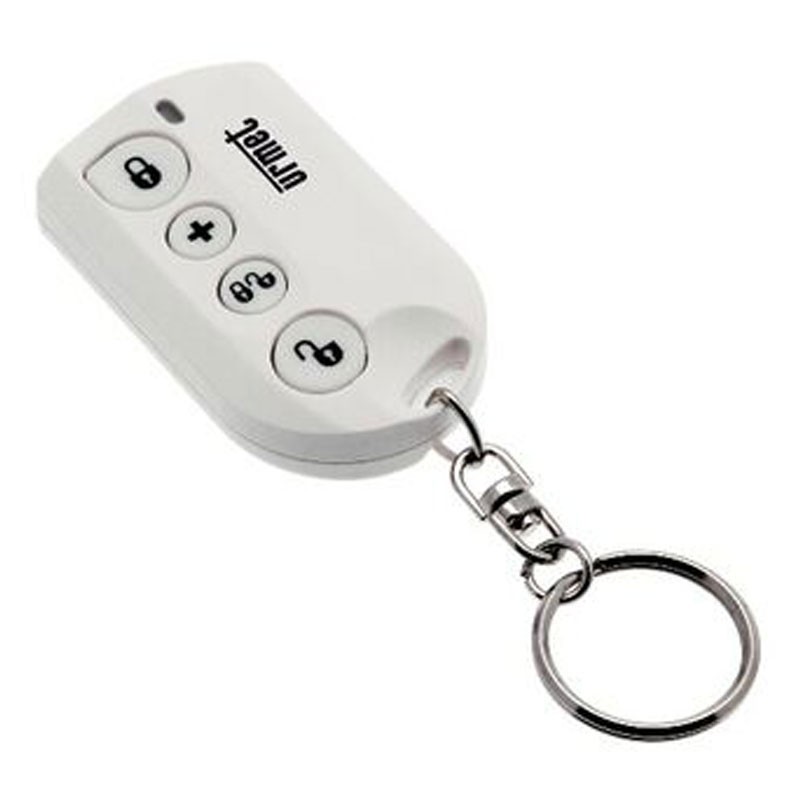

1 piece remote control (item 1051/035): Urmet ZENO 4-channel remote control. It allows you to activate, deactivate and partialize the system. It also features the panic alarm function.



Features:

• Radio communication mode: two-way
• Working frequency: 868WF
• Programmable total and partial ON/OFF activation commands
• Panic alarm (press the + button until the green LED is displayed)
• Panic alarm can be only silent or audible
• LED feedback command reception
• System status report LED
• Power supply: 1 lithium battery CR2032 3V
• Battery life: 3 years (typical value, may vary with use)
• Operating temperature: -10°C + 45°C
• Weight: 60 grams
• Dimensions: (W x H x D) 50 x 33 x 14.5 mm

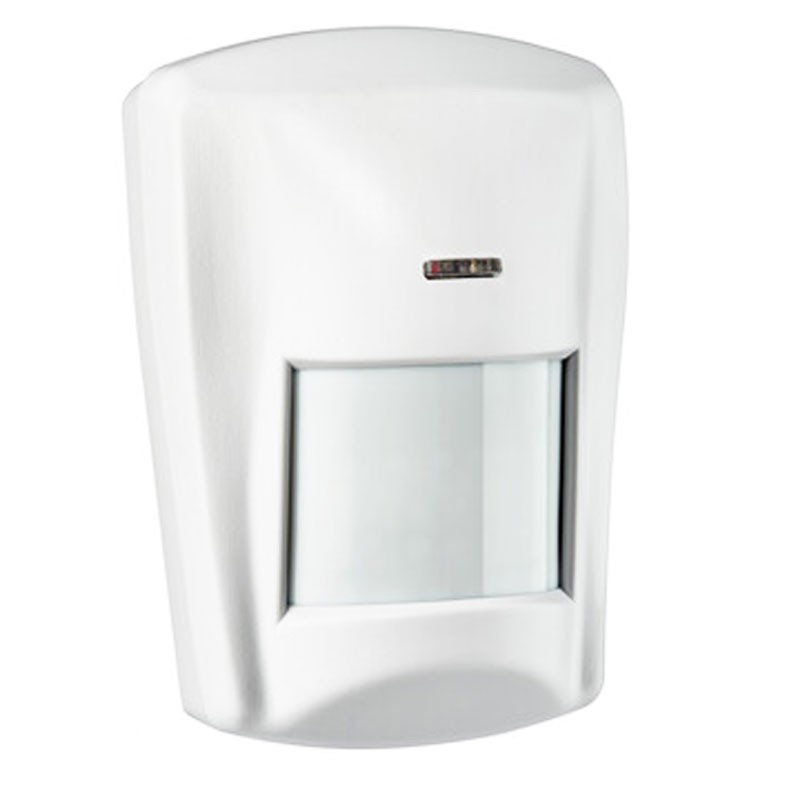

1 piece passive infrared (item 1051/101): It is a detector with a passive infrared (PIR) motion sensor, which can detect movement in an assigned area and report it to the control panel to trigger an intrusion alarm. The base of the product has provisions for holes that allow it to be installed on a flat surface or in a corner. The detector has a tamper switch that is activated when the cover is opened, or if it is detached from the wall. It can also send an alert to indicate a communication or low battery problem. The detector is designed to operate with a detection range of 12 meters, mounted at a height of 2 meters from the ground.



Features:

• Working frequency: 868WF
• Range: 12 meters with 110-degree viewing angle
• Power supply: 1 CR123A 3V battery
• Battery life: 3 years (typical value, may vary with use)
• Dimensions: (W x H x D): 53.2 x 67 x 89.2 mm
• Radio communication mode: two-way
• White light protection
• Automatic temperature compensation
• Test mode
• Two selectable sensitivity levels
• Acquisition button
• Supervision
• Operating temperature: -10°C/+45°C
• Weight: 300 grams
• Certification EN 50131 Grade 2, Class Ⅱ

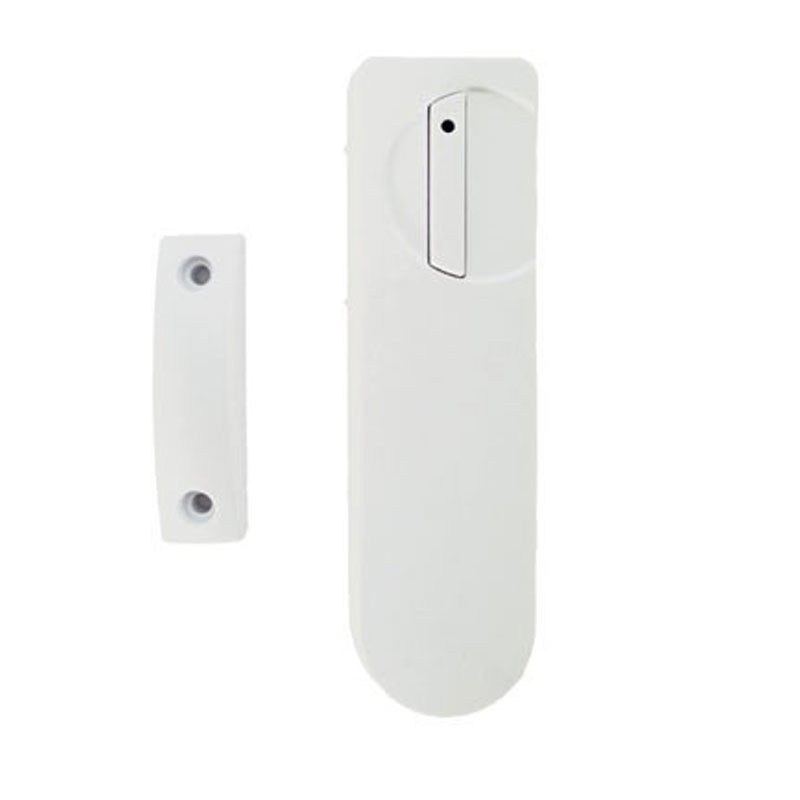

1 piece magnetic contact (item 1051/201): The magnetic contact is an indoor sensor, allows you to protect any window frame (door, window, etc.) from being opened.



Features:

• Radio communication mode: two-way
• Frequencies: 868WF
• Power supply: 1 lithium battery 3V type CR2
• Battery life: 5 years (typical value, may vary with use)
• Acquisition button
• Supervision
• Opening protection
• Color: white
• Operating temperature: -10°C + 45°C
• Weight: 100 grams
• Dimensions (W x H x D): 85 x 25 x 20 mm
