Ajax Wireless Transmitter Jeweller for third-party devices
08T 38184
4823114015489
The Ajax Transmitter Jeweller is a wireless transmitter module designed to integrate third-party wired devices into the Ajax security system. Compatible with sensors and NC/NO contact devices, it enables the transformation of a traditional detector into a fully manageable and monitorable element via Ajax hub and mobile app. Ideal for connecting IR barriers, gas detectors, keypads, panic buttons and other wired devices to a modern wireless security system.
-
Allows the integration of wired sensors into the Ajax system
-
Supports NC (normally closed) and NO (normally open) contacts
-
Built-in 3.3 V⎓ power supply for connected devices
-
Wireless transmission via Jeweller protocol
-
Compatible with custom events: Intrusion, Fire, Emergency Help, Gas Alarm, Flooding, Technical Fault
-
Operates in temperatures from -25°C to +50°C and humidity up to 75 percent
-
Instant notifications to smartphones and monitoring center
-
Configuration and monitoring via Ajax app (iOS/Android)
€65.53
Items Available: 16

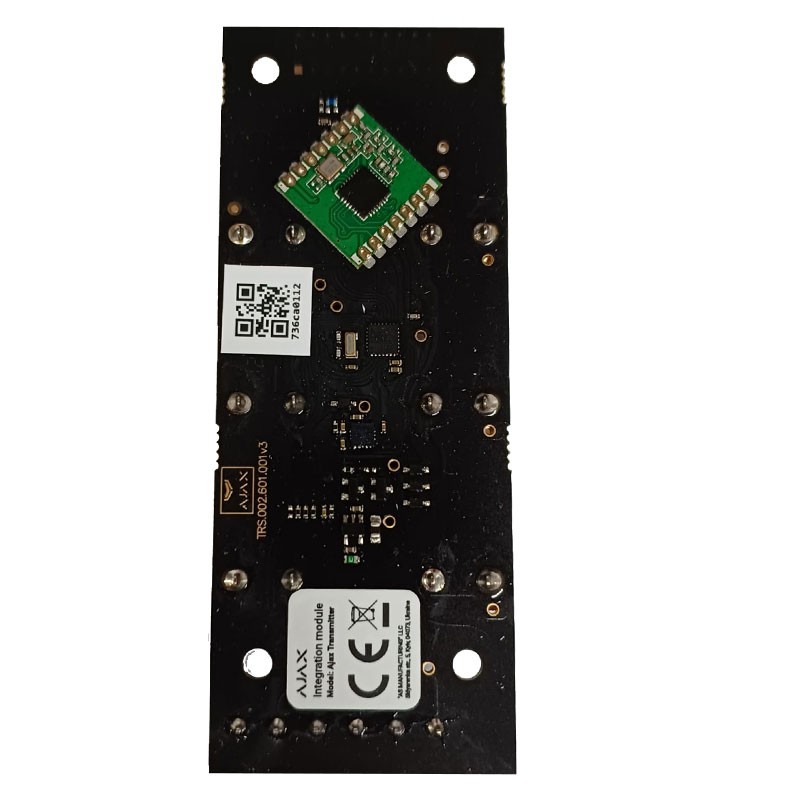

Ajax Transmitter Jeweller Wireless integration for third-party wired devices
Module for integrating third-party wired detectors into an Ajax system. Transmitter allows to connect IR barrier, liquid level detector, gas leak detector, keypad, panic button or any other device with NC/NO type contact to Ajax.
Principle of Operation
Transmitter allows a detector or third-party device with a wired output to be connected to the Ajax security system. The module receives alarm and event information via a wired connection. After receiving an event, it transmits it to the hub via the Jeweller wireless communication protocol, and the hub informs the security institution and system users.
Specifications and functions
Transmitter works with any detector, keypad, or device with an NC/NO contact type. The module supports many types of events: intrusion, fire, emergency help, panic button, gas alarm, malfunction, flooding, etc. The type of event depends on what alarm code should be sent to the alarm receiving center and what is written in the notifications the user receives. This ensures an appropriate response to the threat.
Installation and Mounting
To add Transmitter to your security system, simply scan the QR code in the Ajax application. You can set the type of wired device connected in the Ajax applications for smartphones and PCs. The module is compact and easy to install in a detector case or mounting box. Transmitter's built-in accelerometer alerts in case of sabotage attempt.
Compatibility - Ajax Devices Supported
| Ajax Device | Compatibility |
|---|---|
| Hub (2G) Jeweller | Compatible |
| Hub (4G) Jeweller | Compatible |
| Hub 2 (2G) Jeweller | Compatible |
| Hub 2 (4G) Jeweller | Compatible |
| Hub 2 Plus Jeweller | Compatible |
| Hub BP Jeweller | Compatible |
| Hub Hybrid (2G) | Compatible |
| Hub Hybrid (4G) | Compatible |
| Hub Hybrid (4G) (without enclosure) | Compatible |
| Hub Plus Jeweller | Compatible |
| ReX 2 Jeweller | Compatible |
| ReX Jeweller | Compatible |
Technical Specifications - Jeweller Transmitter
Communication Technology - Jeweller
| Feature | Value |
|---|---|
| Type | Proprietary wireless technology for commands, alarms and events |
| Key Features |
|
| Operating frequencies |
|
| Maximum radiated power (ERP) | Up to 20 mW |
| Signal modulation | GFSK |
| Communication range | Up to 1,600 m (in open field) |
| Encrypted communication | Block encryption with moving key |
| Frequency hopping | Active to avoid interference and inhibition |
| Power management | Automatic power control |
Connection of Wired Devices
| Feature | Value |
|---|---|
| Scheme Supported | AATT (Tamper Alarm Tamper Alarm) |
| Available terminals |
|
| Device contact states | NO, NC |
| Tamper contact states | NO, NC |
| Supported cable length | Up to 130 m (with 24 AWG twisted pair) |
| Operating modes | Pulse, Bistable |
| Sensor mode | Alarm Notification / Security Mode Change |
Types of Recognized Events
| Category | Supported Events |
|---|---|
| Configurable events (14 total) |
|
Installation
| Requirement | Value |
|---|---|
| Placement | Inside the housing of the wired detector |
| Minimum space required | 110 × 41 × 24 mm |
| Alternative | Radio-transparent compatible housing (if not installable in detector) |
Anti-sabotage protection
| Function | Description |
|---|---|
| Protection against counterfeiting | Integration module authentication |
| Accelerometer | Warning in case of displacement of the integration module |
| Tamper alarm terminals | For connection of wired device anti-sabotage tamper (if applicable) |
| Detection of communication loss | Within 36 s (depending on Jeweller or Jeweller/Fiber settings) |
Power supply
| Source | Details |
|---|---|

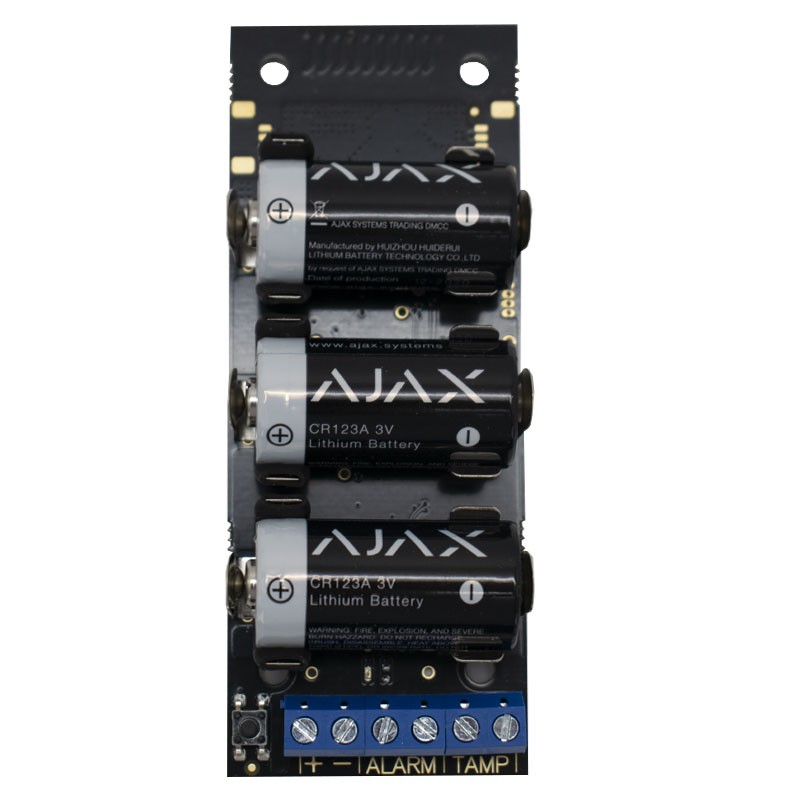

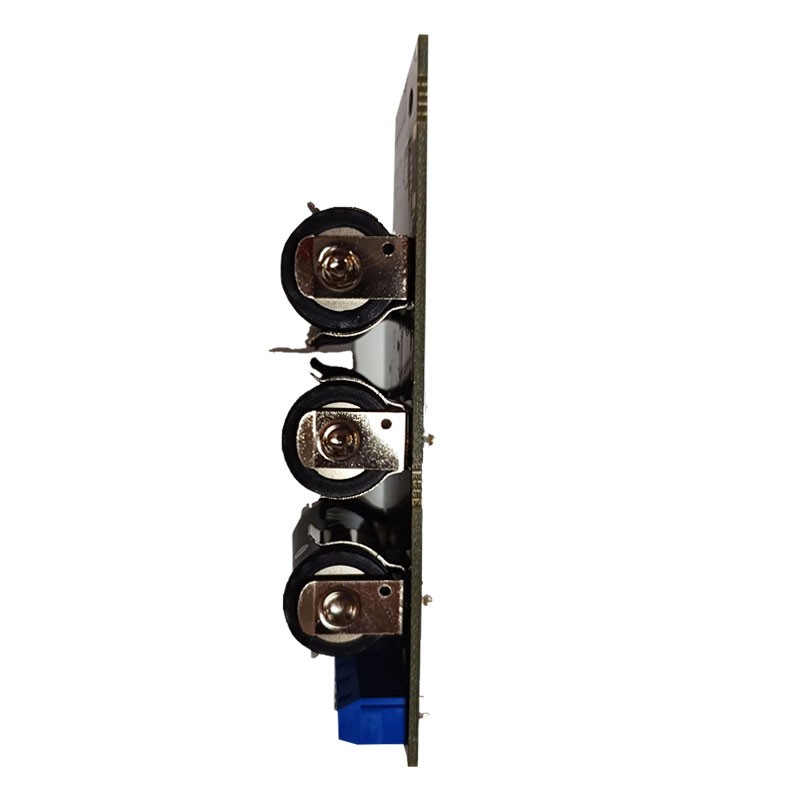

| Batteries | 3 × CR123A (preinstalled) Variable life depending on consumption of connected device |
| Output for wired device | 3.3 V⎓, up to 125 mA |
Physical Characteristics
| Parameter | Value |
|---|---|
| Dimensions | 100 × 39 × 22 mm |
| Weight | 74 g |
| Operating temperature range | -25 °C to +50 °C |
| Maximum allowable humidity | Up to 75% |
| Electrical protection class | Class III |
Package Contents
| Element | Included |
|---|---|
| Module | Transmitter Jeweller |
| Batteries | 3 × CR123A (preinstalled) |
| Installation | Installation kit |
| Documentation | Quick Start Guide |
Ho installato il dispositivo piu grande e funziona come da specifiche del fornitore
Questo No l’ho ancora installato
Data sheet
- Colour: Black
- Type: Transmitters Wireless
- System: Wireless
