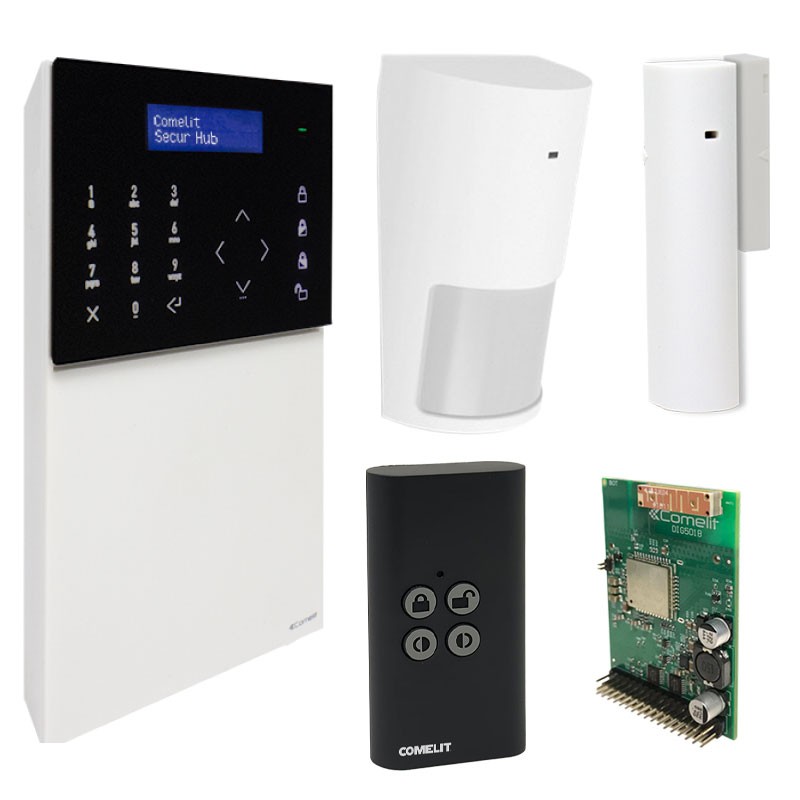

Comelit SECUR HUB 2G wireless burglar alarm kit.
The Secur Hub control panel monitors up to 32 wireless zones, expandable to 96 using the auxiliary inputs of magnetic contacts. It features Wi-Fi and Ethernet connectivity, with the possibility of adding 2G and 4G modules. Management is possible via integrated keypad, USB, LAN, Cloud and Comelit app. It also supports up to 32 users and 32 radio controls, making it ideal for various security needs.
Sensors and accessories included:
- RF1MCW magnetic contact: Excellent radio range and positioning flexibility, thanks to two reed ampules for the external magnet
- RF12PIR volumetric sensor: Configurable directly from the control panel, supports LED disabling and sleep-time. Ideal for monitoring indoor environments with high accuracy
- RF4KEY remote control: Allows you to view system status and control the control panel with ease
Detailed Kit Features

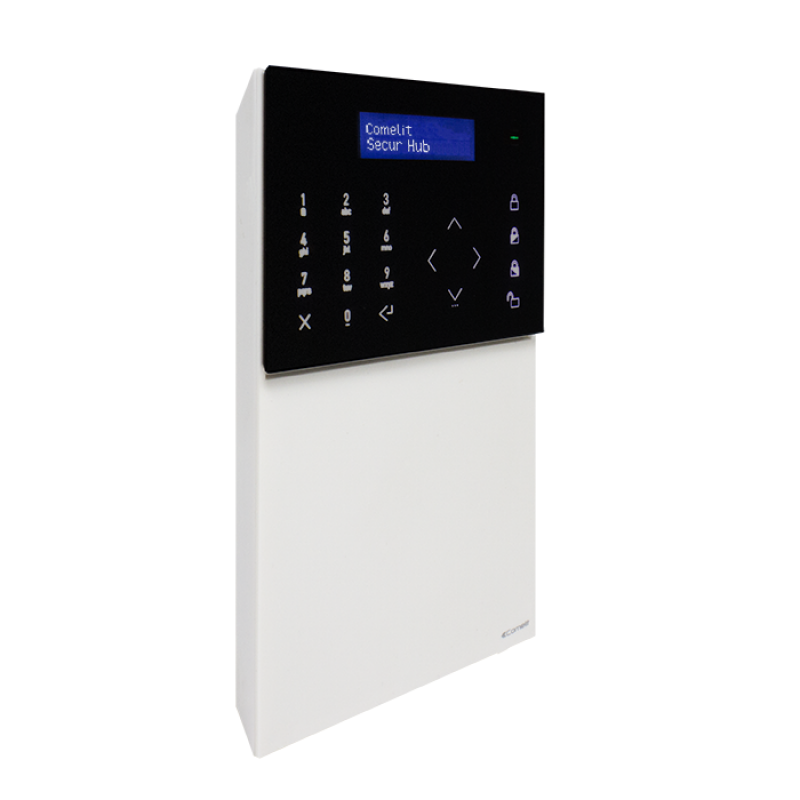

32 zone radio control panel, LCD interface, IP HUB32LCD
Wireless Intrusion Control Panel, allows you to monitor up to 32 wireless zones. The total number of zones can go up to 96 if the auxiliary inputs of magnetic contacts are used. It can manage up to 32 different users and 32 two-way radio controls and 4 areas. HUB32LCD is equipped with a backlit Capsense keypad but you can choose to turn it off completely when the system is at rest. A built-in speaker and microphone enable bi-directional audio communication between a phone and the monitored areas. Two outputs and two wired inputs are on board and available directly on the bracket.
Key Features
| Feature |
Detail |
| Wireless Technology |
Two-way, BeaconPlus |
| Frequency band |
868.05/869.95 MHz |
| Radio zones managed |
32 |
| Number of wired zones |
2 |
| Maximum number of areas |
4 |
| Display |
LCD, 16 characters, 2 lines |
| Input programs |
16 |
Communication
| Feature |
Detail |
| Programming ports |
Mini USB, TCP (LAN) RJ45 |
| Access point function |
Yes |
| Two-way audio |
Yes |
| Voice menu |
Yes |
| Sound module |
Yes |
| Customizable audio events |
Yes |
Hardware Features
| Feature |
Detail |
| Operating temperature |
-10/+40 degrees |
| Mounting type |
Wall bracket, table base |
| Dimensions |
150x230x31 (H-L-P) |
Electrical Characteristics
| Feature |
Detail |
| On-board auxiliary power outputs |
1 |
| On-board power supply output characteristics |
13.8VDC / 50mA |
| Open Collector wired output characteristics |
12VDC / 100mA |
| Power supply |
90-240VAC |

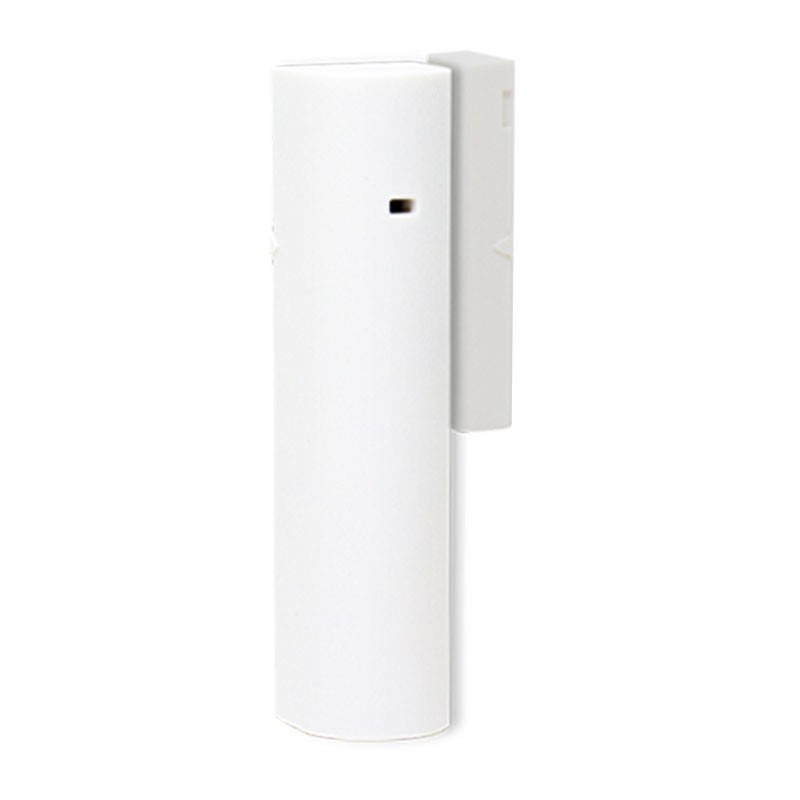

Magnetic Contact Radio 1IN White RF1MCW
The RF1MCW magnetic contact has a wired auxiliary input for connecting and transmitting an independent zone in the central unit. Equipped with two reed ampules for flexible positioning of the external magnet. Excellent radio range and long battery life ensure consistent performance over time.
Key Features.
| Feature |
Detail |
| Sensor type |
Magnetic contact |
| Radio frequency band |
868.05 to 869.95 MHz |
Hardware Features
| Feature |
Detail |
| Operating temperature |
-10/+50 degrees |
| Dimensions |
92x22x25 (H-L-P) |
| Surface mounting |
Yes |
Electrical Characteristics
| Feature |
Detail |
| Maximum contact current rating |
26 mA |
| Contact type Reed |
Low voltage threshold 2.6V |

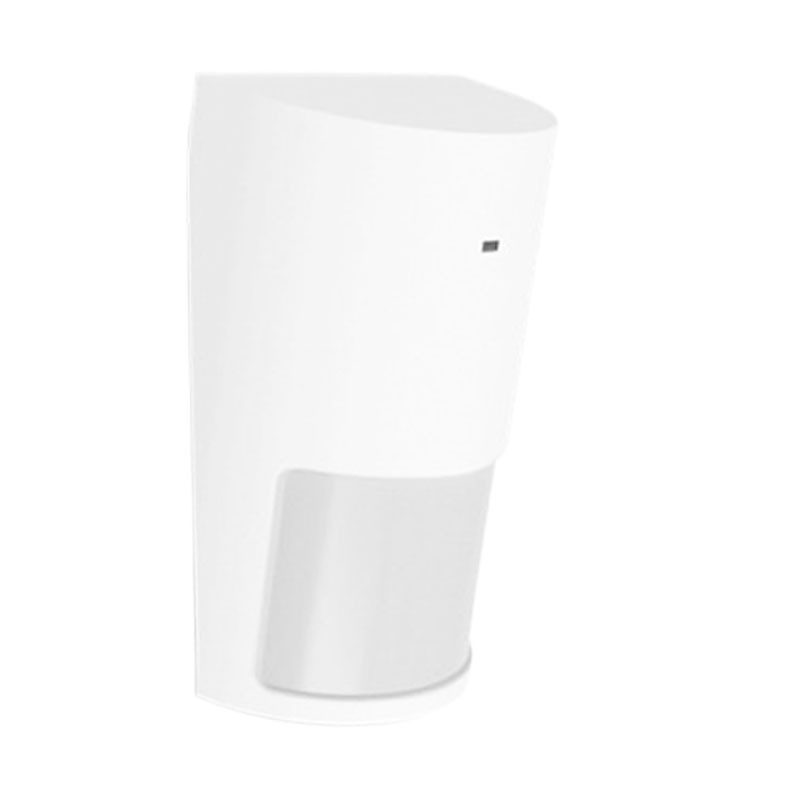

Radio Volumetric Sensor 12m RF12PIR
Innovatively designed wireless infrared motion sensor that, thanks to its bi-directional protocol, optionally allows detections to be disabled if the alarm system is turned off. Fully configurable from central unit in terms of number of pulses, LED enable, sleep-time, it is also provided with some jumpers for configuration of main parameters.
Main features
| Feature |
Detail |
| Detection type |
Dual PIR |
| Frequency band |
868.05/869.95 MHz |
| Modulation |
GFSK |
| Infrared range |
12 m |
| Coverage angle |
90 degrees |
| Number of detection zones |
54 |
Hardware Features
| Feature |
Detail |
| Coating material type |
ABS |
| Operating temperature |
-10/+50 degrees |
| Dimensions |
118x63x55 mm (H-L-P) |
| Installation height |
1.8/3 meters |
Electrical characteristics
| Feature |
Detail |
| Maximum current consumption |
26 mA |
| Low voltage threshold |
2,6 V |

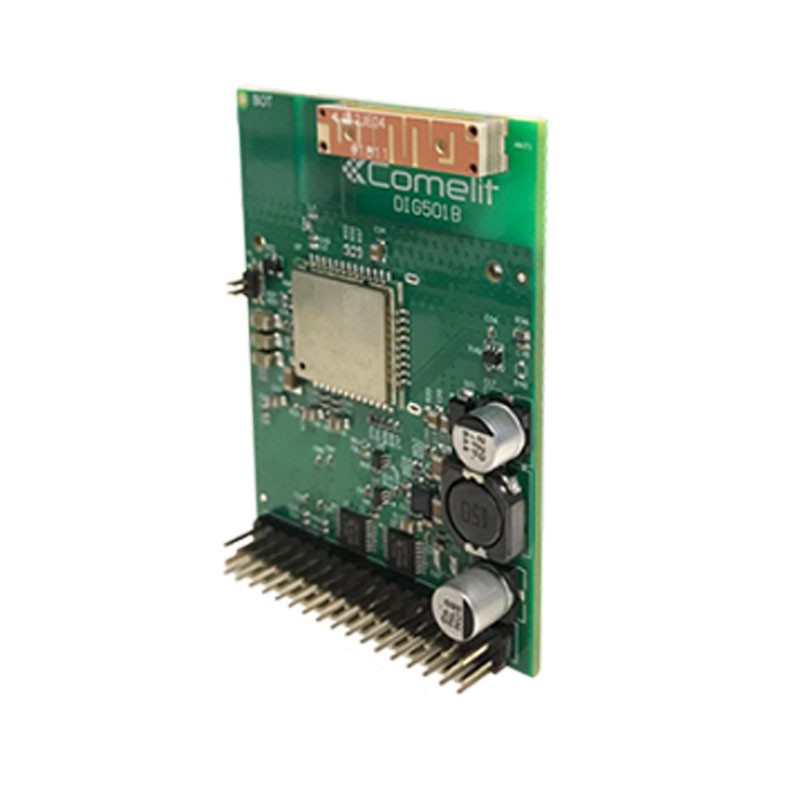

2G Module for HUB HUB2G Radio Control Panels
HUB2G is the plug-in GSM/GPRS module that enables the Secur Hub control panel to send phone calls and SMS. The module also connects to the Comelit cloud and enables the sending of e-mails and push notifications. The module can also be used to manage the control panel from the Comelit app, as a primary or secondary carrier if Wi-Fi or LAN connectivity is available.
Key features
| Feature |
Detail |
| Technology |
2G |
| Frequency band |
GSM850, EGSM900, DCS1800, PCS 1900 |
Communication
| Feature |
Detail |
| SMS message handling |
Yes |
| Email management |
Yes |
| Voice guidance interface management |
Yes |
| Audio message management |
Yes |
| Remote management |
Yes |
| NTP service |
Yes |
Hardware Features
| Feature |
Detail |
| Dimensions |
65x48x18 mm (H-L-P) |
| Operating temperature |
-10/+55 degrees |

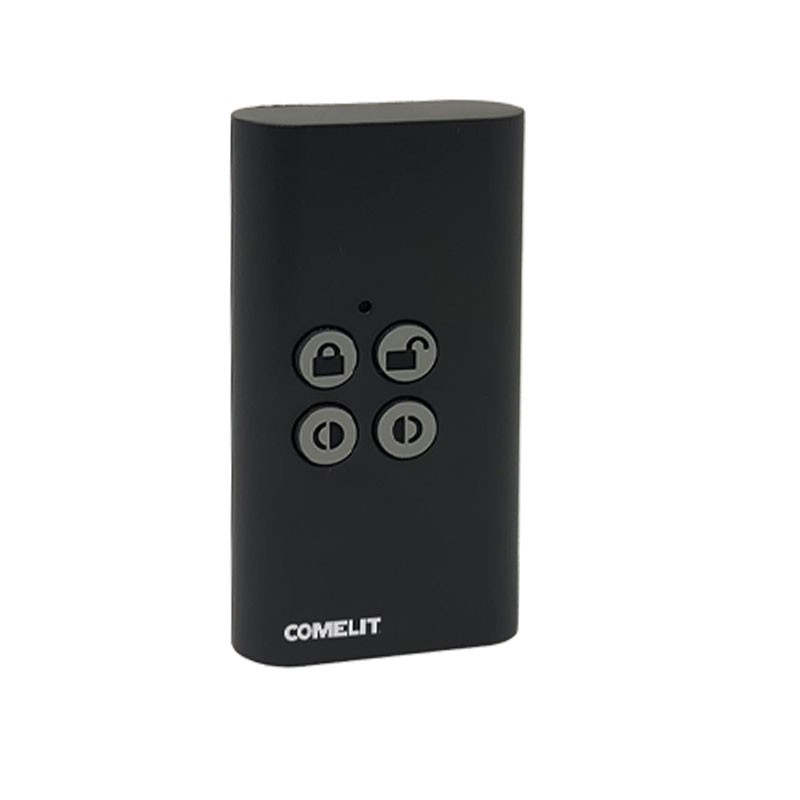

Remote Control 4 Keys RF4KEY
Fully configurable high-performance two-way radio control unit. It enables the display of system status and feedback related to commands forwarded to the control panel. RF4KEY has excellent radio range and is equipped with a key lock function.
Key Features
| Feature |
Detail |
| Radio frequency band |
868.05/869.95 MHz |
| Modulation |
GFSK |
| Key lock function |
Yes |
Hardware Features
| Feature |
Detail |
| Color |
Black |
| Operating Temperature |
-10/+50 degrees |
| Dimensions |
66x35x12 mm (H-L-P) |
| Low voltage threshold |
2,6V |
