Kit Hiltron central PROTEC 4 GSM dialer and accessories KPROTEC4GSM


C1A KPROTEC4GSM 8056450411745

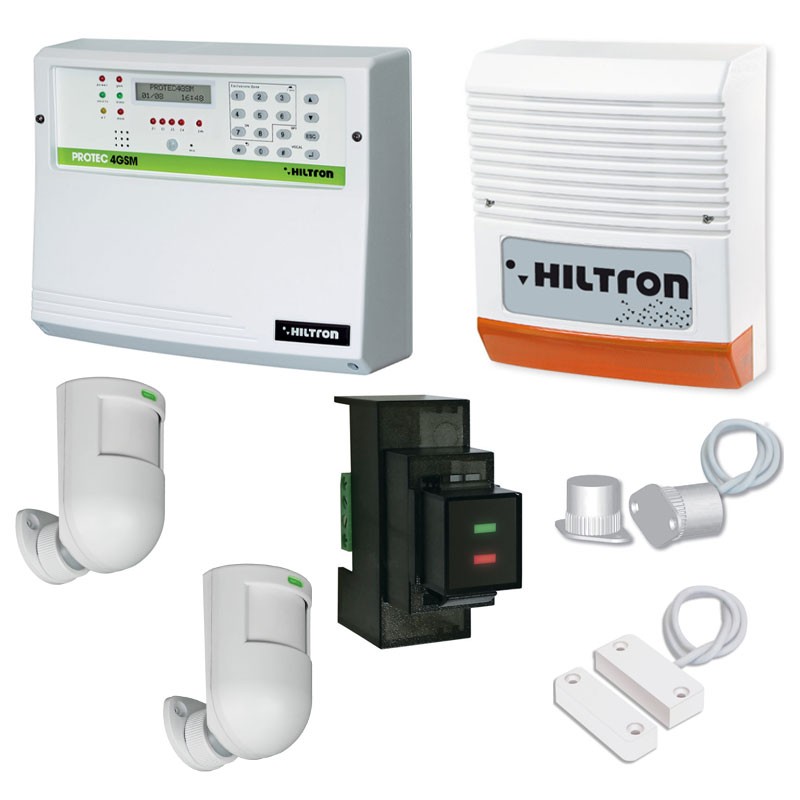

Hiltron central KPROTEC4GSM kit consisting of:



  • 1 piece central 4 zones with built-in GSM+IR dialer (art. PROTEC4GSM)
  • 1 piece LF proximity reader with zone partialization on RS485 for PROTEC8GSM and TM800GSM (art. DX200)
  • 1 piece self-powered outdoor siren (art. SA310)
  • 2 pieces dual technology detectors (art. DG12)
  • 1 piece cylindrical flush-mounted contact (art. C56)
  • 1 piece REED magnetic contact for doors and windows (art. C58)
Request info about this product

Kit Hiltron central PROTEC 4 GSM dialer and accessories KPROTEC4GSM

€495.74
€495.74

Kit Hiltron central PROTEC 4 GSM dialer and accessories KPROTEC4GSM

€495.74
Tax included
klarna Pay in installments with Klarna
qty

Kit Hiltron central PROTEC 4 GSM dialer and accessories KPROTEC4GSM

€495.74

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

Technical specifications of individual components of the kit:

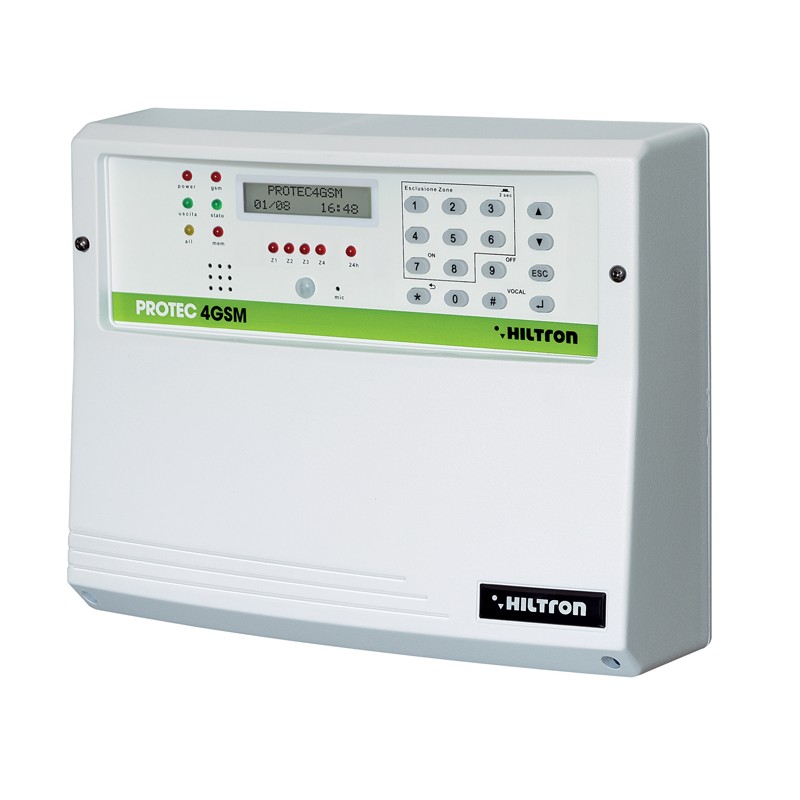

1 piece central 4 zones with built-in GSM+IR dialer (art.PROTEC4GSM):


  • Immediate protection zones: 2
  • Delayed protection zones: 2
  • Anti-sabotage protection zones "24h": 1 + Tamper
  • Maximum power consumption (central unit only): 65mA@230Vac
  • Total power supplied by the power supply unit: 35W (2.6Ah at 13.5V)
  • Compartment for backup battery: (recommended battery B12V7.5Ah)
  • Programmable alarm duration: 180 to 600 seconds
  • Programmable output time: 0 to 60 seconds
  • Programmable input time: from 0 ÷ 60 seconds
  • Coverage angle of detector on panel: H: 85°; V: 60°
  • Max coverage of detector on panel: 5 meters
  • Numbers in phonebook: 16
  • Maximum current delivered on services output: 1 Ampere
  • Rated supply voltage: 230V~ ±5% 50Hz
  • Maximum power consumption: 160mA@230Vac
  • Services output: 13.5Vdc ±10%
  • Outer case: ABS
  • Enclosure degree of protection: IP40
  • Operating temperature: -5/+40°C
  • Safety grade: 1
  • Environmental class: 2
  • Dimensions (W) 280mm
  • Dimensions (H) 230mm
  • Dimensions (D) 96mm
  • Conforms to standard: CEI EN 50131-1

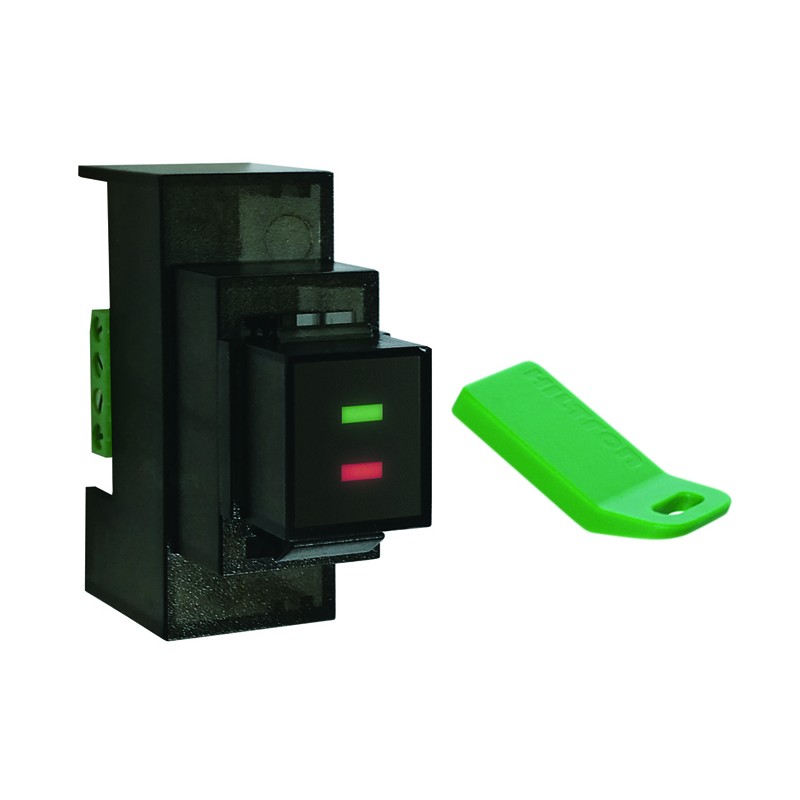

1 piece LF proximity reader with zone partialization over RS485 for PROTEC8GSM and TM800GSM (item DX200):


  • Installation: can be installed inside any flush-mounted luminaire end cap, with RJ45 connection
  • Number of leds 2
  • Environmental class 2
  • Safety rating 1
  • Dimensions (W) 19mm
  • Dimensions (H) 33mm
  • Dimensions (D) 47mm

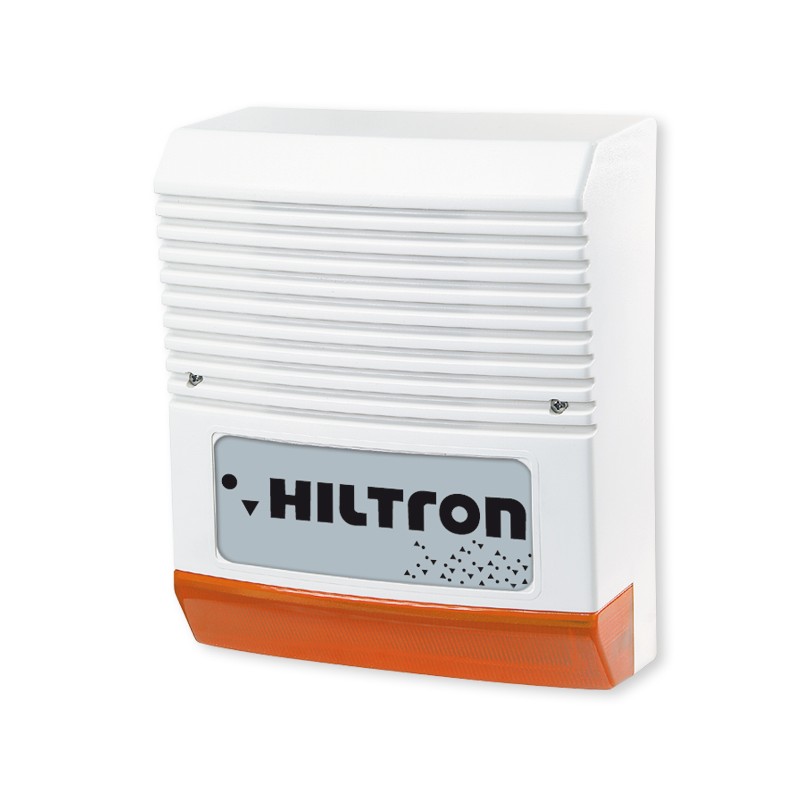

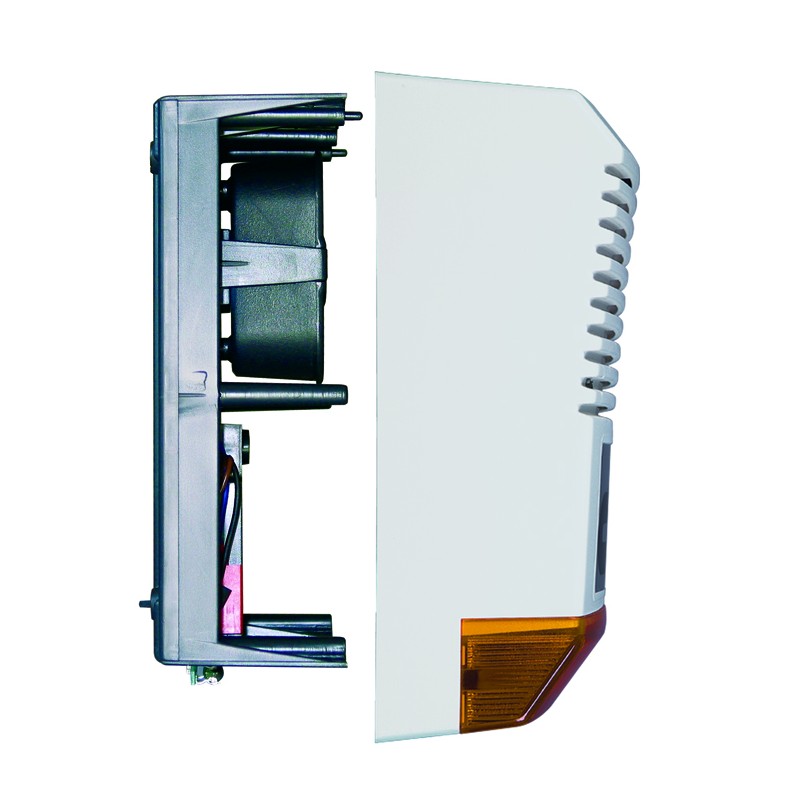

1 piece self-powered outdoor siren (item SA310):


  • Rated supply voltage 12V
  • Frequency 1237 Hz
  • Power consumption 10mA
  • Maximum power consumption 1.9A
  • Pressure level 100dB(A) @ 3 meters
  • Self-powered
  • Suitable for outdoor use
  • Weight 1.9kg
  • Dimensions 28 × 13.6 × 29.3 cm
  • Function test: upon battery connection
  • Tamper protection: anti-opening and anti-tear
  • Protection fuse: power supply and bulb
  • Inner container: epoxy powder coated steel sheet
  • Container ABS
  • Screws stainless steel
  • Color white
  • Battery compartment B12V2A
  • Operating temperature: -25°C to +55°C
  • Degree of protection IP34
  • Dimensions: (W) 205 mm - (H) 246 mm -(D) 103 mm

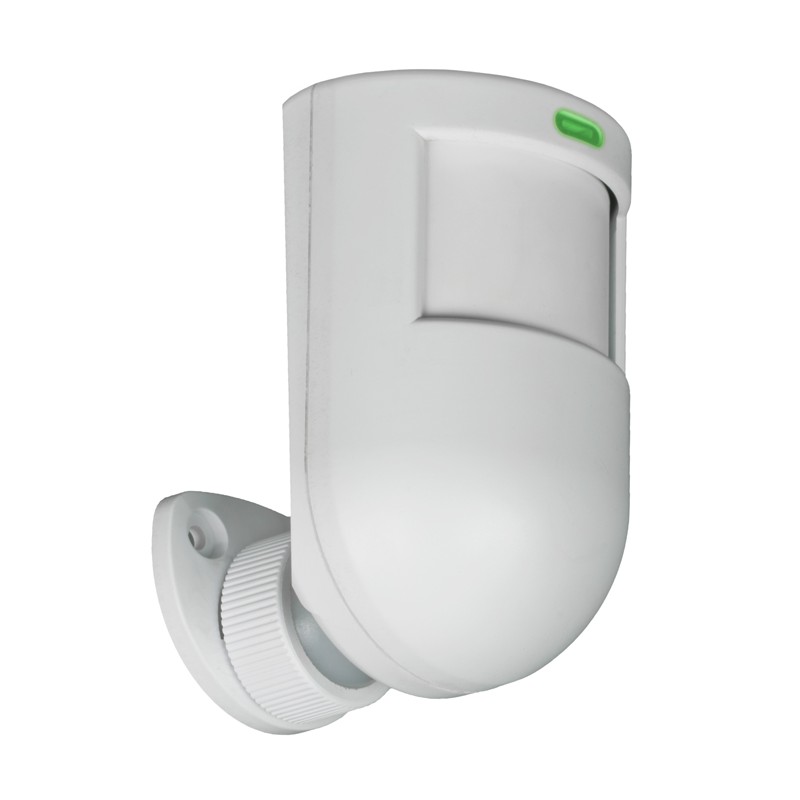

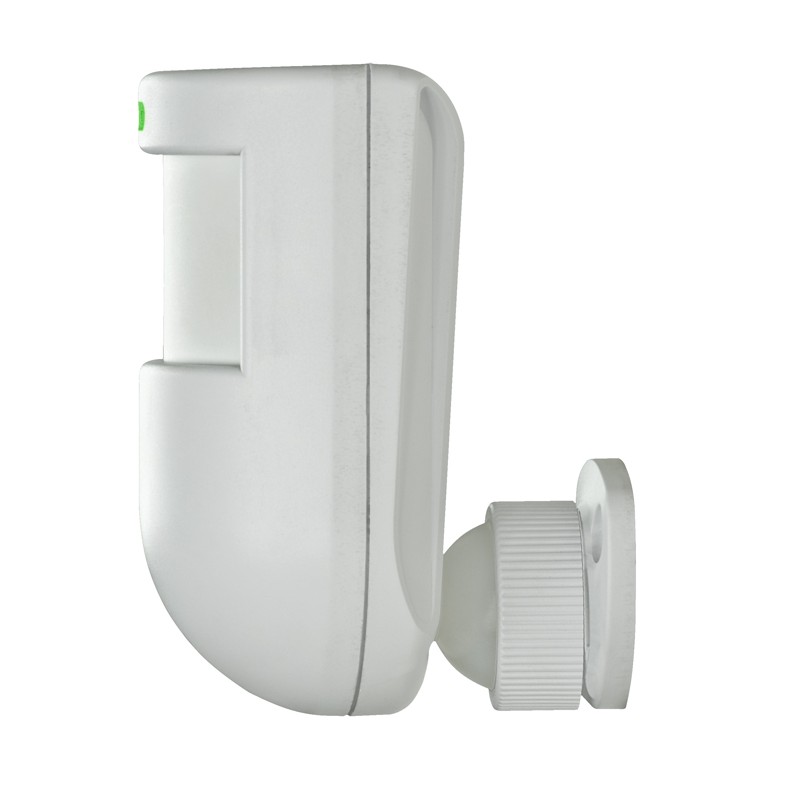

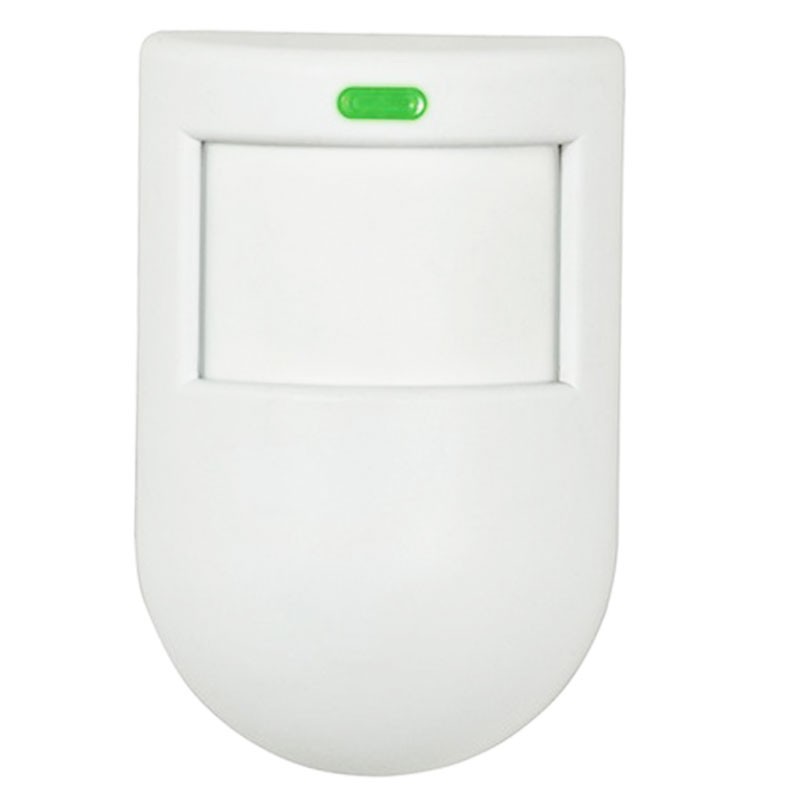

2 pieces dual technology detectors (Art. DG12):


  • Dual-element digital sensor (Digipyro™)
  • 10.525Gh microwave sensor
  • Complete with anti-disorientation joint
  • Sensitivity adjustable by trimmer
  • Tamper protection
  • Anti-tamper function
  • Anti-masking function
  • High immunity to RF (over 30Vm)
  • Rated supply voltage 12V
  • Maximum current consumption 18mA
  • Coverage: 12 meters
  • Lens beams 23 (on 3 horizontal levels)
  • Frontal coverage angle (PIR) H: 120°; V: 60°
  • Microwave front coverage angle H: 80°; V: 32°
  • Signaling LEDs
  • Solid-state relay output NC 100mA, 50Vdc max
  • Initial stabilization time 30"
  • Security grade: 1
  • Environmental class: 2
  • Dimensions (WxHxD) 59x99x60mm
  • Conforms to IEC EN 50131-1 standards



OPERATION: The DG12 works in "dual technology," which means that only if both technologies (Infrared and Microwave) detect an actual intrusion is the alarm given. This avoids false alarms due to the activation of only the Infrared sensor (sometimes caused, e.g., by the sun's rays) or only the Microwave sensor (sometimes caused, e.g., by moving objects).



ANTI-MASKING: The DG12 in the event of a prolonged alarm of one of the two technologies, and in the absence of detection of the other, activates a continuous alarm state, signaled by the flashing red LED and the open zone contact, a state that persists until both technologies resume proper operation. In this way, if you mask, for example, the infrared sensor by thermally isolating it, but continue to repeatedly alarm the microwave sensor, the detector goes into a continuous alarm state that triggers the burglar alarm control panel.



ANTIMANOMISSION: If the DG12 detects a presence very close to the detector (about 40cm) it will go into a continuous alarm state, signaled by the flashing of the red LED and the opening of the zone contact. Again, if after a few seconds, both technologies resume detecting presence at a greater distance, and thus are found to be normally operating, the detector resumes its normal operation.



INSTALLATION:

  • Remove the electronic circuit from the case by levering it sideways with a tool and hook the joint to the base of the case after passing it through the retaining ring.
  • Use the extension for the joint in case of ceiling mounting.
  • Cover the unused hole on the base of the with the supplied mat.
  • Attach the base of the joint to a smooth, level surface that is not subject to vibration, covering the hole for passing the electrical cables for connection to the control unit, using the plugs provided.
  • Pass the electrical cables through the hole in the knuckle and attach the fastening ring to the base.
  • Once installed and oriented in the desired position, you will be able to lock the detector by fully rotating the locking ring.
  • Reposition the circuit to the base of the enclosure and make the electrical connections.
  • It is possible to mount the detector at an angle (in this case, do not use the joint, but drill two holes on the container for fixing on the sides.
  • Do not orient the detector toward objects that could produce rapid temperature changes such as radiators, electric radiators, air conditioners, open flames, etc.
  • Also avoid installation near them.
  • Do not partially or completely obscure the detector's field of vision

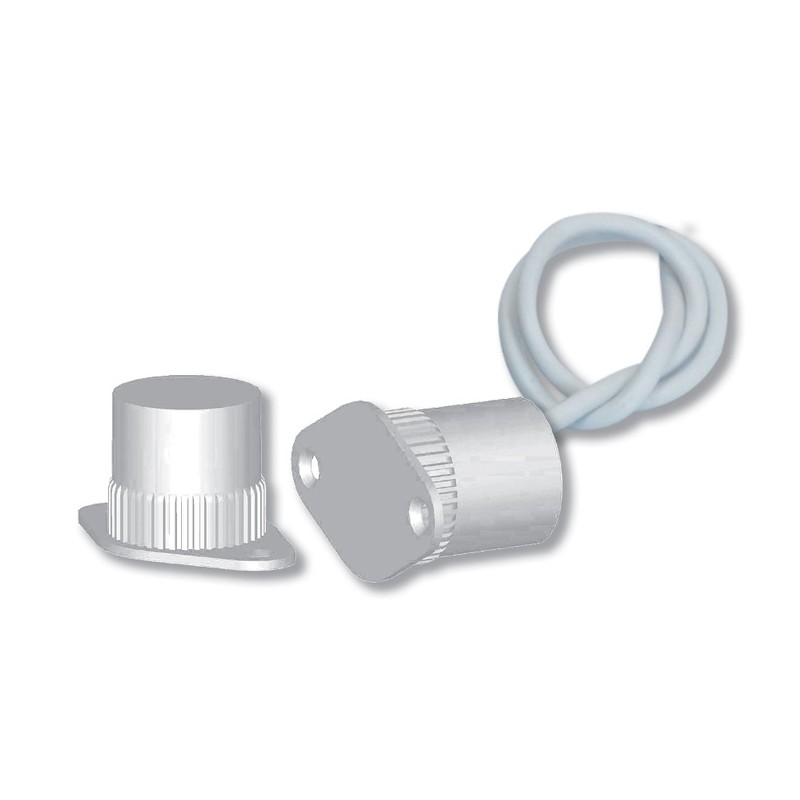

1 piece cylindrical recessed contact (item C56):



  • 2-wire output terminals
  • Max. voltage 30V
  • Current max 500 mA
  • Flush-mounted contact type
  • Installation recessed on armored doors
  • Weight 0.025 kg
  • Operating distance 12 mm
  • NC alarm output
  • Cable length 25 cm
  • Color white
  • Container Nylon
  • Safety grade 1
  • Environmental class 2
  • Dimensions: W 36mm x H 22mm x D 19mm

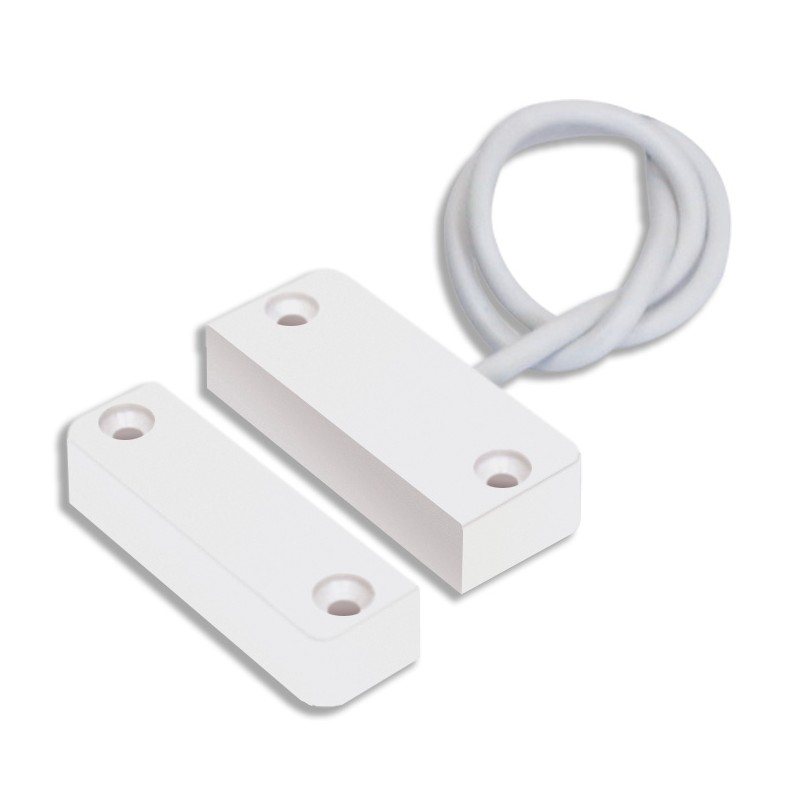

1 piece REED magnetic contact for doors and windows (item C58):


  • Installation on doors and windows
  • Output terminals 2 wires
  • Max. voltage 30V
  • Current max 500 mA
  • Cable length 25cm
  • NC alarm output
  • Operating distance 18mm
  • Container Nylon
  • Dimensions: (W16mm) x (H9mm) x Dimensions (D40mm)
  • External contact type
  • Weight: 0.021kg
  • Color white
  • Safety grade 1
  • Environmental class 2

Data sheet

KIT:
Burglar alarm kits
System:
With Wires
