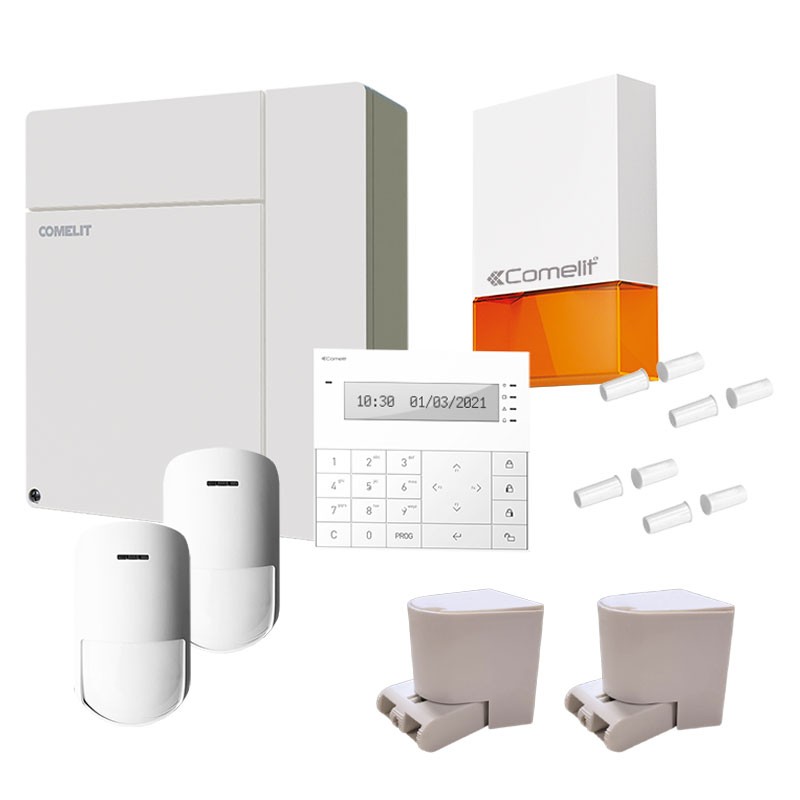

Specifications of kit parts:

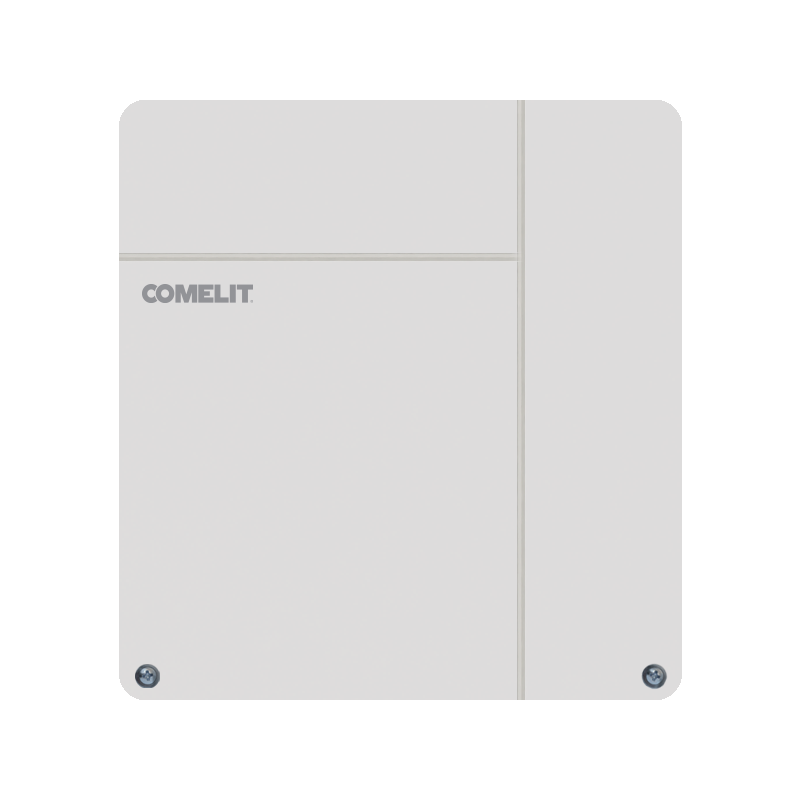

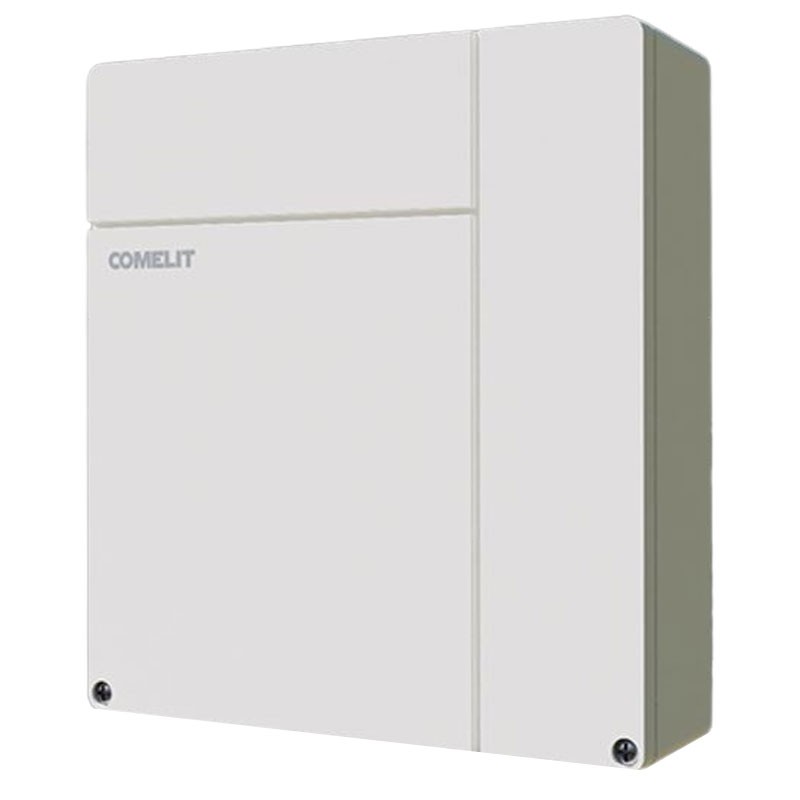

1-piece control unit with plastic box and 1.5 Amp power supply (code VEDO34): Vedo series alarm control unit in flame-proof ABS wall-mounted box with 1.5A switching power supply. Features 8 on-board zones, expandable to 34 mixed wired/radio zones, 1 24-hour zone, double function for up to 68 zones, built-in PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs. Manages up to 8 areas with 8 different input programs (scenarios) and daily timers, 8 IN/OUT expansions, 8 proximity readers, 8 Safe Key keypads, 2 Safe Touch, 2 Planux/Mini Touch Manager and 2 radio receivers. Self-resettable fuse for siren power output, RS485 serial bus and sensor power supply. Equipped with USB port for PC connection with Safe Manager configuration software. All zones are configurable as NC, NO, single, double and triple balanced and as double zone. Dimensions (W x H x D) 260 x 280 x 80 mm. EN50131 grade 2. Compatibility with Mycomelit facility management portal.

Specifications:

• Number of total inputs 8 expandable to 34
• Number of on-board inputs (no.) 8
• Double function Yes
• Maximum number of zones with double function (no.) 68
• Balance type NA, NC, single, double, triple
• Number of radio zones (no.) 34
• Number of outputs (no.) 36
• Number of relay outputs on board the control unit 1 (3A@24VDC)
• Number of areas (no.) 8
• Number of user codes (no.) 32
• Number of installer codes (no.) 6
• Partitions managed (no.) 2
• Number of insertion programs (scenarios) (mm) 8
• Number of time slots (no.) 16
• Number of timers (no.) 8
• Audio messages - text to speech (no.) 32
• Central unit programming USB, LAN
• Marks/certifications EN50131 grade 2, Incert
• Telephone numbers managed by the digital communicator (no.) 4
• Phone numbers managed by the voice communicator (no.) 16
• Type of RS485 connection bus
• Maximum number of e-mail addresses (no.) 16
• Integrated digital communicator Yes
• Voice guidance interface management Yes



Software/firmware features:

• Vedo app
• Safe Manager software
• MyComelit Installations Management Compatible



Hardware features:

• Dimensions: Height (mm) 275 Width (mm) 255 Depth (mm) 75
• Weight 1700 kg
• Operating temperature (°C) -10 ÷ +55
• Coating type ABS
• Tamper protection Yes



Expansion modules on BUS:

• Number of IN/OUT expansions (no.) 8
• Number of proximity readers (no.) 8
• Number of Safekey keypads (no.) 8
• Number of Safetouch keypads (no.) 2
• Number of supervisors (no.) 2
• Number of radio receivers (no.) 2
• Number of PAL/IP image conversion modules (mm) 2
• Number of cameras managed (no.) 16

Plug-in expansion MODULES:

• Audio module Yes
• GSM module Yes
• IP module Yes

Electrical characteristics:

• Current supplied from the control panel power supply 1500
• Output voltage from the power supply of the central unit 13.8VDC
• Number of on-board auxiliary power supply outputs (no.) 2
• Type of battery provided 12V / 7Ah

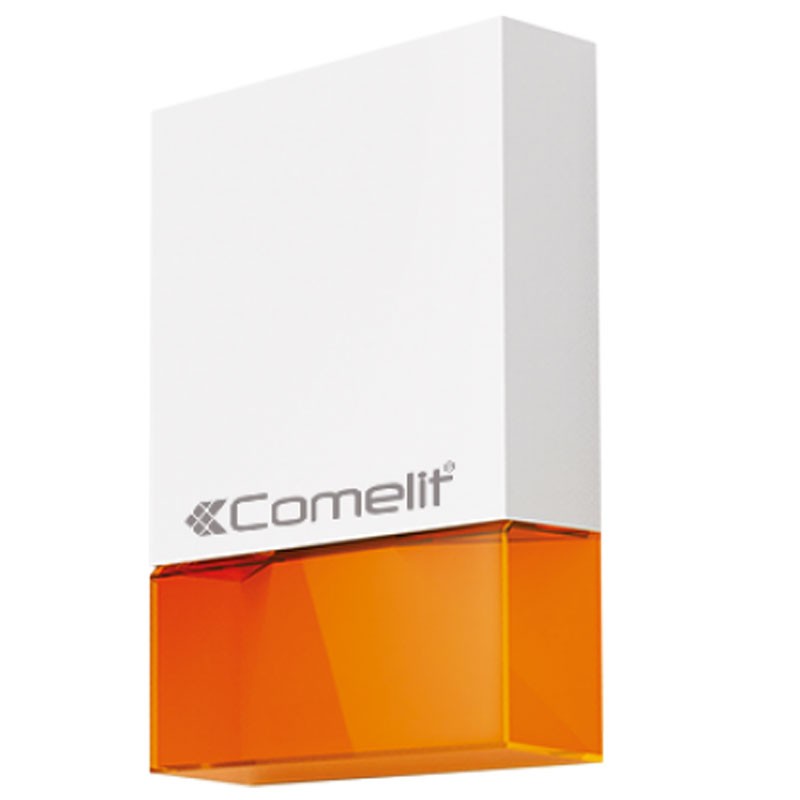

1 piece 700 series grade 2 white outdoor siren (No. SIR702AW): Self-powered outdoor siren with piezoelectric speaker, operated by microcontroller, equipped with LED flashing light. Two additional LEDs (one red and one green) for displaying system status, power failures, deterrent function and installation mode. Built-in bypassable tamper contact balancing resistor (1.8Kohm value, already suitable for Comelit Vedo control panels). Configurable polarity of separate inputs for beacon and speaker. Jumpers for programming: input polarity and logic, maximum alarm time, sound type, tamper balancing, deterrent function.

Specifications:

• Sound pressure 103db(A) @ 1m
• Max alarm tone duration 10 minutes
• Configurable alarm command (negative and positive presence or absence)
• Tamper Tamper/Tear Tamper
• LED indicator light
• Marks/certifications INCERT, EN50131-4
• IP34 degree of protection
• Vandal-resistant degree of protection IK08
• Dimensions: H x W x D 308x209x70
• Weight 800 grams (without battery not included)
• Operating temperature (°C) -25 ÷ +55
• Supply voltage 12.8÷15
• Maximum current consumption 350mA
• Current consumption at rest 36mA
• Battery Housing for 12V / 2.0Ah battery (not included)

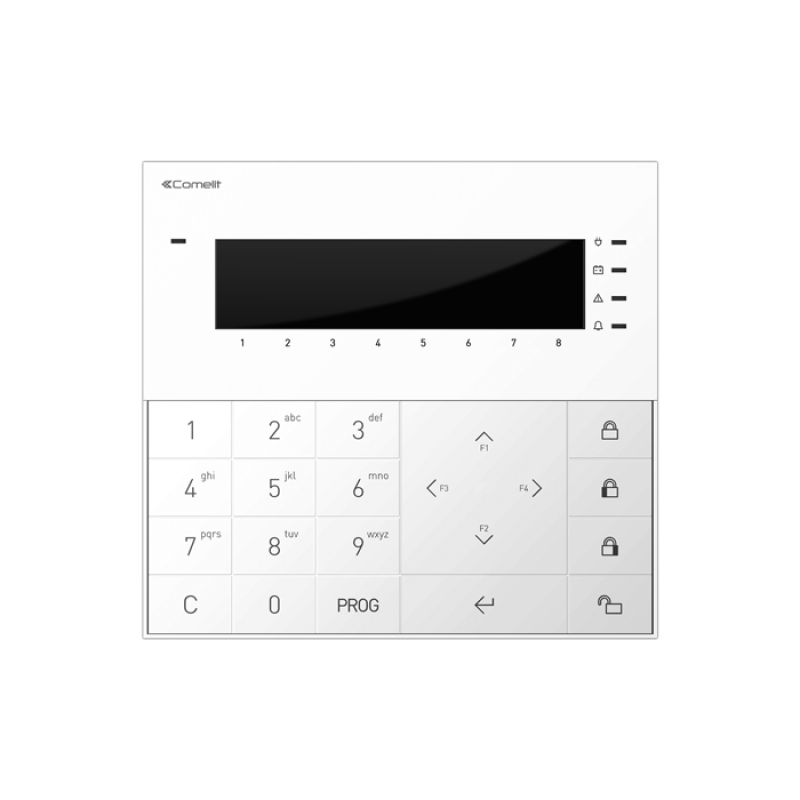

1 piece LCD keyboard for VEDO series control panels (code VEDOKP): Soft-touch keyboard with alphanumeric LCD screen for management and programming of Vedo series alarm control panels. Equipped with: - 4 signaling LEDs (mains power presence, low battery, fault and alarm) - 2 inputs freely programmable as NC, NO, single, double, triple balanced and double inputs - 4 configurable function keys, - tamper and anti-tear tamper. An on-board light sensor enables optimal management of the keypad backlight. The device is also equipped with a buzzer for audible signaling of various commands. 8-area screen printing. Dim. 137 x 127 x 24 mm.

Specifications:

• Alphanumeric LCD display type (2x16 characters).
• Soft-touch keyboard type, with micro-switch
• No. of keys 4, configurable
• No. of inputs (n°) 2
• Tamper Tamper/Tear Tamper
• Alarm activation Yes
• Vedo compatible control panels
• Internal buzzer Yes
• Brightness sensor Yes
• Areas screen-printed on keypad (no.) 8
• Type of bus connection RS485
• BUS termination On-board, enableable
• RS485 half-duplex ports (no.) 1
• Installation Wall-mounted, standard 3-module box 503/503E or similar
• Type Cover materials Plastic
• Product color White
• Operating temperature (°C) -10 to 40
• Height (mm) 127
• Width (mm) 137
• Depth (mm) 24
• Product weight (g) 260
• Supply voltage 10÷15
• Max. absorption (W) 1
• Maximum absorption (mA) 80
• Stand-by absorption (mA) 30

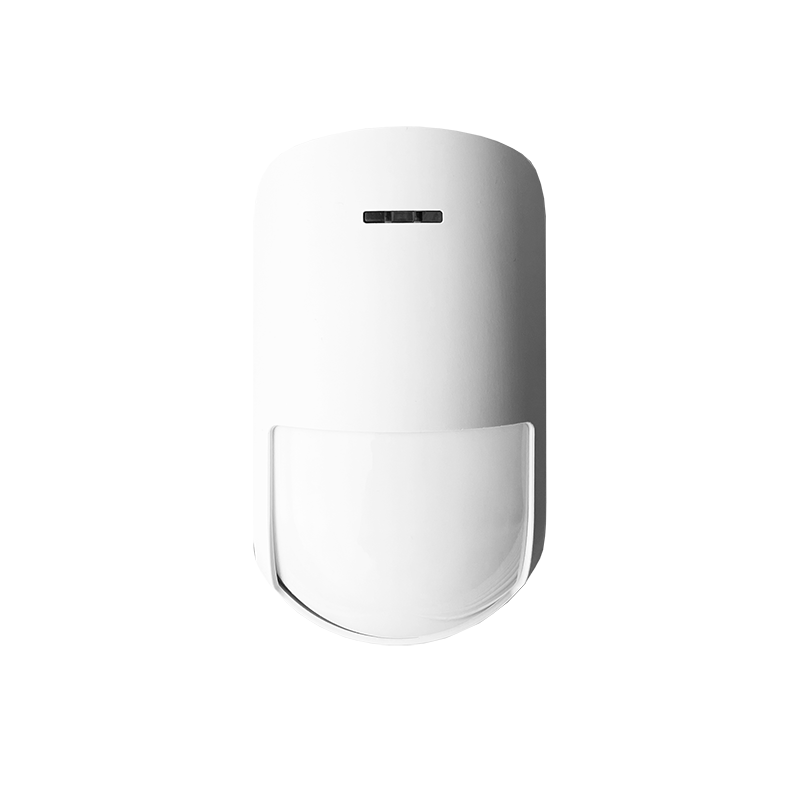

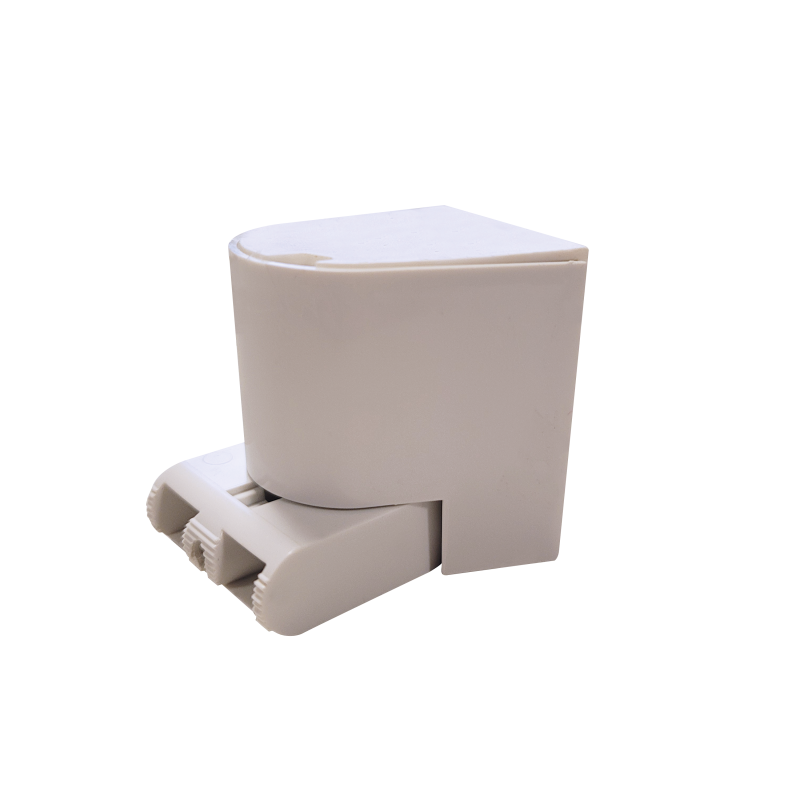

2-piece dual technology sensors, 12m, 90 degrees (code INDT): Dual technology PIR + K-band microwave detector, 12m range and 90° coverage angle with installation at typical height 2.1m. AND/OR/triple-knock function selectable, digital signal analysis, solid-state relay outputs. Three indication LEDs (alarm+pre-alarm, PIR, MW) excludable. Independent PIR and MW sensitivity adjustment trimmers. PIR with selectable motion detection rate and animal immunity up to 12Kg. Power supply 9 to 18VDC with reverse polarity protection, standby consumption 14mA@12VDC. Mounting height from 1.5m to 3m. ABS plastic case in white RAL9003 color, Dimensions 119x66x46mm. Optional INBRK bracket for wall or ceiling mounting. EN50131 grade 2 certification.

Specifications:

• Detection type Microwave 24Ghz K-band
• Infrared range (m) 12
• Microwave range 12m
• Coverage distance (m) 12
• Coverage angle 90°
• Infrared sensitivity adjustment Yes
• Microwave sensitivity adjustment Yes
• Microwave frequency 24GHz (K-band)
• Sensor logic OR/AND/AND intelligent
• Led 3
• Tamper Anti-opening
• Automatic temperature compensation Yes
• Standards EN EN50131 Grade 2, Incert
• Number of detection zones (no.) 71
• Type coating materials ABS
• Product color White
• Operating temperature (°C) -15 to +50
• Dimensions: Height (mm) 119c - Width (mm) 66 - Depth (mm) 46
• Weight 72 grams
• Wall mounting Yes, with dedicated accessory
• Indoor use Yes
• Installation height (m) 1.5 ÷ 3
• Temperature compensation Yes
• Warm up time (s) (secs) 50
• Pet immunity 15 Kg
• Supply voltage 9÷18VDC
• Maximum current consumption (mA) 42
• Quiescent current consumption (mA) 14
• NC contact type
• Walk test function Yes

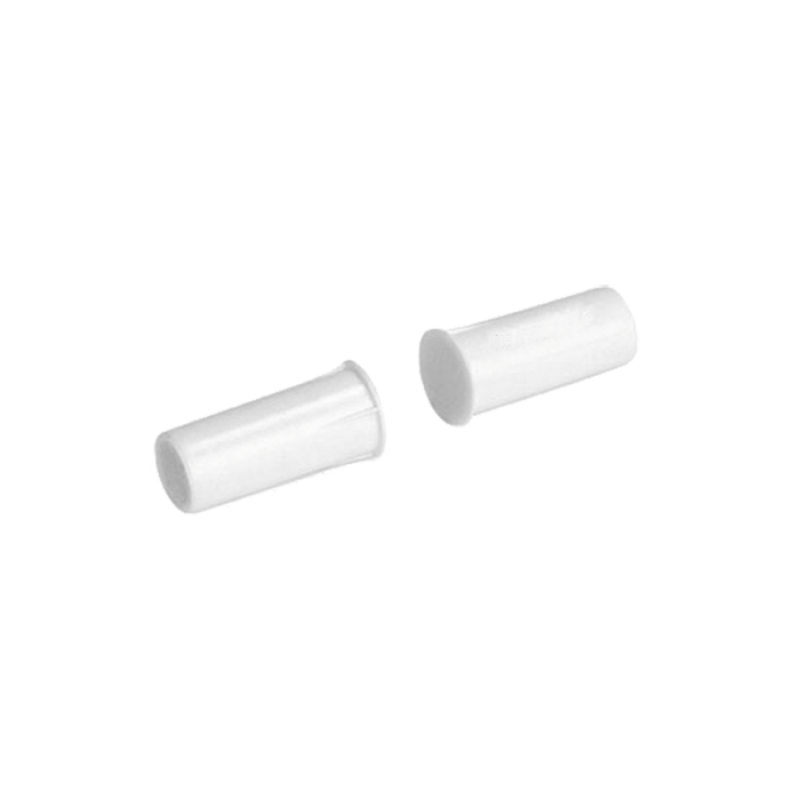

4-piece recessed magnetic cigarette contacts made of plastic material, color white (code 30087001): Recessed magnetic cigarette contact made of plastic material, not suitable for mounting in metal fixtures. White color. Dimensions: 21.5 x 10.5 x 9 mm.



Specifications:

• Type of detection Magnetic
• Standards EN EN50131-2-6 Grade 2
• Operating distance (mm) 20
• Type coating materials Plastic, ABS
• Color White
• Operating temperature (°C) -20 to +80
• Dimensions: Height (mm) 10.5 - Diameter (mm) 10.5
• Flush mounting Yes
• Terminals 2 wires - 350 mm
• Degree of protection IP67
• Maximum contact current rating (mA) 500
• Contact type NC
• Rated voltage 100V
• Rated power 10W
