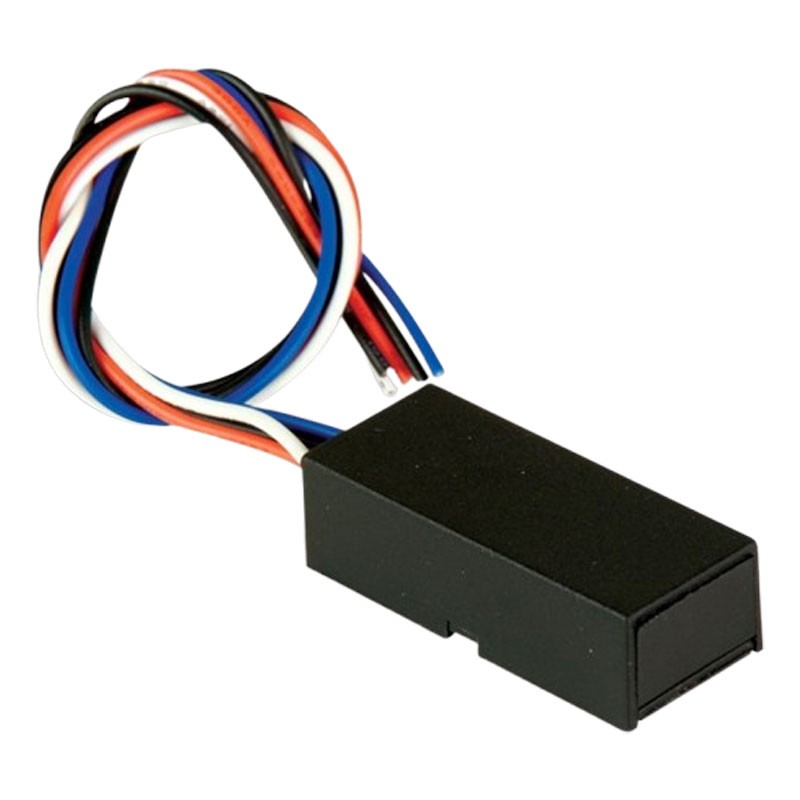

Hiltron Transponder Module 1 Input + 24H for XM Series XM200

Cia Hiltron
Cia Hiltron
C1A XM200 8056450411608

Hiltron transponder module on MPX bus line with 1 programmable input and 24H channel. Ideal for XM Series security systems. Compact, reliable, with the following features:

  • 1 programmable input + 24H channel

  • Connection on 2-wire MPX bus line

  • Minimum power consumption: only 1 mA

  • Sensitivity levels adjustable in 8 steps

  • Ultra-compact dimensions 12 x 5 x 36 mm

  • Safety grade 1

  • Environmental class 2

Do you have questions about this product or did you not find what you were looking for? Ask us!
Hiltron Transponder Module 1 Input + 24H for XM Series XM200
€19.62
€19.62

€19.62
Tax included
Calculate shipping cost
Items Available: 65
Further availability of the manufacturer
€19.62

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Continuous protection transponder module, maximum compatibility

The Hiltron MPX transponder is designed for integration into XM Series alarm systems, offering a programmable input and an always-on 24H line. This enables the management of critical sensors or devices (such as magnetic contacts or technical detectors) that need to be monitored even when the system is switched off.

Fast and versatile installation

Thanks to the MPX 2-wire bus connection, installation is quick and tidy, reducing wiring and setup time. Ultra-compact dimensions allow discreet mounting even in very small spaces, such as inside junction boxes or sensor enclosures.

Advanced customization

The module offers 8 sensitivity levels, adjustable in intervals from 50ms to 225ms (in 25ms steps), to precisely match the type of signal or connected device. Specific functions can be defined through the control unit, improving the flexibility of the entire system.

Recommended Applications.

  • Residential and commercial burglar alarm systems

  • Supervision of technical sensors (gas, flooding, etc.)

  • Dedicated inputs for tamper-resistant lines

  • Remote input management in modular systems

Technical Specifications Transponder module

Connection MPX 2-wire bus
Programmable inputs 1
24H channel Yes
Maximum current consumption 1 mA
Sensitivity 8 levels (50-225 ms)
Cable length 20 cm
Dimensions (W x H x D) 12 x 5 x 36 mm
Safety rating 1
Environmental class 2

Prezzo competitivo rispetto a quello di altri negozianti

Read all reviews

Data sheet

Type:
Transponder
System:
With Wires
