Hiltron KIT burglar alarm system 2 zones KPROTEC4


C1A KPROTEC4 8056450410014

KIT burglar alarm system 2 zones Hiltron, consisting of:

  • 1 piece central burglar alarm 3 zones + 24H (art. PROTEC4)
  • 1 piece KIT 3 electronic keys (art. SK103)
  • 2 pieces passive infrared detectors (art. IR10)
  • 1 piece self-powered siren for outdoor use (art.SA310)
Request info about this product

Hiltron KIT burglar alarm system 2 zones KPROTEC4

€209.29
€209.29

Hiltron KIT burglar alarm system 2 zones KPROTEC4

€209.29
Tax included
klarna Pay in installments with Klarna
qty

Hiltron KIT burglar alarm system 2 zones KPROTEC4

€209.29

Buy it within and receive it from Thursday, 13 June
Two-year warranty
Secure Payment
Easy return within 14 days

Features of the KIT components:

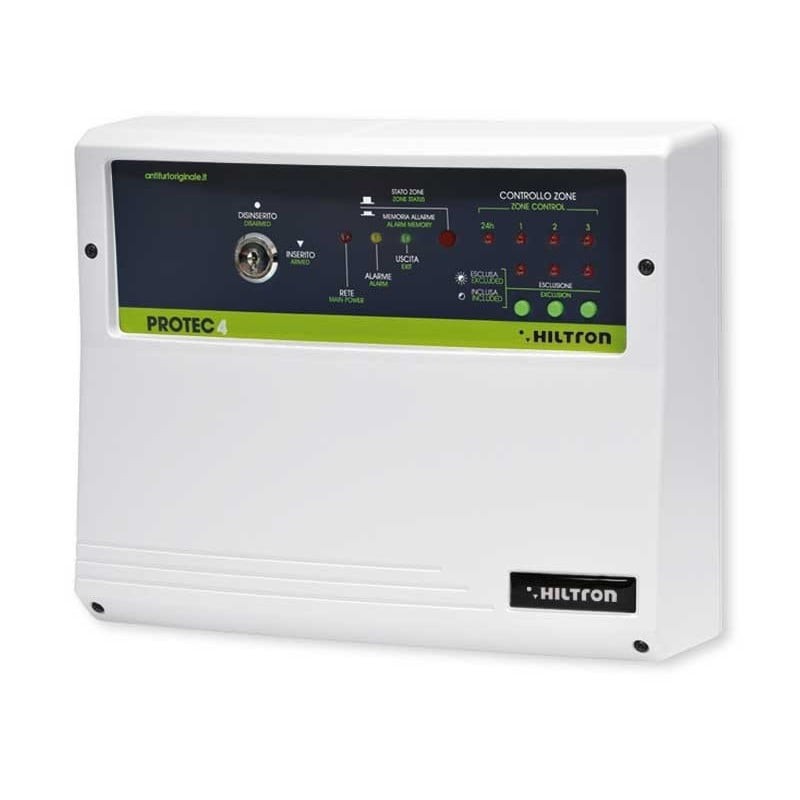

1 piece central burglar alarm 3 zones + 24H (art. PROTEC4):

  • Nominal supply voltage: 230V
  • Possibility of remote control: via browser or App (with TDXCLOUD digital communicator)
  • Absorption: 40mA
  • Maximum absorption: 140mA
  • Anti-sabotage zones 24h: 1
  • Power supply/charger: included
  • Backup battery: 12V 7,5Ah (not included)
  • Control leds: network presence, output time, alarm status, zones, alarm memory, services fuse status
  • Adjustable alarm duration: 180 - 600 sec
  • Transformer secondary fuse: 2A L 250V type F
  • Sirens output fuse: 3,15A L 250V type F
  • Outputs: siren activation Ext/Int positive present with system on
  • Adjustable input time: 4 ÷ 75sec
  • Adjustable output time: 4 ÷ 75sec
  • Container: ABS
  • Safety grade 1
  • Environmental class 2
  • Dimensions: L 280mm x H 230 mm x D 96mm

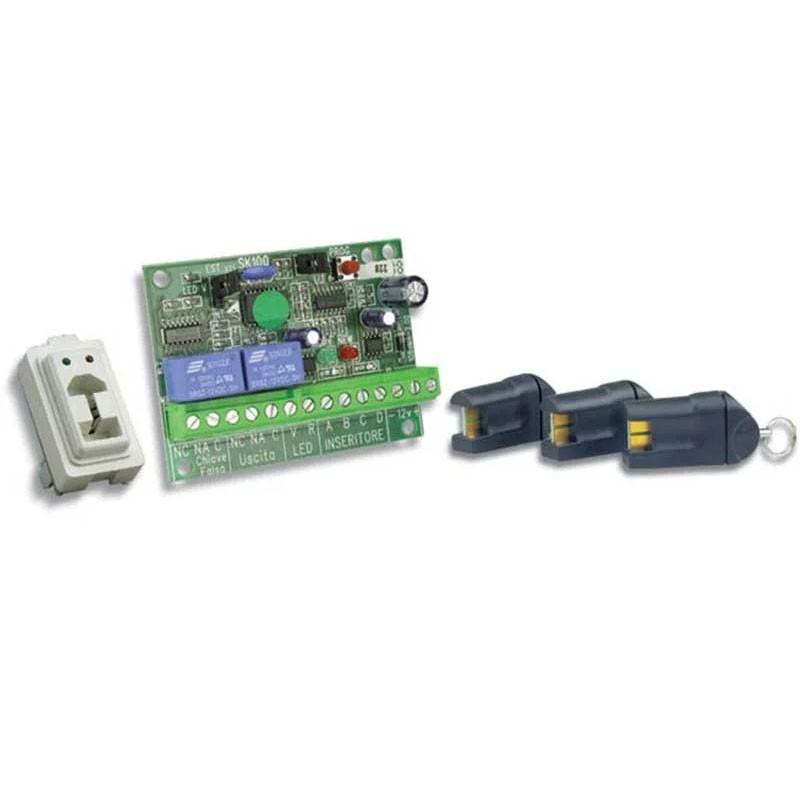

1 piece KIT 3 electronic keys (art. SK103)

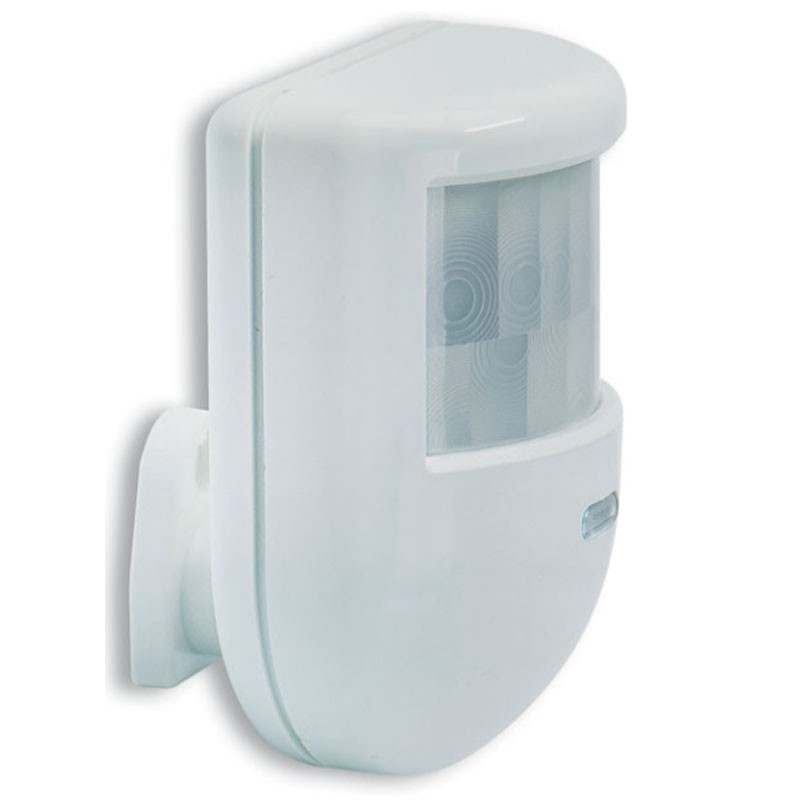

2 pieces passive infrared detectors (art. IR10):

  • Passive infrared volumetric detector equipped with a circuitry made in SMT technology to ensure greater stability in use and greater immunity to electromagnetic interference
  • Pyroelectric sensor with double element
  • Complete with anti-disorientation joint
  • Screw lock closure
  • Automatic sensitivity according to temperature changes
  • Tamper protection
  • High immunity to RF30Vm
  • Nominal supply voltage 13Vcc ±5%.
  • Maximum absorption 20mA
  • Lens beams 17 (on 3 horizontal levels)
  • Lens levels 3
  • Angle of coverage front (PIR) H: 85 °, V: 60 °
  • Coverage max. 12mt
  • Signalling LED not excludible
  • Solid state relay outputs NC 100mA, 50Vdc max.
  • Initial stabilization time 60"
  • Operating temperature+5°C ÷ 40°C
  • Safety grade 1
  • Environmental class 2
  • Dimensions (WxHxD) 59x80x52mm
  • Complies with CEI EN 50131-1 standards

Installation:

  • Fix the base of the joint to the wall after drilling and applying the dowel. Make sure that the base of the joint is reliably fixed, checking that the surface of the wall is smooth and not subject to vibration.
  • Open the detector and fix the base to the joint. Tighten the screw in the joint after orienting the detector. Do not orient the detector towards objects that may produce rapid temperature changes such as radiators, electric radiators, air conditioners, open flames, etc.
  • Also avoid installation near them.
  • Do not partially or completely obscure the detector's field of view.
  • Do not touch the pyroelectric sensor with your fingers!
  • When the IR10 is energized, the LED flashes for about one minute to allow the infrared sensor to stabilize.
  • When the sensor detects movement, it opens the output relay and switches on the LED. The output circuit remains open for the entire detection time and closes again after about three seconds after restoring the resting condition

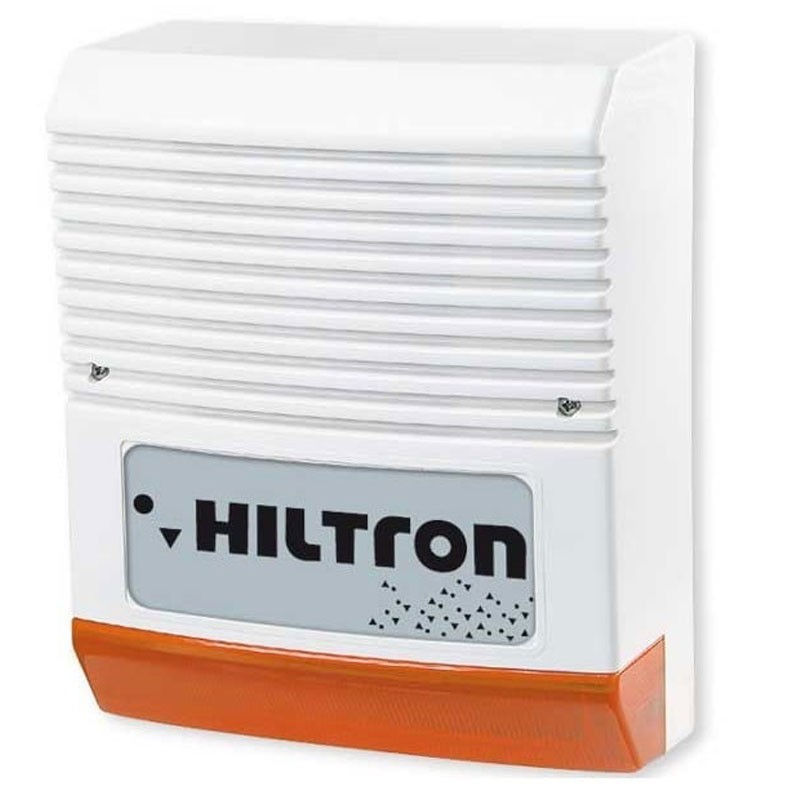

1 piece self-powered siren for outdoor use (art.SA310):

  • Rated supply voltage 12V
  • Frequency 1237 Hz
  • Absorption 10mA
  • Maximum absorption 1.9A
  • Pressure level 100dB(A) @ 3mt
  • Self-powered
  • Suitable for outdoor
  • Hiltron series
  • Weight 1.9kg
  • Dimensions 28 × 13.6 × 29.3 cm
  • Function test: when the battery is connected
  • Tamper protection: anti-opening and anti-tear
  • Fuse protection: power supply and bulb
  • Inner container: Epoxy powder coated steel sheet
  • Container ABS
  • Screws stainless steel
  • Color white
  • Battery compartment B12V2A
  • Operating temperature -25°C ÷ +55°C
  • Degree of protection IP34

Dimensions (L)

  • (W) 205 mm
  • (H) 246 mm
  • (D) 103 mm

Data sheet

KIT:
Burglar alarm kits
System:
With Wires
