Hiltron KIT electronic key SK103

C1A SK103 8056450410427

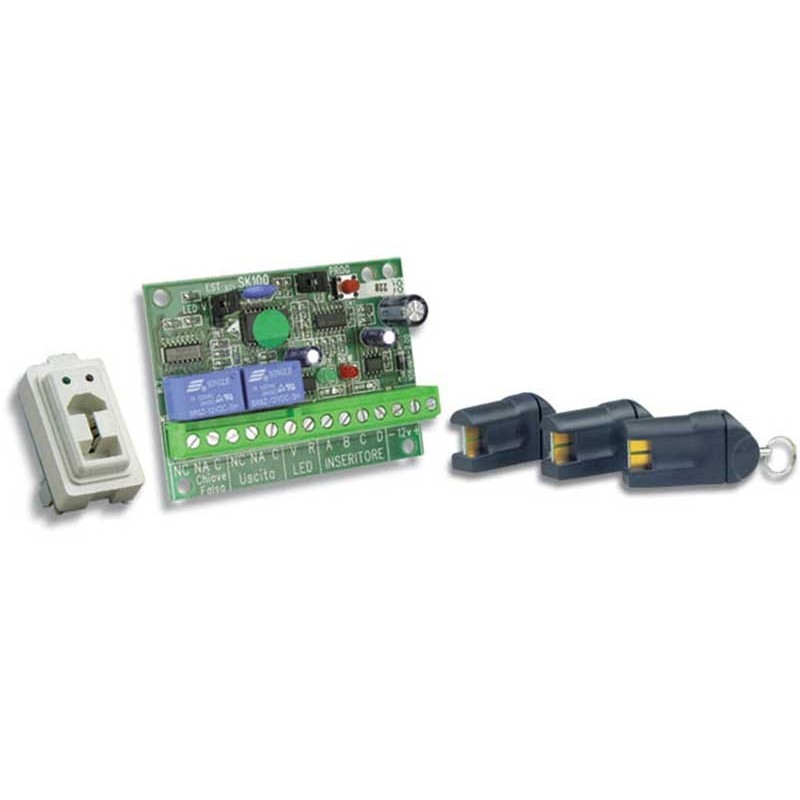

Hiltron kit composed by:

  • 1 piece processing board for electronic key (art. SK100)
  • 3 pieces additional electronic key SK Hiltron (art. SK)
  • 1 piece additional inserter (art. SKI/M)
Request info about this product

Hiltron KIT electronic key SK103


Hiltron KIT electronic key SK103

Tax included
klarna Pay in installments with Klarna

Hiltron KIT electronic key SK103


Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

KIT components specifications

1 piece processing board for electronic key (art. SK100): SK100 is a digital electronic key control system with microprocessor technology that replaces, to the obsolete electronic key programmable via Dipswitch or welding point, the new SK key equipped with self-programmable EEprom memory with 32bit random generation code. It represents a valid innovation in the control of security systems or automation systems, ensuring safety, reliability and a remarkable ease of both assembly and management.


  • RANDOM code generation
  • Simplified key coding
  • Monostable or bistable operation
  • External control of the inserter LEDs
  • Possibility of connecting up to 4 SKI inserters in parallel
  • Auxiliary relay for false key recognition.
  • Nominal supply voltage: 13Vdc ±5
  • Absorption min/max: 40/80mA
  • Relay contacts output: C/NC/NA
  • Relay contacts capacity: 24V 1A
  • Maximum distance inserters: 200 meters
  • Security grade: 1
  • Environmental class: 2
  • Dimensions: 90x52mm
  • Complies with CEI EN 50131-1 standard

3 pcs additional electronic key SK Hiltron(art. SK): Additional electronic key SK Hiltron. Suitable for SK inserters. Method of operation insertion.

1 piece additional inserter (art. SKI/M): Additional Hiltron Magic inserter for SK key. Should be connected in parallel to 'main inserter, reporting the same signals.
