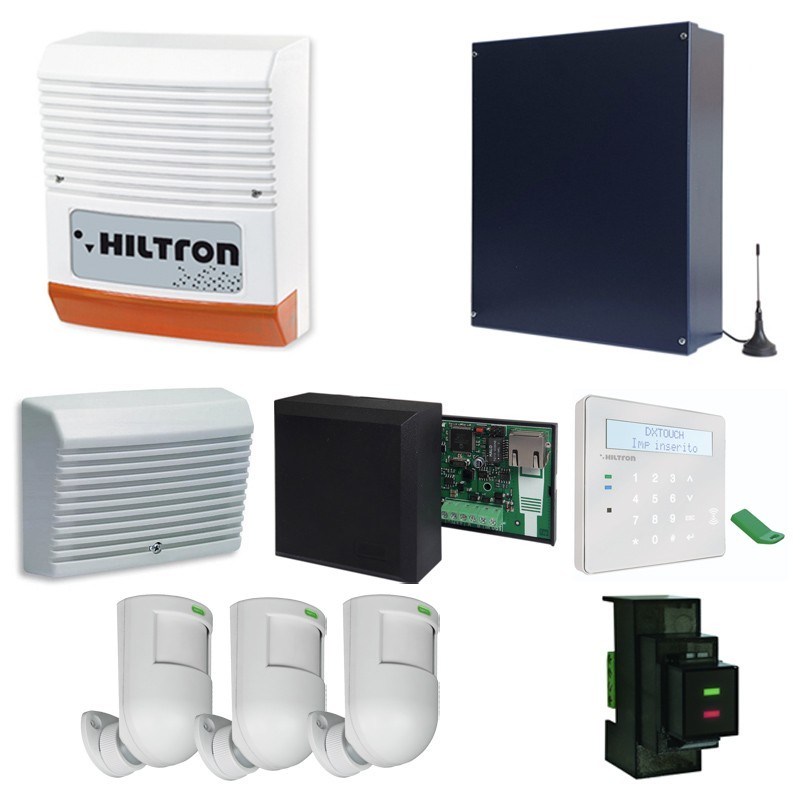

Technical specifications of kit components:

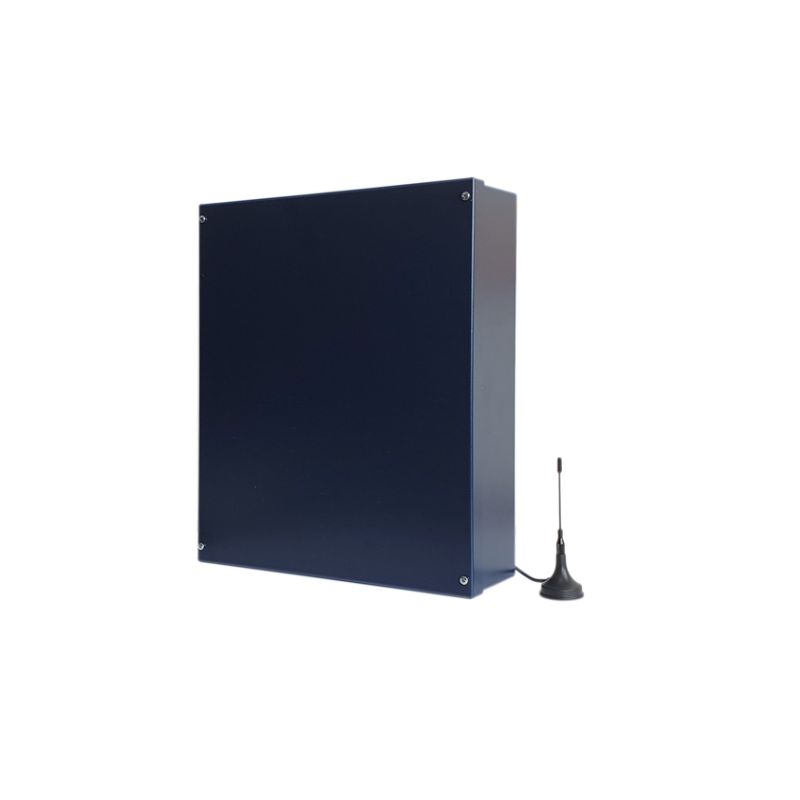

1 piece (code POWER8) 8-zone radio control unit with integrated GSM:

• Burglar alarm control unit 2 delayed zones + 6 immediate zones + 24h line + tear and anti-opening tamper
• 8 zone inputs and 24h line individually programmable logical, balanced or radio
• Output for activation of external equipment on activation/deactivation of control unit
• Integrated power supply/battery charger with mains presence control.
• Pulse battery charger for longer battery life
• Two configurable system partialisation modes
• Uses DX100 and DX300 proximity key readers with choice of system partialisation modes
• RS485 connection line with "DX bus" protocol
• Quad Band GSM telephone dialer with pre-recorded voice messages and customisable initial message
• SMS sending with system status signalling, alarmed zone identifier and power supply status.
• Responder with voice guidance for querying and controlling the control unit
• Telephone and SMS alert for prolonged power failure
• SMS redirection received to the first number in the phone book
• Query by SMS return of telephone credit
• Telephone book with 16 numbers
• Immediate protection zones: 6
• Delayed protection zones: 2
• 24-hour" sabotage protection zones: 1 + Tamper
• Integrated GSM Quad Band 850/900/1800/1900 MHz telephone module
• 3v/1.8v microSIM card
• Supply voltage: 230V +/- 5% 50 Hz
• Maximum power consumption: 120 mA@230V
• Number of connectable readers: 4
• 12V output for external power supply: 1.5 A. total
• 12V output for external device activation: max. 100 mA
• 12V 7Ah battery compartment
• Alarm duration programmable from 180 to 600 seconds
• Input time programmable from 0 to 60 seconds
• Programmable exit time from 0 to 60 seconds
• Telephone numbers in the phonebook: 16
• External container pre-painted galvanised sheet metal
• Safety class: 1
• Environmental class: 2
• Operating temperature: -5/+40°C
• Conforms to standard: CEI EN 50131-1

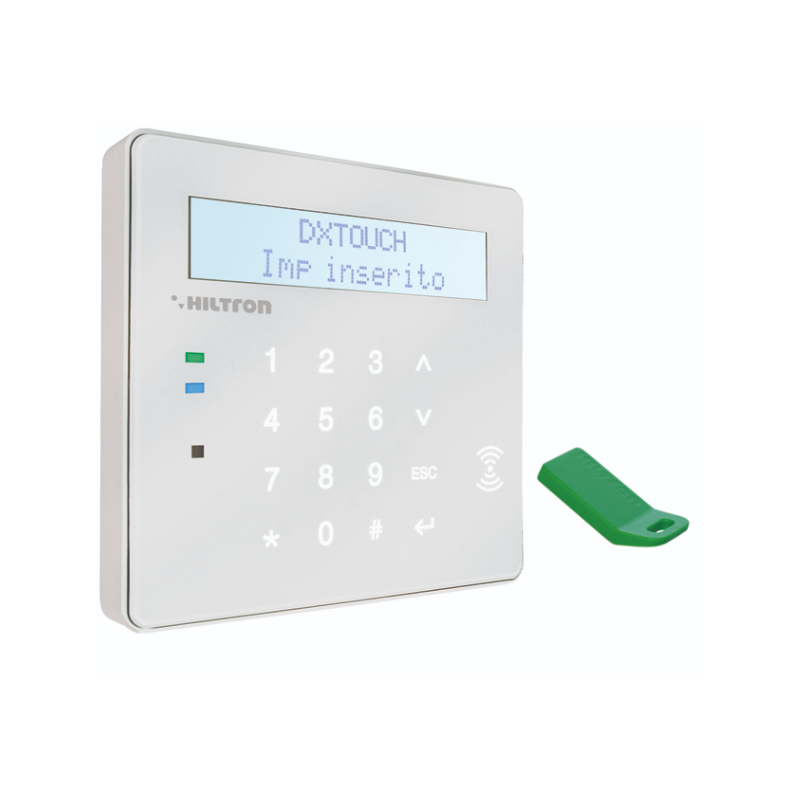

1 piece (code DXTOUCHB) Touch console with proximity reader for DX series PROTEC4GSM PROTEC8GSM (white): The DXTOUCHB console is an accessory for the PROTEC4GSM and PROTEC8GSM control units. The console is a slim control device with a modern, elegant design. The function of this console is to remote the keypad/display that is present on the PROTEC4GSM and PROTEC8GSM control units. By operating on this console, it is possible to execute all the commands available on the control unit. In addition, this device is equipped with a convenient RFID proximity reader. This console has been designed with an innovative design, created to be installed in any type of domestic environment. The console functions as a remote control panel keypad and allows all functions that are available on the control panel keypad to be executed. The keys operate with touch technology; to activate a single key, simply touch in the indicated area. The large display shows all information available from the control panel in a simple and summarised manner. The console can be configured to sound when an alarm is detected or it can operate in silent mode. The RFID proximity key reader functions as a normal inserter, and allows the operations of : TOTAL INSERT P-A INSERT (PARTIAL A) P-B INSERT (PARTIAL B) DISINSERT easily and immediately, avoiding the need to remember and enter the user access code. When using the RFID proximity key, the authorisation to access the menus: TOTAL INSERT / P-A INSERT P-B INSERT / DISINSERT is implicit and is guaranteed by the secret key encryption system. Courtesy sensor (keyboard approach) The DXTOUCHB console is equipped with a frontal courtesy approach sensor. This sensor detects the presence of a user at a maximum distance of about 5 cm. When a user approaches, the console is activated (the backlight of the keyboard and display are switched on if the presence sensor has been enabled in the configuration menu). Power-saving The DXTOUCHB console, when not operational for longer than 30 seconds, switches off the keyboard backlight and display backlight and enters the power-saving state. The console becomes operational again (display and keyboard light up) if it detects a presence on the approach sensor (if enabled) or if any button is pressed. The DXTOUCHB console is equipped with two signalling LEDs . The LEDs are coloured: GREEN LED BLUE LED The LEDs indicate various operating states of the control unit.

• Compatible with PROTEC4GSM and PROTEC8GSM control panels
• Elegant flat design with touch-sensitive, backlit keys
• RFID proximity key reader
• Installation with preparation for 503 wall box
• Large backlit alphanumeric display 2 x 16 characters
• Power supply voltage : 12 Vdc ± 10
• Normal consumption : 150mA
• Maximum current consumption : 250mA
• Degree of enclosure protection: IP40
• Acoustic buzzer
• Tamper protection anti-opening / anti-tear
• Two signalling LEDs
• Approach sensor
• Safety class 1
• Environmental class 2
• Dimensions (WxHxD) 132 x 132 x 20 mm
• Conforms to CEI EN50131-1 standard

Installation:

• Avoid installing the console in a location exposed to direct sunlight
• Avoid installing the console in a location exposed to excessively hot or cold temperatures
• Avoid installing the consoles in a location exposed to the elements, such as rain, wind, or excessive humidity
• Avoid installing the console near other electronic equipment such as power supplies and radio equipment / GSM telephones. This equipment can disturb the normal operation of the console
• The console casing is also designed to be fixed on a 503 cassette

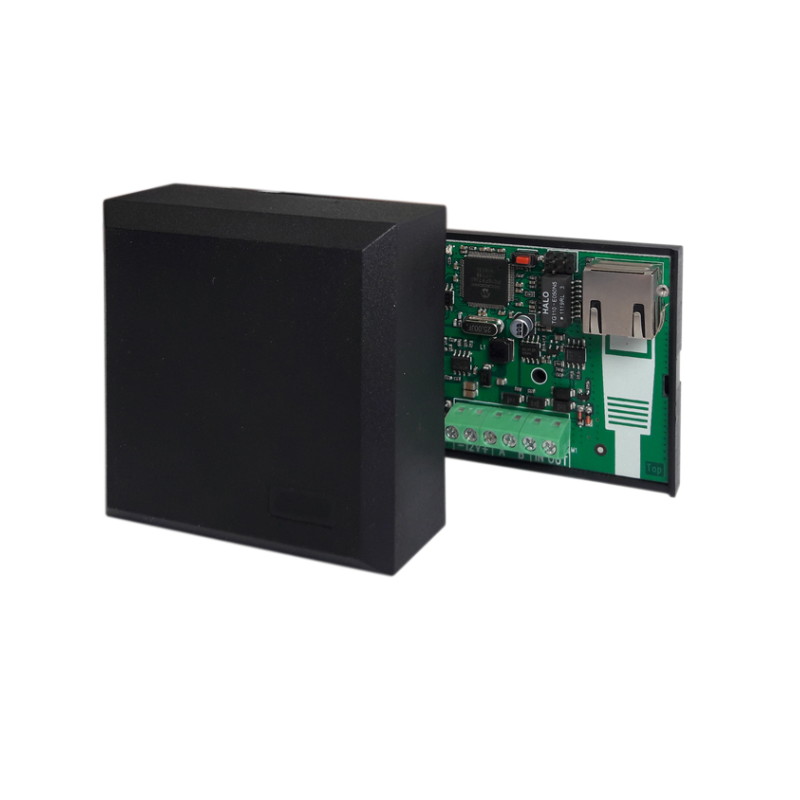

1 piece (Code DXETH) Ethernet board for remote control PROTEC4GSM and PROTEC8GSM:

• Supply voltage: 12Vdc
• Power consumption: 150mA
• Ethernet connection: 10Mb
• Bus connection: RS485 PROTEC series
• Local inputs: 1
• Local outputs: 1 Open Collector
• Led signalling operating status
• Reset button
• Safety class: 1
• Environmental class: 2
• Dimensions: 69x61x28mm

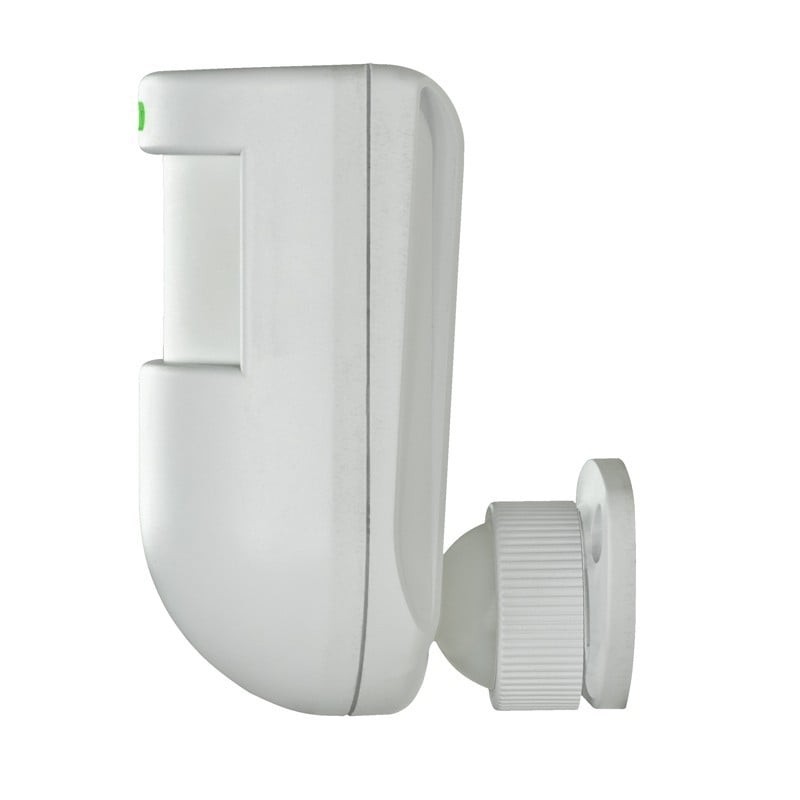

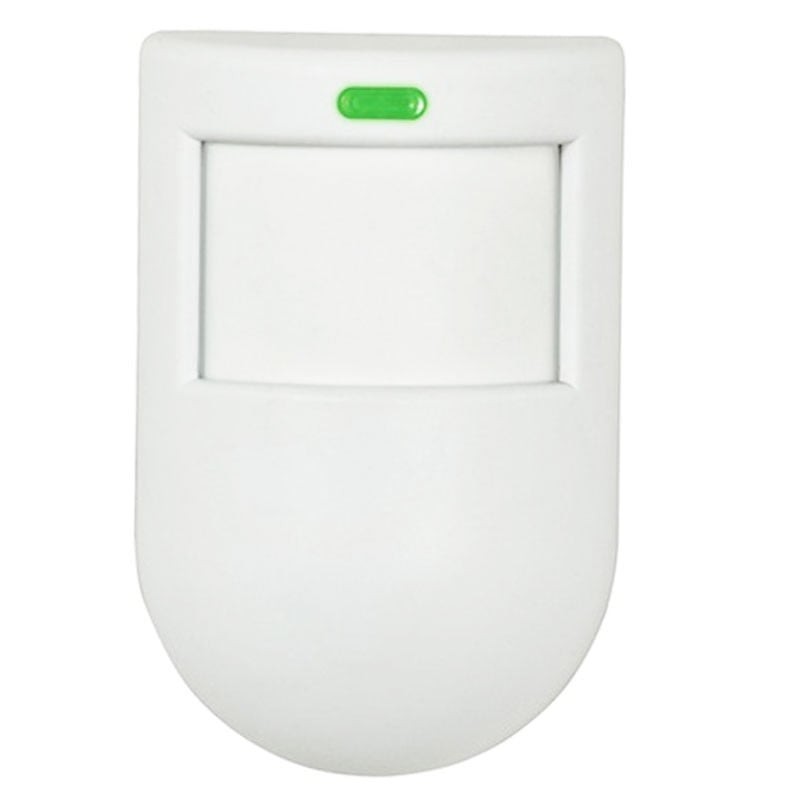

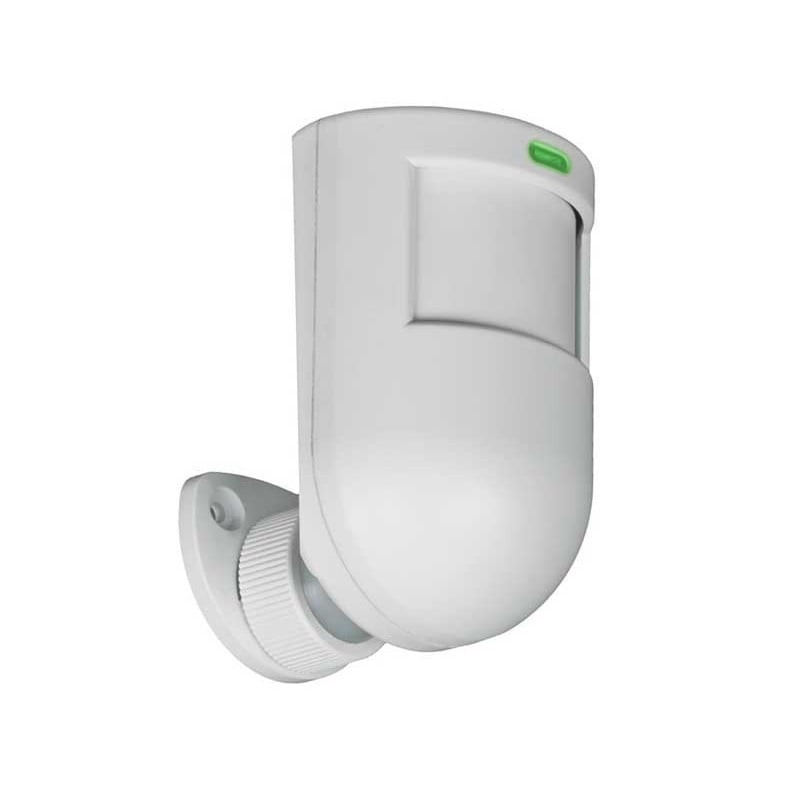

3 pieces (code DG12) Dual Technology detectors:

WORKING PRINCIPLE: The DG12 works in 'dual technology', which means that only if both technologies (Infrared and Microwave) detect a real intrusion is an alarm given. This avoids false alarms due to activation of the infrared sensor only (sometimes caused e.g. by sunlight) or the microwave sensor only (sometimes caused e.g. by moving objects).

ANTI-MASKING: In the event of a prolonged alarm of one of the two technologies, and in the absence of detection of the other, the DG12 activates a continuous alarm state, signalled by the flashing red LED and the open zone contact, a state which remains until both technologies resume correct operation. In this way, if, for example, the infrared sensor is masked by thermally isolating it, but the microwave sensor continues to be repeatedly alarmed, the detector goes into a continuous alarm state which triggers the burglar alarm control panel.

ANTIMANOMISSION: If the DG12 detects a presence very close to the detector (approximately 40cm) it will go into a continuous alarm state, signalled by the flashing of the red LED and the opening of the zone contact. Also in this case, if after a few seconds, both technologies resume detecting presence at a greater distance, and are therefore operating normally, the detector resumes its normal operation.

INSTALLATION:

• Remove the electronic circuit from the enclosure by levering it sideways with a tool and hook the joint to the base of the enclosure after passing it through the retaining ring
• Use the extension for the joint in the case of ceiling mounting
• Cover the unused hole on the base of the with the supplied mat
• Fix the base of the joint on a smooth, level surface that is not subject to vibration, covering the hole for the passage of the electrical cables for connection to the control unit, using the plugs supplied
• Pass the electrical cables through the hole in the joint and attach the fixing ring to the base
• Once installed and oriented in the desired position, it will be possible to lock the detector by fully rotating the locking ring
• Reposition the circuit on the base of the enclosure and make the electrical connections
• It is possible to mount the detector at an angle (in this case do not use the joint, but drill two holes on the enclosure for fixing on the sides
• Do not point the detector towards objects that could produce rapid temperature changes such as radiators, electric radiators, air conditioners, open flames, etc.
  Also avoid installation near them
• Do not partially or completely obscure the detector's field of vision

Detector specifications:

• Digital dual element sensor (Digipyro™)
• Microwave sensor 10.525Gh
• Complete with anti-disorientation joint
• Sensitivity adjustable by trimmer
• Tamper protection
• Tamper function
• Anti-masking function
• High RF immunity (over 30Vm)
• Rated supply voltage 12V
• Maximum power consumption 18mA
• Coverage: 12 metres
• Lens beams 23 (on 3 horizontal levels)
• Angle of coverage front (PIR) H: 120°; V: 60°
• Coverage angle microwave front H: 80°; V: 32°
• Signalling LEDs
• Solid-state relay output NC 100mA, 50Vdc max
• Initial stabilisation time 30"
• Security grade: 1
• Environmental class: 2
• Dimensions (WxHxD) 59x99x60mm
• Conforms to CEI EN 50131-1 standards

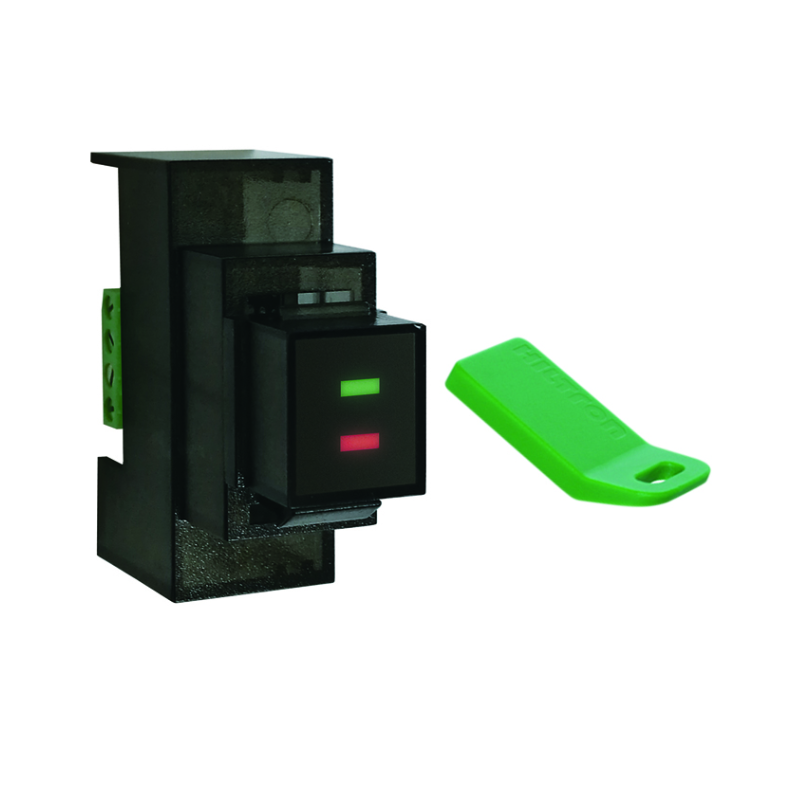

1 piece (code DX200) HF proximity reader with line-zone bias on RS485 Smoke:

• Can be installed inside any flush-mounted luminaire cap with RJ45 connection
• Number of leds 2
• Environmental class 2
• Safety class 1
• Dimensions (W)19mm - (H)33mm - (D)47mm

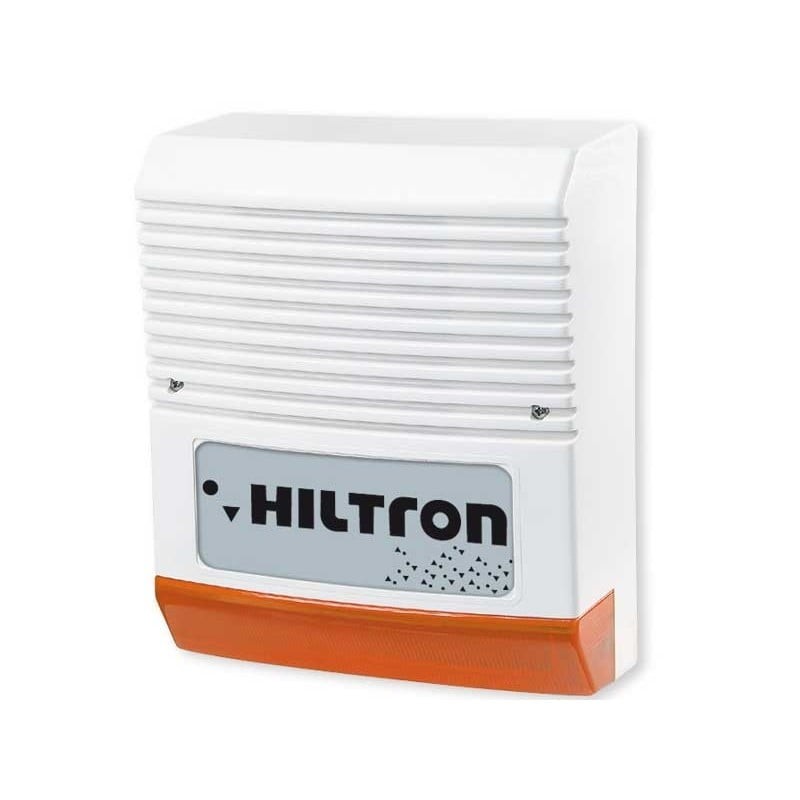

1 piece (code SA310) Self-powered outdoor siren with LED flasher: The SA310 is an electronic self-powered outdoor siren for use in the context of a burglar alarm system. After installation, connect the red/black wire with faston to the 12V 2Ah battery inside the siren: this will start the TEST function, activating the siren and the flasher for two seconds. Connect terminals (1) and (2) in series to the 24h line and terminals (3) and (4) to the 13.8Vdc "self-powered siren" output of the burglar alarm control unit. Under normal conditions, this voltage keeps the internal 12V battery constantly charged. The siren is activated when this 13.8Vdc voltage drops.

• Nominal supply voltage 12V
• Frequency 1237 Hz
• Absorption 10mA
• Maximum absorption 1.9A
• Pressure level 100dB(A) @ 3mt
• Self-powered
• Suitable for outdoor use
• Weight 1.9 kg
• Dimensions 28 × 13.6 × 29.3 cm
• Function test: at battery connection
• Tamper protection: anti-opening and tear-proof
• Protection fuse: power supply and bulb
• Inner container: Epoxy powder-coated sheet steel
• ABS enclosure
• Stainless steel screws
• White colour
• Battery compartment B12V2A
• Operating temperature: -25°C to +55°C
• Degree of protection IP34
• Dimensions: (W) 205 mm - (H) 246 mm - (D) 103 mm

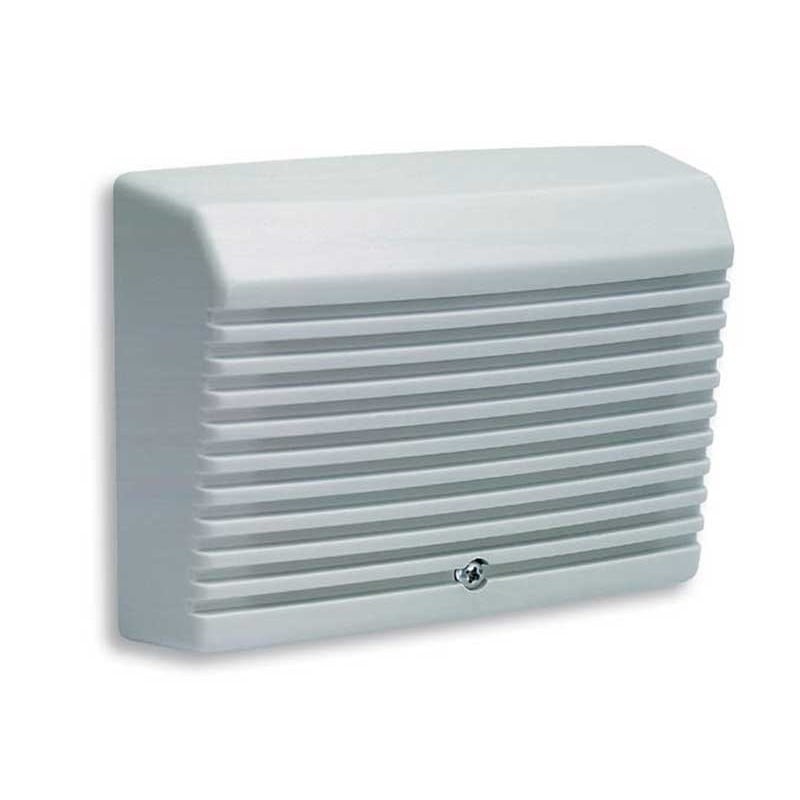

1 piece (code SP31) Piezoelectric electronic siren:

• Modulated sound
• Tamper anti-opening and anti-tear
• Reverse polarity protection
• Rated voltage: 12V
• Rated supply voltage: 13.8V ±10%.
• Sound pressure level: 99dB(A) @ 3 mt
• Fundamental frequency: 3585Hz
• Power consumption: 140mA
• ABS housing
• Operating temperature: +5°C ÷ +40°C
• Dimensions: 135x95x43mm
• Weight: 156 grams approx
• Degree of protection: IP3X
